DAHUA · VIDEO INTERCOM KITSDahua DHI-KTP02-S2 7-Inch IP Video Intercom Kit with Door Station & PoE Switch

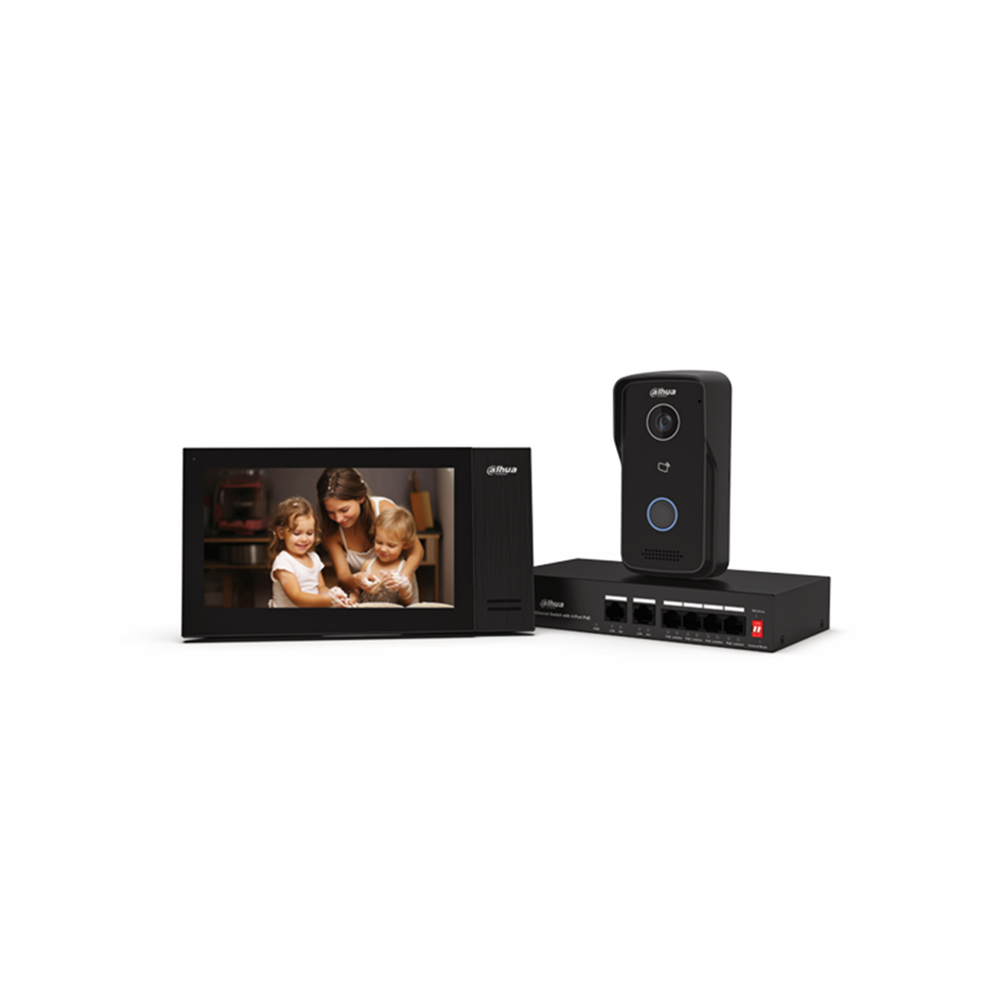

Create a coordinated front-door intercom system with a black 2MP door station, a black 7-inch indoor monitor and a PoE network switch. The Dahua DHI-KTP02-S2 supplier package brings together the VTO2111D-P-S3, VTH2421FB-P and PFS3006-4ET-36.
Package reference
DHI-KTP02-S2
Display
7-inch capacitive touchscreen, 1024 × 600
Designed for your installation
See and speak to visitors from the indoor touchscreen and use supported access-control functions with a correctly connected electric lock. The included switch provides a wired IP backbone for the door station and monitor; this is not a claim that the package is a wireless intercom.
Switch ports
4 PoE ports plus 2 uplinks, 10/100 Mbps
IC card reader, up to 10,000 cards
Technical Specifications
| Model |
DHI-KTP02-S2 |
| Package reference |
DHI-KTP02-S2 |
| Door station |
VTO2111D-P-S3, 2MP, black |
| Indoor monitor |
VTH2421FB-P, black |
| Display |
7-inch capacitive touchscreen, 1024 × 600 |
| Included switch |
PFS3006-4ET-36 |
| Switch ports |
4 PoE ports plus 2 uplinks, 10/100 Mbps |
| Door camera view |
107° horizontal |
| Door access |
IC card reader, up to 10,000 cards |
| Door illumination |
Infrared |
| Indoor storage |
Embedded 8 GB |
| Monitor alarms |
6 inputs and 1 output |
| Device power |
Compatible PoE or 12 VDC |
| Door protection |
IP65 with proper sealing, IK04 |
Setup and compatibility
Electric locks, lock power supplies and network cabling must be selected for the site. The 7-inch measurement refers to the indoor monitor. Manufacturer documentation identifies the component family as DHI-KTP02; the S2 package designation is confirmed by the supplier.
Downloads
DHI-KTP02-S2 Datasheet (PDF)
Frequently asked questions
Which components are included in DHI-KTP02-S2?
VTO2111D-P-S3 2MP door station, VTH2421FB-P 7-inch indoor monitor and PFS3006-4ET-36 PoE switch. Select the lock, lock power and cabling for the site.
What should I check before installation?
Electric locks, lock power supplies and network cabling must be selected for the site. The 7-inch measurement refers to the indoor monitor. Manufacturer documentation identifies the component family as DHI-KTP02; the S2 package designation is confirmed by the supplier.
Where can I download the DHI-KTP02-S2 datasheet?
The manufacturer PDF is hosted on CCTV Guru’s Shopify file library and linked in Downloads on this product page.
