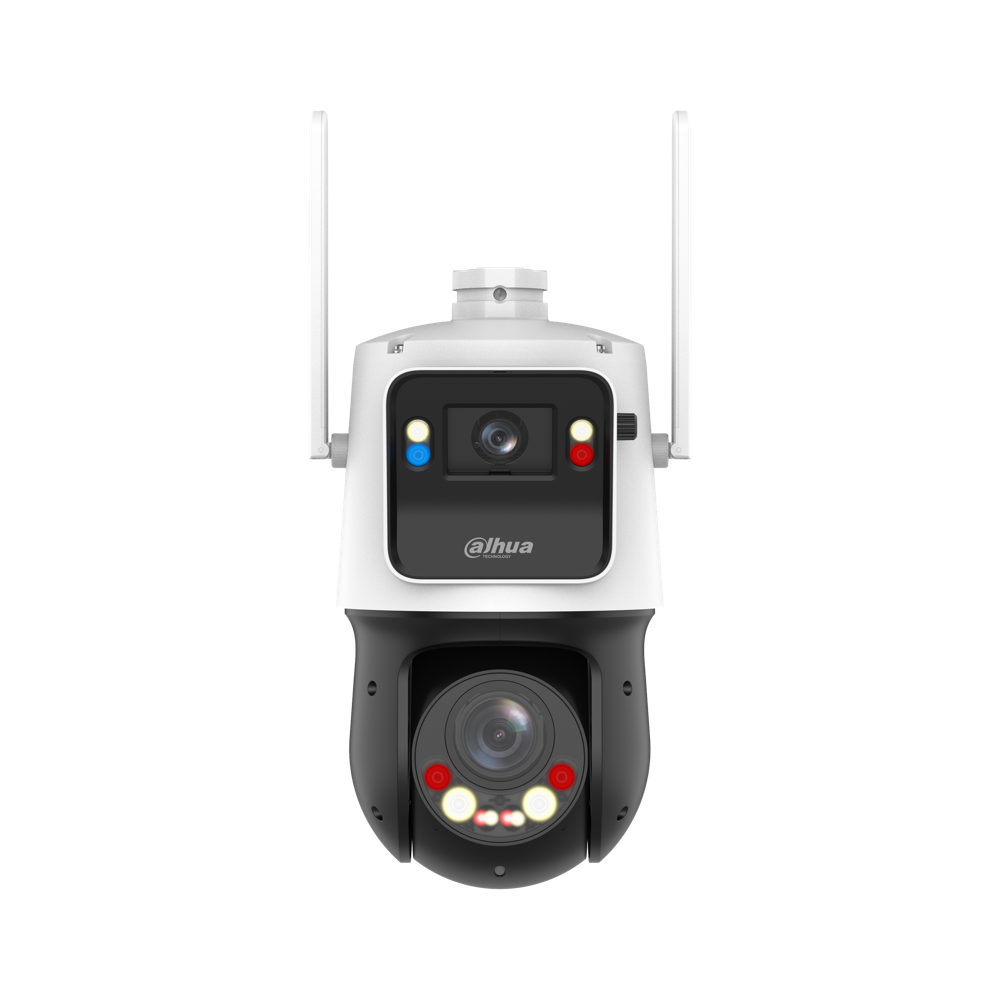

DAHUA · 4G SECURITY CAMERASDahua DH-SDT4E425-4F-MB-AGQ-PV1-EAU 4G Dual 4MP WizColor 25× PTZ Camera
Connect a remote monitoring location over a compatible 4G mobile network. This Dahua dual-channel PTZ combines a 4MP WizColor overview camera with a separate 4MP 25× optical-zoom detail camera, helping retain scene context while tracking a subject.
Network
4G LTE with compatible SIM and mobile service
LTE FDD bands
1 / 3 / 7 / 8 / 20 / 28
Overview channel
4MP, 1/1.8-inch CMOS, 4 mm F1.0 lens
Overview view
95° horizontal
Designed for your installation
WizTracking, active deterrence, low-power AOV modes and local storage suit carefully planned remote sites. The fixed overview camera and motorised detail channel perform different jobs; their resolutions should not be mistaken for one native 8MP image.
4MP, 5–125 mm lens, 25× optical zoom
Overview illumination
Warm light up to 30 m
IR and warm light up to 100 m
150 dB overview, 120 dB detail
Technical Specifications
| Model |
DH-SDT4E425-4F-MB-AGQ-PV1-EAU |
| Network |
4G LTE with compatible SIM and mobile service |
| LTE FDD bands |
1 / 3 / 7 / 8 / 20 / 28 |
| Overview channel |
4MP, 1/1.8-inch CMOS, 4 mm F1.0 lens |
| Overview view |
95° horizontal |
| Detail channel |
4MP, 5–125 mm lens, 25× optical zoom |
| Overview illumination |
Warm light up to 30 m |
| Detail illumination |
IR and warm light up to 100 m |
| Dynamic range |
150 dB overview, 120 dB detail |
| Intelligence |
WizTracking, supported ANPR and AOV modes |
| Audio |
Dual microphones and speaker |
| Storage |
microSD up to 1 TB, sold separately |
| Power |
12 VDC, 4 A |
| Recording |
Dual-channel recording with compatible configuration |
Setup and compatibility
Confirm carrier bands, SIM plan, coverage and Australian network compatibility for the exact EAU variant before purchase. A SIM, data plan, solar power system and memory card are not included. This model uses DC power; do not assume PoE support.
Official product family video
Official Dahua WizColor technology overview
Downloads
DH-SDT4E425-4F-MB-AGQ-PV1-EAU Datasheet (PDF)
Frequently asked questions
Can DH-SDT4E425-4F-MB-AGQ-PV1-EAU record to a microSD card?
Yes. microSD up to 1 TB, sold separately. The card is separate; configure recording and retention for the installation.
What should I check before installation?
Confirm carrier bands, SIM plan, coverage and Australian network compatibility for the exact EAU variant before purchase. A SIM, data plan, solar power system and memory card are not included. This model uses DC power; do not assume PoE support.
Where can I download the DH-SDT4E425-4F-MB-AGQ-PV1-EAU datasheet?
The manufacturer PDF is hosted on CCTV Guru’s Shopify file library and linked in Downloads on this product page.
