Dahua · IPC-HDBW5441F-AS-E2 · Dual 4MP · WizMind
Dual 4MP WizMind

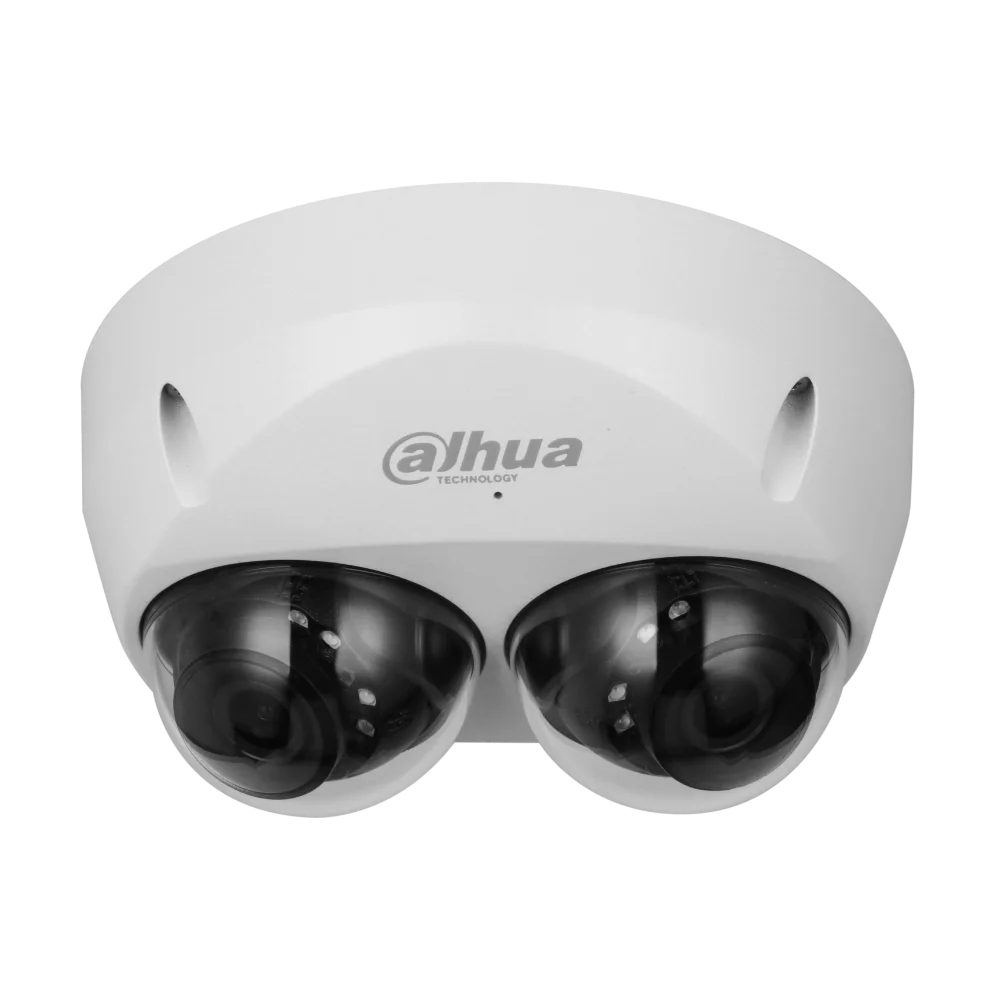

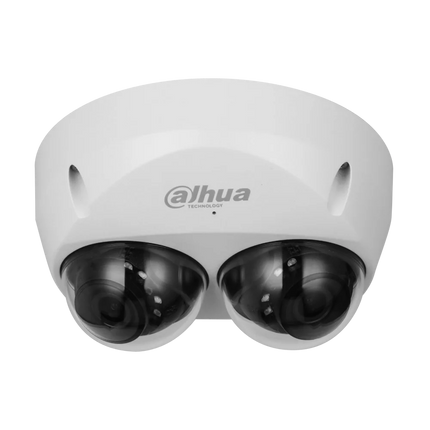

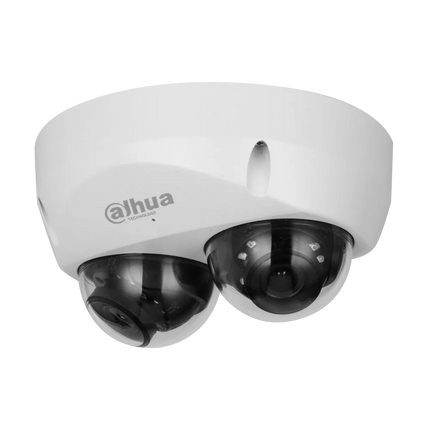

Dahua IPC-HDBW5441F-AS-E2 Dual-Directional 2 × 4MP WizMind Network Camera
The Dahua IPC-HDBW5441F-AS-E2 puts two independently adjustable 4MP camera channels into one compact metal dome. It is designed for entrances, L-shaped façades, corridors, loading bays and other locations where two viewing directions are needed but a second camera and cable run would be inefficient. Each channel can run WizMind analytics at the same time, with 30m IR, built-in audio, local microSD recording and IP67 / IK10 protection.
Key Features
Dual channels
2 × 4MP · 2560 × 1440 each
Coverage
Two independently aimed views
AI analytics
SMD 3.0 · perimeter · people count
Night vision
Infrared illumination to 30m
Protection
IP67 weatherproof · IK10 vandal resistant
-
Two useful views from one installation: two 4MP channels can be aimed separately to cover split approaches, frontage and side access, or opposite directions along a corridor.
-
WizMind analytics on both channels: use human and vehicle classification for intrusion, tripwire and fast-moving events; the camera also supports face detection, people counting, queue management, loitering, gathering, parking and abandoned / missing object events.
-
Efficient viewing and recording: H.265 / Smart H.265+ / AI H.265 compression, three streams and FlexStream support help tailor live viewing and storage requirements.
-
Built for real installations: metal construction, 30m IR, built-in microphone, 2 alarm inputs / 2 alarm outputs, audio I/O, 12V DC or PoE, and microSD support up to 256GB.
Why Choose a Dual-Directional Camera?
This is not a stitched 8MP panoramic stream. It is a two-channel camera with two independently positioned 4MP modules, so each direction can be aimed for the scene that matters. That makes it a strong fit when one cable route is available but the site needs coverage in two directions. Plan recorder capacity as two camera channels unless the specific NVR or VMS supports the camera's FlexStream presentation mode.
Technical Specifications
Dahua IPC-HDBW5441F-AS-E2
| Camera channels |
Two independently adjustable 4MP channels |
| Image sensor & resolution |
1/2.7-inch CMOS per channel · maximum 2560 × 1440 at 25/30 fps per channel |
| Lens & field of view |
2.8mm fixed-focal M12 lens · F1.6 · 95° horizontal / 52° vertical / 114° diagonal per channel |
| Low light & IR |
0.005 lux colour · 0.0005 lux black and white · 16 IR LEDs · up to 30m infrared illumination |
| Image controls |
120dB WDR · 3D NR · BLC · HLC · defog · ROI (4 areas) · 8 privacy masks · image rotation |
| Video & streams |
H.265 / H.264 / MJPEG sub-stream · Smart H.265+ / Smart H.264+ · AI H.265 / H.264 · three streams |
| AI & events |
SMD 3.0 · human / vehicle perimeter protection · face detection · people counting · queue management · abandoned / missing object detection |
| Audio & alarm I/O |
Built-in microphone · 1 RCA audio input / 1 RCA audio output · 2 alarm inputs / 2 alarm outputs |
| Local & network storage |
microSD card up to 256GB · NAS · FTP · SFTP |
| Network & integration |
RJ-45 10/100 Base-T · ONVIF Profiles S, G and T · CGI · P2P · Milestone |
| Power |
12V DC or PoE · 4W typical PoE / 8W maximum PoE |
| Environmental rating |
IP67 · IK10 · metal housing · –40°C to +60°C · ≤95% RH |
| Dimensions & weight |
66.2mm × Ø122.0mm · 0.52kg net weight |
Mounting, Power and Recording
Use PoE for a single data-and-power run, or 12V DC where PoE is unavailable. For local edge recording, add a surveillance-rated microSD card; for central recording and smart search, pair the camera with a compatible Dahua AI NVR. The official accessory selection lists the PFA137 junction box, PFA106 mount adapter, PFB220C ceiling bracket, wall-mount bracket and PFA152-E pole-mount bracket. Choose the mounting method for the site rather than fitting multiple brackets together unnecessarily.
