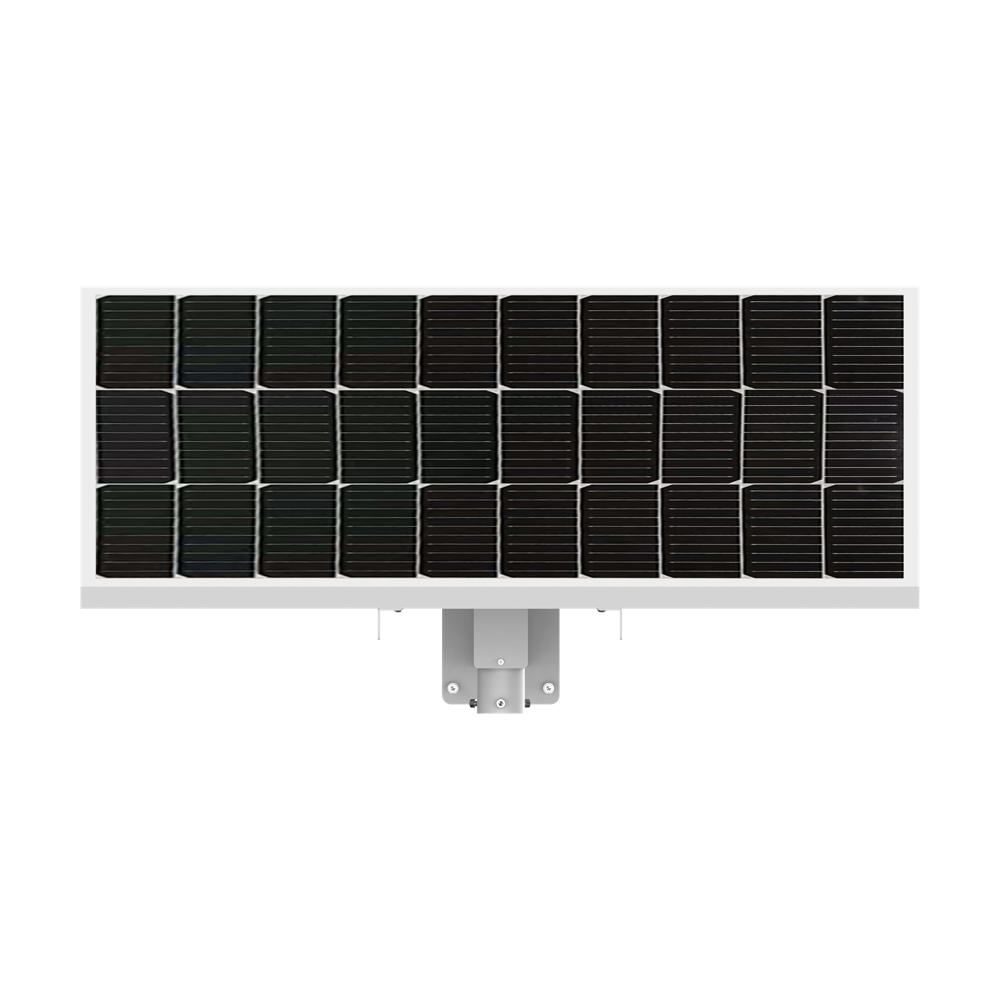

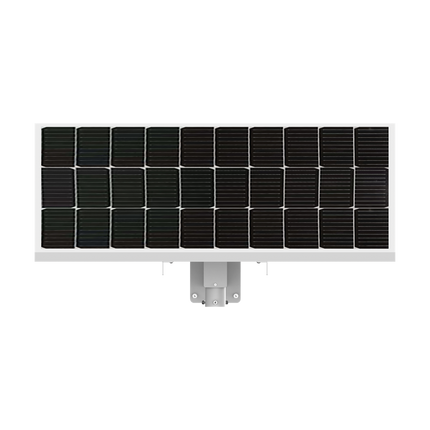

DAHUA · SOLAR POWER SYSTEMSDahua DH-PFE221-LP1240CP-M100 100W Solar Power System with 512Wh Battery
Supply compatible remote security equipment where mains power is impractical. The Dahua DH-PFE221-LP1240CP-M100 combines a 100 W solar panel with a 512 Wh LiFePO4 battery and a pole-mounting system for suitably planned off-grid CCTV projects.
Solar panel
100 Wp monocrystalline
Battery chemistry
LiFePO4
Battery rating
12.8 V, 40 Ah, 512 Wh
DC output
12.8 V, up to 5 A total
Designed for your installation
Two waterproof DC outputs provide low-voltage power, while battery self-heating and RS-485 monitoring support managed remote installations. This is a power system, not a camera, a wireless bridge or a PoE switch.
2 waterproof DC 5.5 / 2.1 mm connectors
Charging control
PWM, maximum charging current 10 A
Activates in the specified 0–5°C range
Technical Specifications
| Model |
DH-PFE221-LP1240CP-M100 |
| Solar panel |
100 Wp monocrystalline |
| Battery chemistry |
LiFePO4 |
| Battery rating |
12.8 V, 40 Ah, 512 Wh |
| DC output |
12.8 V, up to 5 A total |
| Output connectors |
2 waterproof DC 5.5 / 2.1 mm connectors |
| Charging control |
PWM, maximum charging current 10 A |
| Monitoring |
RS-485 |
| Battery self-heating |
Activates in the specified 0–5°C range |
| Enclosure |
IP66 |
| Pole diameter |
80–140 mm |
| Panel adjustment |
20°, 35° or 50° |
| Dimensions |
930 × 607.8 × 473.4 mm |
| Weight |
16.8 kg |
| Solar planning |
Manufacturer references at least 3.5 hours of direct daily sunshine under standard conditions |
Setup and compatibility
Calculate the total continuous load, overnight runtime and winter solar yield before ordering. Usable runtime is lower than the simple 512 Wh divided by load estimate because of losses, temperature and reserve capacity. A compatible DC-to-PoE converter is needed if the camera requires PoE; one is not implied by this listing.
Downloads
DH-PFE221-LP1240CP-M100 Datasheet (PDF)
Frequently asked questions
Does DH-PFE221-LP1240CP-M100 provide PoE directly?
No. It provides 12.8 VDC output. A suitable DC-to-PoE converter is required for a camera that needs PoE.
What should I check before installation?
Calculate the total continuous load, overnight runtime and winter solar yield before ordering. Usable runtime is lower than the simple 512 Wh divided by load estimate because of losses, temperature and reserve capacity. A compatible DC-to-PoE converter is needed if the camera requires PoE; one is not implied by this listing.
Where can I download the DH-PFE221-LP1240CP-M100 datasheet?
The manufacturer PDF is hosted on CCTV Guru’s Shopify file library and linked in Downloads on this product page.
