Dahua DH-PFM702 4K HDMI Extender over Cat6 - 40m 4K / 50m 1080p

Description

DAHUA · HDMI EXTENDER

Send an HDMI display signal further over Cat6

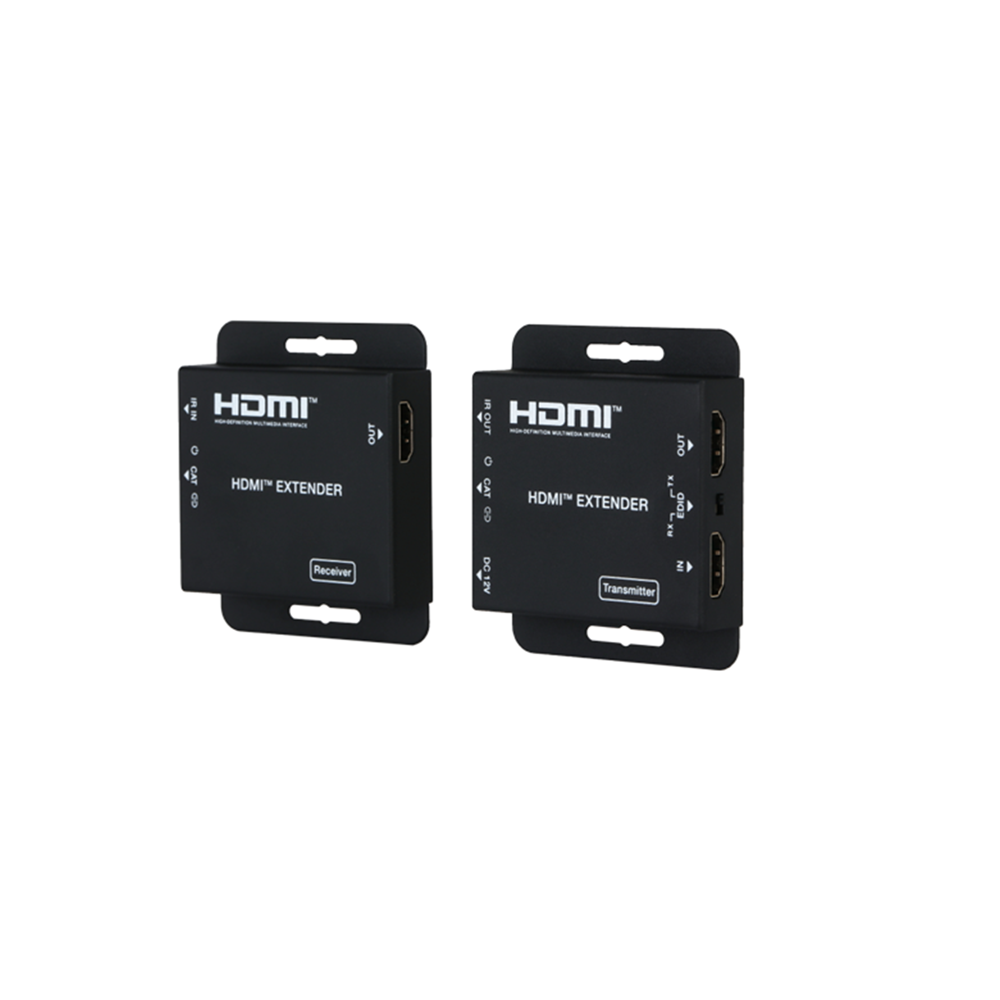

The Dahua DH-PFM702 is a transmitter/receiver HDMI extender set for taking a display signal beyond normal HDMI cable limits. It uses a single shielded Cat6 cable between the units for up to 40 m at 4K/2K at 30 Hz or 50 m at 1080p at 60 Hz.

Video
Up to 4K/2K @ 30 Hz
Cable reach
40 m 4K · 50 m 1080p
Control
IR + EDID copy
Power
One-way PoC

Why choose the DH-PFM702

Use structured cabling for the display run

A single shielded Cat6 cable connects the transmitter and receiver, making it suitable for a monitor away from the recorder or source.

Manage the display handshake

EDID can be copied from the receiver display or loop-out display; the transmitter also provides an HDMI loop-out port for cascading.

Keep installation tidy

One-way PoC supplies the receiver from the transmitter, while one-way IR transmission provides remote-control support.

Technical Specifications
Model DH-PFM702
Transmission channel 1 channel
Maximum distance 40 m at 4K/2K @ 60 Hz; 50 m at 1080p @ 60 Hz
Supported video Up to 4K/2K @ 30 Hz, YUV 4:4:4; HDMI 1.4
Compliance HDCP 1.4 and DVI 1.0
Ports TX: DC, IR Out, 2 × HDMI, RJ45; RX: IR In, HDMI, RJ45
Transmission medium Shielded Cat6 network cable
Power 12 V DC, 1 A locking adaptor; TX 1.86 W, RX 0.87 W
Construction Metal; 79.5 × 69 × 16.5 mm
Operating range 0°C to +40°C; 20%-80% RH
Before you install

Use shielded Cat6 as specified by Dahua. Maximum resolution and range cannot be achieved together; select the setting that fits the run.

Downloads

DH-PFM702 Datasheet (PDF)
