DAHUA · SECURITY MONITORSDahua DHI-LM32-F200N 31.5-inch Full HD 24/7 CCTV Monitor

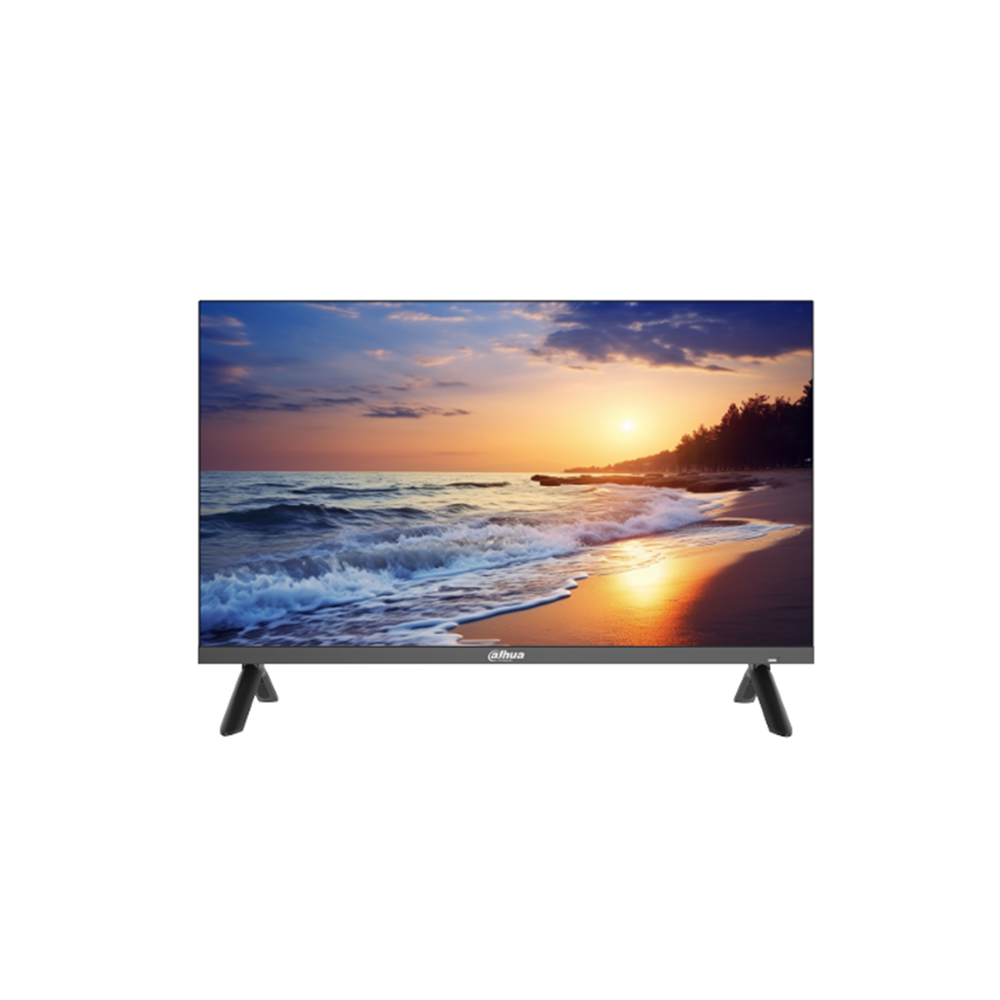

Give live CCTV and playback a dedicated 31.5-inch display. The Dahua DHI-LM32-F200N is a 1920 × 1080 Full HD surveillance monitor rated for 24/7 operation, with built-in speakers and multiple video inputs for compatible recorders and workstations.
Native resolution
1920 × 1080 Full HD
Designed for your installation
A larger display makes split-screen layouts easier to review, but it does not increase the detail recorded by a camera. Match the recorder’s output resolution and refresh rate to the monitor, and select the screen size to suit the viewing distance and available mounting space.
Technical Specifications
| Model |
DHI-LM32-F200N |
| Screen size |
31.5-inch |
| Panel |
IPS |
| Native resolution |
1920 × 1080 Full HD |
| Refresh rate |
60 Hz |
| Brightness |
350 cd/m² |
| Contrast |
1200:1 |
| Response time |
8 ms |
| Operation |
24/7 rated |
| Inputs and connections |
2 × HDMI 1.4, VGA, USB 2.0, audio input/output |
| Speakers |
2 × 8 W |
| VESA mounting |
100 × 100 mm |
| Power supply |
100–240 VAC |
| Additional specification |
3.9 kg |
Setup and compatibility
Use a video cable rated for the selected output mode. A wall bracket must support the screen’s VESA pattern and weight. This is a display only: it does not record cameras or replace an NVR. Confirm stand, bracket and cable requirements before installation.
Downloads
DHI-LM32-F200N Datasheet (PDF)
Frequently asked questions
Can DHI-LM32-F200N record CCTV cameras?
No. This is a surveillance display, not an NVR. It shows a compatible recorder or workstation video output.
What should I check before installation?
Use a video cable rated for the selected output mode. A wall bracket must support the screen’s VESA pattern and weight. This is a display only: it does not record cameras or replace an NVR. Confirm stand, bracket and cable requirements before installation.
Where can I download the DHI-LM32-F200N datasheet?
The manufacturer PDF is hosted on CCTV Guru’s Shopify file library and linked in Downloads on this product page.
