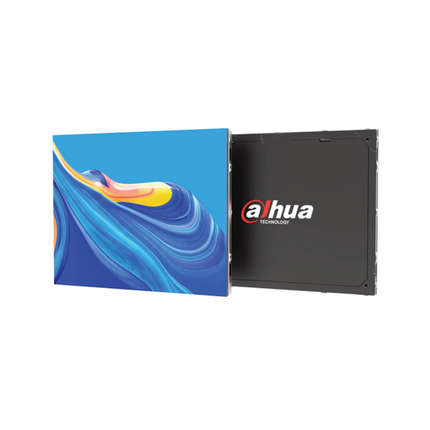

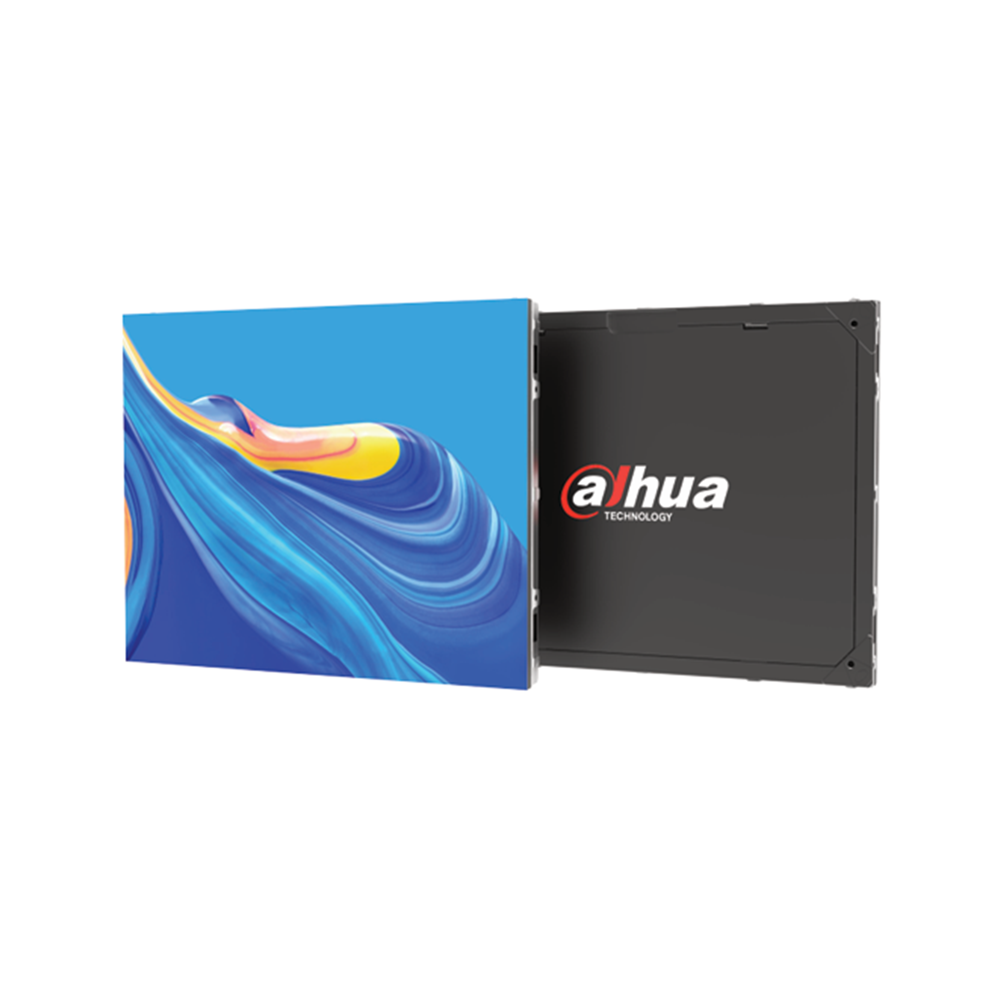

Dahua DHI-PHEIA1.8-TH 1.86mm Indoor Fine Pixel Pitch LED Display Cabinet

Description

DAHUA · INDOOR LED DISPLAY

A fine-pitch LED cabinet for seamless indoor video walls

The Dahua DHI-PHEIA1.8-TH is an indoor fine pixel pitch LED display cabinet for close-viewing video walls in control rooms, boardrooms, retail spaces and presentation environments. Its 1.86 mm pitch, 600 nit brightness and 3840 Hz refresh rate support detailed, smooth content at short viewing distances.

Pixel pitch
1.86 mm
Refresh rate
3840 Hz
Service access
Front & rear

Designed for the right installation

Designed for close viewing

The 1.86 mm pixel pitch and 4:3 cabinet format suit high-density indoor LED walls where viewers are closer to the display.

Consistent image presentation

Dot-by-dot calibration, 12-14 bit grayscale and a stated 5000:1 contrast ratio are designed to support even brightness and colour across a wall.

Practical serviceability

The die-cast aluminium cabinet supports front and rear maintenance, including tool-free hub-board disassembly.

Technical Specifications
Model DHI-PHEIA1.8-TH-G (datasheet model)
Pixel pitch / density 1.86 mm / 288,906 dots/m²
Cabinet / resolution 640 × 480 × 54 mm / 344 × 258 dots
Brightness / viewing angle 600 nit maximum / H 140° × V 140°
Refresh / grayscale 3840 Hz / 12-14 bit
Contrast ratio 5000:1
Cabinet build / weight Die-cast aluminium / 6.5 kg ±0.1 kg
Power AC 100-220 V; 650 W/m² maximum, 210 W/m² average
Protection / operating range IP30 front and rear; -10°C to +45°C
Installation / maintenance Wall or floor mount; front and rear maintenance
Before you install

This is a display cabinet, not a complete video wall. A compatible LED controller, framing or mounting system, power and signal design are required for a finished installation.

Downloads

DHI-PHEIA1.8-TH-G Datasheet (PDF)
