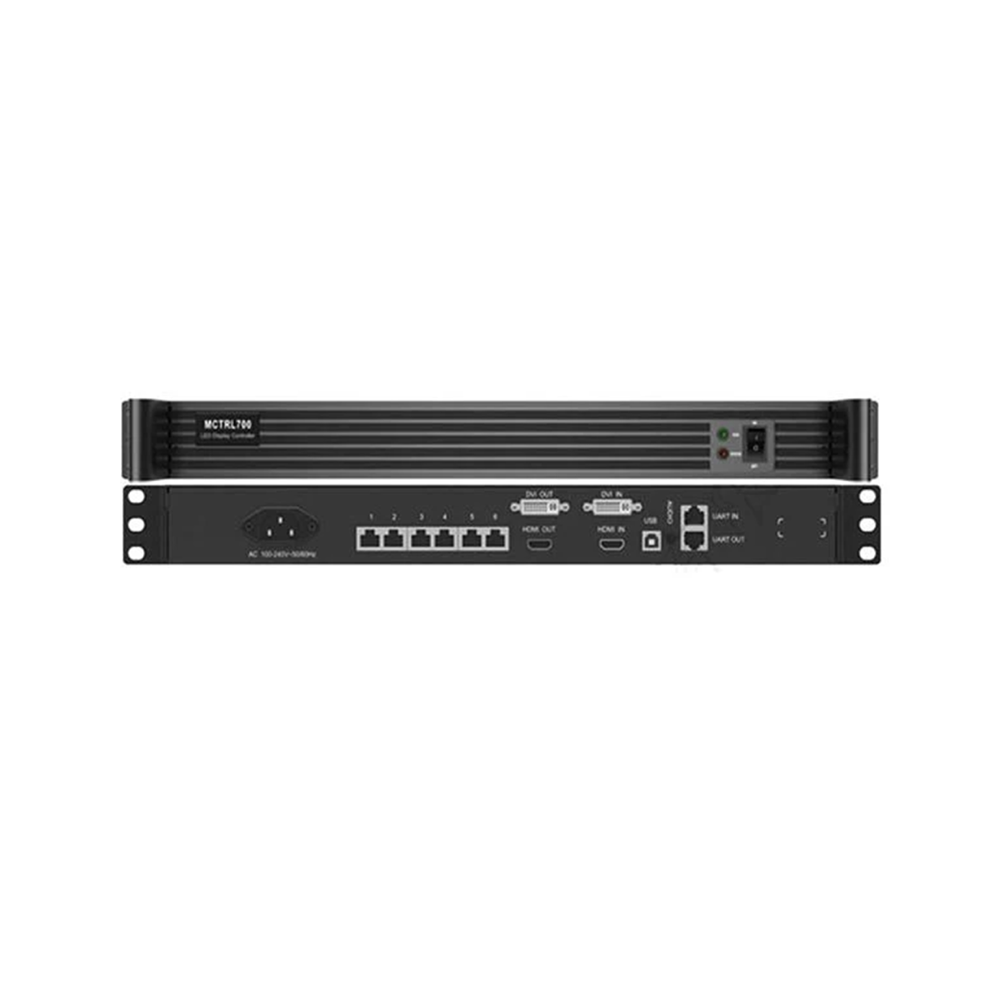

NovaStar MCTRL700 1U LED Display Controller - HDMI, DVI, 6 Gigabit Ethernet

Description

NOVASTAR · 1U LED DISPLAY CONTROL

Six Gigabit outputs for larger LED display signal distribution

The NovaStar MCTRL700 is a 1U LED display controller with HDMI, DVI and audio inputs plus six Gigabit Ethernet outputs. It suits fixed or rental LED display systems that need more output capacity, redundant signal design and rack-friendly installation.

Video input
HDMI & DVI
Ethernet outputs
6 × Gigabit
Rack format
1U

Designed for the right installation

Scale an LED wall system

Each Ethernet output supports up to 650,000 pixels for compatible receiving systems, with redundancy supported between Ethernet ports.

Keep source connections flexible

DVI and HDMI 1.3 inputs both support up to 1920 × 1200 at 60 Hz. Matching output ports can be used for cascading.

Engineer for serviceability

USB Type-B allows PC connection and UART in/out supports cascading of up to 20 controllers.

Technical Specifications
Model MCTRL700
Video inputs 1 × HDMI 1.3; 1 × single-link DVI; 1 × audio
Maximum input 1920 × 1200 at 60 Hz; custom resolutions supported
Ethernet outputs 6 × RJ45 Gigabit; up to 650,000 pixels per port
Additional outputs 1 × HDMI 1.3 out; 1 × single-link DVI out for cascading
Control / cascade USB Type-B; UART in/out; up to 20 devices cascaded
Calibration Pixel-level brightness and chroma calibration with compatible NovaStar software
Power AC 100-240 V, 50/60 Hz; 12 W rated
Form factor / weight 1U; 482 × 268.5 × 44.4 mm / 2.6 kg
Operating environment -20°C to +60°C; 10%-90% RH non-condensing
Before you install

This is a controller only. It must be matched to compatible LED cabinets, receiving cards, power distribution and a professionally designed signal layout. Install horizontally as specified by the manufacturer.
