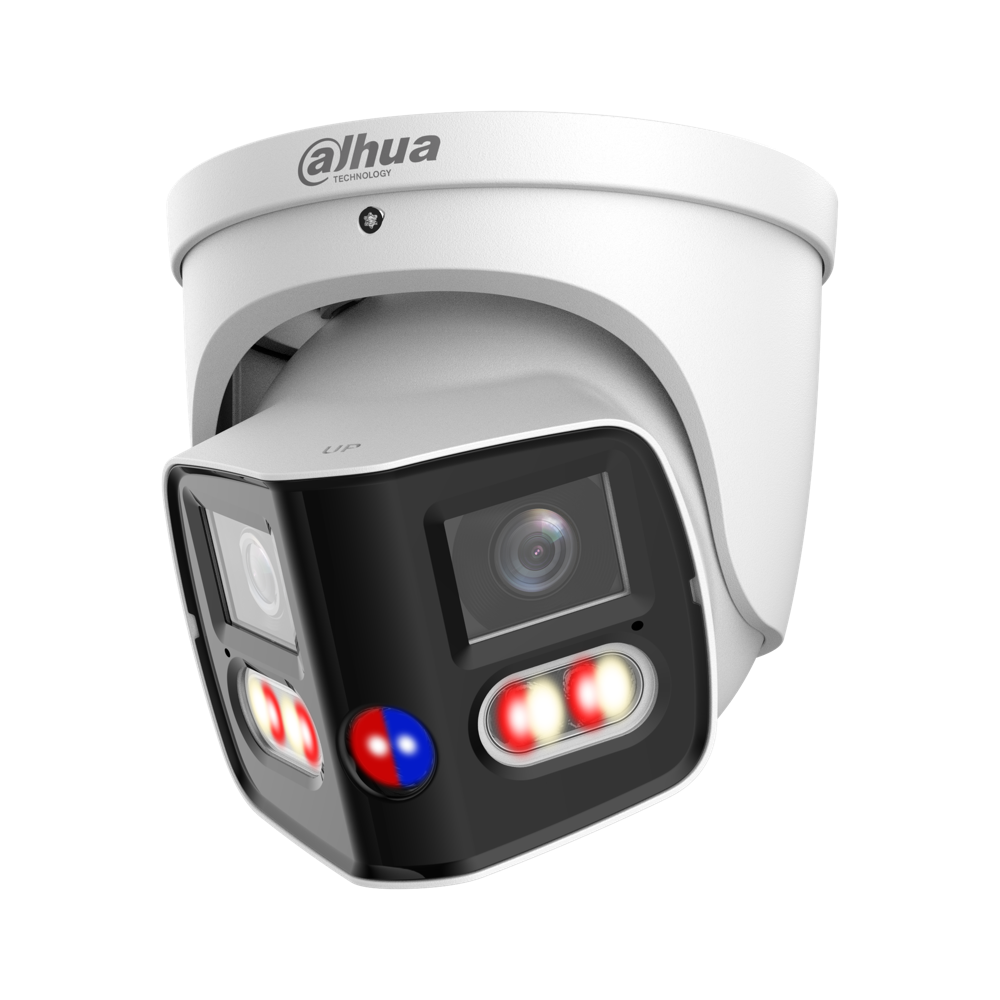

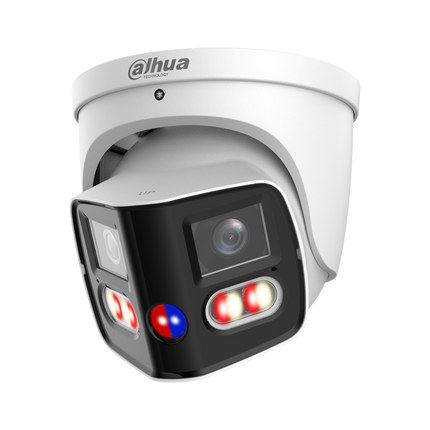

DAHUA · IP SECURITY CAMERASDahua DH-IPC-PDW31259-A180-AS-PV-ANZ-S2 2 × 6MP TiOC Duo 180° Panoramic Camera
Watch a broad frontage in one panoramic view. The Dahua DH-IPC-PDW31259-A180-AS-PV-ANZ-S2 uses dual imaging channels to create a 180° scene, combining TiOC active deterrence, two-way talk and Smart Dual Light for driveways, car parks and wide building elevations.
Image configuration
2 × 6MP panoramic dual-lens system
Lens
Dual 2.8 mm fixed lenses
Viewing angle
180° horizontal, 78° vertical
Designed for your installation
A single panoramic image reduces the need to switch between separate narrow camera views. Human and vehicle event filtering, electronic PTZ viewing and compatible AcuPick search help focus on activity that matters; a wide view still needs careful placement for close identification detail.
Up to 30 m IR and 30 m warm light
Deterrence
TiOC audible and visual warnings
Dual microphones and dual speakers, two-way talk
SMD 4.0, intelligent perimeter rules
Technical Specifications
| Model |
DH-IPC-PDW31259-A180-AS-PV-ANZ-S2 |
| Image configuration |
2 × 6MP panoramic dual-lens system |
| Output |
5000 × 2500 |
| Lens |
Dual 2.8 mm fixed lenses |
| Viewing angle |
180° horizontal, 78° vertical |
| Illumination |
Up to 30 m IR and 30 m warm light |
| Deterrence |
TiOC audible and visual warnings |
| Audio |
Dual microphones and dual speakers, two-way talk |
| Detection |
SMD 4.0, intelligent perimeter rules |
| Search and view |
AcuPick and electronic PTZ with compatible system |
| Storage |
microSD up to 512 GB, sold separately |
| Power |
12 VDC or IEEE 802.3at PoE+ |
| Maximum PoE draw |
16.1 W |
| Weather protection |
IP67 |
Setup and compatibility
Allow for PoE+ power and weatherproof all external connections. The official video below demonstrates TiOC Duo technology on an earlier generation, not this exact S2 model. Panoramic coverage is not a claim that faces or number plates can be identified across the entire width at all distances.
Official product family video
Dahua ANZ TiOC Duo technology overview — earlier-generation demonstration
Downloads
DH-IPC-PDW31259-A180-AS-PV-ANZ-S2 Datasheet (PDF)
Frequently asked questions
Can DH-IPC-PDW31259-A180-AS-PV-ANZ-S2 record to a microSD card?
Yes. microSD up to 512 GB, sold separately. The card is separate; configure recording and retention for the installation.
What should I check before installation?
Allow for PoE+ power and weatherproof all external connections. The official video below demonstrates TiOC Duo technology on an earlier generation, not this exact S2 model. Panoramic coverage is not a claim that faces or number plates can be identified across the entire width at all distances.
Where can I download the DH-IPC-PDW31259-A180-AS-PV-ANZ-S2 datasheet?
The manufacturer PDF is hosted on CCTV Guru’s Shopify file library and linked in Downloads on this product page.
