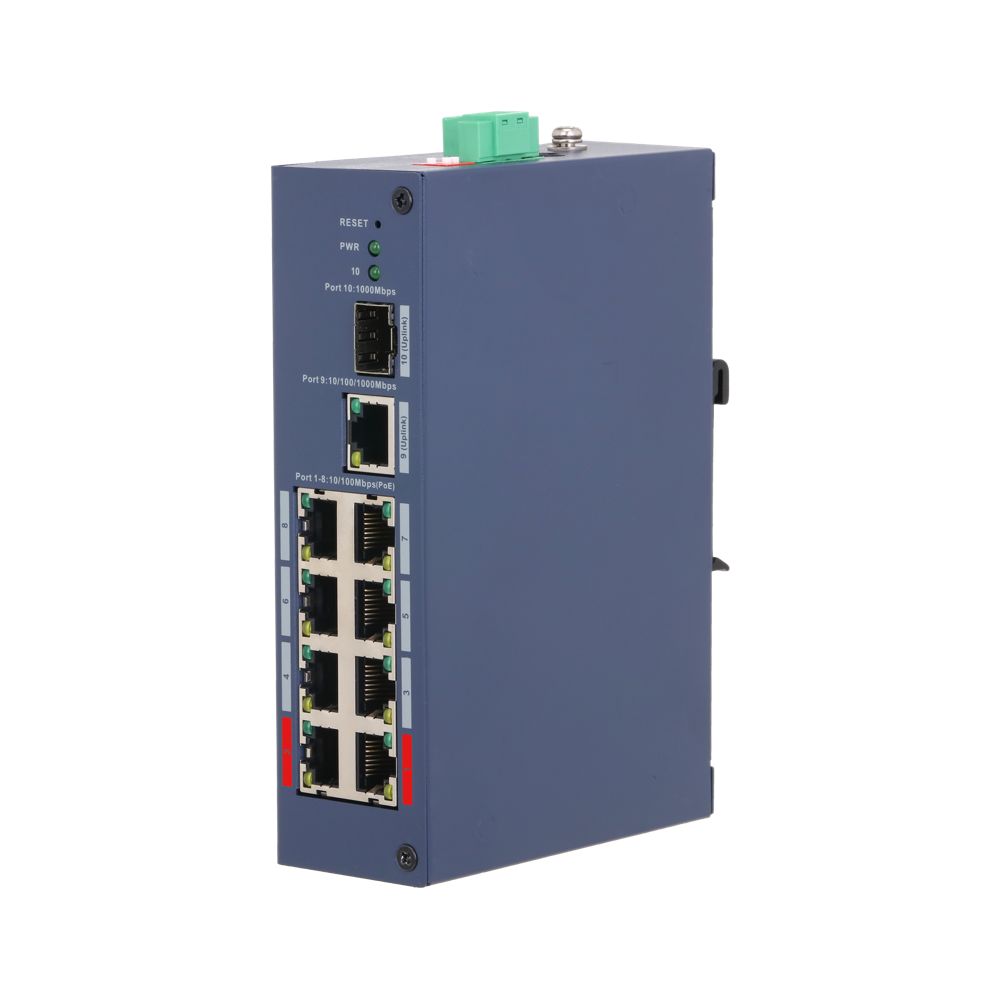

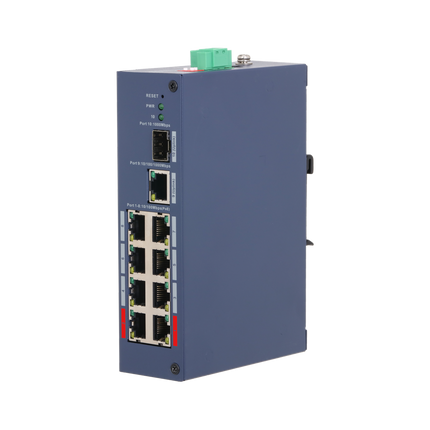

DAHUA · POE SWITCHESDahua DH-CHS4110-8ET-110 Hardened 8-Port PoE Cloud-Managed Switch 110W
Power eight compatible IP devices from a compact hardened switch with a 110 W total PoE budget. The Dahua DH-CHS4110-8ET-110 provides eight Fast Ethernet PoE downlinks, one Gigabit RJ45 uplink and one Gigabit SFP uplink for CCTV cabinets and industrial network installations.
Ports
8 × 10/100 Mbps PoE, 1 × Gigabit RJ45, 1 × Gigabit SFP
Ports 1–2
Up to 90 W per port with compatible IEEE 802.3bt / Hi-PoE devices, within total budget
Ports 3–8
Up to 30 W per port, within total budget
Designed for your installation
Two high-power ports support compatible high-demand equipment, while DoLynk Care management and PoE Watchdog help installers monitor the network and recover unresponsive powered devices. Its fanless metal enclosure and DIN-rail mounting suit space-conscious equipment cabinets.
Packet forwarding
4.17 Mpps
Layer 2, web and DoLynk Care cloud management
Technical Specifications
| Model |
DH-CHS4110-8ET-110 |
| Ports |
8 × 10/100 Mbps PoE, 1 × Gigabit RJ45, 1 × Gigabit SFP |
| Total PoE budget |
110 W |
| Ports 1–2 |
Up to 90 W per port with compatible IEEE 802.3bt / Hi-PoE devices, within total budget |
| Ports 3–8 |
Up to 30 W per port, within total budget |
| Switching capacity |
5.6 Gbps |
| Packet forwarding |
4.17 Mpps |
| Management |
Layer 2, web and DoLynk Care cloud management |
| Maintenance |
PoE Watchdog |
| Long-distance mode |
Up to 250 m at 10 Mbps under specified cable conditions |
| Power input |
48–57 VDC terminal or DC input, adapter included |
| Mounting |
DIN rail or desktop |
| Enclosure |
Fanless metal, IP30 and IK06 |
| Operating temperature |
−30°C to +65°C |
Setup and compatibility
The eight PoE downlinks are 100 Mbps, not Gigabit. Add the maximum consumption of all connected devices before ordering: individual port ratings do not increase the 110 W shared budget. IP30 is not an outdoor weatherproof rating; use a suitable enclosure.
Downloads
DH-CHS4110-8ET-110 Datasheet (PDF)
Frequently asked questions
Are all ports on DH-CHS4110-8ET-110 Gigabit?
No. The eight PoE downlinks run at 10/100 Mbps. The RJ45 and SFP uplinks are Gigabit. The total shared PoE budget is 110 W.
What should I check before installation?
The eight PoE downlinks are 100 Mbps, not Gigabit. Add the maximum consumption of all connected devices before ordering: individual port ratings do not increase the 110 W shared budget. IP30 is not an outdoor weatherproof rating; use a suitable enclosure.
Where can I download the DH-CHS4110-8ET-110 datasheet?
The manufacturer PDF is hosted on CCTV Guru’s Shopify file library and linked in Downloads on this product page.
