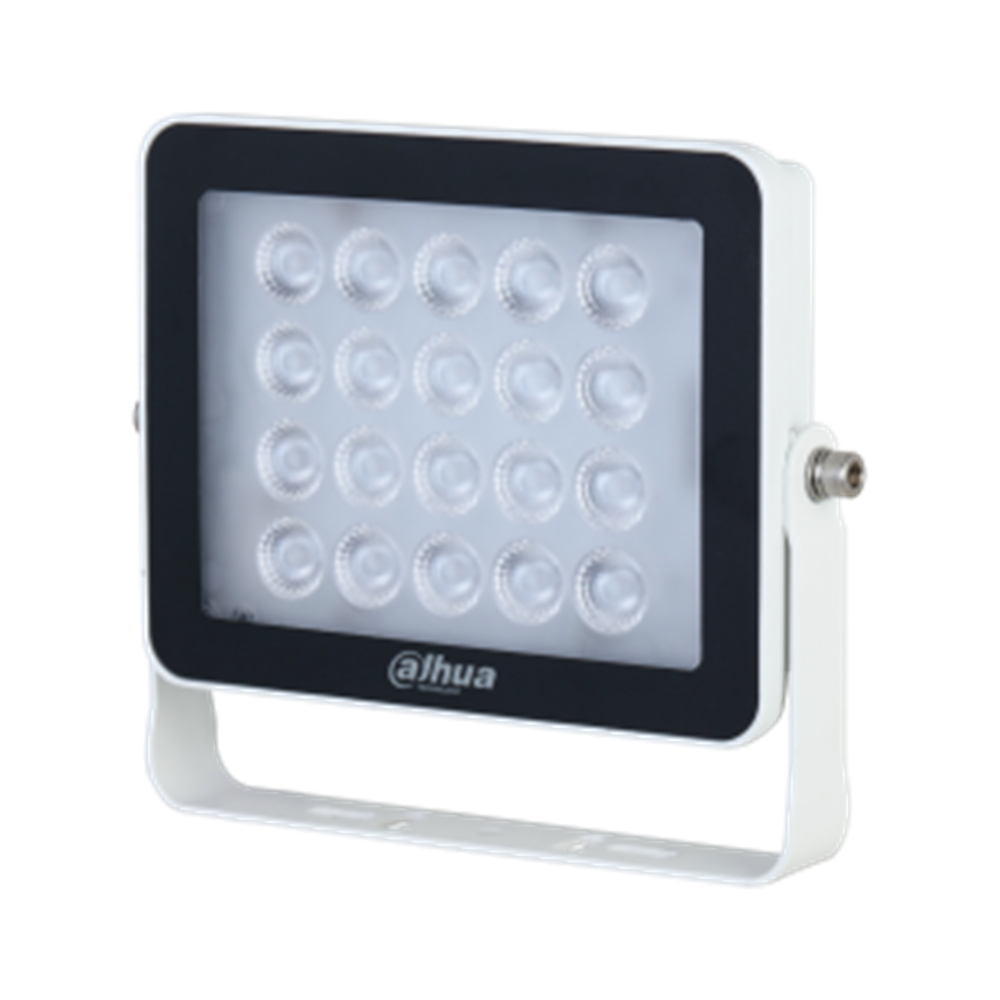

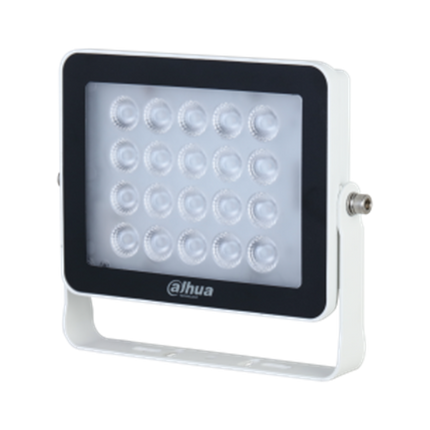

Dahua DH-PFM522P-D1-IR 850nm IR Illuminator - 15-50m, 20°, IP66, IK10

Description

DAHUA · IR ILLUMINATOR

Add controlled infrared light to a long-view CCTV scene

The Dahua DH-PFM522P-D1-IR is an 850 nm infrared illuminator for cameras that need supplementary invisible light at night. Its 20° beam suits a focused field of view such as an entry lane, perimeter, parking area or checkpoint, with a stated 15-50 m viewing distance.

Infrared light
850 nm LED
Coverage
15-50 m · 20°
Power
12 V DC · 13 W
Outdoor rating
IP66 · IK10

Why choose the DH-PFM522P-D1-IR

Match light to the camera view

A 20° beam is designed for a tighter scene rather than broad flood coverage; align it to the camera's angle of view.

Fine-tune brightness

Brightness is continuously adjustable from 10%-100%, with a 30 lux enable threshold.

Built for outdoor installation

The aluminium housing supports wall, pole or plane mounting and specifies IP66 weather protection plus IK10 vandal resistance.

Technical Specifications
Model DH-PFM522P-D1-IR
Light source 20 × LED; 850 nm
Viewing distance / angle 15-50 m; 20°
Brightness 10%-100%, continuously adjustable
Control 1 × RS-485
Power 12 V DC; 13 W rated
Protection IP66; IK10; 6 kV common-mode and 4 kV differential surge protection
Material / dimensions Aluminium alloy; 186.4 × 160 × 31.5 mm
Operating range -30°C to +70°C; 0%-90% RH
Mounting Wall, pole or plane mount; brackets optional
Before you install

Select mounting hardware and aim the illuminator to the scene. Confirm camera sensitivity, lens angle and local lighting before purchase.

Downloads

DH-PFM522P-D1-IR Datasheet (PDF)

Dahua DH-PFM522P-D1-IR 850nm IR Illuminator - 15-50m, 20°, IP66, IK10

Product form

SKU: DH-PFM522P-D1-IR

$109.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    Price Beat Guarantee
    Found it cheaper? We'll beat it by 5% — message us.

    • Shipped today? Order within: Oct 16, 2026 14:00:00 +1100
    • Warranty: 36 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180
