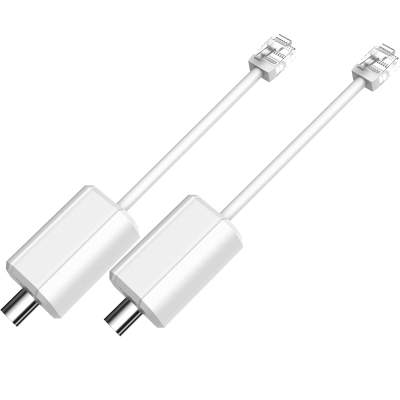

Dahua LR1002 ePoE Ethernet over Coax Converter - RJ45 to BNC

Description

DAHUA · ETHERNET OVER COAX

Reuse compatible RG59 coax for Ethernet and ePoE

The Dahua LR1002 is a compact Ethernet-over-Coax converter for compatible Dahua ePoE systems. Use a matched transmitter/receiver arrangement to carry 10/100 Mbps network data and ePoE-derived power over existing RG59 coax where replacing cable is impractical.

Connection
RJ45 to BNC
Coax reach
Up to 1,000 m*
Power
Compatible ePoE source
Surge protection
6 kV common mode

Why choose the LR1002

Keep suitable coax in service

A practical option for selected upgrades where compatible RG59 coax is already installed and a Dahua ePoE system is planned.

Network and power over coax

The LR1002 works with a compatible ePoE source; it is not a standalone PoE injector or power supply.

Choose the link rate for distance

Dahua specifies up to 400 m at 100 Mbps or up to 1,000 m at 10 Mbps over RG59 coax. Cable condition and system load matter.

Technical Specifications
Model LR1002
Interfaces 1 × 10/100 Mbps RJ45 Base-TX; 1 × BNC
Network standards IEEE 802.3 and IEEE 802.3u
Transmission over RG59 Up to 400 m at 100 Mbps; up to 1,000 m at 10 Mbps*
Power ePoE-derived power from a compatible Dahua ePoE switch/source
Power consumption Less than 1 W
Surge protection 6 kV common mode; 2 kV differential mode
Operating conditions -40°C to +60°C; 0%-95% RH
Dimensions / weight 56 × 27 × 21 mm; 28.3 g
Before you install

*Actual link speed, reach and available power depend on the cable, source, connected device and installation conditions. Confirm the complete ePoE design before ordering.

Downloads

LR1002 Datasheet (PDF)

Dahua LR1002 ePoE Ethernet over Coax Converter - RJ45 to BNC

Product form

SKU: LR1002

$20.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    Price Beat Guarantee
    Found it cheaper? We'll beat it by 5% — message us.

    • Shipped today? Order within: Oct 16, 2026 14:00:00 +1100
    • Warranty: 36 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180

    Description

    DAHUA · ETHERNET OVER COAX

    Reuse compatible RG59 coax for Ethernet and ePoE

    The Dahua LR1002 is a compact Ethernet-over-Coax converter for compatible Dahua ePoE systems. Use a matched transmitter/receiver arrangement to carry 10/100 Mbps network data and ePoE-derived power over existing RG59 coax where replacing cable is impractical.

    Connection
    RJ45 to BNC
    Coax reach
    Up to 1,000 m*
    Power
    Compatible ePoE source
    Surge protection
    6 kV common mode

    Why choose the LR1002

    Keep suitable coax in service

    A practical option for selected upgrades where compatible RG59 coax is already installed and a Dahua ePoE system is planned.

    Network and power over coax

    The LR1002 works with a compatible ePoE source; it is not a standalone PoE injector or power supply.

    Choose the link rate for distance

    Dahua specifies up to 400 m at 100 Mbps or up to 1,000 m at 10 Mbps over RG59 coax. Cable condition and system load matter.

    Technical Specifications
    Model LR1002
    Interfaces 1 × 10/100 Mbps RJ45 Base-TX; 1 × BNC
    Network standards IEEE 802.3 and IEEE 802.3u
    Transmission over RG59 Up to 400 m at 100 Mbps; up to 1,000 m at 10 Mbps*
    Power ePoE-derived power from a compatible Dahua ePoE switch/source
    Power consumption Less than 1 W
    Surge protection 6 kV common mode; 2 kV differential mode
    Operating conditions -40°C to +60°C; 0%-95% RH
    Dimensions / weight 56 × 27 × 21 mm; 28.3 g
    Before you install

    *Actual link speed, reach and available power depend on the cable, source, connected device and installation conditions. Confirm the complete ePoE design before ordering.

    Downloads

    LR1002 Datasheet (PDF)
