Axis 01727-001 - Varifocal IR-Corrected 12-50 mm I-CS Lens for Cameras up to 8 Megapixel Resolution and 1/1.8" Sensor
Lens i-CS 9-50 mm F1.5 8MPRemote zoom and focusThis i-CS lense features the most recent industry standard in intelligent CS-mount optics. It includes three motors, which enable automatic and remote zoom, focus, and iris opening.Lens i-CS 9-50 mm F1.5 8 MP offers great flexibility to your installation thanks to its open protocol and the ability for the camera to interface with multiple features.The long reach of this telephoto lens allows you to capture objects that are far away.The lens is IR-corrected. This means that you don't need to adjust the camera's focus when you shift between day and night mode using the IR-cut filter. Compatible with e.g. AXIS Q1645/-LE, AXIS Q1647/-LE, AXIS P1367/-E and P1368-E.
AXIS M2035-LE - Network surveillance camera - bullet - outdoor - dust resistant / weather resistant - colour (Day&Night) - 2 MP - 1920 x 1080 - 1080p - fixed iris - fixed focal - LAN 10/100 - MPEG-4, MJPEG, H.264, AVC, HEVC, H.265, MPEG-H Part 2 - PoE Class 3
2 MP affordable camera with deep learning
HDTV 1080p
Compact, lightweight design
Analytics with deep learning
Zipstream supporting H.264/H.265
Outdoor-ready with IR illumination
Ideal for tough environments, this outdoor-ready bullet-style camera offers affordable Axis excellence. Lightweight and compact in design, it’s easy to install and supports analytics with deep learning. Available in two lens alternatives.
With a deep learning processing unit (DLPU), you can benefit from applications based on deep learning on the edge. Thanks to AXIS Object Analytics, it offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. And Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This outdoor-ready bullet-style camera features built-in IR illumination, enabling unobtrusive surveillance in total darkness. Wide Dynamic Range (WDR) ensures clarity even when there’s both dark and light areas in the scene.
Top performance in tough conditionsIdeal for both hot and cold environments, this IK08-rated bullet camera can withstand temperatures from -30 °C to 50 °C (-22 °F to 122 °F). It includes an integrated sunshield and with IP66, IP67, and NEMA 4X ratings, it’s resistant to rough weather, dust, sand, salt spray, ice formation, and high-water pressure. AXIS M2035-LE is available in two variants with a choice of lenses; a wide 3 mm lens with a 101° horizontal field of view for wide-area surveillance and a tele 8 mm lens with a 39° horizontal field of view for surveillance from a distance. And, thanks to edge-to-edge technology it can be connected to Axis speakers, such as an Axis outdoor horn speaker.
Installation that’s as easy as 1,2,3…This small, lightweight bullet-style camera offers cost-efficient installation both indoors and outdoors. A spacious, sealed back box ensures secure cable management and offers installers greater accessibility, freedom of movement, and future serviceability. Delivered with a factory-focused lens, there’s no need for hands-on fine-tuning saving you time and effort. This easy-to-handle camera supports Power over Ethernet (PoE) so you can connect directly to your IP network with just one network cable for connectivity and power. Furthermore, AXIS M2035-LE offers flexible installation; outdoors or indoors, on walls, ceilings, poles, or in corners.
Specifications
Product Description
AXIS M2035-LE - network surveillance camera - bullet
Device Type
Network surveillance camera - fixed - bullet - outdoor - dust resistant / weather resistant
Dimensions (WxDxH)
10.1 cm x 17 cm x 10.1 cm
Weight
491 g
Colour
White, NCS S 1002-B
Connectivity Technology
Wired
Camera
Colour - Day&Night
Max Resolution
1920 x 1080
Frame Rate (max)
30 frames per second
Motion Detection
Yes
Video Modes
1080p
Optical Sensor Type
PS RGB CMOS - 1/2.9" - 2 MP
Minimum Illumination
0.16 lux - colour - F1.4 - 50 IRE ? 0.03 lux - B&W - F1.4 - 50 IRE ? 0 lux - IR
Focal Length Control
Fixed focal
Focal Length
3.2 mm
Focus Adjustment
(min distance 1.2 m)
Lens Iris
F/1.4 - fixed iris
Interfaces
Ethernet 10Base-T/100Base-TX
Voltage
PoE Class 3
Features
Sharpness control, white balance, colour control, progressive scanning, brightness control, Power over Ethernet, contrast control, image mirror, Wide Dynamic Range (WDR), infrared cut filter, Privacy Mask Function, Video Motion Detection Technology, Lightfinder technology, active tampering alarm, digital PTZ function, password protection, Edge Storage, Variable Bitrate (VBR), Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, plastic housing, digest authentication, IP address filtering, HTTPs encryption, aluminium housing, signed firmware, secure boot, Corridor mode, ONVIF (Profile T) support, Adaptive Bitrate (ABR), VAPIX support, motion-adaptive exposure, compression, text overlay, 180? image rotation, 90? image rotation, 270? image rotation, user access log, centralised certificate management, brute force delay protection, ONVIF (Profile M) support, remote zoom, Axis Edge Vault
Manufacturer Warranty
5-year warranty
Environmental Parameters (operating)
-30 ?C - 50 ?C; 10 - 100% RH relative humidity
Download
Axis P1377-LE Network Camera, P1377-LE Barebone, 01809-031
Fully-equipped 5 MP surveillance for the great outdoors
30 fps in 5 MP or up to 180 fps in HDTV 720p
OptimizedIR and Forensic WDR
Signed firmware and secure boot
Electronic image stabilization
Zipstream supporting H.264 and H.265
Download
P1377-LE Datasheet
AXIS M4215-LV Dome Camera
Varifocal 2 MP dome with IR and deep learning
Great image quality in 2 MP
Varifocal lens with remote zoom and focus
Lightfinder, WDR, and OptimizedIR
Analytics with deep learning
HDMI output for public viewing monitors
Download
Datasheet
AXIS M4218-LV Dome Camera
Varifocal 8 MP dome with IR and deep learning
Great image quality in superior 4K
Varifocal lens with remote zoom and focus
WDR and OptimizedIR
Analytics with deep learning
HDMI output for public viewing monitors
Download
Datasheet
AXIS M4218-V Dome Camera
Varifocal 8 MP dome with deep learning
Great image quality in superior 4K
Varifocal lens with remote zoom and focus
WDR for difficult light conditions
Analytics with deep learning
HDMI output for public viewing monitors
Download
M4218-V Datasheet
AXIS Q3626-VE 4MP Advanced Fixed Dome, DLPU, Remote Adjustment PTRZ, VF 4-9mm
Advanced 4 MP dome with remote adjustment
Outstanding image quality in 4 MP
Remote adjustment of the camera angle
Analytics with deep learning
Electronic image stabilization
Axis Edge Vault
Specifications
Image sensor
CMOS
Image sensor size
1/1.8
Lightfinder
Lightfinder 2.0
Wide dynamic range
Forensic WDR
Min illumination/ light sensitivity (Color)
0.06 lux
Min illumination/ light sensitivity (B/W)
0.0136 lux
Max video resolution
2688x1512
Max frames per second
50/60
Day and Night functionality
Yes
Electronic image stabilization
Yes
Focal length
4.3 - 8.6 mm
Horizontal field of view
103 - 52 °
Vertical field of view
56.2 - 29.6 °
Remote PTRZ
Yes
Compression
Compression
Zipstream
Yes
H 264
Baseline, High, Main
H 265
Yes
Motion JPEG
Yes
Remote focus
Yes
Remote zoom
Yes
Built-in IR
–
Local storage (memory card slot)
Yes
Operating temperature
-50 to 55 °C
Outdoor Ready
Yes
Vandal rating
IK10
IP rating
IP66, IP6K9K
Designed for repaint
Yes
Sustainability
BFR/CFR free, PVC free
Download
Datasheet
AXIS Q3628-VE 8MP Advanced Fixed Dome, DLPU, Remote Adjustment PTRZ, VF 6-13mm LENS
Advanced 8 MP dome with remote adjustment
Outstanding image quality in 8 MP
Remote adjustment of the camera angle
Analytics with deep learning
Electronic image stabilization
Axis Edge Vault
Specifications
Image Sensor
CMOS
Image sensor size
1/1.2
Lightfinder
Lightfinder 2.0
Wide dynamic range
Forensic WDR
Min illumination/ light sensitivity (Color)
0.07 lux
Min illumination/ light sensitivity (B/W)
0.0149 lux
Max video resolution
3840x2160
Max frames per second
50/60
Day and Night functionality
Yes
Electronic image stabilization
Yes
Focal length
6.2 - 12.9 mm
Horizontal field of view
103 - 48 °
Vertical field of view
56.4 - 27.4 °
Remote focus
Yes
Remote zoom
Yes
Built-in IR
–
Local storage (memory card slot)
Yes
Operating temperature
-50 to 55 °C
Outdoor Ready
Yes
Vandal rating
IK10
IP rating
IP66, IP6K9K
Designed for repaint
Yes
Sustainability
BFR/CFR free, PVC free
Download
Datasheet
Axis P3827-PVE Panoramic Camera
True to life, 180° coverage, no blind spots
7 MP multisensor camera with one IP address
180° horizontal, 90° vertical coverage
Seamlessly stitched realistic images
Support for advanced analytics
Horizon straightening
Download
P3827-PVE Datasheet
AXIS M4328-P Panoramic Camera
12 MP indoor fisheye with deep learning
180°/360° view
12 MP with stereographic lens
Support for customizable dewarped views
Digital roll for easy installation
Support for advanced analytics
Download
M4328-P Datasheet
AXIS M4318-PLVE Panoramic Camera
12 MP dome with 360° view and deep learning
Complete 180° and 360° overview
Built-in IR with individual IR LEDs
Support for deep learning analytics
Built-in cybersecurity features
Digital roll for ease of installation
Download
M4318-PLVE Datasheet
AXIS M4215-V Dome Camera, Varifocal 2 MP dome with deep learning
Great image quality in 2 MP
Varifocal lens with remote zoom and focus
Lightfinder and WDR
Analytics with deep learning
HDMI output for public viewing monitors
Downloads
Datasheet
Axis Q6225-LE PTZ Camera, Q6225-LE 50Hz is a PTZ for the Toughest Conditions. Mil Specified, Build in IR Illumination 400m (1300T), Can Be Mounted Face Up or Face Down, 02316-006
Heavy-duty PTZ camera with long-range IR
HDTV 1080p and 31x optical zoom
1/2" sensor and long-range OptimizedIR
Electronic image stabilization
MIL-STD-810G and NEMA TS-2 compliant
AXIS Object Analytics preinstalled
Download
Q6225-LE Datasheet

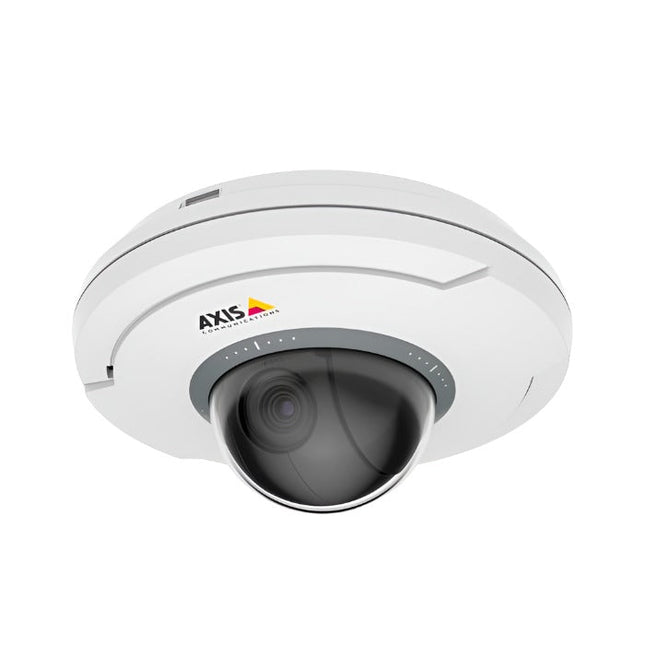

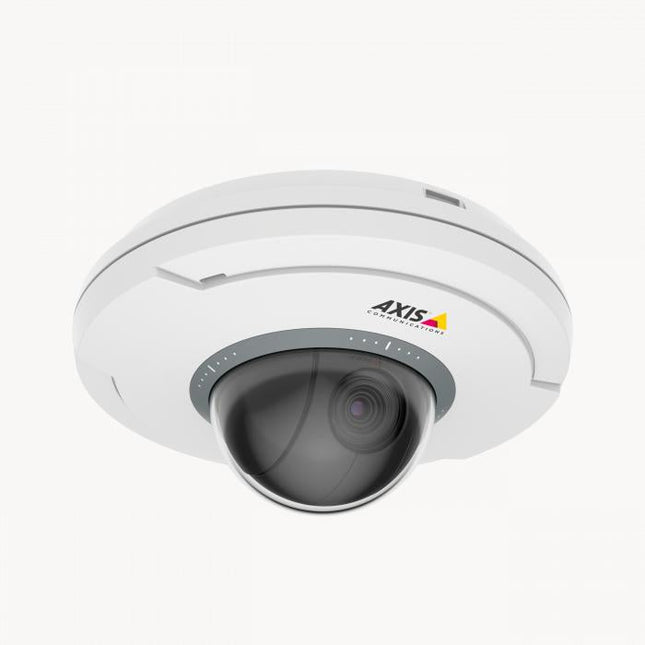

Axis M5075 PTZ Camera, M5075 Ceiling-mount Mini PPTZ Dome Camera With 5x Optical Zoom and Autofocusing, HDTV 1080P (1920x1080) 30FPS in H.264/h.265 With Zipstream and Mot, 02346-001
Palm-sized PTZ camera with 5x optical zoom
PTZ with 5x optical zoom, 12x digital zoom
Autofocus and WDR
Built-in analytics
Zipstream with H.264/H.265
Built-in cybersecurity features
Download
M5075 Datasheet
Axis M5074 PTZ Camera, M5074 Ceiling-mount Mini PTZ Dome Camera With 5x Optical Zoom and Autofocusing, HDTV 720P (1280x720) 30FPS in H.264/h.265 With Zipstream and Motion, 02345-001
Palm-sized PTZ camera with 5x optical zoom
PTZ with 5x optical zoom, 12x digital zoom
Autofocus and WDR
Built-in analytics
Zipstream with H.264/H.265
Built-in cybersecurity features
Download
M5074 Datasheet
Axis Q1656-DLE Radar-video Fusion Camera, Q1656-DLE Radar-video Fusion Camera. Enhanced Situational Awareness Based on the Fusion of Visual- and Radar Sensor Information in One Device, 02420-001
Next-level detection and visualization
Two powerful technologies in one device
Increased scene intelligence
Reliable detection 24/7
Built-in cybersecurity features
Premium Axis Q-line camera functionality
Downloads
Q1656-DLE Datasheet
Axis Q1785-LE Network Camera, Robust Outdoor, 2 MP/HDTV, Day/night Fixed Bullet Camera With 32x Optical Zoom, 01161-001
Robust, first-class 2 MP video with 32x optical zoom
HDTV 1080p at up to 60 fps
-40 °C to 60 °C operating temperature
OptimizedIR with up to 80 m (262 ft) range
Electronic image stabilization
AXIS Guard Suite included
Downloads
Q1785-LE Datasheet

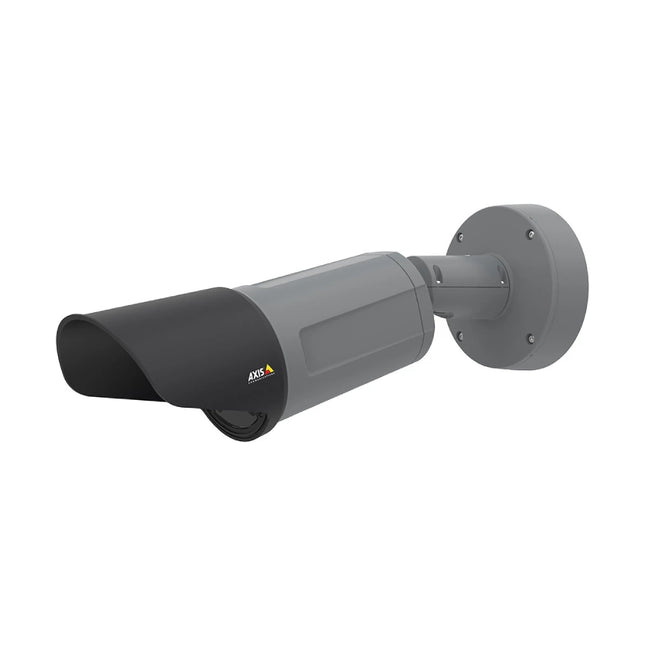

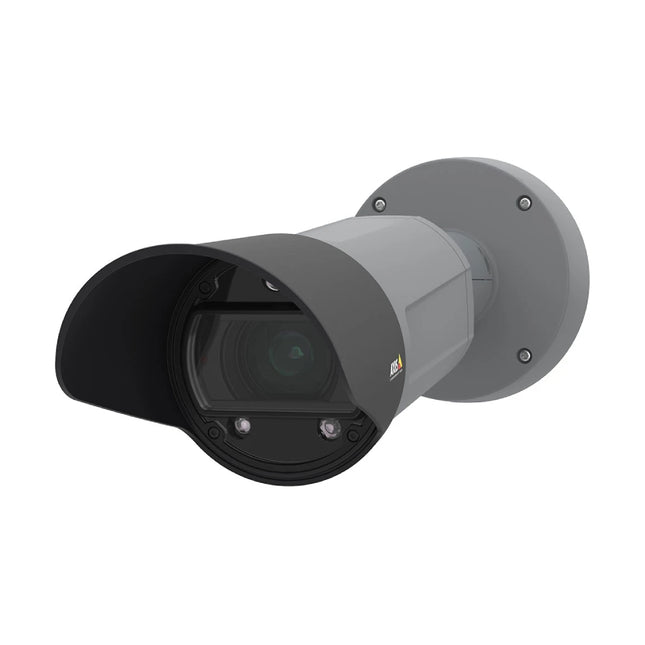

Axis Q1700-LE License Plate Camera, Robust Outdoor, Color 2 MP/1080P HDTV License Plate Camera for Sharp License Plate Images Day and Night, 01782-001
Dedicated camera for sharp images at high speeds
Designed for third-party software
Sharp license plate images day and night
Handle speeds of up to 130 km/h (81 mph)
Capture range of up to 100 m (328 ft)
Robust design for rough weather
Download
Q1700-LE Datasheet
AXIS M5525-E 2 Megapixel HD Network Camera - Monochrome, Colour - Dome - MJPEG, H.264, MPEG-4 AVC - 1920 x 1080 - 4.70 mm- 47 mm Zoom Lens - 10x Optical - CMOS - Recessed Mount, Wall Mount, Ceiling Mount, Pole Mount, Parapet Mount, Pendant Mount, Corner Mount
Indoor and outdoor PTZ with 10x zoom in HDTV 1080p
HDTV 1080p and 10x optical zoom
Continuous 360° pan
Axis Zipstream
Three scene profiles
Two-way audio and I/O
AXIS M5525-E is a great deal. The affordably priced camera is packed with the kind of top-of-the-line features you’d normally expect in high end cameras. It’s particularly suitable for stores, schools, building lobbies and other open areas, both indoors and out.
Don’t miss a thing
HDTV 1080p resolution, 10x optical zoom, and continuous 360° pan that lets you easily follow moving objects. AXIS M5525-E provides both the zoomed-in detail and the broad overview you need to stay on top of what’s happening on your premises. WDR - Forensic Capture ensures great detail when there are both bright and darker spots in a scene. The camera’s outstanding light-sensitivity means high-quality video even when it is recording in near darkness.
Highly versatile
AXIS M5525-E is a versatile camera for indoor or outdoor use, compatible with all Axis PTZ mounts. It offers two-way audio and four digital I/O ports for integration with other equipment. And there are three scene profiles to choose from:
Forensic profile for capturing details in challenging conditions
Indoor profile for optimized colors in indoor lighting conditions
Outdoor profile for enhanced image appearance for outdoor surveillance
For each profile, the camera automatically optimizes exposure time, white balance, aperture, sharpness, contrast and noise to suit the specific scenario. The result is great image quality and cost-effective installation.
Sharp images. Low bandwidth.
AXIS M5525-E features Axis Zipstream technology, which analyses the video stream in real time to identify areas of interest. These areas are compressed a bit less than other areas, preserving important details in full image quality, while reducing storage and bandwidth by up to 50%. The result is high-quality images and significant savings.
Downloads
M5525-E Datasheet
AXIS Q6128-E PTZ Network Camera
High-end 4K PTZ with Axis’ Sharpdome technology
The compact, outdoor-ready AXIS Q6128-E delivers top performance 4K (8 MP) video at 25/30 fps, with 12x optical zoom, and autofocus. Axis’ Sharpdome technology provides full scene fidelity and perfect image quality in all directions – above as well as below the horizon. Using the latest technology, AXIS Q6128-E has good low light performance, and the quick and precise pan of more than 700°/s makes it easy to change viewing position and follow fast moving objects. Axis’ Speed Dry function easily removes water drips from the dome glass, providing sharp images in rainy weather. The camera also features EIS and defogging.
4K resolution
Axis Sharpdome technology
Axis Speed Dry function
Pan performance up to 700°/s
Repaintable
Download
Axis Q3819-PVE Panoramic Camera, Q3819-PVE Delivers a 180 Panoramic Overview of Extensive Areas. With 14 MP Resolution and Seamless Stitching of All Four Images, 01819-001
Axis Q3819-PVE 14 Megapixel Outdoor Network Camera - Colour - Dome - H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), Motion JPEG, H.264 BP, H.265 (MP), H.264 HP, H.264 (MP), H.265, H.264 - 8192 x 1728 - 5.90 mm Fixed Lens - RGB CMOS - Bracket Mount, Wall Mount, Ceiling Mount, Pendant Mount, Recessed Mount, Corner Mount, Pole Mount, Parapet Mount, Flush Mount, Conduit Mount, Backbox Mount - IK10 - IP66, IP67 - Impact Resistant, Vandal Resistant
With 14 MP resolution, AXIS Q3819-PVE offers seamless stitching of all four images. It delivers a 180º panoramic overview of extensive areas with excellent image usability for quick and intuitive situational awareness.
Wide area coverage with support for audio input
AXIS Q3819-PVE is perfect when you need wide area coverage. With 14 MP resolution, this multisensor camera offers seamless stitching of all four images to deliver a seamless 180° panoramic overview of extensive areas and excellent image usability. You get 180° horizontal coverage and 38° vertical coverage. Additionally, it can be used with AXIS T94V01C Dual Camera Mount to mount two cameras back-to-back for a complete 360° overview. This multisensor camera offers smart pairing with Axis network speakers using edge-to-edge technology. For instance, you can add support for audio and communicate warnings to intruders.
Seamless images
The single smooth and cohesive video stream is what really sets AXIS Q3819-PVE apart. This 14 MP multisensor camera offers seamless 180° panoramic coverage and captures high-quality images with incredible details up to 30 fps. With seamless stitching across all 4 images, it delivers a coherent-looking image in one single video stream for a perfect overview without any stitching. This allows for quick and intuitive situational awareness over a large area, ensuring ease of use for the operator. Furthermore, it offers AXIS Object Analytics allowing you to detect and classify humans and vehicles, all tailored to your specific needs.
Cost-efficient, flexible, and secure
With AXIS Q3819-PVE, you get the benefits of four cameras, while paying for just one. That means there's one camera to install, one cable to draw, and one IP address, one video management software (VMS) license, and just one license for any analytics you choose to install. It features built-in motors for remote pan/tilt/roll functionality and fast, cost-efficient installation. Additionally, it offers a wide variety of mounting options - flush, recessed, pendant, or even back-to-back. Furthermore, it features Axis Edge Vault to protect your Axis device ID and simplify authorization of Axis devices on your network. And, for added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified.
Features
Features RGB CMOS sensor
Network camera - Helps achieve high-quality video results
Up to 8192 x 1728 video resolution
Technical Specs
Interfaces/Ports
Network (RJ-45)
Yes
Storage
Storage Type
Memory Card
Technical Information
HD Recording
Yes
Exposure
Longest Shutter Speed
1/25 Second
Shortest Shutter Speed
1/40000 Second
Network & Communication
Connectivity Technology
Wired
Remote Management
Yes
Environmental Conditions
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
50°C
Operating Humidity
100%
Lens
Lens Type
Fixed
Maximum Aperture
f/1.88
Maximum Focal Length
5.90 mm
Lens Included
Yes
Display & Graphics
Color Supported
Colour
Image Sensor Type
RGB CMOS
Effective Camera Resolution
14 Megapixel
Field of View
Horizontal: 180°, Vertical: 38°
Number of Sensors
4
Physical Characteristics
Weight (Approximate)
2.40 kg
Durability
Impact Resistant
Vandal Resistant
Form Factor
Dome
Mount Type
Wall Mount
Backbox Mount
Bracket Mount
Ceiling Mount
Conduit Mount
Flush Mount
Parapet Mount
Pendant Mount
Recessed Mount
Corner Mount
Pole Mount
Diameter
195 mm
Height
170 mm
Product Color
White
General Information
Product Type
Network Camera
Manufacturer Part Number
01819-001
Manufacturer Website Address
http://www.axis.com/au/en/
Manufacturer
Axis Communications
Product Model
Q3819-PVE
Product Name
Q3819-PVE Network Camera
Brand Name
AXIS
Video
Video Formats
Motion JPEG
H.265 (MPEG-H Part 2/HEVC)
H.265 (MP)
H.265
H.264
H.264 (MP)
H.264 (MPEG-4 Part 10/AVC)
H.264 BP
H.264 HP
Maximum Video Resolution
8192 x 1728
Maximum Frame Rate
30 fps
Miscellaneous
Features
Active Tampering Alarm
Audio Detection
Wide Dynamic Range
White Balance
Shock Detection
Built-in Motor Control
Day/Night
HTTPS Encryption
Noise Reduction
Password Protection
Privacy Masking
SD Card Local Storage
Indoor/Outdoor
Outdoor
Impact Protection Rating
IK10
Ingress Protection Rating
IP66
IP67
AXIS M3088-V 8 Megapixel Indoor Network Camera - Colour - Mini Dome - H.264, H.265, MJPEG, Zipstream - IK08 - Dust Resistant, Vandal Resistant
Fixed 8 MP mini dome with deep learning
Great image quality in 8 MP
Compact, discreet design
WDR for challenging light
Support for analytics with deep learning
Built-in cybersecurity features
This cost-efficient, compact mini dome delivers great image quality in challenging light conditions. And, with a deep learning processing unit, you can benefit from advanced analytics based on deep learning on the edge.
Great image qualityAXIS M3088-V offers great 8 MP image quality even in challenging light conditions. Thanks to Wide Dynamic Range (WDR), it ensures clarity even when there’s both dark and light areas in the scene. Plus, out-of-the-box it offers a factory-focused fixed field of view so there’s no manual focusing required.
Extended possibilitiesAXIS M3088-V offers support for intelligent analytics based on deep learning on the edge. This means it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. AXIS Object Analytics comes preinstalled and knows what to detect so you can focus on objects of interest - all tailored to your specific needs. Additionally, with support for ACAP, you can add value to your system with tailor-made applications. Furthermore, this compact dome offers the flexibility to add audio or I/O connectivity using accessories.
Compact and cost-efficientThis cost-efficient mini dome offers a wide range of mounting accessories for flexible and discreet installation. With bayonet-fitted casing, it simply twists on and off for fast, convenient installation. Compact in design, this easy-to-install, vandal-resistant camera is protected against redirection and defocusing as well as dust and dripping water. It offers Axis Zipstream with H.264/H.265 for reduced bandwidth and storage requirements. And thanks to edge storage you can record directly to an onboard memory card. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.
Downloads
M3088-V Datasheet

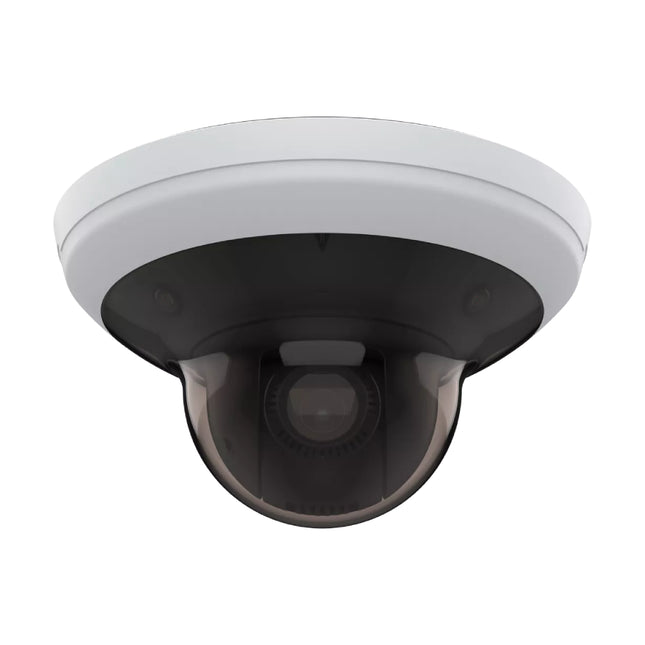

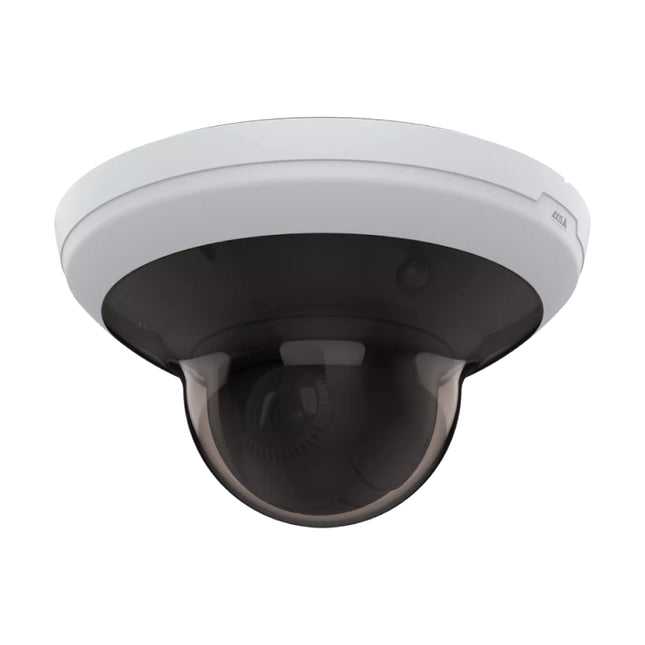

Axis M5000 PTZ Camera, M5000 50Hz 15MP Indoor Panoramic Camera With PTZ and 10x Optical Zoom, 02187-001
15 MP indoor camera with 10x optical zoom
3x 5MP sensors for situational awareness
Total overview, zoomed-in details
Covers indoor areas up to 400 m2 (4300 ft2)
10x optical zoom with HDTV 1080p
Autofocus and D/N functionality
From banks to retail stores, M5000 PTZ is ideal for a wide variety of indoor applications. This 15 MP indoor camera features three 5 MP sensors and one PTZ camera with 10x optical zoom, so you get the benefits of four cameras, while installing just one.
Total situational awarenessAXIS M5000 offers total situational awareness of indoor areas up to 400 m2 (4300 ft2). Featuring three 5 MP sensors and one PTZ camera with 10x optical zoom and HDTV 1080p, it lets you benefit from sweeping overviews, and you can zoom in to get the details. With everything displayed on one monitor, you can move from overview to detailed views in a single click. Furthermore, it features indication lights to help deter antisocial and criminal behavior, ideal for retails stores and large indoor areas.
Great image qualityIncluding three 5 MP sensors with a total of 15 MP resolution, this cost-effective, indoor camera offers great image quality. It has day/night functionality with an automatically removable infrared-cut filter. And, with autofocus capabilities, you can quickly zoom in on areas of interest. Thanks to polygonal privacy masking, it’s possible to pixelate whole areas where privacy must be kept, such as a neighboring property. Plus, click in picture functionality allows you to click directly in the picture to define the central position of the selected camera. Furthermore, Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements.
Cost-efficient and easy to installWith AXIS M5000, you get the benefits of four cameras, while installing just one. So, there’s only one camera to install, one cable to run, one IP address, and one video management software (VMS) license to install. Thanks to edge storage you can record directly to an onboard memory card for easy installation and maintenance. Designed to blend in seamlessly with any environment, a black dome is also available as an accessory. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.
DownloadM5000 Datasheet
AXIS P3727-PLE Panoramic Camera
4x2 MP multidirectional camera with IR for 360° coverage
4*2 MP at 30 fps per channel
360° IR illumination with individually controlled LEDs
AXIS Edge Vault and TPM module
Remote zoom and focus
Edge storage with 2* microSD card slots
Ideal for large indoor and outdoor areas, AXIS P3727-PLE lets you monitor four different areas with a single camera, around the clock, and even in challenging lighting. You can count on excellent overviews and detailed coverage thanks to the brilliant design of this cost-effective solution.
Wide area surveillance with high-quality overview—24/7AXIS P3727-PLE offers four channels with 2 MP per channel at 30 fps letting you capture both wide-angle and zoomed-in, detailed views. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and an automatic IR cut filter. So, you’ll enjoy clear, reflection-free footage and excellent image quality even in low light or complete darkness as well as undistorted colors during the day.
Thanks to Forensic WDR it ensures clarity when there’s both dark and light areas in the scene. Furthermore, it’s possible to run AXIS Object Analytics on one of the four channels allowing you to detect and classify people and vehicles entering a user-defined area or crossing a user-defined virtual line.
Brilliant DesignThis compact, flexible multidirectional camera offers various mounting options. For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360° coverage. When mounted on corners, it offers 270° coverage. With a tamper-resistance casing and integrated IP66/IP67 rated weather shield that protects against rain, snow, and sunlight, AXIS P3727-PLE is ideal for outdoor wall mounting. It allows for flexible positioning of all four varifocal camera heads so they can be moved and rotated to provide the optimal field of view.
And, each head can be controlled individually so you can monitor scenes in four directions. The camera’s sensors can also be twisted, allowing two camera heads to be positioned closer together, so one can take the wide view and the other can zoom in on the same target.
Cost-efficient and secureWith four camera heads in one camera, AXIS P3727-PLE offers fast, accurate, and cost-effective installation. That’s because there’s only one camera to install, one cable to draw, and one IP address, one video management software (VMS) license, and just one license for any analytics you choose to install. Plus, remote zoom and focus capabilities eliminate the need for hands-on fine tuning. And, with snap-fit installation, the casing simply snaps on. AXIS P3727-PLE offers enhanced security functionality to prevent unauthorized access and safeguard your system.
Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Additionally, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. Thanks to Axis Zipstream, this cost-effective camera significantly lowers bandwidth and storage requirements without compromising image quality. This is particularly beneficial when streaming multiple video streams as it ensures image quality is maintained while unnecessary data is heavily compressed. Furthermore, thanks to edge storage you can record directly to two onboard Micro SD™ cards for added storage capability and reliability.
Downloads
P3727-PLE Datasheet
Axis Q6315-LE PTZ Network Camera, High-end PTZ Camera With HDTV 1080p @50FPS, 1/2 Degree RGB Sensor, 31x Optical Speed Zoom and Laser Focus, 01924-006
AXIS Q6315-LE PTZ Network Camera High-end outdoor-ready HDTV 1080p PTZ camera with quick-zoom and laser focus
1/2" sensor with 31x optical zoom
IR illumination, D/N functionality
Autotracking 2, orientation aid and AXIS Object Analytics
Laser focus for precise focus with Quick-zoom <1sec
TPM, FIPS 140-2 level 2 certified
Ideal for city surveillance, AXIS Q6315-LE offers a ½” sensor and 31x optical zoom. It features laser focus for precise focus every time - even in the dark. And, Speed Dry functionality for crisp, clear images in rainy weather.
Super surveillance- day and night
AXIS Q6315-LE features very light-sensitive ½” inch sensor to deliver clear, bright images and better handling of shadows even in challenging light conditions. Including IR Illumination and D/N functionality, it’s perfect for surveillance in pitch darkness without the need for additional lighting. With 31x optical zoom, a built-in laser, and quick-zoom functionality, AXIS Q6315-LE allows you to easily follow fast-moving objects. Plus, it offers laser focus for precise focus– every time. It’s possible to mount this camera in AXIS Q6100-E allowing for continuous 360° rotation for total situational awareness. And, because it uses the same bracket, power supply, and network cable as AXIS Q6100 you get cost-efficient installation. Furthermore, Zipstream with support for H.264 and H.265 significantly lowers bandwidth and storage requirements without compromising image quality.
Built-in advanced analytics
This top-of-the-line camera contains all the functionality you need to track and identify suspect behavior. It offers autotracking 2 with click and track functionality for active object tracking. And an orientation aid enables dynamic text overlays with street names and a compass symbol for quick orientation. Where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Plus, with chameleon masking, it automatically changes the color in the masking depending on the background color of the image.
Keeping you secure
AXIS Q6315-LE includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified to ensure secure storage of all cryptographic keys and certificates. This IK10-rated vandal-resistant camera is protected against the ingress of dust and high pressure water jets from any direction (IP66 rating). It offers shock detection, which allows the camera to send an alarm when it has been hit. And, with support for fiber connection and PoE, it allows for cost-effective installation and long-distance connections.
Axis Q6010-E Network Camera, Outdoor-ready 360 Situational Awareness Camera, Comprising of 4x5MP Sensors, 01980-001
For 360° real-time monitoring and great detail
360° camera with one-click PTZ control
4 x 5 MP sensors, total 20 MP resolution
Exchangeable and tiltable lenses
Requires an AXIS Q60-E PTZ Network Camera
Autopilot included
AXIS Q6010-E Network Camera is a multidirectional camera designed for operation with any AXIS Q60-E PTZ Network Camera. Together they deliver 360° overview for total situational awareness and great details. It's ideal for active city surveillance, for instance at street crossings or squares.
Total situational awareness- 24/7Do you want to monitor one cohesive video stream with the possibility to zoom in for detailed views in just one click? AXIS Q6010-E is specially designed for operation with any AXIS Q60-E PTZ Network Camera. It offers one-click PTZ control allowing you to move from great overviews to zoomed-in detailed views in just one mouse click. Additionally, this camera offers autopilot for automatic PTZ tracking. When motion is detected in one of the four 5 MP sensors, the connected AXIS Q60-E PTZ Network Camera will automatically track the object within the viewing area.
Great image quality - day and nightAXIS Q6010-E features four 5 MP sensors and delivers a total of 20 MP resolution both day and night. This multidirectional camera also offers exchangeable lenses on each of the four sensors so you can easily change lens to ensure you capture the images you need. And, thanks to corridor format it delivers vertically oriented video streams that maximize coverage of areas such as along alleys and long streets. Furthermore, Axis Zipstream with support for H.264/H.265, significantly lowers bandwidth and storage requirements without compromising image quality.
Cost-efficient installationUsing the same bracket, power supply and network cable as the connected AXIS Q60-E PTZ Net-work Camera, there's no extra equipment required for AXIS Q6010-E. Additionally, with autofocus and positioning calibration you get maximum flexibility and accurate configuration which saves time during setup. Just add the PTZ camera and you're ready to capture great overviews and details from one camera unit.
Downloads
Q6010-E Datasheet
Axis P3719-PLE Network Camera, P3719-PLE Network Camera is a Compact 15MP Camera With Four Varifocal Lenses (4 X Quad Hd) Enabling, 01500-001
15 MP multidirectional camera with IR for 360° coverage
15 MP, 360° multidirectional camera, with one IP address
360° IR illumination
Remote zoom and focus
Flexible positioning of four varifocal camera heads
Axis Zipstream for reduced bandwidth and storage needs
AXIS P3719-PLE lets you easily cover four different areas with a single camera, around the clock and even in challenging lighting. You’ll be able to count on both excellent overviews and detailed coverage thanks to the brilliant design of this cost-effective solution. It’s ideal for unobstructed and far-reaching surveillance of expansive outdoor areas, road intersections and at outer corners of buildings.Four cameras for the price of oneWith AXIS P3719-PLE, you get the benefits of four cameras, while paying for just one. That means there’s one camera to install, one cable to draw, and one IP address, one video management software (VMS) license and just one license for any analytics you choose to install.AXIS P3719-PLE also offers remote zoom and focus for fast, accurate installation. It can be powered by PoE allowing you to use existing cabling, further reducing costs. Plus, Axis Zipstream technology for savings of up to 50% on bandwidth and storage. The bottom line? AXIS P3719-PLE will save you money on both initial installation and long-term operations.Wide areas and great images – day and nightAXIS P3719-PLE offers four channels with Quad HD resolution per channel, at a frame rate of 30 fps. It features WDR for clarity when there are both dark and light areas in the scene.AXIS P3719-PLE has 360° IR illumination with individually controllable LEDs and an automatic IR cut filter. So you’ll enjoy clear, reflection-free footage in low light or complete darkness and undistorted color during the day. Plus, it’s weather resistant thanks to an integrated weathershield with an IP66/IP67 rating.One camera for the coverage of fourThe beauty of AXIS P3719-PLE lies in its design, with four varifocal camera heads that can be moved and rotated to capture scenes in various directions in wide or zoomed-in views. AXIS P3719-PLE delivers a 360° overview or a combination of overviews and close-ups depending on your needs. In addition, the camera’s sensors can be twisted, allowing two camera heads to be positioned closer together, so one can take the wide view and the other can zoom in on the same target.The camera can be mounted on corners of buildings or on poles and parapets using AXIS T94N01D Pendant Kit. When corner-mounted, AXIS P3719-PLE provides 270° coverage using 3 camera heads, while the fourth camera captures the scene right below the camera – avoiding blind spots.
Downloads
P3719-PLE Datasheet
Axis Q6100-E Network Camera, Outdoor-ready 360 Situational Awareness Camera, Comprising of 4x5MP Sensors, 01710-001
For 360° real-time monitoring and great detail
360° camera with one-click PTZ control
4 x 5 MP sensors, total 20 MP resolution
Exchangeable and tiltable lenses
Requires an AXIS Q61 Series or AXIS Q63 Series camera
Directional audio detection included
AXIS Q6100-E Network Camera is a multidirectional camera offering 20 MP resolution and 360° overview for total situational awareness. Designed for operation with any AXIS Q61 PTZ Network Camera, it captures high resolution overviews and details in one complete camera solution. It's ideal for city surveillance applications, for instance at street crossings or squares.
Total situational awareness- 24/7Do you want to monitor one cohesive video stream with the possibility to zoom in for detailed views in just one click? AXIS Q6100-E is specially designed for operation with any AXIS Q61 Series camera. It offers one-click PTZ control allowing you to move from great overviews to zoomed-in detailed views in just one mouse click. It includes directional audio detection which redirects the PTZ camera to the audio source whenever an audio incident is detected. Furthermore, it offers automatic PTZ tracking. When motion is detected in one of the four 5 MP sensors, the connected AXIS Q61 PTZ Network Camera will automatically track the object within the viewing area.AXIS Q6100E - mounted on wall outdoorGreat images to cover your areas of interestAXIS Q6100-E features four 5 MP sensors with a total of 20 MP resolution both day and night. This multidirectional camera also offers exchangeable lenses on each of the four sensors so you can easily change lens to ensure you capture the images you need. And, thanks to corridor format it delivers vertically oriented video streams that maximize coverage of areas such as along alleys and long streets. Furthermore, Axis Zipstream with support for H.264/H.265 significantly lowers bandwidth and storage requirements without compromising image quality.Easy, cost-efficient installationUsing the same bracket, power supply and network cable as the connected AXIS Q61 PTZ Network Camera, there's no extra equipment required for AXIS Q6100-E. Additionally, with autofocus and positioning calibration you get maximum flexibility and accurate configuration which saves time during setup. Just add the PTZ camera and you're ready to capture great overviews and details in one complete camera solution.
Downloads
Q6100-E Datasheet
