NDAA Compliant • 2MP Deep-Learning Mini Dome
Axis M3085-V 2MP Indoor Mini Dome — Australian Stock & 5-Year Warranty

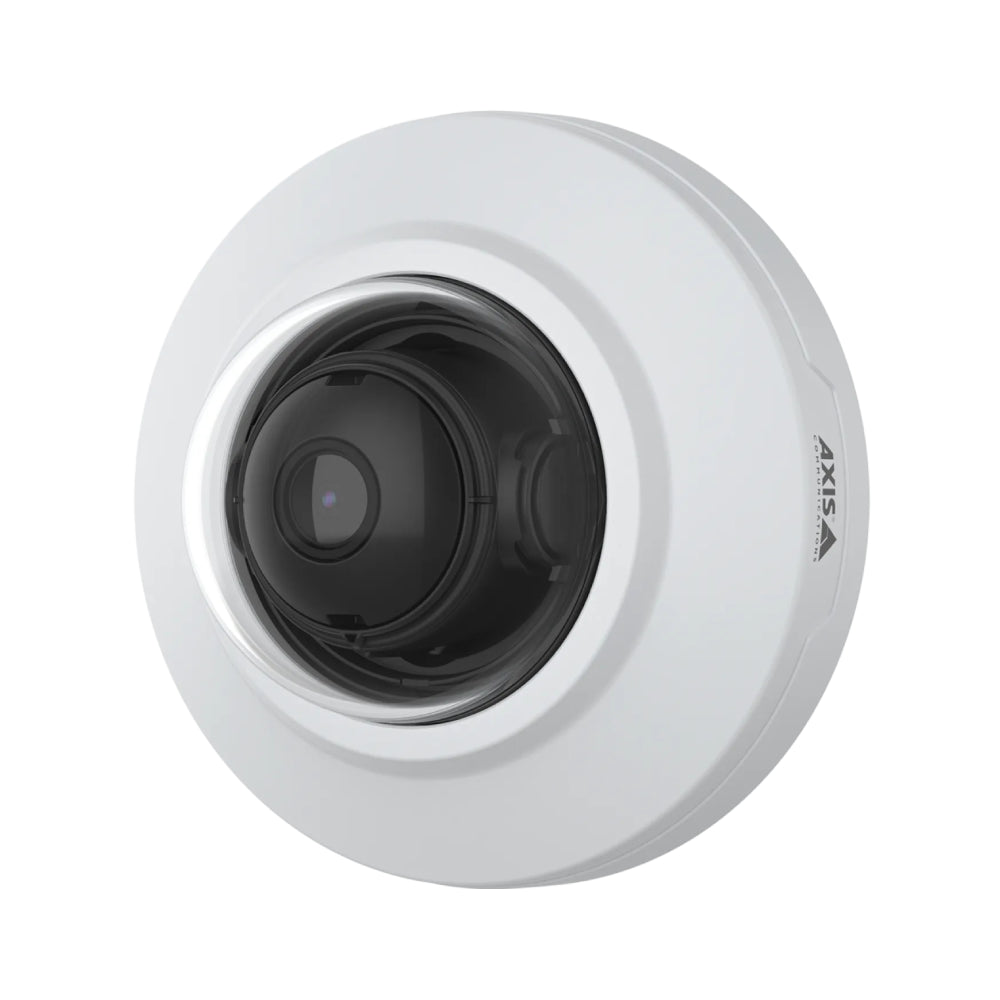

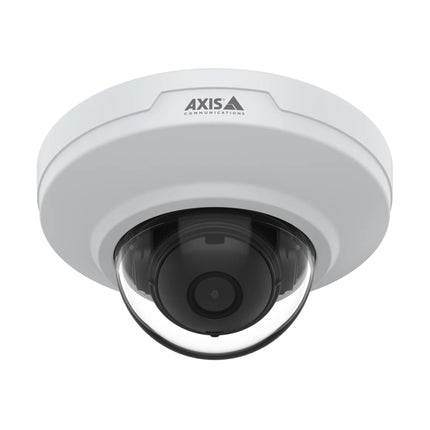

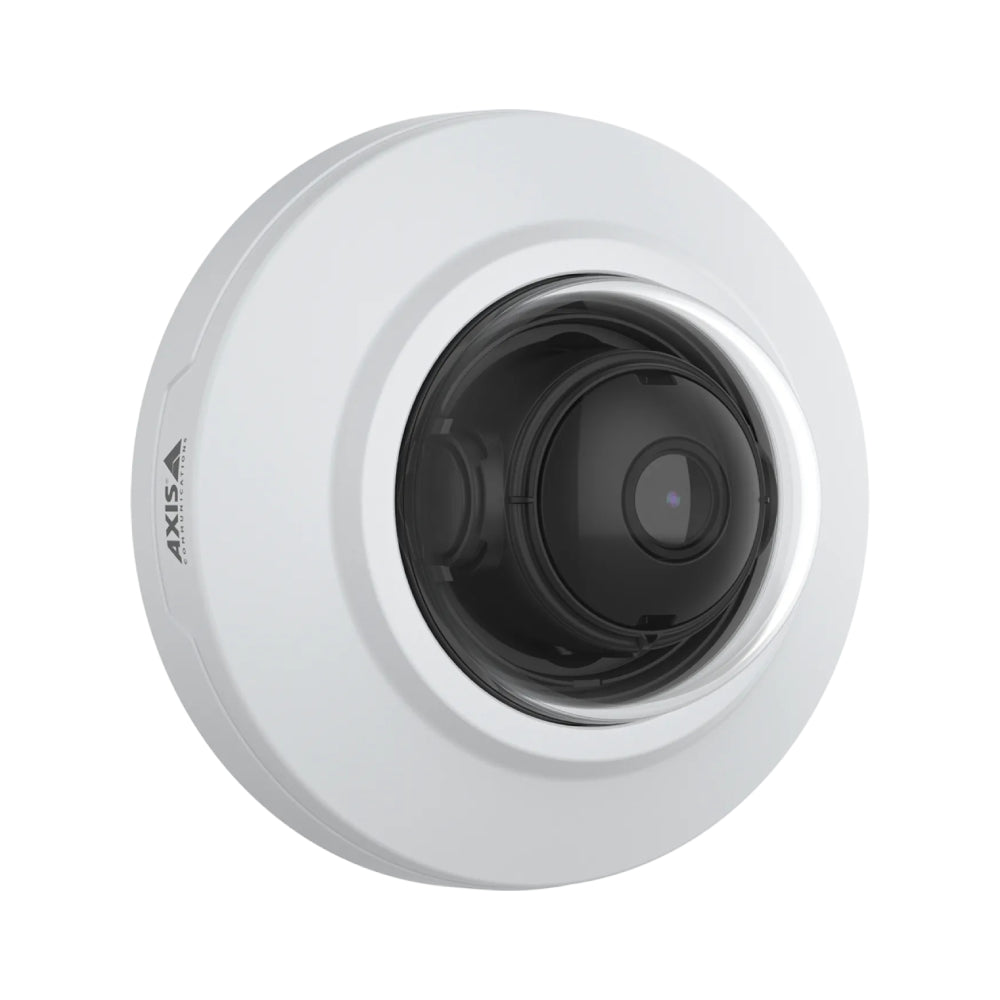

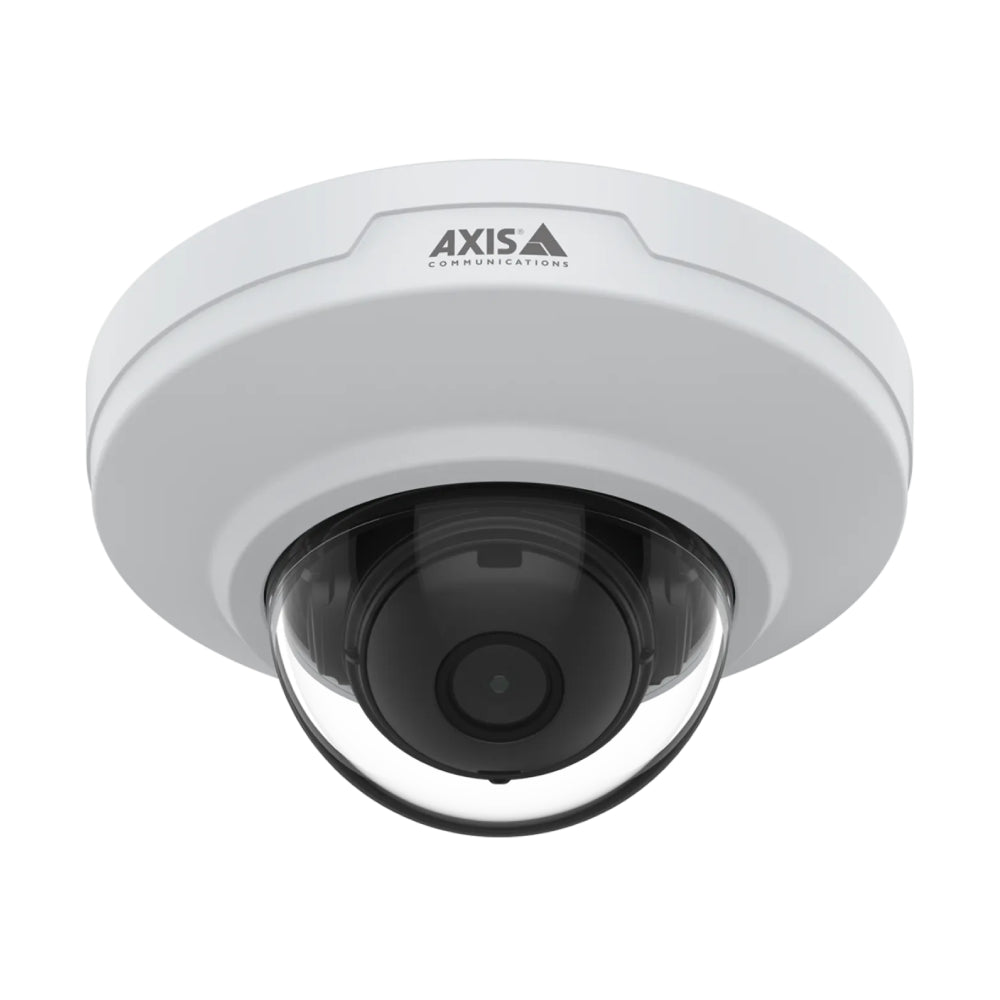

The Axis M3085-V is an ultra-compact 2 MP (1080p) indoor fixed mini dome built around a deep learning processing unit (DLPU) for on-edge analytics. With Lightfinder low-light performance, up to 120 dB Wide Dynamic Range, a 102° horizontal field of view and a discreet, vandal-resistant IK08 casing, it delivers sharp, true-to-life images in challenging lighting. It arrives factory-focused for fast, no-fuss installation and runs on a single PoE cable. All Axis cameras are NDAA (889) and TAA compliant.
Analytics
DLPU + Object Analytics
Low Light
Lightfinder & 120dB WDR
Intelligent analytics on a compact, discreet dome
Powered by the CV25 system-on-chip and a dedicated deep learning processing unit, the M3085-V runs AXIS Object Analytics directly on the camera — detecting and classifying humans and vehicles (cars, buses, trucks, bikes) without a server. Its small footprint and white polycarbonate finish blend into retail, office, hospitality and residential ceilings while staying vandal-resistant.
Deep Learning at the Edge
The on-board DLPU enables AXIS Object Analytics with object classification, line crossing and object-in-area triggers across up to 10 scenarios — reducing false alarms and the load on your recorder.
Clear Images in Any Light
Axis Lightfinder retains true colour down to 0.18 lux, while Wide Dynamic Range up to 120 dB balances bright and dark areas in the same scene for usable detail throughout the frame.
Fast, Flexible Installation
The camera ships factory-focused with no manual focusing required. A wide pan/tilt/rotation range and Corridor Format let you frame narrow aisles and corridors precisely, all over a single PoE cable.
Built-in Cybersecurity
Axis Edge Vault, Axis device ID, signed firmware and secure boot protect the camera, with HTTPS, IEEE 802.1X and SD card encryption securing data end to end.
Technical Specifications
Camera
| Image sensor |
1/2.9" progressive scan RGB CMOS |
| Lens |
3.1 mm, F2.0, fixed iris, IR corrected |
| Horizontal field of view |
102° |
| Vertical field of view |
55° |
| Day/night |
Automatically removable IR-cut filter |
| Min. illumination (Lightfinder) |
Colour 0.18 lux; B/W 0.03 lux at 50 IRE, F2.0 |
| Shutter speed |
1/19000 s to 1/5 s |
| Angle adjustment |
Pan ±175°, Tilt ±80°, Rotation ±175° |
Video
| Resolution |
1920x1080 (1080p) to 320x240 |
| Frame rate |
25/30 fps in H.264 and H.265 |
| Compression |
H.264 (Main/High), H.265 (HEVC), Motion JPEG |
| Streaming |
Multiple configurable streams; Axis Zipstream |
| WDR |
Up to 120 dB depending on scene |
| Multi-view |
Up to 2 cropped view areas at full frame rate |
| PTZ |
Digital PTZ; Corridor Format |
Analytics & System
| SoC |
CV25 with deep learning processing unit (DLPU) |
| Memory |
1024 MB RAM, 512 MB Flash |
| AXIS Object Analytics |
Humans & vehicles (cars, buses, trucks, bikes); up to 10 scenarios |
| Included applications |
AXIS Object Analytics, AXIS Video Motion Detection |
| ACAP |
Supports third-party applications via AXIS Camera Application Platform |
Audio & Network
| Audio |
Two-way audio via optional accessories (portcast technology) |
| ONVIF |
Profile G, M, S and T |
| Security |
Axis Edge Vault, Axis device ID, signed firmware, secure boot, HTTPS, IEEE 802.1X |
| Network protocols |
IPv4/IPv6, HTTP/HTTPS, RTSP, SNMP, MQTT and more |
General
| Casing |
IP42 water/dust-resistant, IK08 impact-resistant, polycarbonate/ABS, white |
| Power |
PoE IEEE 802.3af/802.3at Type 1 Class 2; typical 3.6 W, max 4.2 W |
| Connectors |
RJ45 10BASE-T/100BASE-TX PoE |
| Storage |
microSD/SDHC/SDXC with AES-XTS 256-bit encryption; NAS recording |
| Operating conditions |
0 °C to 45 °C, 10–85% RH non-condensing |
| Dimensions |
56 mm high, ø 101 mm; 150 g |
| Sustainability |
57% recycled plastics, PVC free, BFR/CFR free |
| Part number |
02373-001 |
| Warranty |
5-year warranty |
Downloads
Frequently Asked Questions
What resolution is the Axis M3085-V?It is a 2 MP camera delivering Full HD 1080p (1920x1080) video at up to 25/30 fps.
Is this an indoor or outdoor camera?The M3085-V is an indoor fixed mini dome. Its casing is IP42 (water- and dust-resistant) and IK08 impact-resistant for indoor use.
Does it have built-in IR night vision?No, the M3085-V does not include built-in IR illumination. Instead it uses Axis Lightfinder technology to capture sharp colour images in low light down to 0.18 lux.
What analytics does it support?A deep learning processing unit (DLPU) runs AXIS Object Analytics on the edge, detecting and classifying humans and vehicles, plus AXIS Video Motion Detection. It also supports third-party ACAP apps.
How is the camera powered?Via Power over Ethernet (PoE IEEE 802.3af/802.3at Type 1 Class 2). A single network cable carries both power and data, typically drawing 3.6 W.
What is the field of view?The 3.1 mm lens provides a 102° horizontal and 55° vertical field of view, ideal for covering rooms, retail floors and entrances.
Does it support audio?Yes, two-way audio is available via optional accessories using Axis portcast technology over the same network cable.
Is the Axis M3085-V NDAA compliant?Yes. All Axis cameras, including the M3085-V, are NDAA Section 889 and TAA compliant, making them suitable for government and enterprise projects.
Can it record locally?Yes, it supports microSD/SDHC/SDXC cards with 256-bit AES encryption, plus recording to network-attached storage (NAS).
