NDAA Compliant • 6MP Ligature-Resistant Corner CameraAXIS P9117-PV (02864-001) — Australian Stock & 5-Year Warranty

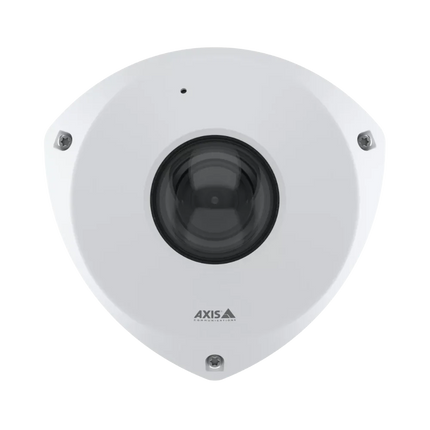

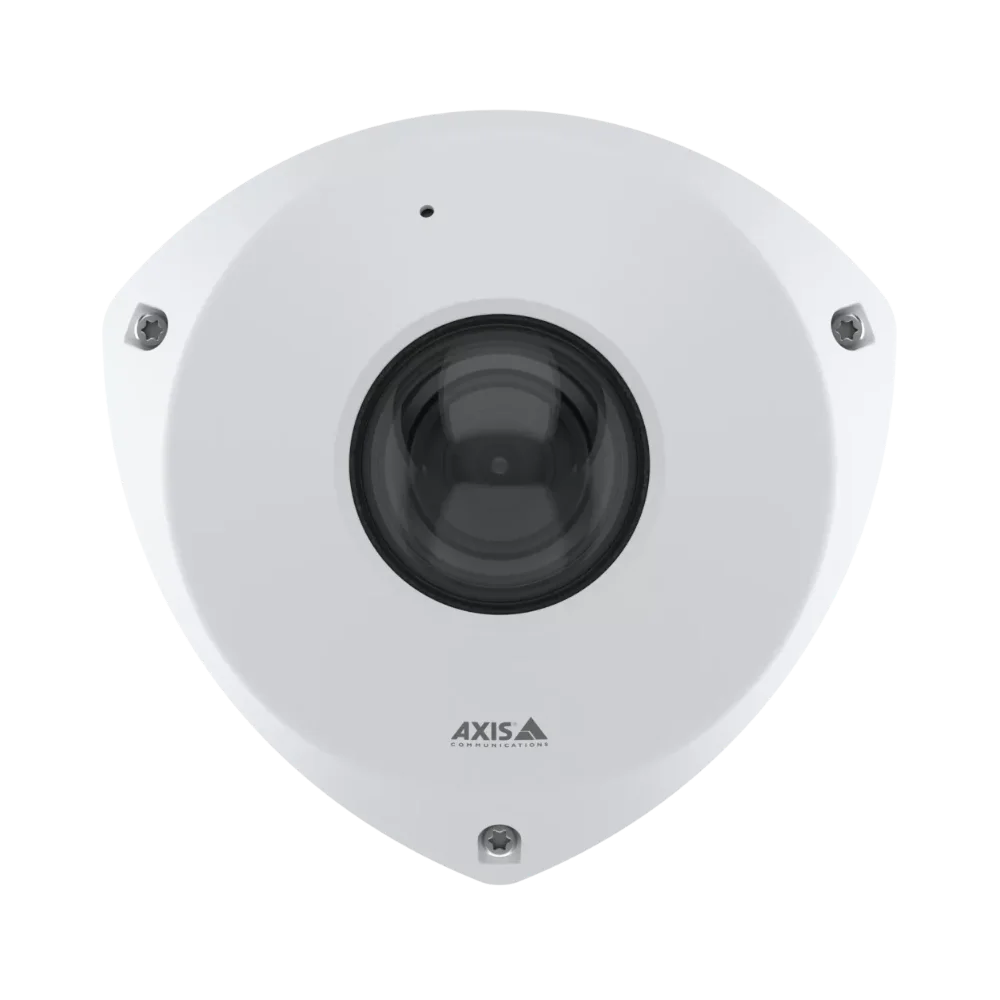

The AXIS P9117-PV is a 6 MP indoor corner camera purpose-built for cells, holding rooms and other high-risk interiors. Its flush corner-mount design and ligature-resistant (anti-ligature), vandal-proof IK10 housing leave no points to grip or tamper with, while a 176° stereographic lens captures the entire room with no blind spots. With AXIS Object Analytics running on the edge, a built-in microphone and Lightfinder low-light performance, it is the trusted choice for custodial and care environments. Axis cameras are NDAA 889 and TAA compliant.
Resolution
6 MP (2160×2160)
Coverage
176° — No Blind Spots
Durability
Ligature-Resist • IK10
Edge AI
AXIS Object Analytics
Total Room Coverage for High-Risk Spaces

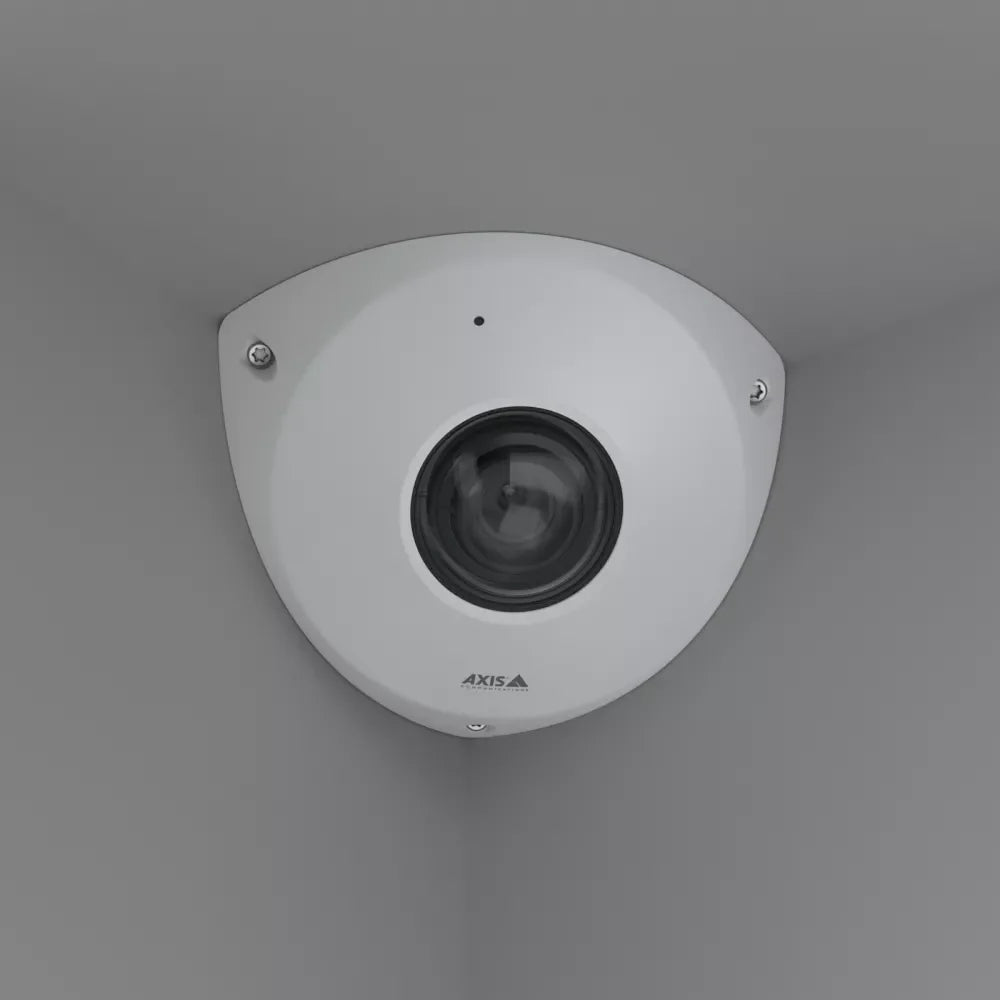

Mounted high in a corner, the P9117-PV's 176° stereographic lens delivers a complete top-down view of the room. Designed for custodial cells, holding areas, mental-health facilities and secure interiors, its smooth anti-ligature form and removable, abrasion- and chemical-resistant front cover stand up to deliberate abuse.
Ligature-Resistant by Design
A smooth, vandal-resistant IK10 housing with no protruding edges removes ligature and grip points, protecting people in custodial and care settings.
Edge Analytics & Audio
AXIS Object Analytics detects and classifies people and objects on the edge, while a built-in microphone adds AXIS Audio Analytics for added situational awareness.
Clear Images in Any Light
Axis Lightfinder sees colour down to 0.17 lux and Forensic WDR holds detail in difficult lighting, so incidents are captured clearly day and night.
Secure & Efficient
Axis Zipstream reduces bandwidth and storage, while Axis Edge Vault, signed OS and secure boot harden the camera against tampering.
Technical Specifications
IMAGING
| Resolution |
6 MP (2160 × 2160) |
| Image Sensor |
1/1.8″ progressive scan CMOS |
| Lens |
1.1 mm fixed stereographic lens |
| Field of View |
176° horizontal, 176° vertical |
| Frame Rate |
50/60 fps |
| Min. Illumination |
0.17 lux colour, 0.04 lux B/W |
| Low Light |
Axis Lightfinder |
| Wide Dynamic Range |
Axis Forensic WDR |
VIDEO, AUDIO & ANALYTICS
| Compression |
H.264, H.265, Axis Zipstream |
| Analytics |
AXIS Object Analytics, Scene Metadata, Image Health Analytics, Video Motion Detection |
| Audio |
Built-in microphone, AXIS Audio Analytics |
| Local Storage |
microSD / microSDHC / microSDXC card slot |
POWER & CONNECTIVITY
| Power over Ethernet |
IEEE 802.3af/802.3at Type 1 Class 3 (PoE) |
| Network |
RJ45 Ethernet |
| Mounting |
Corner mount (indoor) |
DURABILITY & SECURITY
| Impact Rating |
IK10 (vandal-resistant) |
| Ingress Protection |
IP66 |
| Anti-Ligature |
Ligature-resistant corner design |
| Operating Temperature |
-15 °C to 50 °C |
| Cybersecurity |
Axis Edge Vault, signed OS, secure boot, Secure Element (CC EAL6+) |
| Compliance |
NDAA 889 & TAA compliant |
| Part Number |
02864-001 |
Frequently Asked Questions
What is the P9117-PV designed for?It is an indoor corner camera built for cells, holding rooms, mental-health facilities and other high-risk interiors where durability and full room coverage are essential.
What does ligature-resistant mean here?The smooth corner housing has no protruding edges or grip points, reducing the risk of ligature attachment to protect people in custodial and care environments.
How much of the room does it cover?A 176° stereographic lens captures the entire room from a single high corner mount, with no blind spots.
What resolution does it record?It records 6 MP at 2160×2160 from a 1/1.8″ CMOS sensor, at up to 50/60 fps.
Does it have built-in IR?No. The P9117-PV does not include built-in IR. It relies on Axis Lightfinder for strong colour performance in low light.
Does it include analytics?Yes. AXIS Object Analytics is preinstalled for edge detection and classification, alongside Scene Metadata, Image Health Analytics and Video Motion Detection.
Does it have audio?Yes. A built-in microphone supports AXIS Audio Analytics for added situational awareness.
How is it powered?Via Power over Ethernet (IEEE 802.3af/at Class 3) over a single network cable.
Is it NDAA compliant?Yes. Axis cameras are NDAA 889 and TAA compliant, suitable for government and secure-facility projects.
