NDAA Compliant • 6MP 360° Panoramic
AXIS M3077-PLVE 02018-001 — Outdoor 360° Panoramic Dome with Audio, Australian Stock & 5-Year Warranty

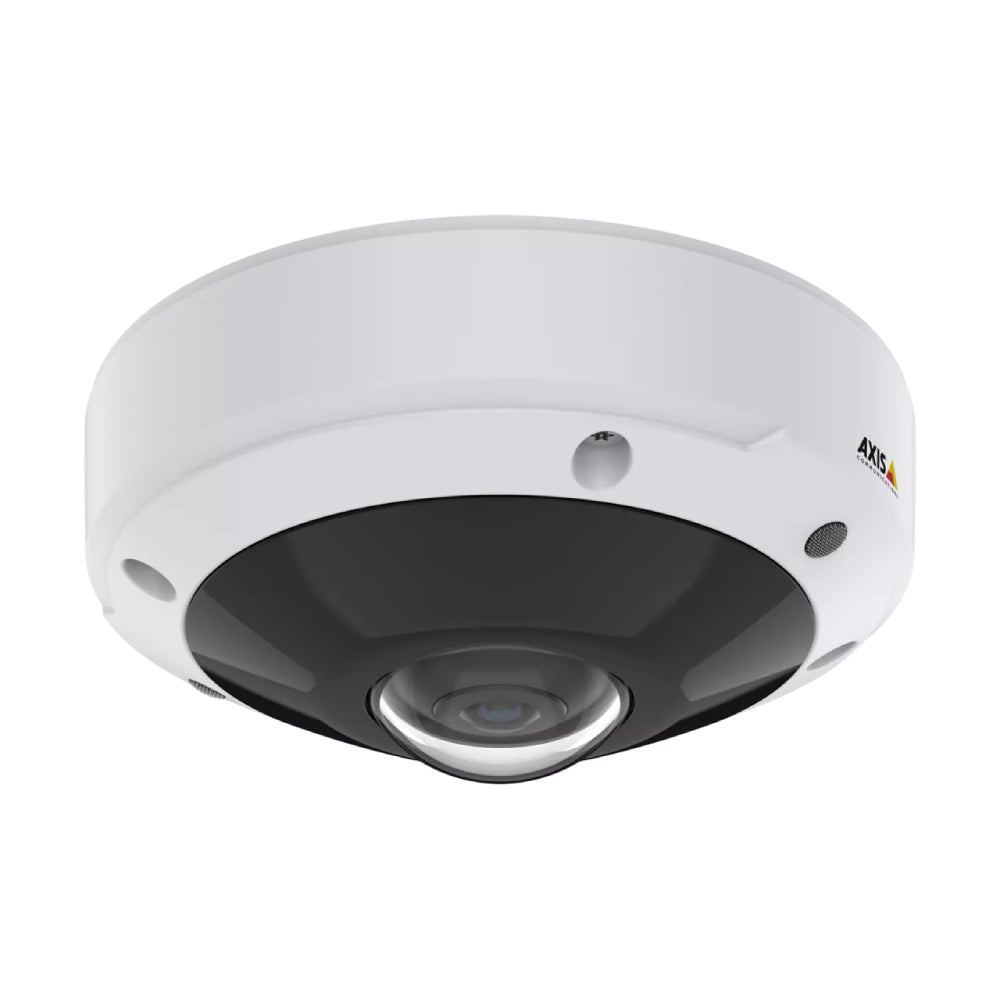

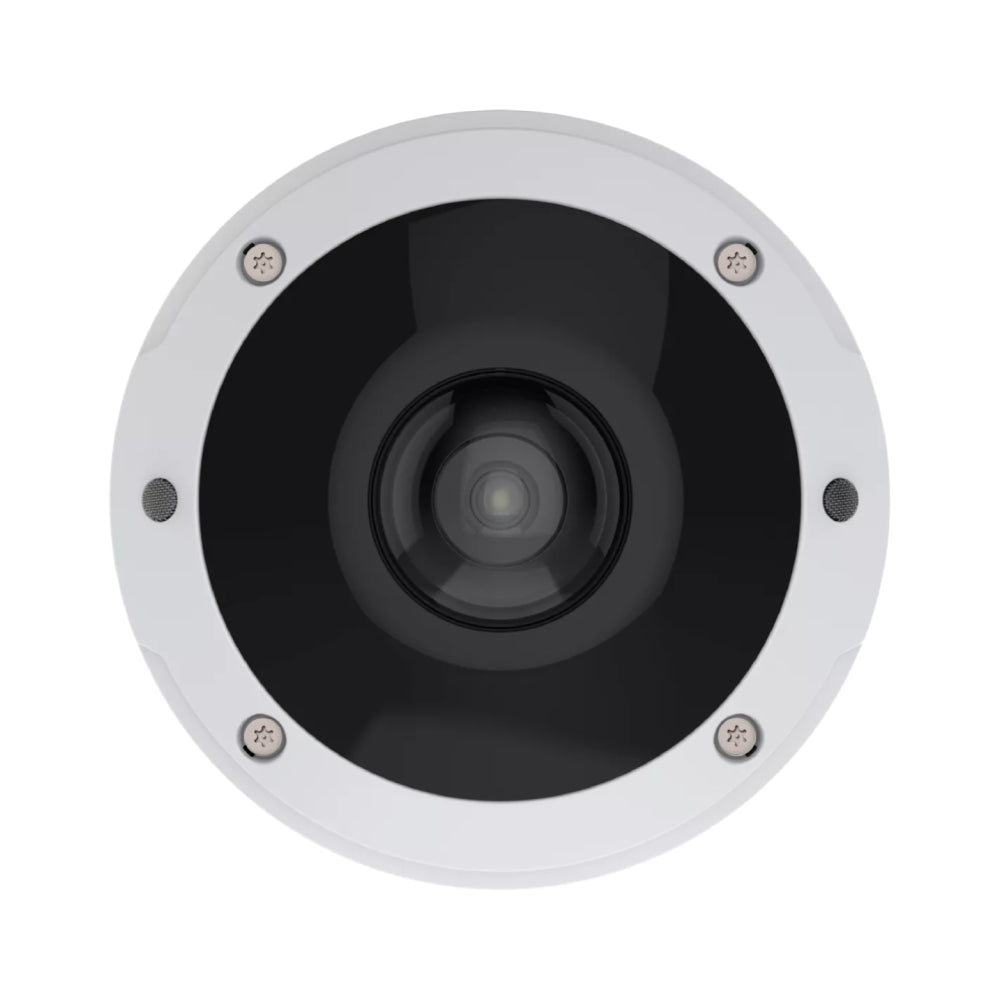

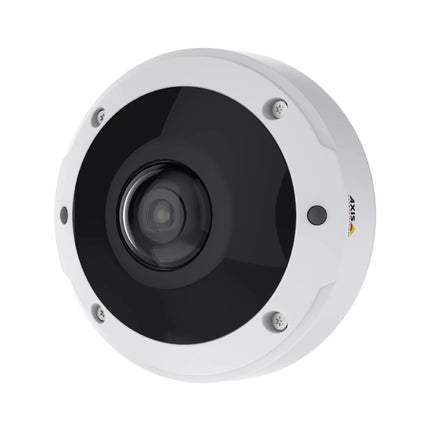

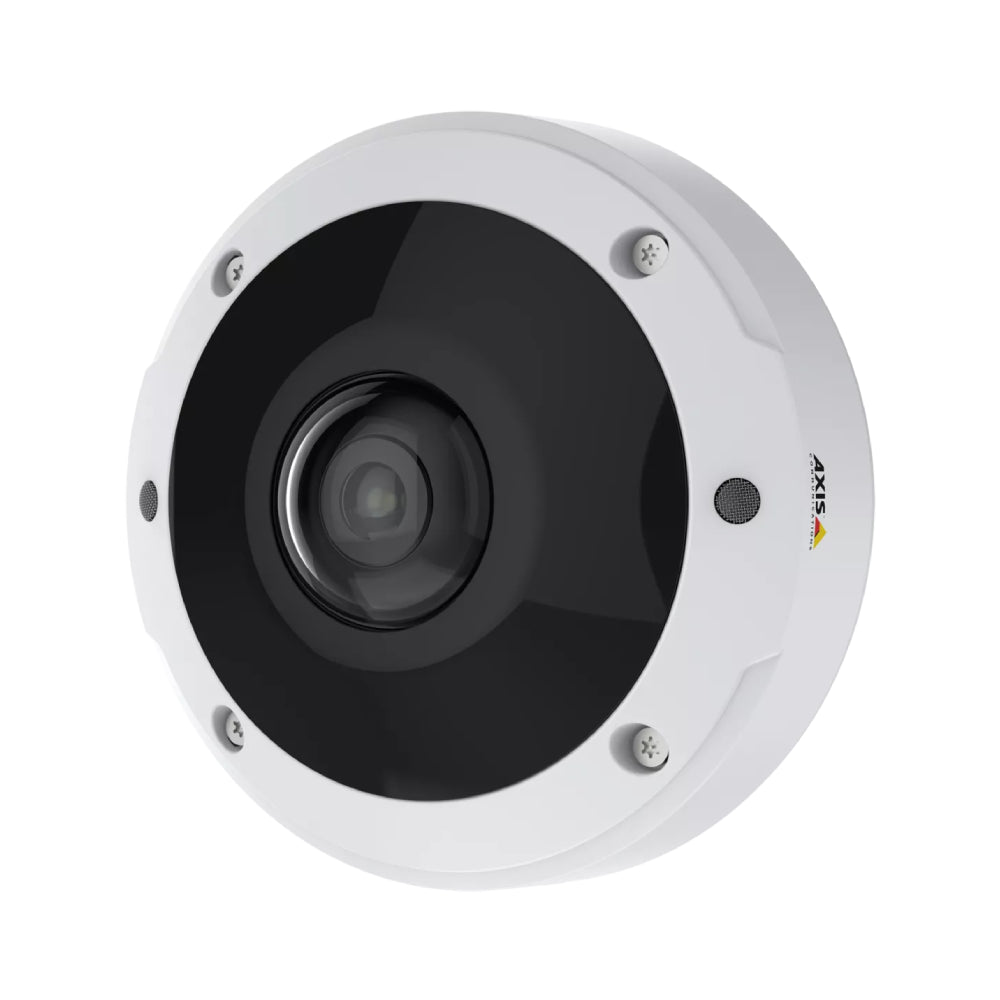

The AXIS M3077-PLVE is a compact, outdoor-ready mini dome built around a 6 MP 1/1.8″ sensor that delivers a complete 180° or 360° overview in a single camera. Its 1.56 mm F2.0 fixed lens covers a 183° horizontal field of view, while Axis Lightfinder and Forensic WDR (up to 120 dB) hold true colours and detail in challenging or near-dark scenes. OptimizedIR with long-life 850 nm LEDs reaches 20 m (66 ft) or more, and two built-in microphones add audio surveillance and detection. Rated IP66, NEMA 4X and IK10 and powered over a single PoE cable, it is NDAA (Section 889) and TAA compliant.
One camera, total situational awareness
Mounted overhead, the M3077-PLVE replaces several conventional cameras with a single panoramic view. One video stream can produce any dewarped view, and you can stream panorama, double panorama, quad, corner and corridor views simultaneously, plus up to four cropped-and-dewarped view areas — all with digital PTZ for live or forensic navigation.
Complete 360° Overview
A 6 MP 1/1.8″ sensor with a 1.56 mm F2.0 lens delivers a 183° field of view for full indoor or outdoor coverage from one mounting point.
Sees in Near Darkness
Axis Lightfinder preserves colour in very low light, Forensic WDR (up to 120 dB) tames harsh contrast, and OptimizedIR lights scenes to 20 m in total darkness.
Audio Surveillance Built In
Two built-in microphones capture mono or stereo audio for detection and evidence, with optional two-way audio via AXIS T61 interfaces.
Built to Take a Hit
IP66, NEMA 4X and IK10 ratings resist dust, powerful water jets and vandalism, with an operating range of -40 °C to 50 °C.
Smart analytics on the edge
The ARTPEC-7 SoC runs included analytics — AXIS Video Motion Detection, Motion Guard, Fence Guard, Loitering Guard, active tampering alarm and audio detection — and supports third-party apps via AXIS Camera Application Platform. Axis Zipstream in H.264/H.265 dramatically cuts bandwidth and storage without sacrificing forensic detail.
Technical Specifications
Camera & Lens
| Image Sensor |
1/1.8″ progressive scan RGB CMOS, 6 MP |
| Lens |
1.56 mm, F2.0, fixed iris, fixed focus, IR corrected |
| Field of View |
183° horizontal / 183° vertical |
| Day & Night |
Automatically removable IR-cut filter |
| Min. Illumination |
Colour 0.16 lux, B/W 0.03 lux (F2.0); 0 lux with IR on |
| Shutter Speed |
1/16000 s to 1 s |
Video
| Compression |
H.265 & H.264 (Baseline/Main/High), Motion JPEG, Axis Zipstream |
| Overview Resolution |
2016x2016 to 160x160 |
| Panorama / Quad |
Up to 2560x1440 / 2560x1920 |
| Frame Rate |
360° overview up to 50/60 fps; with WDR up to 25/30 fps |
| Multi-view Streaming |
Overview, panorama, corridor, corner, quad + up to 4 dewarped view areas, simultaneous |
| WDR |
Forensic WDR up to 120 dB depending on scene |
| Digital PTZ |
Digital PTZ of view areas, preset positions, guard tours |
Audio & Analytics
| Audio Input |
Built-in microphone (two mics, can be disabled); two-way via optional AXIS T61 |
| Audio Encoding |
LPCM, AAC-LC, G.711, G.726, Opus |
| Analytics Included |
AXIS Video Motion Detection, Motion Guard, Fence Guard, Loitering Guard, tampering & audio detection |
| ACAP |
Supports third-party apps via AXIS Camera Application Platform |
Network & Integration
| ONVIF |
Profile G, M, S and T |
| Security |
HTTPS, IEEE 802.1x (EAP-TLS), signed firmware, secure boot, Axis Edge Vault, Axis device ID |
| System on Chip |
ARTPEC-7, 1024 MB RAM, 512 MB Flash |
| API |
VAPIX, AXIS Camera Application Platform |
Power, Storage & Environmental
| Power |
PoE IEEE 802.3af/802.3at Type 1 Class 3; typ. 8.0 W, max 11.9 W |
| IR Illumination |
OptimizedIR, 850 nm LEDs, reach 20 m (66 ft) or more |
| Local Storage |
microSD/SDHC/SDXC with AES-XTS-256 encryption; NAS recording |
| Connectors |
Shielded RJ45 10/100; terminal block for 1 alarm in / 1 out |
| Casing |
IP66, NEMA 4X, IK10; PVC-free; white NCS S 1002-B |
| Operating Temp |
-40 °C to 50 °C |
| Dimensions / Weight |
Ø149 mm x 66 mm H; 700 g |
| Compliance |
NDAA Section 889 & TAA compliant |
| Warranty |
5-year Axis warranty |
Downloads
Frequently Asked Questions
What resolution and view does the M3077-PLVE provide?It uses a 6 MP 1/1.8″ sensor to deliver a complete 180° or 360° overview, with a maximum overview resolution of 2016x2016.
Can it see in the dark?Yes. Axis Lightfinder retains colour in very low light, and built-in OptimizedIR (850 nm) illuminates scenes to 20 m or more in complete darkness.
Does it record audio?It has two built-in microphones for mono or stereo audio capture and audio detection. The mics can be disabled, and two-way audio is available via optional AXIS T61 interfaces.
Is it suitable for outdoor use?Yes. It is IP66 and NEMA 4X rated against dust and powerful water jets, IK10 vandal-resistant, and rated for -40 °C to 50 °C.
How is it powered?A single PoE cable (IEEE 802.3af/802.3at Type 1 Class 3). It draws typically 8.0 W and a maximum of 11.9 W.
Does it support local storage?Yes. It takes a microSD/SDHC/SDXC card with AES-XTS-256 encryption, and can also record to network-attached storage (NAS).
What analytics are included?AXIS Video Motion Detection, Motion Guard, Fence Guard, Loitering Guard, active tampering alarm and audio detection, with support for third-party ACAP apps.
Is it ONVIF compatible?Yes — it conforms to ONVIF Profiles G, M, S and T for broad VMS and NVR interoperability.
Is it NDAA compliant and warranted in Australia?Yes. All Axis cameras are NDAA (Section 889) and TAA compliant. This unit ships as genuine Australian stock with a 5-year warranty.
