AXIS Q-SERIES · NDAA & TAA COMPLIANT
Ligature-Resistant Security Redefined for High-Risk Environments

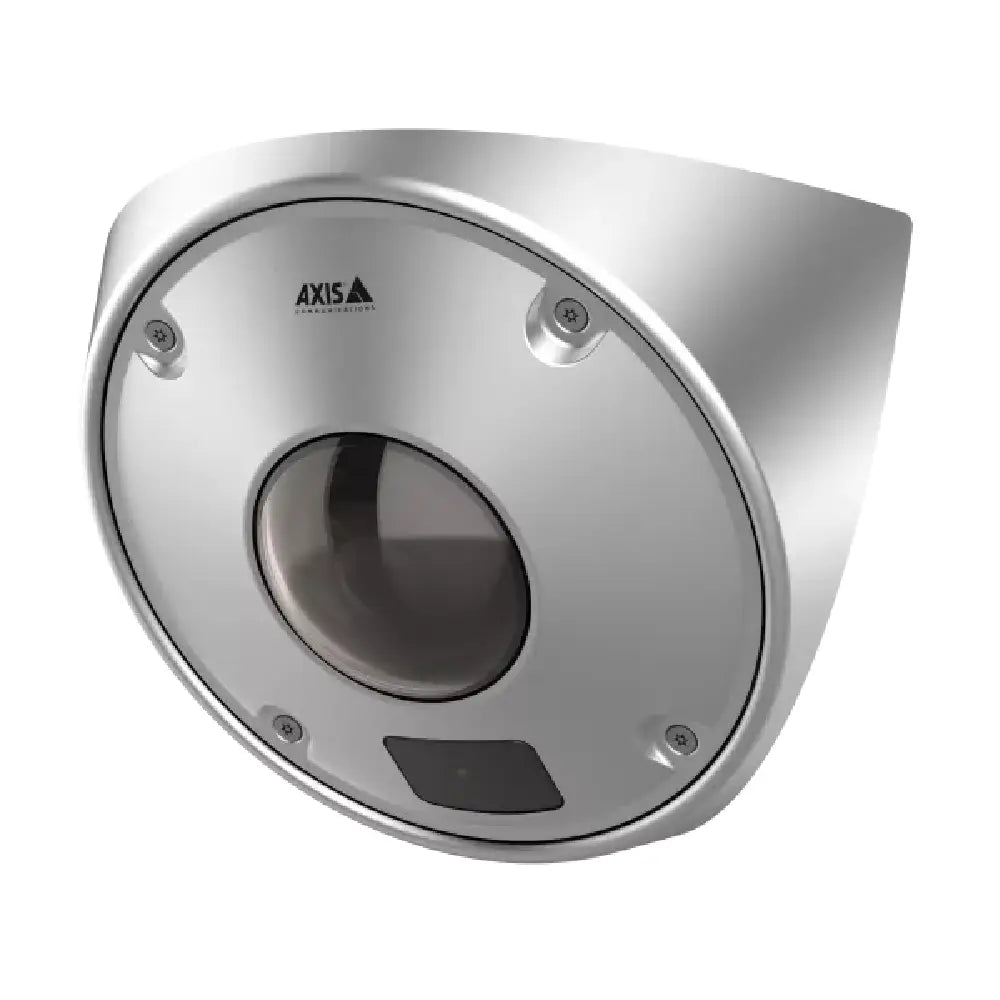

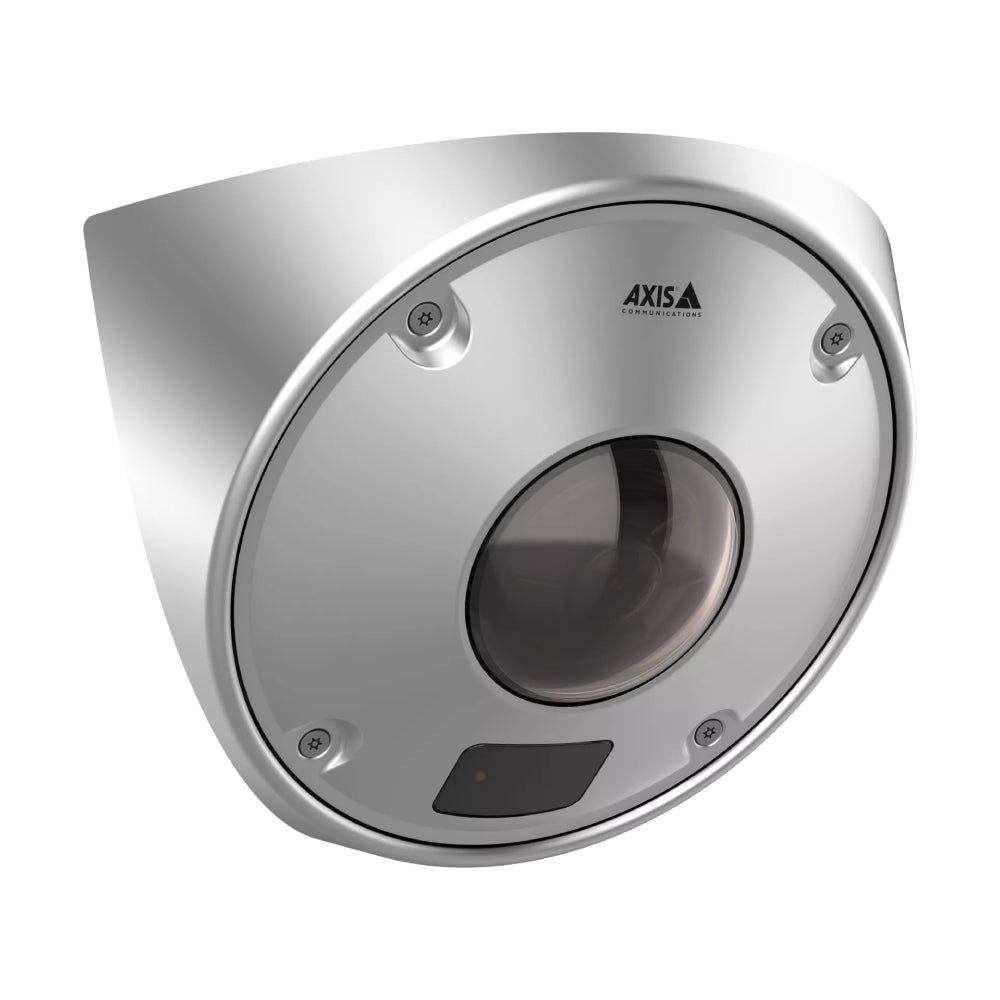

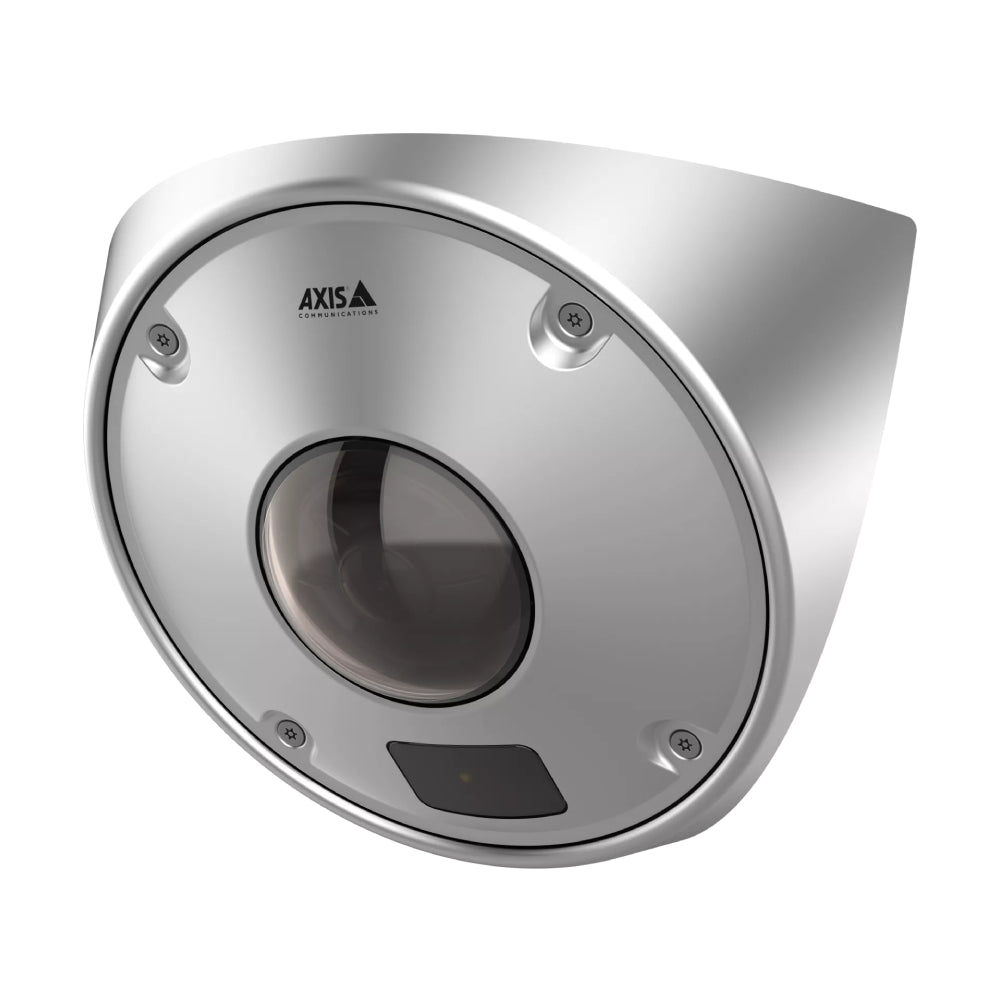

The AXIS Q9227-SLV is a top-tier, anti-ligature corner-mount network camera purpose-built for environments where safety and absolute resilience are paramount. Housed in an impact-resistant stainless steel casing, this 4MP powerhouse eliminates anchor points while delivering full, blind-spot-free room coverage. Ideal for correctional facilities, healthcare wards, and high-density detention centers, it bridges the gap between uncompromising physical protection and advanced network surveillance.
Night Vision
940nm Invisible IR
Protection
IK10+ / IP66 / IP69K
Edge Intelligence and Dynamic Protection
Equipped with a deep learning processing unit (DLPU), the AXIS Q9227-SLV brings enterprise-grade analytics right to the edge. It delivers high-accuracy object classification to minimize false alarms and optimize bandwidth via Axis Zipstream. The camera boasts a custom-engineered wide angle lens that provides sweeping coverage across a full 3-axis adjustment plane, while Axis Lightfinder and Forensic WDR ensure that details remain razor-sharp under extremely challenging light, shadowed corners, or sudden flashes.
Anti-Ligature, Anti-Grip Engineering
The flush corner mount design has zero anchor points, preventing self-harm risks and eliminating the ability to hang or grasp onto the device. Its IP66/IP69K-rated housing can withstand intensive high-pressure, high-temperature washdowns for simple, sanitary maintenance.
Invisible Night Vision (940 nm)
Unlike standard infrared cameras that emit a visible, sleep-disrupting red glow, this unit uses completely invisible 940 nm IR LEDs. It ensures covert, 24/7 security monitoring without causing discomfort or drawing attention to the camera.
Technical Specification Matrix
| Camera Model |
AXIS Q9227-SLV |
| Image Sensor |
1/2.7" Progressive Scan RGB CMOS |
| Video Resolution |
2688 x 1520 (4MP) at 30 frames per second |
| Field of View |
Horizontal: 110°, Vertical: 81° |
| Minimum Illumination |
Color: 0.13 lux, B/W: 0.03 lux (0 lux with invisible IR on) |
| Casing Material |
Stainless steel, impact-resistant polycarbonate dome, anti-ligature design |
| Durability Ratings |
IK10+ (50J) impact resistance, IP66 / IP69K ingress ratings |
| Onboard Intelligence |
Deep Learning Processing Unit (DLPU), AXIS Object Analytics |
| Power Source |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
What makes the AXIS Q9227-SLV anti-ligature?
The design features zero anchor points and sloped, flush-fitting edges that fit perfectly into room corners. This prevents anyone from securing ropes, fabrics, or other objects to the camera casing, eliminating self-harm or vandalism opportunities.
Does the IR illuminator emit a glowing red light at night?
No. The camera utilizes 940 nm infrared LEDs. Unlike standard 850 nm IR which glows red to the human eye, 940 nm IR is completely invisible, ensuring covert operation and zero sleep disturbance in patient rooms.
Can this camera withstand high-pressure water cleanup?
Yes. With IP66 and IP69K ratings, the housing is fully sealed against dust ingress and high-pressure, high-temperature water jets. This makes it ideal for medical or correctional facilities requiring regular, heavy chemical washdowns.
Is the camera NDAA and TAA compliant?
Yes, the AXIS Q9227-SLV is fully compliant with both the National Defense Authorization Act (NDAA) and the Trade Agreements Act (TAA), making it suitable for US federal government facilities and critical public infrastructure projects.
