AXIS M43 SERIES · NDAA & TAA COMPLIANT
Stunning 12 MP ultra-high-definition panoramic clarity for maximum protection

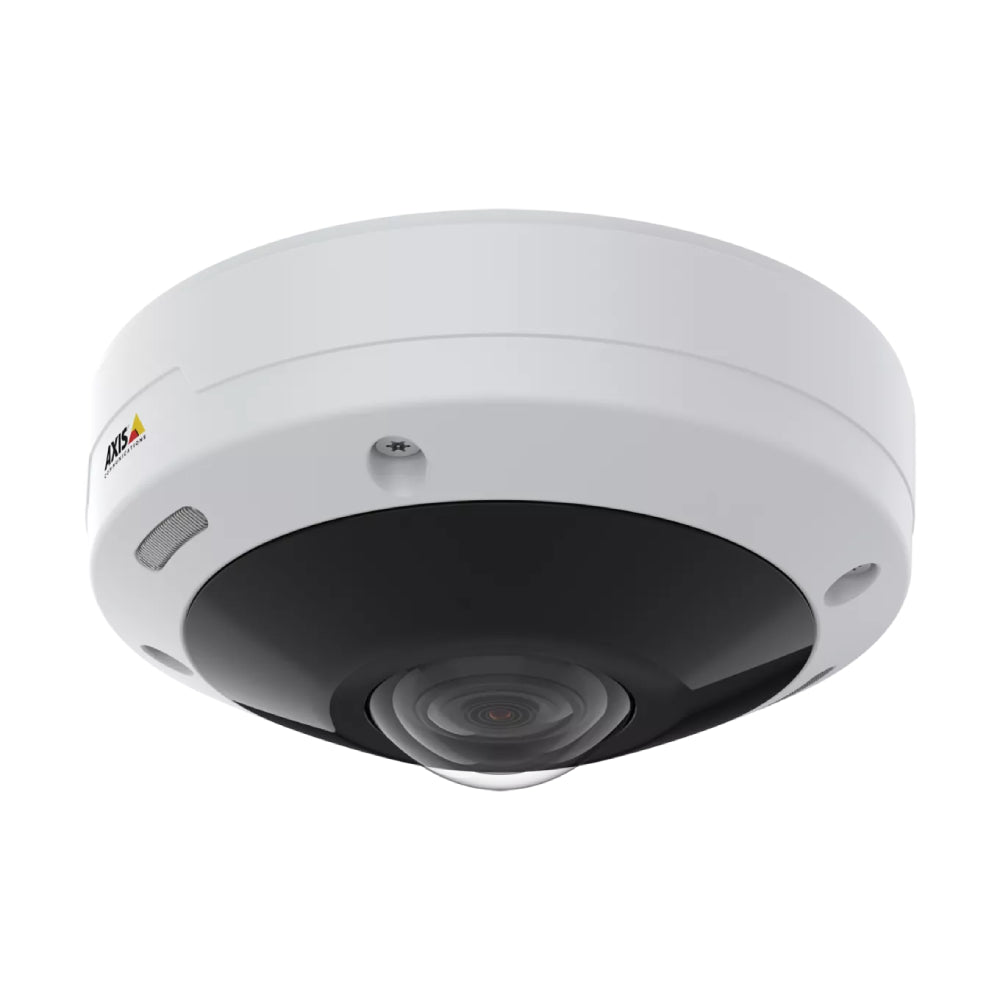

The AXIS M4308-PLE is a premier, outdoor-ready panoramic camera that captures a complete, uncompromised 360-degree overview from a single physical point. Leveraging an incredible 12 MP sensor and advanced edge-based intelligence, this discreet dome provides exceptional detail across expansive outdoor or indoor locations. It is designed to withstand harsh weather and physical interference, while its integrated 360-degree infrared illuminators deliver absolute situational awareness in complete darkness, keeping perimeters, entryways, and loading zones under continuous high-security watch.
Night Vision
OptimizedIR 360°
Climate Ready
IP66 & IK10 Rated
Intelligent edge analytics backed by robust cyber defense
The AXIS M4308-PLE integrates advanced camera-side dewarping to process raw fisheye streams into comfortable, distortion-free viewing perspectives like panorama, quad-split, or double panorama. Armed with a built-in deep learning processing unit (DLPU), it identifies and classifies humans and vehicles with unmatched accuracy. The internal hardware structure is fortified with Axis Edge Vault, preserving unique device IDs, authorizing signed firmware, and ensuring a secure boot environment to shield your secure network from potential intrusion.

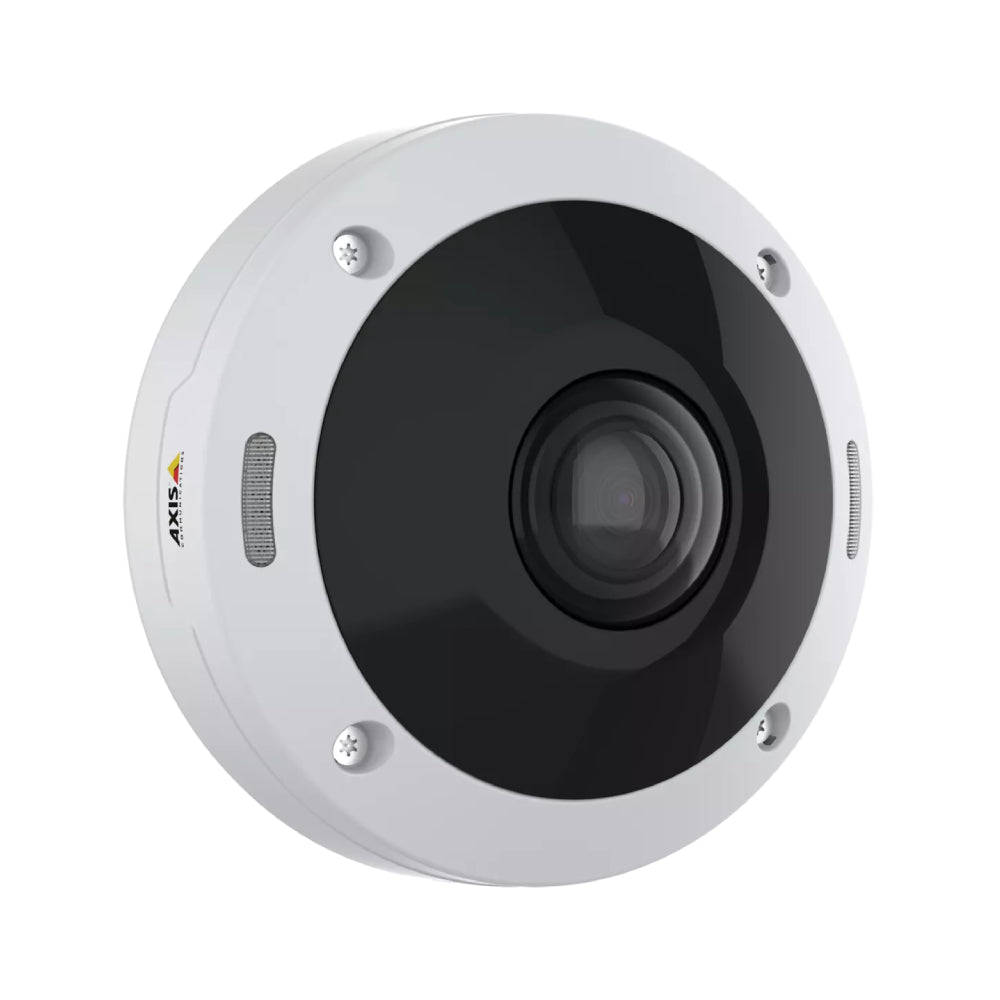

True 360-degree OptimizedIR
The integrated, energy-conscious infrared LED arrays dynamically adjust to the environment, casting uniform illumination across a 360-degree radius in complete darkness up to 15 meters without burning out close-range subjects.
Forensic light optimization
Equipped with Lightfinder and Forensic WDR, the system ensures high-quality imaging by minimizing motion blur, capturing true colors in dim environments, and balancing highly bright and shaded spots in the same field of view.
Technical Specification Matrix
| Camera Model |
AXIS M4308-PLE |
| Image Sensor |
1/1.7” progressive scan RGB CMOS |
| Optical Lens |
1.2 mm fixed-focal lens, F2.2, Fixed iris with digital roll correction |
| Resolution Max |
12 MP (2992 x 2992 pixels) up to 25/30 fps |
| Audio Capabilities |
Built-in dual microphones; audio detection and recording support |
| Video Compression |
H.264 (AVC), H.265 (HEVC), Motion JPEG with Zipstream technology |
| Environmental Rating |
IP66, NEMA 4X weather-proof, IK10 vandal-resistant casing |
| Power over Ethernet |
PoE IEEE 802.3af Class 3 (typical 7.5W, max 12.9W with IR active) |
Frequently Asked Questions
How does dewarping help me view the surveillance footage?
Standard fisheye lenses capture circular, distorted images. The AXIS M4308-PLE features edge-based dewarping, which digitally reformats the circular view into flat panorama, double panorama, or quad-split layouts. This happens on the camera, so it doesn't drain your viewing PC's processing power.
Does the AXIS M4308-PLE capture audio?
Yes. The camera is built with integrated dual microphones that support high-quality stereo audio capture. It can also trigger automatic recording and system alarms upon detecting suspicious, sharp noises.
Can this camera operate in freezing or high-temperature environments?
Absolutely. The outdoor-ready construction features active temperature control, allowing the camera to operate reliably in a broad temperature range of -40 °C to 50 °C (-40 °F to 122 °F).
Is this model fully NDAA and TAA compliant?
Yes. The AXIS M4308-PLE is fully NDAA (National Defense Authorization Act) and TAA (Trade Agreements Act) certified, making it suitable for federal government, defense, and high-security enterprise installations.
