NDAA Compliant • 4MP Indoor Mini Dome

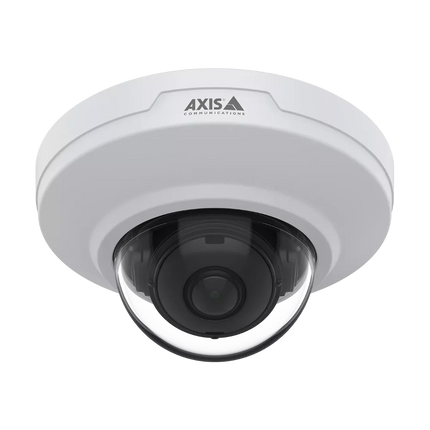

AXIS M3086-V (02374-001) — Australian Stock & 5-Year Warranty
The Axis M3086-V is a compact 4MP indoor mini dome camera that delivers sharp, detailed video even in challenging light. With a deep learning processing unit (DLPU) on the edge, Lightfinder low-light performance, Forensic WDR and a wide 130° field of view, it is an ideal discreet choice for retail, offices, reception areas and other indoor spaces.
Resolution4MP / 2688×1512
Low LightLightfinder + WDR
AnalyticsDeep Learning DLPU
Great forensic usability in a discreet design
The Axis M3086-V offers great 4MP image quality even in difficult lighting. Thanks to Forensic Wide Dynamic Range (WDR), it keeps detail clear when a scene contains both dark and bright areas, while Lightfinder produces sharp, colour images in low light. Its wide 130° view captures more of the room, and the camera ships factory-focused so there is no manual focusing required during installation.
Deep Learning on the Edge
A built-in deep learning processing unit (DLPU) runs advanced analytics such as AXIS Object Analytics directly on the camera, enabling smarter detection and easier forensic search.
Excellent Low-Light Image
Lightfinder delivers colour images down to 0.19 lux, with Forensic WDR preserving detail across bright and dark areas of the same scene.
Easy, Discreet Installation
The compact dome is factory-focused, supports digital PTZ and local microSD storage, and is designed for repaint to blend into any indoor environment.
Efficient & Open
Axis Zipstream with H.264 and H.265 reduces bandwidth and storage, while ONVIF Profile G support ensures broad VMS and NVR compatibility.
Technical Specifications
Camera & Image
| Image Sensor |
1/2.7” CMOS |
| Max Resolution |
4MP – 2688 × 1512 |
| Max Frame Rate |
25/30 fps |
| Min Illumination (Colour) |
0.19 lux |
| Min Illumination (B/W) |
0.03 lux |
| Low Light / WDR |
Lightfinder & Forensic WDR |
| Day & Night |
Yes |
Lens & Field of View
| Focal Length |
2.4 mm (fixed) |
| Aperture |
F2.1 |
| Horizontal FoV |
130° |
| Vertical FoV |
93° |
| Lens Mount |
M12 |
| Digital PTZ |
Yes |
Video, Audio & Analytics
| Compression |
H.264, H.265, Axis Zipstream |
| Analytics |
Deep Learning (DLPU), AXIS Object Analytics |
| App Platform |
AXIS Camera Application Platform (ACAP) |
| Audio |
Supported (built-in mic on M3086-V Mic variant) |
| Local Storage |
microSD card slot |
Network, Power & Housing
| Power over Ethernet |
PoE Class 2 |
| ONVIF |
Profile G |
| Security |
HTTPS, IEEE 802.1X |
| IP / IK Rating |
IP42 / IK08 |
| Operating Temperature |
0°C to 45°C |
| Designed for Repaint |
Yes |
| Compliance |
NDAA (Section 889) & TAA Compliant |
| Part Number |
02374-001 |
Downloads
Frequently Asked Questions
Is the Axis M3086-V NDAA compliant?Yes. Like all Axis Communications cameras, the M3086-V is NDAA Section 889 and TAA compliant, making it suitable for government, education and enterprise projects.
What resolution does it record?It captures up to 4MP at 2688 × 1512 resolution at 25/30 fps.
Does it have built-in IR for night vision?No, the M3086-V does not include built-in IR illumination. Instead it uses Lightfinder technology to deliver sharp colour images in low light, plus Day & Night functionality. For dark scenes, pair it with a separate Axis IR illuminator.
What is the field of view?The fixed 2.4 mm lens provides a wide 130° horizontal and 93° vertical field of view, ideal for covering rooms and reception areas.
What analytics does it support?It features an on-board deep learning processing unit (DLPU) that runs advanced edge analytics including AXIS Object Analytics and supports the AXIS Camera Application Platform (ACAP).
Does it support audio?Audio is supported. The standard M3086-V relies on external audio devices, while the AXIS M3086-V Mic variant includes a built-in microphone, ready for AXIS Audio Analytics.
How is it powered?The camera is powered over a single network cable using Power over Ethernet (PoE Class 2), so no separate power supply is needed.
Is it weatherproof for outdoor use?The M3086-V is an indoor camera rated IP42 with IK08 vandal resistance. It is built for indoor environments such as shops, offices and lobbies rather than fully outdoor installation.
Will it work with my existing NVR or VMS?Yes. With ONVIF Profile G support it integrates with a wide range of network video recorders and video management software, alongside Axis Companion and AXIS Camera Station.
