AXIS M43 SERIES · NDAA & TAA COMPLIANT
Vandal-resistant 360-degree outdoor monitoring with built-in infrared power

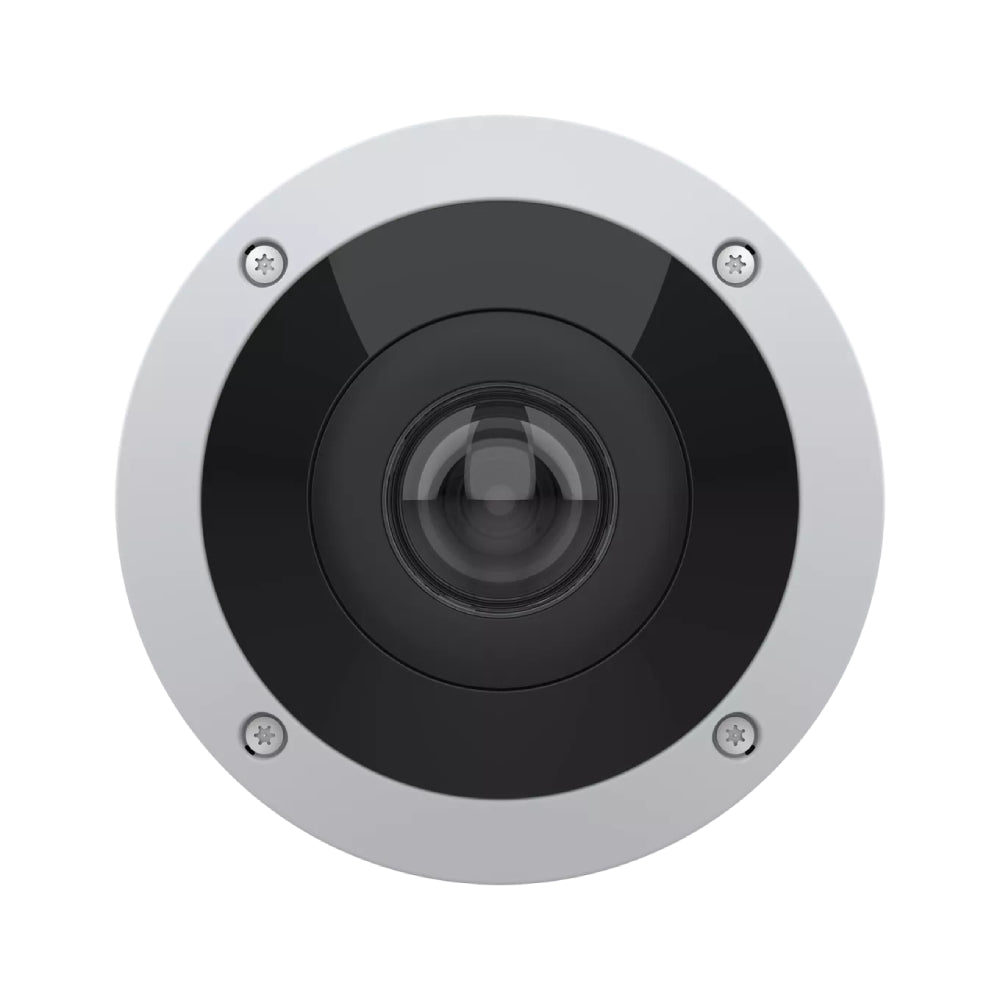

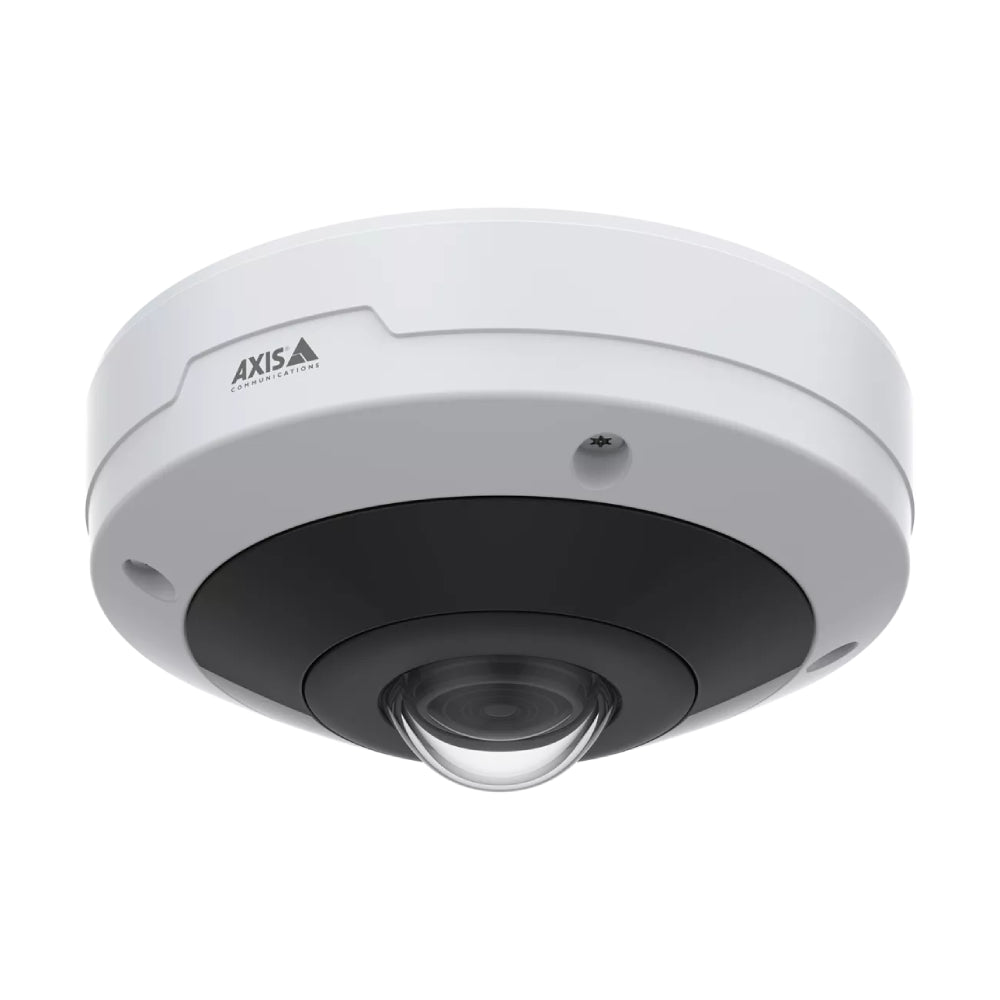

The AXIS M4317-PLVE is a highly robust, outdoor-ready panoramic camera designed to deliver comprehensive situational overviews in the most challenging conditions. Engineered with a powerful 6 MP sensor and a dedicated deep learning processing unit (DLPU), this sleek dome captures complete 360-degree fisheye coverage without any blind spots. Its heavy-duty, weather-shielded design combines seamlessly with built-in, adaptive infrared illumination, ensuring your facility remains fully monitored in total darkness, heavy storms, and vulnerable public areas.
Night Vision
OptimizedIR 360°
Climate Ready
IP66 & IK10
Uncompromising edge processing combined with robust exterior shielding
Built to handle harsh environments, the AXIS M4317-PLVE utilizes its advanced ARTPEC-8 processor to run complex edge analytics locally. It delivers precise, real-time object classification that allows operators to easily filter out non-essential triggers. With the support of client-side and camera-side dewarping, you can stream a clean, flattened view of your entryways, schoolyards, or warehouses. All systems are fully secured with AXIS Edge Vault, keeping your device safe from unauthorized tampering and firmware modifications.

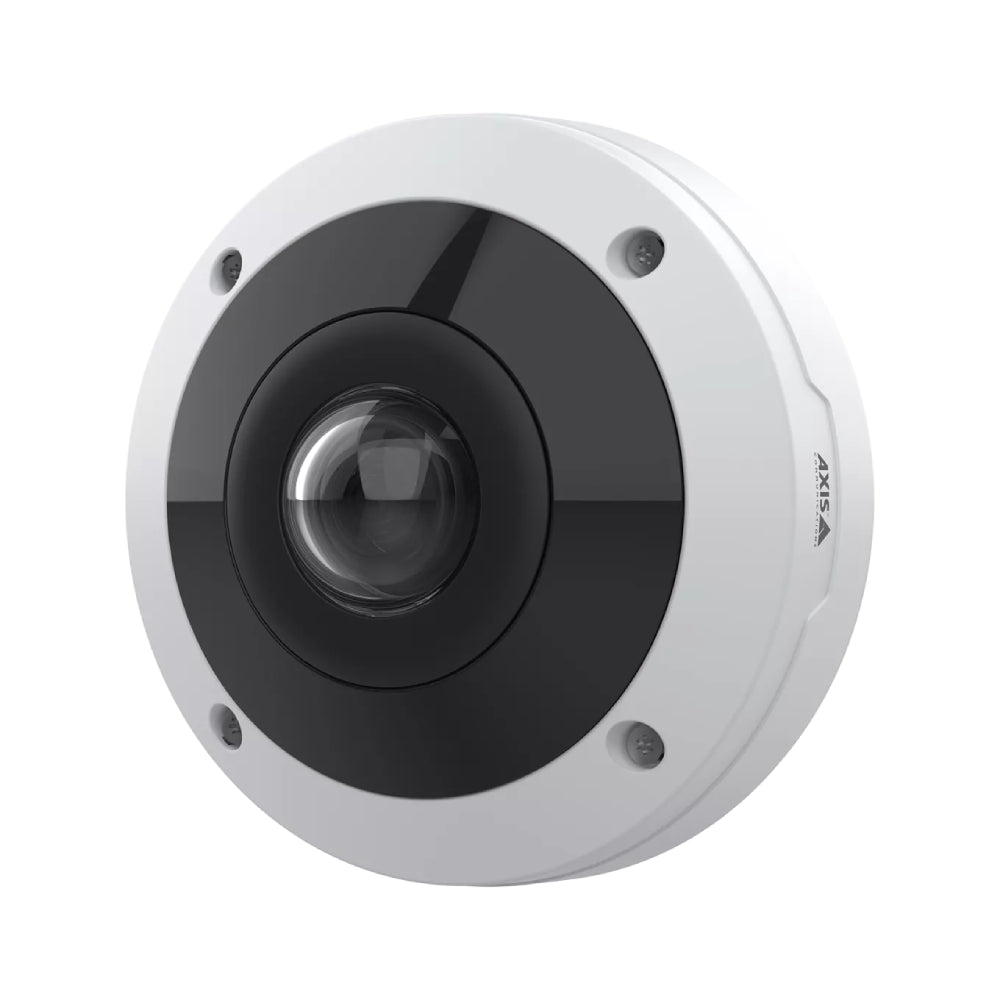

Adaptive 360° OptimizedIR arrays
The integrated, energy-efficient infrared LEDs automatically adjust their power output to match the surrounding scene, illuminating a full 360-degree area in zero-lux environments while avoiding close-range reflection glare.
Extreme weatherproof and vandal resistance
Housed in an IP66, NEMA 4X, and IK10 vandal-resistant dome, this camera is built to withstand extreme mechanical impact, high-pressure water jets, dust ingress, and sub-zero temperature changes without losing connection.
Technical Specification Matrix
| Camera Model |
AXIS M4317-PLVE |
| Image Sensor |
1/1.8” progressive scan RGB CMOS |
| Optics and Lens |
1.2 mm fixed fisheye, F2.2, Fixed iris with digital roll correction |
| Maximum Resolution |
6 MP (2016 x 2016 pixels) up to 25/30 fps |
| Lightfinder & Dynamic Range |
Lightfinder, Forensic WDR, and built-in OptimizedIR up to 15m (50ft) |
| Edge Intelligence |
Integrated DLPU supporting AXIS Object Analytics |
| Environmental Ratings |
IP66, NEMA 250 Type 4X, IK10 physical impact rating |
| Power over Ethernet |
PoE IEEE 802.3af Class 3 (typical 6.4W, max 12.9W with IR active) |
Frequently Asked Questions
Can the AXIS M4317-PLVE handle heavy rain or dust storm environments?
Yes, the camera is fully certified with IP66 and NEMA 4X weather-protection ratings, meaning it is completely dust-tight and resistant to extreme high-pressure water jets from any direction.
What is the typical range of the built-in infrared (IR) system?
The integrated 360-degree OptimizedIR system provides coverage up to 15 meters (50 feet) in complete darkness, depending on the mounting elevation and structural reflections in the surrounding scene.
How does digital roll correction help during installation?
Instead of manually aligning the physical camera on a ladder, digital roll correction lets you adjust the orientation of your video stream electronically using the web software interface, saving considerable setup time.
Does this camera support local recording if my network disconnects?
Yes, it features an onboard microSD/microSDHC/microSDXC card slot with support for encrypted edge recording, ensuring your data is securely captured even during network connection failures.
