AXIS P37 SERIES · NDAA & TAA COMPLIANT
Four adjustable camera heads delivering continuous 360-degree high-definition coverage

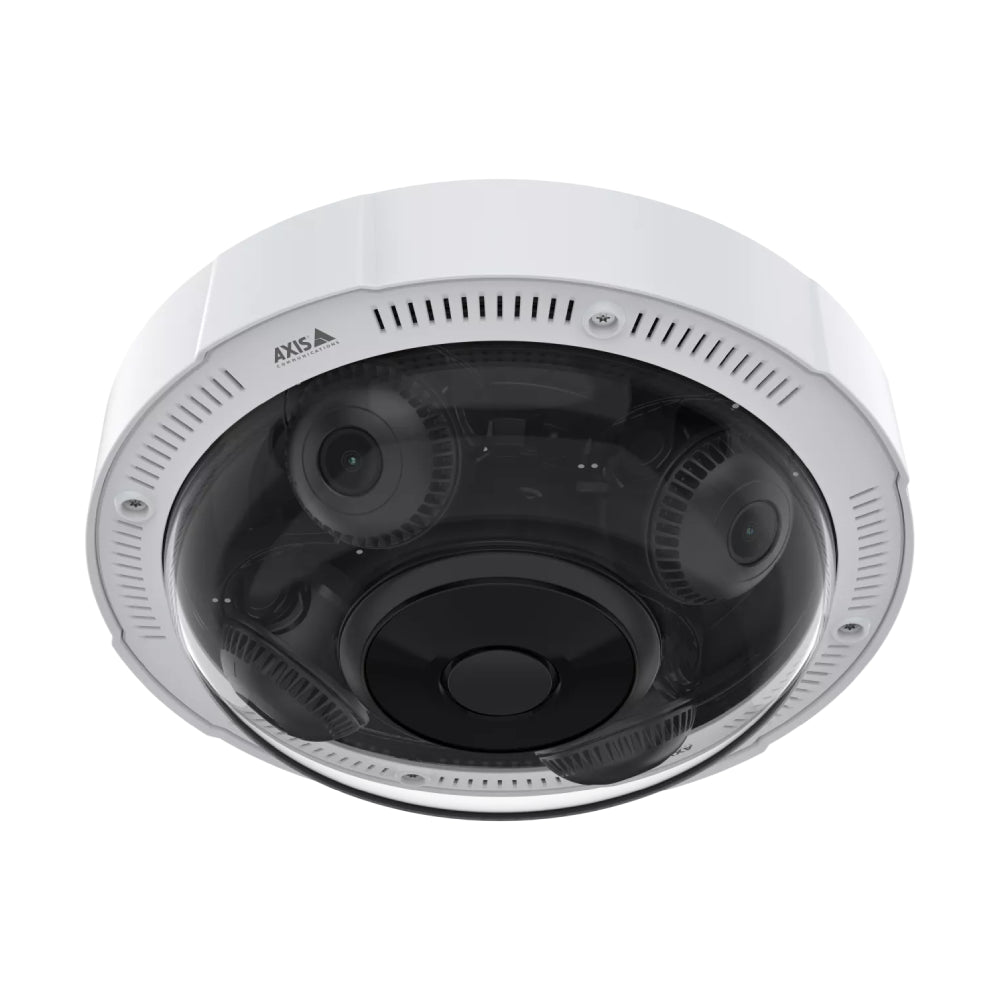

The AXIS P3737-PLE is an elite, outdoor-ready multidirectional camera that packs four independent 5 MP sensor channels into a single physical housing, delivering an impressive 20 MP total resolution. Powered by the next-generation ARTPEC-8 system-on-chip, each of the four varifocal camera heads can be positioned, tilted, and zoomed individually. This allows you to capture customized, wide-angle views or tight zoom details in four different directions simultaneously. Perfect for city intersections, large parking facilities, outdoor building corners, and hallways, it replaces up to four standard cameras with a single IP address and cable install.
Resolution
20 MP (4x 5MP)
Night Vision
360° OptimizedIR
Climate Ready
IP66/67 & IK10
Edge-based intelligence and hardware-level cybersecurity for enterprise networks
The AXIS P3737-PLE features an advanced deep learning processing unit (DLPU) dedicated to each of its four channels. This enables highly specific object classification, allowing you to track and log humans and vehicles in four directions simultaneously with ultra-low false alarm rates. To keep your commercial installations secured, the onboard AXIS Edge Vault security system guarantees signed firmware, a secure boot process, and cryptographic key isolation, protecting the device's unique identifier from unauthorized modifications.

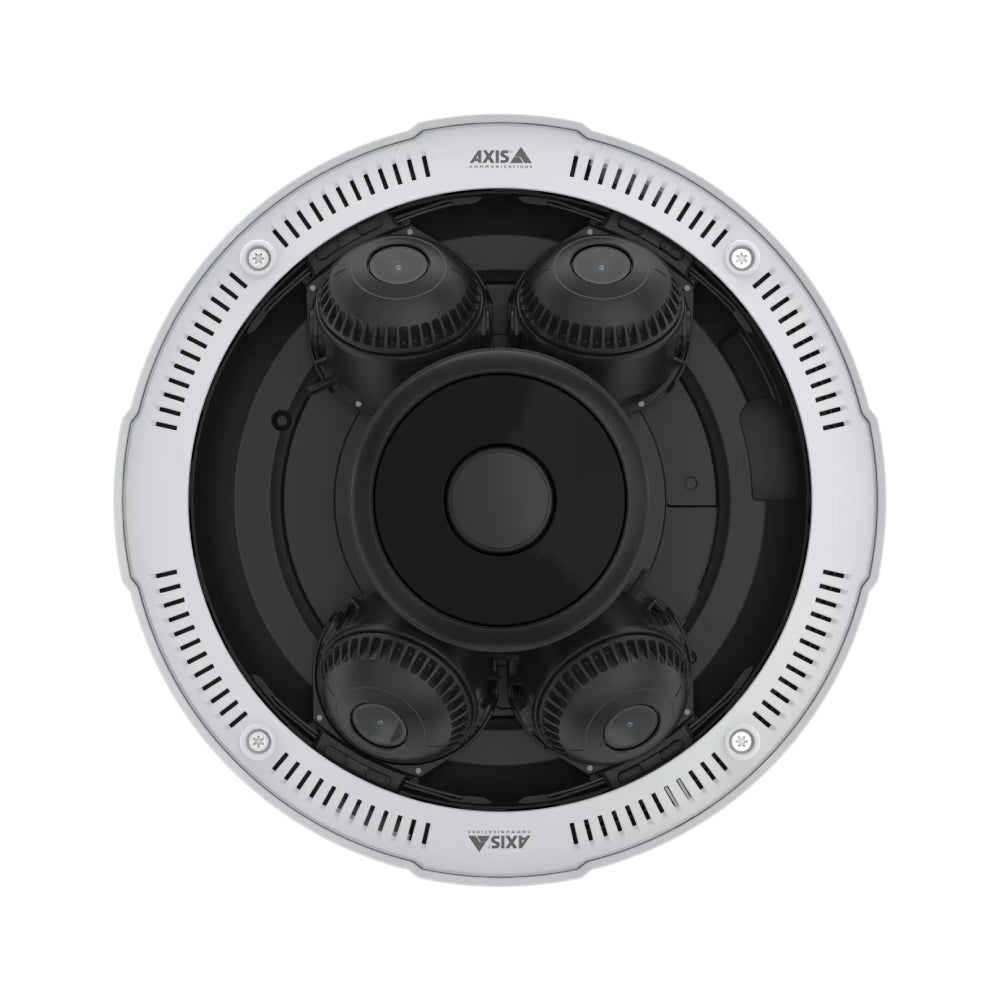

Independently controlled 360° OptimizedIR
The integrated infrared system features four separate LED arrays that adjust automatically to the zoom level of each sensor. This delivers optimal night vision illumination up to 15 meters on each channel without overlapping glare.
Lightfinder 2.0 and Forensic WDR
Equipped with Lightfinder 2.0 and Forensic WDR, the camera provides incredible color details in near-dark conditions and balances out harsh backlight, making sure every sensor channel remains forensically accurate.
Technical Specification Matrix
| Camera Model |
AXIS P3737-PLE |
| Image Sensor |
4x 1/2.7” progressive scan RGB CMOS |
| Optical Lenses |
4x Varifocal 3.0–6.0 mm, F1.8–2.6 with remote zoom and autofocus |
| Maximum Resolution |
4x 5 MP (2592 x 1944 pixels) up to 25/30 fps per channel |
| Lightfinder & WDR |
Lightfinder 2.0, Forensic WDR, and 4x independent OptimizedIR arrays |
| Edge Intelligence |
Dedicated Deep Learning Processing Unit (DLPU) for advanced analytics |
| Environmental Rating |
IP66, IP67, NEMA 4X weather-proof, IK10 physical impact rating |
| Power over Ethernet |
PoE+ IEEE 802.3at Type 2 Class 4 (typical 11.2W, max 21.0W with IR active) |
Frequently Asked Questions
How do I adjust the viewing angles on the AXIS P3737-PLE?
The camera features a flexible 360-degree internal ring design. Each of the four varifocal lens modules can be moved, tilted, and rotated manually along the track during physical installation, after which focus and zoom can be adjusted remotely via software.
Does this multidirectional camera require four separate network cables?
No. The AXIS P3737-PLE routes all four independent video streams through a single network cable and IP address. This significantly simplifies network configuration and lowers installation, cabling, and switch port costs.
What are the operational temperature limits for this camera?
The rugged weatherproofing features allow the camera to work reliably in temperatures ranging from -30 °C to 50 °C (-22 °F to 122 °F). It is fully protected against heavy rain, dust, and coastal winds.
Is this model compliant with NDAA and TAA regulations?
Yes. The AXIS P3737-PLE is fully compliant with the National Defense Authorization Act (NDAA) and the Trade Agreements Act (TAA), allowing it to be securely deployed on government, military, and infrastructure systems.
