NDAA Compliant • Dual-Sensor Panoramic DomeAXIS P4707-PLVE 02416-001 — Australian Stock & 5-Year Warranty

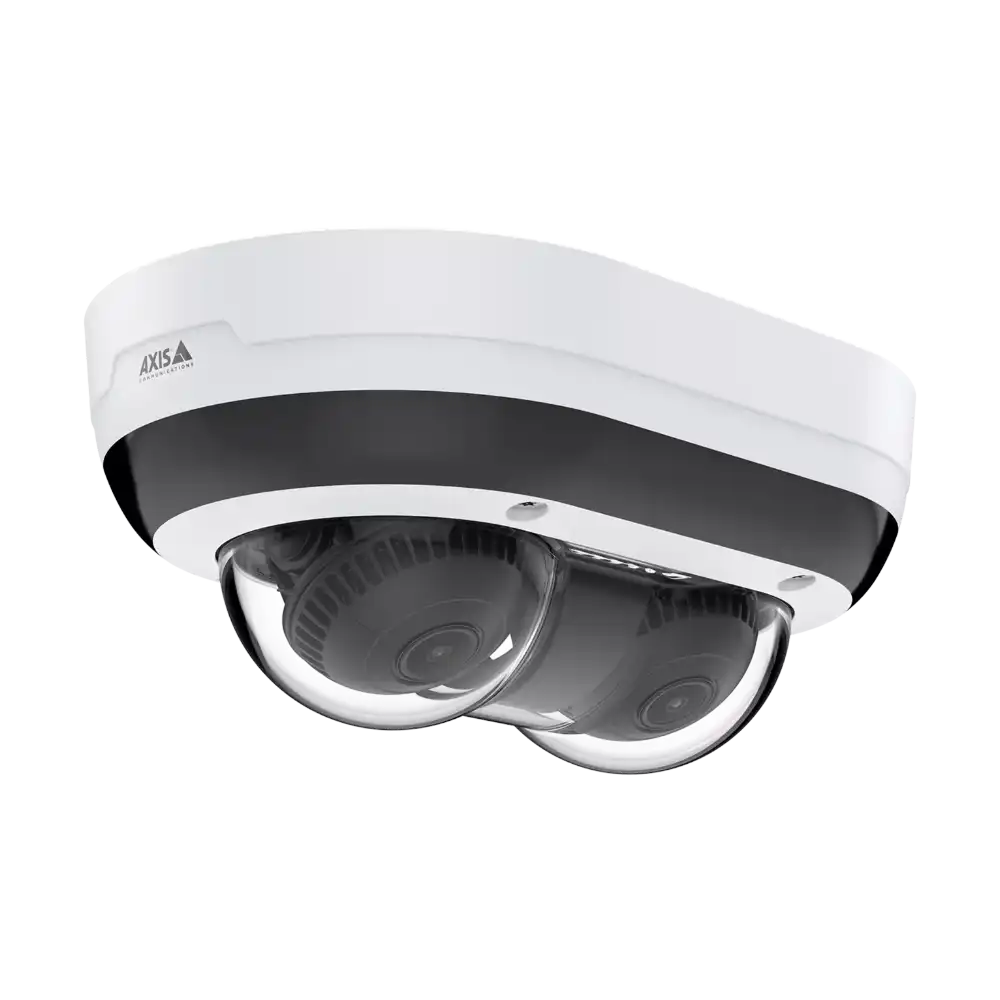

The AXIS P4707-PLVE is a dual-sensor, multidirectional panoramic dome that delivers 2×5 MP at 30 fps over a single IP address. Built on the ARTPEC-8 chip with a deep learning processing unit, it runs analytics on both sensors simultaneously, while Axis Lightfinder and Forensic WDR keep images sharp in challenging light. Two independently positionable varifocal heads with remote zoom and focus make it ideal for covering corners, wide forecourts and intersecting corridors from one rugged IP66/IP67, IK10 housing.
Resolution
2×5 MP @ 30 fps
Night Vision
360° OptimizedIR ~15 m
Analytics
Deep Learning DLPU
Two directions, one camera

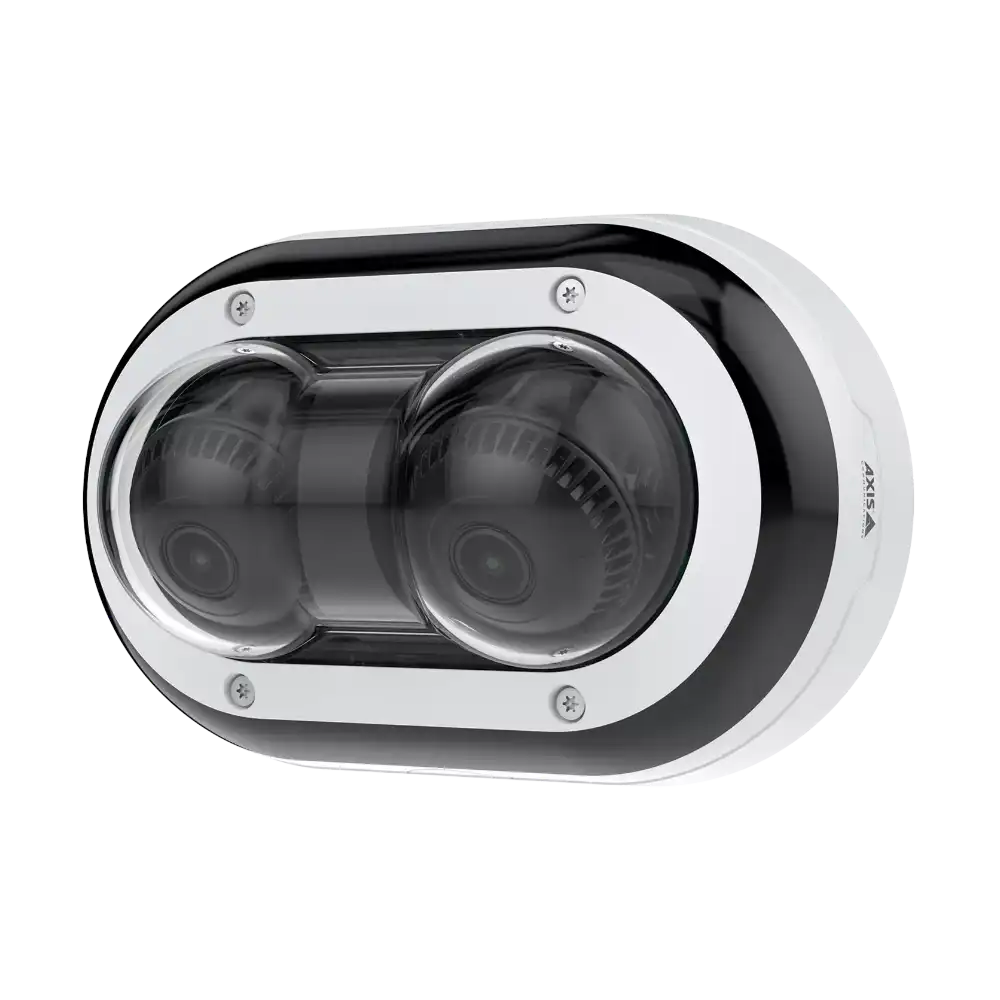

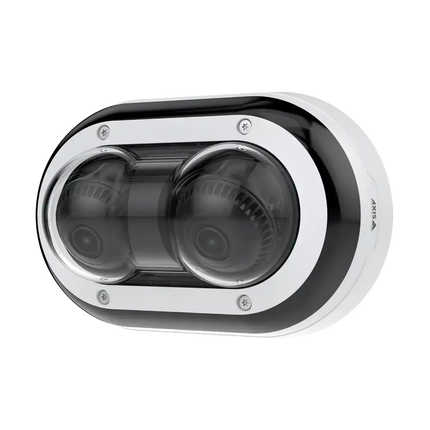

Each of the two 5 MP varifocal heads pans ±110°, tilts ±75° and rotates ±170°, so a single P4707-PLVE replaces multiple fixed cameras at junctions, car parks and building corners. With 360° OptimizedIR and individually controllable IR LEDs, the camera sees clearly in complete darkness across its full coverage area.
Deep Learning on Both Sensors
ARTPEC-8 with a dedicated DLPU runs AXIS Object Analytics and AXIS Scene Metadata on each channel, detecting and classifying humans and vehicle types for fast forensic search.
Sharp in Any Light
Axis Lightfinder preserves colour in low light down to 0.19 lux, while Forensic WDR handles scenes with bright and dark areas at once. 0 lux with IR on.

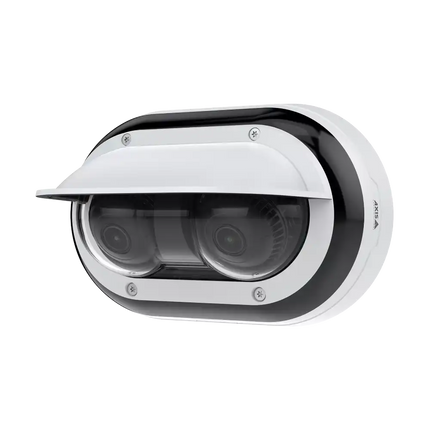

Built for the Outdoors
IP66/IP67 weatherproof and IK10 vandal-resistant, with NEMA 4X and an operating range of -30 °C to 50 °C for harsh Australian sites.
Cyber-Secure & Compliant
Axis Edge Vault, signed OS, secure boot and Axis device ID. NDAA Section 889 and TAA compliant for government and enterprise tenders.
Technical Specifications
CAMERA & LENS
| Image sensor |
2 x 1/2.7" progressive scan RGB CMOS |
| Resolution |
2×5 MP (2x 2592×1944) |

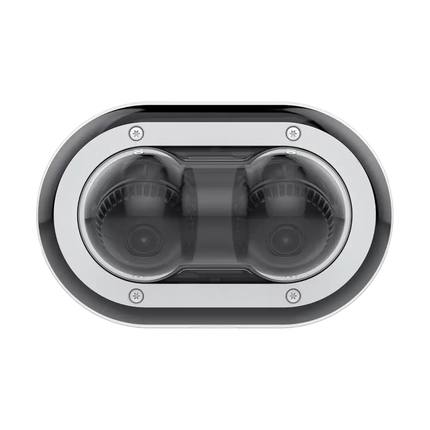

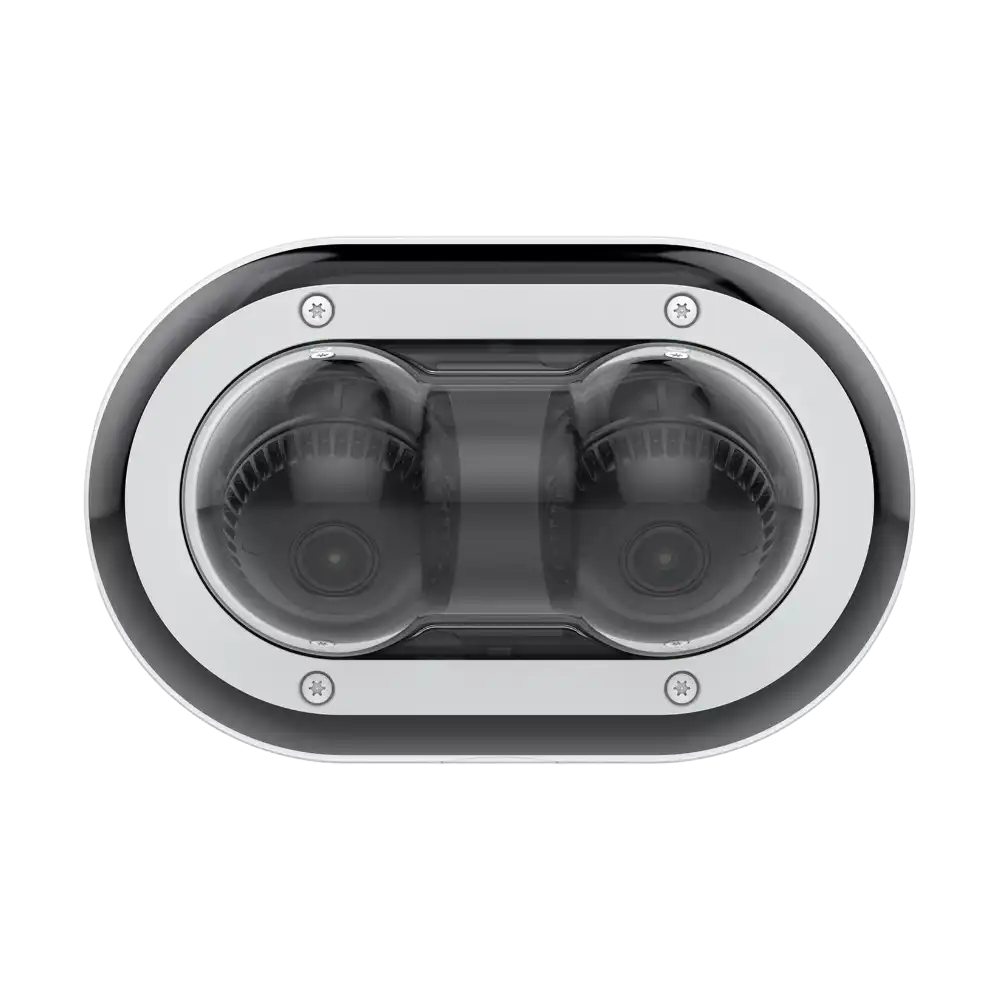

| Lens |
Varifocal 3.3–8.1 mm, F1.9–3.2, 2.5x zoom |
| Field of view (H) |
98°–36° per head |
| Field of view (V) |
69°–27° |
| Camera adjustment |
Pan ±110°, tilt ±75°, rotation ±170° |
| Min illumination |
Colour 0.19 lux; 0 lux with IR on |
VIDEO & ANALYTICS
| Frame rate |
Up to 30/25 fps in all resolutions |
| Compression |
H.264, H.265 (Zipstream), Motion JPEG |
| WDR |
Forensic WDR |
| Processor |
ARTPEC-8 with deep learning processing unit (DLPU) |
| Analytics |
AXIS Object Analytics, AXIS Scene Metadata, AXIS Video Motion Detection |
AUDIO, NETWORK & POWER
| Audio |
Audio in (simplex); two-way audio via edge-to-edge; 3.5 mm mic/line in |
| ONVIF |
Profile G, M, S, T |
| Network |
RJ45 10/100/1000 PoE |
| Power |
PoE IEEE 802.3at Type 2 Class 4; typ 10.7 W, max 17.5 W (IR on) |
| Local storage |
microSD/microSDHC/microSDXC + NAS |
IR, ENVIRONMENT & GENERAL
| IR illumination |
360° OptimizedIR, 850 nm; reach 15 m or more |
| Casing rating |
IP66, IP67, IK10, NEMA 4X |
| Operating temp |
-30 °C to 50 °C |
| Weight |
975 g |
| Compliance |
NDAA 889 & TAA compliant |
| Part number |
02416-001 |
| Warranty |
5-year Axis warranty |
Downloads
Frequently Asked Questions
How many cameras is the AXIS P4707-PLVE?It is a single device with two 5 MP varifocal sensors on one IP address, effectively replacing multiple fixed cameras while using one network connection and one licence.
What is the total resolution?2×5 MP — each sensor outputs up to 2592×1944 at up to 30 fps.
Does it provide 360° coverage?The two heads each pan ±110° and rotate ±170°, so you can aim them to cover up to 360° around a corner or open area, with 360° IR illumination to match.
How far does the infrared reach?The OptimizedIR 850 nm LEDs reach 15 m or more depending on the scene, with 0 lux performance in total darkness.
What analytics are included?AXIS Object Analytics, AXIS Scene Metadata and AXIS Video Motion Detection run on the ARTPEC-8 DLPU across both sensors, classifying humans and vehicle types.
Is it NDAA and TAA compliant?Yes. As an Axis Communications device it is NDAA Section 889 and TAA compliant, suitable for government and enterprise projects.
How is it powered?A single PoE IEEE 802.3at Type 2 Class 4 connection — typical draw 10.7 W, maximum 17.5 W with IR on.
Is it weatherproof?Yes — IP66/IP67, IK10 vandal-resistant and NEMA 4X rated, operating from -30 °C to 50 °C.
What warranty applies in Australia?Genuine Axis stock with a 5-year Axis warranty, supported locally by CCTV Guru.
