Axis M4216-LV 4MP Indoor Varifocal Dome Camera (02113-001)

Description

NDAA Compliant • 4MP Varifocal Dome

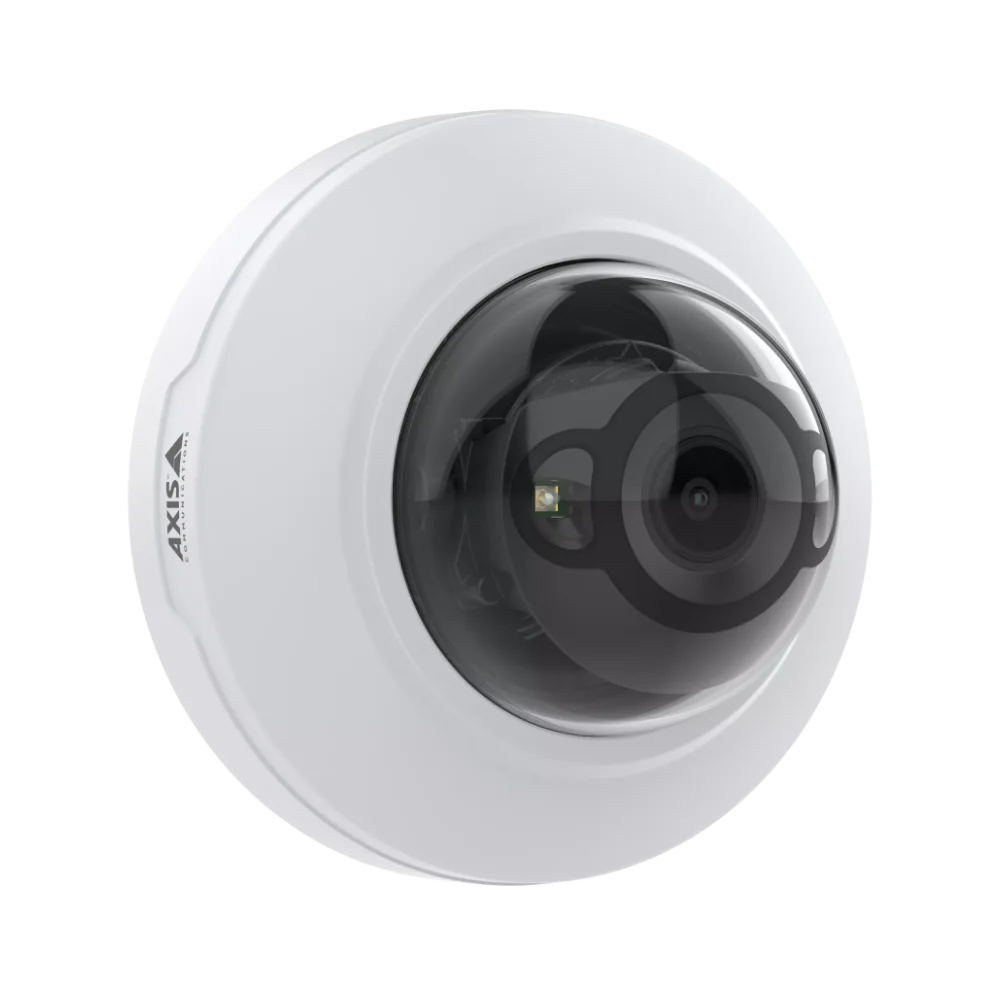

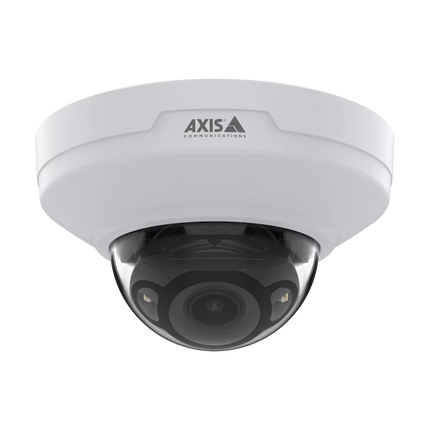

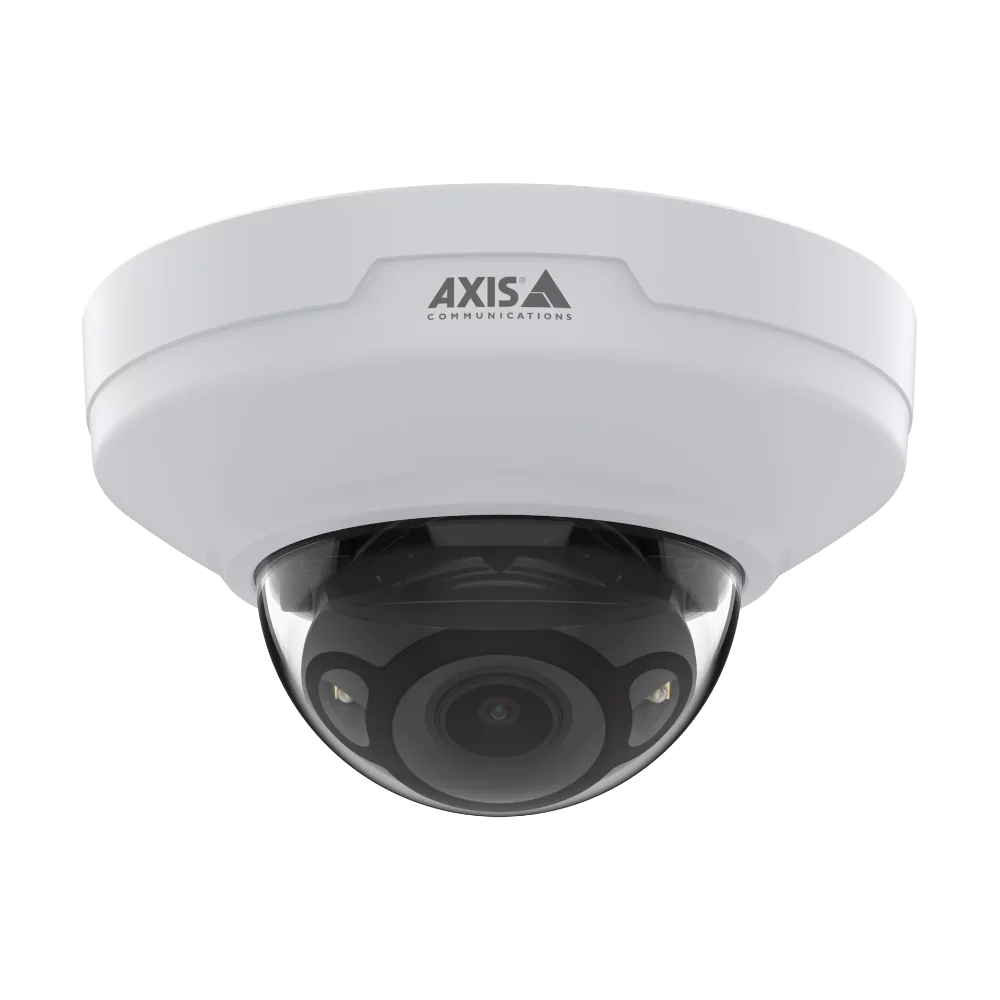

AXIS M4216-LV — 4MP Indoor Varifocal Dome with IR & Deep Learning Analytics

The AXIS M4216-LV is a discreet 4 MP indoor dome that delivers great image quality in any light. Its varifocal 3–6 mm lens with remote zoom and focus gives a flexible field of view, while Lightfinder, Forensic WDR and Axis OptimizedIR keep details sharp from bright daylight into pitch darkness. A built-in deep learning processing unit (DLPU) runs AI analytics on the edge, and Axis Edge Vault protects the camera with hardware-based cybersecurity.

Resolution
4 MP (2304×1728)
Lens
Varifocal 3–6 mm
Low Light
Lightfinder + IR
Analytics
Deep Learning DLPU
Affordable varifocal domes with deep learning – AXIS M42 Series

Great images, every time

Ideal for indoor surveillance, the AXIS M4216-LV delivers 4 MP in a wide 4:3 view and 3 MP at 16:9. Remote zoom and focus make installation easy, while Lightfinder captures colour images in low light and Forensic WDR preserves detail in scenes with both very bright and very dark areas. With Axis OptimizedIR you get even, well-lit night surveillance in complete darkness.

Deep Learning Analytics

The on-board DLPU runs AXIS Object Analytics, AXIS Face Detector and AXIS Scene Metadata, generating actionable metadata for fast forensic search in live or recorded video.

Flexible Varifocal Lens

The 3–6 mm varifocal lens with remote zoom and auto-focus delivers a 100–45° horizontal field of view, so you can dial in exactly the coverage each scene needs.

Discreet & Vandal-Resistant

Compact, repaintable and IK08 vandal-rated, this dome resists redirection, defocusing and impact — ideal anywhere discreet monitoring matters.

Built-In Cybersecurity

Axis Edge Vault with signed OS, secure boot and a CC EAL6+ secure keystore protects device integrity and guards against unauthorised access.

Technical Specifications

Imaging
Image Sensor 1/2.7" CMOS
Max Resolution 2304×1728 (4 MP)
Max Frame Rate 25/30 fps
Min Illumination 0.18 lux colour / 0 lux B/W
Day & Night Yes
Lightfinder Yes
WDR Forensic WDR
Lens
Focal Length Varifocal 3–6 mm
Horizontal FoV 100–45°
Vertical FoV 72–34°
Remote Zoom / Focus Yes
Video & Analytics
Compression H.264, H.265, Zipstream
Analytics Deep learning (DLPU)
Included Apps AXIS Object Analytics, Face Detector, Scene Metadata, Live Privacy Shield, VMD
Audio Supported (via AXIS T61 accessory)
General
Built-In IR Yes (OptimizedIR)
HDMI Output Yes
Local Storage microSD card slot
Power PoE Class 3
Vandal Rating IK08
Operating Temp 0 to 45 °C (indoor)
Cybersecurity Axis Edge Vault, signed OS, secure boot
Compliance NDAA (889) & TAA compliant
Part Number 02113-001

Downloads

AXIS M4216-LV DatasheetAxis Dome Camera Quick Start GuideAxis Dome Camera User Manual

Frequently Asked Questions

What resolution does the AXIS M4216-LV record?

It captures 4 MP (2304×1728) in a 4:3 aspect ratio and 3 MP when set to 16:9, at up to 25/30 fps.

Does it have built-in IR?

Yes. It features Axis OptimizedIR for even, well-lit night images in complete darkness.

Is the lens varifocal?

Yes — a 3–6 mm varifocal lens with remote zoom and auto-focus, giving a 100–45° horizontal field of view.

What analytics are supported?

A deep learning processing unit runs AI analytics on the edge, including AXIS Object Analytics, AXIS Face Detector and AXIS Scene Metadata.

Is this camera NDAA compliant?

Yes. Axis cameras are NDAA Section 889 and TAA compliant, suitable for government and enterprise projects.

Is it suitable for outdoor use?

No. The M4216-LV is an indoor camera (no IP weather rating, 0–45 °C operating range). For outdoor sites choose an IP-rated Axis dome.

How is it powered?

Via Power over Ethernet, PoE Class 3 — a single network cable carries power and data.

Does it support audio and I/O?

Audio is supported, and audio or I/O connectivity can be added using the AXIS T61 Series interface accessories.

Does it record locally?

Yes, it has a microSD card slot for onboard recording. We recommend an AXIS Surveillance high-endurance card.

5-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support

Axis M4216-LV 4MP Indoor Varifocal Dome Camera (02113-001)

Product form

SKU: 02113-001

NDAA Compliant • 4MP Varifocal DomeAXIS M4216-LV — 4MP Indoor Varifocal Dome with IR & Deep Learning Analytics The AXIS... Read more

$1,099.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    Add Ons & Accessories

    • Dispatch today? Order within: Jun 24, 2026 14:00:00 +1000
    • Warranty: 60 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180

    Description

    NDAA Compliant • 4MP Varifocal Dome

    AXIS M4216-LV — 4MP Indoor Varifocal Dome with IR & Deep Learning Analytics

    The AXIS M4216-LV is a discreet 4 MP indoor dome that delivers great image quality in any light. Its varifocal 3–6 mm lens with remote zoom and focus gives a flexible field of view, while Lightfinder, Forensic WDR and Axis OptimizedIR keep details sharp from bright daylight into pitch darkness. A built-in deep learning processing unit (DLPU) runs AI analytics on the edge, and Axis Edge Vault protects the camera with hardware-based cybersecurity.

    Resolution
    4 MP (2304×1728)
    Lens
    Varifocal 3–6 mm
    Low Light
    Lightfinder + IR
    Analytics
    Deep Learning DLPU
    Affordable varifocal domes with deep learning – AXIS M42 Series

    Great images, every time

    Ideal for indoor surveillance, the AXIS M4216-LV delivers 4 MP in a wide 4:3 view and 3 MP at 16:9. Remote zoom and focus make installation easy, while Lightfinder captures colour images in low light and Forensic WDR preserves detail in scenes with both very bright and very dark areas. With Axis OptimizedIR you get even, well-lit night surveillance in complete darkness.

    Deep Learning Analytics

    The on-board DLPU runs AXIS Object Analytics, AXIS Face Detector and AXIS Scene Metadata, generating actionable metadata for fast forensic search in live or recorded video.

    Flexible Varifocal Lens

    The 3–6 mm varifocal lens with remote zoom and auto-focus delivers a 100–45° horizontal field of view, so you can dial in exactly the coverage each scene needs.

    Discreet & Vandal-Resistant

    Compact, repaintable and IK08 vandal-rated, this dome resists redirection, defocusing and impact — ideal anywhere discreet monitoring matters.

    Built-In Cybersecurity

    Axis Edge Vault with signed OS, secure boot and a CC EAL6+ secure keystore protects device integrity and guards against unauthorised access.

    Technical Specifications

    Imaging
    Image Sensor 1/2.7" CMOS
    Max Resolution 2304×1728 (4 MP)
    Max Frame Rate 25/30 fps
    Min Illumination 0.18 lux colour / 0 lux B/W
    Day & Night Yes
    Lightfinder Yes
    WDR Forensic WDR
    Lens
    Focal Length Varifocal 3–6 mm
    Horizontal FoV 100–45°
    Vertical FoV 72–34°
    Remote Zoom / Focus Yes
    Video & Analytics
    Compression H.264, H.265, Zipstream
    Analytics Deep learning (DLPU)
    Included Apps AXIS Object Analytics, Face Detector, Scene Metadata, Live Privacy Shield, VMD
    Audio Supported (via AXIS T61 accessory)
    General
    Built-In IR Yes (OptimizedIR)
    HDMI Output Yes
    Local Storage microSD card slot
    Power PoE Class 3
    Vandal Rating IK08
    Operating Temp 0 to 45 °C (indoor)
    Cybersecurity Axis Edge Vault, signed OS, secure boot
    Compliance NDAA (889) & TAA compliant
    Part Number 02113-001

    Downloads

    AXIS M4216-LV DatasheetAxis Dome Camera Quick Start GuideAxis Dome Camera User Manual

    Frequently Asked Questions

    What resolution does the AXIS M4216-LV record?

    It captures 4 MP (2304×1728) in a 4:3 aspect ratio and 3 MP when set to 16:9, at up to 25/30 fps.

    Does it have built-in IR?

    Yes. It features Axis OptimizedIR for even, well-lit night images in complete darkness.

    Is the lens varifocal?

    Yes — a 3–6 mm varifocal lens with remote zoom and auto-focus, giving a 100–45° horizontal field of view.

    What analytics are supported?

    A deep learning processing unit runs AI analytics on the edge, including AXIS Object Analytics, AXIS Face Detector and AXIS Scene Metadata.

    Is this camera NDAA compliant?

    Yes. Axis cameras are NDAA Section 889 and TAA compliant, suitable for government and enterprise projects.

    Is it suitable for outdoor use?

    No. The M4216-LV is an indoor camera (no IP weather rating, 0–45 °C operating range). For outdoor sites choose an IP-rated Axis dome.

    How is it powered?

    Via Power over Ethernet, PoE Class 3 — a single network cable carries power and data.

    Does it support audio and I/O?

    Audio is supported, and audio or I/O connectivity can be added using the AXIS T61 Series interface accessories.

    Does it record locally?

    Yes, it has a microSD card slot for onboard recording. We recommend an AXIS Surveillance high-endurance card.

    5-Year AU Warranty
    Fast AU-Wide Shipping
    AU Tech Support
