Video Intercom and Door Bells collection is suitable for villa, home and apartment. Find a better deal? We will beat it by 5% OFF on all security & surveillance products here. Guarantee!Live chat with us or call 1800 228 848.
HiLook HA-KIT-IP1 2MP Video Intercom Kit, 7-inch Touch, Wi-Fi, Surface Mount
Indoor station: 7-inch touch screen, user friendly interface, Plug & Play
Indoor station: Easy, cost-efficient installation, Wifi & POE Supported
Indoor station: Receives video call and unlocks on mobile App anywhere, any time
Indoor station: Supports live view of up to 16 IP cameras
Door station: Hight quality imaging with 2MP resolution
Door station: Easy, cost-efficient installation, Wifi & POE Supported
Door station: Easy configuration through WEB interface
Door station: IP65 water resistant, preventing water ingress for outdoor use
Downloads
Datasheet

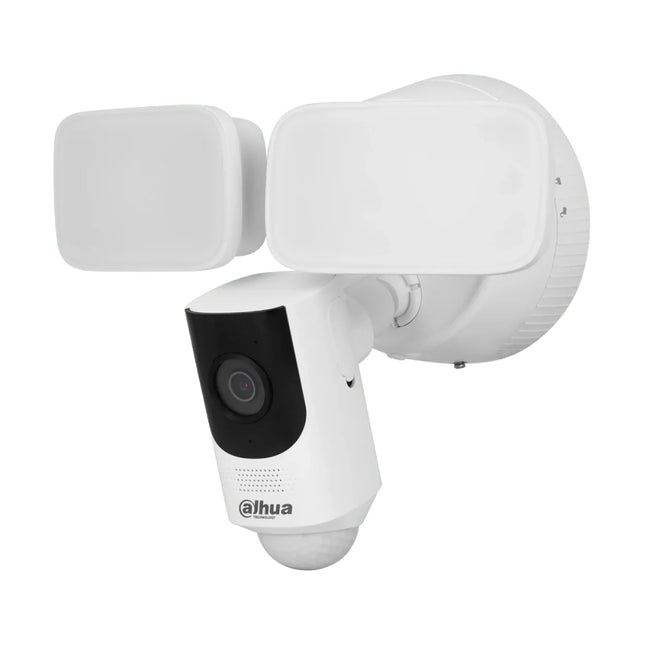

Dahua 4MP Fixed-focal Wi-Fi Floodlight Network Camera, DH-IPC-WL46A
4-MP 1/3" CMOS image sensor, low luminance, and high definition image.
Outputs max. 4 MP (2560 × 1440)@25 fps/30 fps
H.265 codec, high compression rate, ultra-low bit rate.
SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Built-in microphone and speaker for real-time communication.
Active alarm with built-in 110 dB Siren.
The built-in dual floodlights can switch between warm and cool color temperature and have 4 floodlights modes.
Detects humans, vehicles and animals to reduce the occurrence of false alarms.
SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Dual-band 2.4 GHz and 5 GHz WiFi options, IEEE802.11a/b/g/n/ac.
Supports max. 256 G Micro SD card and NVR storage.
100–240 VAC power supply, easy for installation.
IP65 Protection.
Specifications
MEGAPIXELS
4MP
CAMERA STYLE
Floodlight
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
Floodlight
POE
100-240V AC
Downloads
DH-IPC-WL46A DatasheetDH-IPC-WL46A Operational ManualDH-IPC-WL46A Quick Start GuideDH-IPC-WL46A Installation Method
Dahua Lite Series VTH2621GIP & Wi-Fi Indoor Monitor Black, 7-inch Touch, PoE, Surface, 3 Year Warranty, DHI-VTH2621G-WP
7" TFT capacitive touch screen, 1024 × 600
6-channel alarm input and 1-channel alarm output
Wi-Fi
Standard PoE
Door station and IPC monitor
H.265 and H.264 video decoding
High performance & cost-effective
Specifications
Technical Specification
System
Main Processor
Embedded processor
Operating System
Embedded Linux operating system
Interoperability
ONVIF; SDK
Network Protocol
RTSP; RTP; SIP; DNS; SSH
ROM
128 MB
RAM
128 MB
CPU
Dual core 1.2 GHz
Basic
Screen Type
Capacitive Touchscreen
Display
7" TFT
Screen Resolution
1024 × 600
Audio Compression
G.711a; G.711u; PCM
Audio Input
1
Audio Output
Built-in speaker
Audio Mode
2-way Audio
Audio Enhancement
Echo suppression
Audio Bit Rate
116 bit
Function
Communication Mode
Full digital
Information Release
Receive and view text information released by the management center
DND Mode
Do not disturb period can be set; Do not disturb mode
Number of Extensions
Villa: 9
Apartment: 4
Wi-Fi intercom: 1 main monitor, 2 extension monitors
Wi-Fi
Yes
Wireless Standard
IEEE802.11b/802.11g/802.11n
Wireless Frequency Range
2,412–2,472 MHz
Wireless Security Encryption
WPA/WPA2; WPA-PSK/WPA2-PSK
Performance
Casing
PC + ABS
Port
Alarm Input
6
Alarm Output
1
Door Bell
Yes (use any alarm input port)
Network
One 10 /100 Mbps Ethernet
Storage
Micro SD Card, Max 64 GB (reserved for software)
General
Appearance Color
Black/White
Power Supply
12 VDC 1A; Standard PoE (36–57 V, 0.35 A)
Installation
Surface Mount
Certifications
CE; FCC
Dimensions
189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00")
Operating Temperature
–10 °C to +55 °C (+14 °F to 131 °F)
Operating Humidity
10%–95% RH (non-condensing)
Operating Altitude
Beneath 3,000 m (9,842.52 ft)
Power Consumption
Standby ≤ 2W; working ≤ 6W
Net Weight
0.34 kg (0.74 lb)
Gross Weight
0.58 kg (1.27 lb)
Downloads
DatasheetPrivacy_PolicyUser's ManualOPEN SOURCE SOFTWARE NOTICESOFTWARE LICENSE AGREEMENT
G4 Doorbell Professional PoE Kit: Ubiquiti UniFi Protect UVC-G4 Doorbell Pro PoE Kit-White, 5MP Night Vision, Secondary 8 MP Package, Programmable Display, Porch Light
Your premium UniFi doorbell with integrated PoE and included PoE chime for plug-and-play installation.
Downloads
Installation Guide
Features:
Improved HDR and low-light performance
Programmable welcome display and secondary package-detection camera
AI event detections
Connect and power using PoE
Integrated 2-way audio
Includes PoE Chime
Weather-resistant (outdoor covered)
Includes 2 Year Warranty - As part of the current promotion running from March to June 2024, all Ubiquiti items purchased during this period will come with a standard 2-year extended warranty.
Technical Specifications:
Mechanical
Dimensions
UVC-G4 Doorbell ProDevice: 160.6 x 51.7 x 35.1 mm (6.3 x 2 x 1.4")Wall mount: 159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 0.7")Wedge: 161.1 x 52.1 x 25.7 mm (6.3 x 2.1 x 1")On-wall mount: 161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 1")UP-Chime PoEDevice: Ø62 x 54 mm (Ø2.5 x 2.1")In-wall mount: Ø89 x 63.1 mm (Ø3.5 x 2.5")On-wall mount: Ø62 x 20.2 mm (Ø2.5 x 0.8")
Weight
UVC-G4 Doorbell ProDevice: 264 g (9.3 oz)Wall mount: 56 g (2 oz)Wedge: 33 g (1.2 oz)On-wall mount: 53 g (1.9 oz)UP-Chime PoEDevice: 158 g (5.6 oz)In-wall mount: 91 g (3.2 oz)On-wall mount: 28 g (1 oz)
Enclosure material
Aluminum alloy, polycarbonate
Mount material
Wall mount: aluminum alloyWedge: polycarbonateOn-wall mount: polycarbonateChime mout: polycarbonate, zinc alloy
Weatherproofing
IPX4 (UVC-G4 Doorbell Pro)
Color
BlackWhite
Optics
Sensor
Main camera: 5MP CMOSPackage camera: 8MP CMOS
Lens
Fixed focal length
View angle
Main camera: H: 138°, V: 114°, D: 155° (LDC On)Main camera: H: 160°, V: 117°, D: 160° (LDC Off)Package camera: H: 97.5°, V: 79.4°, D: 118.2°
Night mode
Built-in IR LED illumination and IR cut filter
Video
Resolution
Main camera: 2MP 1600 x 1200 (4:3)Package camera: 2MP 1600 x 1200 (4:3)
Max. frame rate
30 FPS
System
Processor
Quad-core Arm® Cortex®-A53 based chip
Networking interface
UVC-G4 Doorbell Pro: GbE RJ45 portUP-Chime PoE: 10/100 MbE port
Power method
PoE
Supported voltage range
UVC-G4 Doorbell Pro: 37—57V DCUP-Chime PoE: 44–57V DC
Max. power consumption
UVC-G4 Doorbell Pro: 7WUP-Chime PoE: 3.5W
LED
Link/activity
Buttons
(1) Ring button(1) Factory reset
Ambient operating temperature
UVC-G4 Doorbell Pro: -30 to 40º C (-22 to 104º F)UP-Chime PoE: 0 to 40° C (32 to 104° F)
Ambient operating humidity
UVC-G4 Doorbell Pro: 0 to 90% noncondensingUP-Chime PoE: 10 to 90% noncondensing
Certifications
CE, FCC, IC
Audio
Microphone
Yes (Can be disabled for the Doorbell)
Speaker
Yes
Buzzer
Yes (UP-Chime PoE)
Software
UniFi OS application
UniFi Protect
Mobile app
UniFi Protect iOS™ and Android™
Aqara Smart Video Doorbell G4 with Chime (Black)
Local AI Face Recognition
Free Cloud and Local Storage
On-demand Video and Two-Way Talk
Battery and Wired 2-in-1
Support Aqara Home, Apple Home, Google, Alexa via Aqara Hub
Aqara Smart Video Doorbell G4
Aqara G4 is a unique video doorbell that can be wired or battery- powered. It is also the first battery-powered option to work with Apple’s HomeKit Secure Video and supports streaming to Google and Alexa smart displays, featuring local AI used for facial recognition alerts, automations, and much more.
Key Features:
Local AI Face Recognition: The Aqara doorbell's most significant strength is its built-in local face algorithm, which enables rapid identification of individuals outside the door. Users can assign a name to a specific face, and receive push notifications through the app or set unique automations* based on the person's identity. Even if the network connection is occasionally disrupted, the recognition function remains unaffected.
Works with Apple Home etc. : This is Australia's first battery-based HomeKit Secure Video doorbell**. Its primary strength is the HomeKit Secure Video feature that enables video analysis and notifications to occur on Apple devices such as iPad, iPhone, and Apple TV. All data is encrypted before it's stored in Apple's iCloud***, ensuring reliable security. Additionally, the doorbell can integrate audio and video with Google and Alexa, allowing for interconnection.
Free Cloud and Local Storage: The Aqara G4 is designed to provide an optimal storage experience while helping users save money. With seven days of free cloud storage, users can save up to $60 annually on subscription fees. The G4 also features an indoor chime that allows for local MicroSD card storage, offering a safer and more convenient option.
On-demand Video and Two-Way Talk: With the Aqara G4, users can easily answer the door from anywhere using their smartphones. Whether at home or on the other side of the world, they can see and talk to visitors in real-time. The app sends a notification when a visitor arrives, allowing users to check the situation outside their door via video, converse, or simply check. The G4 is equipped with a 162° super wide-angle field of view, 1080p HD video, and a full glass (4 Glass) lens, providing clear and stable video quality. Moreover, the G4 is suitable for outdoor use, thanks to its higher ambient temperature stability and IPX3 waterproof rating.
Battery and Wired 2-in-1: For those looking for a long-term power solution, a wired power supply may be the best option. If wired power installation isn't suitable, then a battery power supply may be preferable. Additionally, users can wire the G4 to a transformer so that the batteries are only used in case of power outages. The G4 features a 6-battery pack that allows it to operate for up to 4 months****. The doorbell can be powered by detachable AA batteries and an external power supply of 12-24V AC or DC, ensuring it meets most installation requirements.
Chime-Repeater Included : The G4 doorbell includes an indoor Wi-Fi chime. With a volume of up to 95 dB, the chime ensures that you won't miss any visitors. In case of a sudden network disconnection, the chime's stable network connection ensures that it will continue to function. Additionally, the G4 supports MicroSD card storage of up to 512GB for doorbell video, which can be securely stored in the indoor chime and cannot be easily stolen (MicroSD card must be purchased separately by the user)
Voice Changing Option：G4 doorbell includes a unique voice-changing dialogue technology, setting it apart from other video doorbells. With this feature, users can alter the voice of the intercom audio to sound like an uncle, a robot, or a clown, which provides an extra layer of privacy and identity protection.
Support Do Not Disturb Mode: Users have the ability to customize both the ringing period and ringing volume. Furthermore, with the Do Not Disturb mode feature, even if someone maliciously rings the doorbell in the middle of the night, users can rest assured that they won't be disturbed.
Personalized Custom Ringtones: This function allows users to upload personalized custom ringtones, which can be automatically configured to play on either the outdoor doorbell or indoor repeater. Additionally, the doorbell supports automatic linkage configuration, such as identifying strangers and broadcasting a message on the outdoor doorbell
Various Abnormal State Alarms: The G4 doorbell offers flexible alarm state configurations to remind owners of potential safety concerns and equipment status, such as when the doorbell is forcefully removed, the outdoor temperature is abnormal, someone remains at the door, or the battery power is low.
Set Masking Area: The device includes a privacy protection feature that allows users to block up to 3 designated areas on the live and recorded video screen. This protects the privacy of neighbors, especially those living in apartment buildings.
Disclaimers Need Aqara Hub and other accessories to achieve** To control this HomeKit-enabled accessory, the latest version of IOS or iPadOS is recommended. HomeKit Secure Video also requires a supported iCloud+ plan.*** iCloud or other supported third-party cloud storage may require additional subscription from the users**** The calculation based on 35 device wake-ups and 6-second event video recording a day. Battery life may vary in different scenario
Automation:
No more lights suddenly turning off while you are in the restroom.
IF Contact sensor was opened (i.e., the toilet cover was opened, which indicates that the toilet is used)
THEN Turn off the automation “Turn off the light if no motion was detected for 2 minutes”
Devices: Door and Window Sensor P2 + Border Router* + Motion Sensor
Specifications
Doorbell Main Module:
Model: SVD-C03/4
Video Resolution: 1080p
Viewing Angle: 162° (diagonal)
PIR Detection Angle: Horizontal 120°, vertical 80°
Wireless Protocols: Wi-Fi IEEE 802.11 b/g/n 2.4 GHz
Battery: 6 * LR6 AA alkaline battery (Replaceable)
Wired Input: 12V-24V AC 0.2A 50/60Hz 8V-24V DC 0.5A
Operating Temperature: -18°C ~ 50°C (-0.4°F ~ 122°F)
Operating Humidity: 0 ~ 95% RH, no condensation
Chime Repeater:
Loudspeaker Power: 2 W
Wireless Protocols: Wi-Fi IEEE 802.11 b/g/n 2.4 GHz + WPA3
Ports: USB-C, can use and recommended to use 5V USB DC UPS
Input Power: 5 V⎓1 A
Total Power Consumption: 5 W
Local Storage: Support up to 512 GB microSD card local storage
Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
Operating Humidity: 0 ~ 95% RH, no condensation
Video:
Codec: H.264
Frame rate: 1080p@20fps/720p@20fps/360p@20fps (Adjustable)
Audio:
Audio: AAC coding, bidirectional voice
Overall Product:
Color: Black
Dimensions (Main module): 141.5×65×30.4mm
Doorbell net weight: 163g (no battery)
Repeater size: 65.2×65×28.4mm
Repeater net weight: 68g
Packing box size: 148×96×73mm
Gross weight: 550g
Installation: The outdoor doorbell can be wall mounted, and the indoor unit can be wall mounted or placed on flat ground
What is in the Box: Smart Video Doorbell G4×1, Chime Repeater×1, AA Battery×6, User Manual× 1, Screwdriver×1, Wall Screws & Anchors kit×1, 20° Wedge Bracket×1, Wedge Screws Kit×1, Cable for Chime×1
Ubiquiti UniFi Protect G4 Doorbell Pro PoE Kit, 2MP Camera, Secondary 2MP Package Camera, IR Up To 20ft, Includes PoE Chime, Doorbell is PoE
Your premium UniFi doorbell with an enhanced package detection camera, integrated display & PoE Chime!
Improved HDR and low-light performance
Programmable welcome display and secondary package-detection camera
AI event detections
Connect and power using PoE
Integrated 2-way audio
Includes PoE Chime
Weather-resistant (outdoor covered)
Ubiquiti UniFi Protect G4 Doorbell Pro PoE Kit Installation Video
Hikvision IP Intercom Kit, Gen 2, 1 to 1 Villa Plastic Surface Mount, WiFi, Black, 12vdc (KIS), IP Video Intercom Kit, DS-KIS603-P
Upgrade your home security with the Hikvision IP Intercom Kit, Gen 2. This WiFi enabled kit features a plastic surface mount in sleek black, delivering video and audio communication. With only one call button, this 12VDC kit for villa or house is an easy and reliable option.
Features
IP video intercom kit for villa or house, only one call button
DS-KV6113-WPE1 x1
DS-KH6320-WTE1 x1
PSU x 2
DownloadDS-KIS603-P(B) Datasheet
Hikvision 2 Wire Intercom Kit, Gen 2, 1 to 1 Surface Mount, Black (KIS), Villa Two Wire Kit, Hik-DS-KIS702
This kit comes with
2-wire digital IP video intercom kit for villa or house, only one call button
DS-KD8003-IME2/Surface x 1
DS-KH6320-WTE2 x 1
DS-KAD704 x 1
DS-KAW30-2N x 1
16GB TF card x 1
DownloadDatasheet
Hikvision Doorbell, Wi-Fi Doorbell, 2MP Colour Camera, Wireless Interface, IR 5M (6403), HIK-DS-KB6403-WIP
Features
Wi-Fi Video Doorbell
2 Mp Camera With Supplemental Ir Light
1 Call Button, 1 Reset Button, 1 Wireless Interface
Supporting Wifi 2.4 Ghz, 12vdc, Ip54
Video Intercom With Mobile App
Network Protocol -Tcp/Ip, Rtsp
Network Interface -1 Wireless Interface (Wireless Network Card), Supporting 2.4 Ghz
Tf Card -Max. 128 G
Button -1 Call Button, 1 Reset Button
Ingress Protection Level -Ip 54
Power Consumption -Max. 0.6 A
Working Temperature-30 C To 50 C
Working Humidity -10% To 90%
Power Supply -12 Vdc
Dimensions -122.4 Mm X 45.9 Mm X 28.1 Mm
Hikvision IP Intercom, Gen 2, 1 to 1 Surface Mount Kit, PoE, Black (KIS)
IP video intercom kit for villa or house, only one call button
DS-KD8003-IME1/Surface x1
DS-KH6320-WTE1 x1
4 port standard PoE switch x1
16GB TF card x1
European power supply adaptor included (please mark for other standards when you order)
Downloads
Datasheet
Quick Start Guide
User Manual
The Dahua 2-Wire Wi-Fi Video Intercom Kit DHI-KTX01(S) brings a sleek design, mobile notifications, and comprehensive security features. Night vision and IP65 waterproof are part of the package, as is the ability to integrate with popular alarm systems such as Bosch. No NVR is required, and HDCVI cameras can be connected too.
In the Box:
1 x 2-wire Wi-Fi Hybrid Indoor Monitor DHI-VTH5123H-W:
7'' TFT capacitive touch screen
Offers video intercom that communicates with VTOs through half-duplex, and the app through full-duplex
Supports recording videos and capturing snapshots. (SD card is required)
6-channel alarm input and 1-channel alarm output
The app can be used to receive calls and alarm notifications
Connects to HDCVI camera.
1 x 2-wire Hybrid Villa Door Station DHI-VTO2003F:
Aluminum alloy front panel
Auto IR illumination
Video messages can be left for unanswered calls. (SD card is required for VTH)
Features nameplate and DWDR
Supports local lock and second lock
Offers anti-tampering alarm
IP65 and IK07 rated.
1 x 2-wire Controller DHI-VTNC1003C1 x Surface Mount Bracket VTM115
Download
KTX01 Datasheet_202303032-Wire Hybrid Door Station User's Manual_V1.0.32-Wire Controller User's Manual_V1.0.42-Wire Hybrid Indoor Monitor (7-inch) User's Manual_V1.0.4Dahua 2-wire Hybrid Indoor Monitor Privacy Policy
Your premium UniFi doorbell with an enhanced package detection camera and integrated display.
HD (2MP) video resolution Programmable welcome display and secondary package-detection camera 20 ft IR night vision Wirelessly connected* AI event detections Integrated 2-way audio Weather-resistant (outdoor covered)*Auto-connect to UniFi WiFi.
Technical Specifications
Mechanical
Dimensions
160.6 x 51.7 x 28.7 mm (6.3 x 2 x 1.1")
Weight
Without mount: 253 g (8.92 oz)With flat wall mount: 286 g (10.08 oz)With 20° wedge mount: 325 g (11.46 oz)
Enclosure materials
Polycarbonate, aluminum alloy
Mount materials
Flat wall mount: aluminum alloy20° wedge mount: polycarbonate
Weatherproofing
IPX4
Optics
Sensor
Main camera: 5MP CMOS sensorPackage camera: 8MP CMOS sensor
Lens
Fixed focal length
View angle
Main camera: H: 138°, V: 114°, D: 155°Package camera: H: 97.5°, V: 79.4°, D: 118.2°
Night mode
Built-in IR LED illumination and IR cut filter
Video
Video compression
H.264
Resolution
1600 x 1200 (4:3)
Max. frame rate
30 FPS
System
Processor
Quad-core Arm® Cortex®-A53 based chip
Networking interface
802.11a/b/g/n/ac WiFiBluetooth 5.0GbE support (with UACC-Adapter-DBPOE)
Max. power consumption
10W
Power requirements
16—24V AC, 1.25A max., 50/60 HzUSB-C power cable, 5V DC, 2A
Supported voltage range
37—57V DC
LED
Link/activity
Button
(1) Ring button(1) Factory reset
Mounting
Flat wall, 20° wedge (Included)
Operating temperature
-10 to 40º C (14 to 104º F)
Operating humidity
10 to 90% noncondensing
Certifications
FCC, IC, CE
Audio
Microphone
Yes (Can be disabled in software)
Speaker
Yes
Software
Web application
UniFi Protect: Version 1.21.0 and later
Mobile app
UniFi Protect iOS™: Version 1.5.8 and laterUniFi Protect Android™: Version 1.4.8 and later
Compatible Mechanical Chimes
ManufacturerBroan-NuToneBroan-NuToneHeath ZenithCraftmadeBroan-NuToneNewhouse Hardware
ModelLA126WHLA11WHSL-2735CTPW-RGLA39WHCHM3D
Compatible Digital Chimes
ManufacturerBroan-NuToneIQ AMERICAIQ AMERICA
ModelLA600WHDW-2850DW-2840
Dahua IP Video Intercom Kit, KTP03 comes with stylish black colour for both 7-inch monitor and outdoor doorbell with camera.
IP Villa Door Station
Megapixel image sensor
Supports IR illumination and night vision.
Two-way audio and voice call through app.
Can be managed through the management platform; supports voice call between App and the door station.
Card unlock, unlock on the indoor monitor, and remote unlock through the App.
Supports IP65 (Silicone sealant is needed.
For details, see the quick start guide.)
Supports 10000 cards.
Supports standard PoE power supply.
Controls two locks.
IP Indoor Monitor
7" TFT capacitive touch screen, 1024 × 600.
6-channel alarm input and 1-channel alarm output.
Standard PoE.
Door station and IPC monitor.
H.265 and H.264 video decoding.
High performance & cost-effective.
Downloads
KTP03 Datasheet
Dahua IP Villa Outdoor Station & Indoor Monitor Video Intercom Kit, DHI-KTP01L(S)-AUS
Material:AL5052 t=2.0mm
Dimensions: 129.0mmx95.0mmx28.5mm (5.08''x3.74''x1.12'')
In the Box:1 x IP Villa Door Station DHI-VTO2201F-P
Anodised aluminium front panel
CMOS low illumination 2MP HD colourful camera
Video intercom function
Access control function that supports two locks
Use the app to talk to visitors or unlock the door remotely on your phone.
Surface mounted and flush mounted.
PoE
IK07&IP65
1 x IP Indoor Monitor DHI-VTH2621GW-P
7'' TFT capacitive touch screen, 1024 x 600
6-channel alarm input and 1-channel alarm output
Standard PoE
Outdoor station and IPC monitor
H.265 and H.264 video decoding
High performance & cost-effective
1 x Switch
Port 1-4: 4 x RJ-45 10/100 M (PoE) Port 5: 1 x RJ-45 10/100 M (uplink)
Supports guide rail mount.
1 x Surface Mount Bracket VTM115
Downloads
DHI-KTP01L(S)-AUS Datasheet
Dahua Android 10-inch digital indoor monitor
Android 8.1
More User-Friendly UI
Ethernet and Wi-Fi
10'' TFT Capacitive touch Screen, 1024x600
Micro-SD Card optional, max 256GB
Specifications
System
Main Processor
Embedded processor
Operating System
Android 8.1
Network Protocol
IPv4, TCP, SIP, UDP, RTSP
Basic
Screen Type
Capacitive screen
Display Screen
10 inch TFT LCD
Resolution
1024×600
Video Compression
H.264
Audio Compression
PCM
Audio Input
1 omnidirectional microphone
Audio Output
Built-in 1.5W speaker
Audio Mode
Two-way voice call
Audio Enhancement
Echo suppression/DNR
Audio Bit Rate
16KHz, 16Bit
Function
Information Release
Text announcements released by the management center can be viewed
Communication Mode
Full digital
Elevator Control
You can control the elevator through the indoor monitor
Leave Videos or Text Messages
Yes (SD card is needed)
DND Mode
Do not disturb period can be set.
Extension Number
Villa: 4
Apartment: 9
Wi-Fi
Yes
Wireless Standard
IEEE802.11b/802.11g/802.11n
Wireless Frequency Range
2.4GHz
Wireless Security-Encryption
64/128bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Storage
Micro SD storage, the maximum space is 256GB
Port
RS-485
1
Alarm Input
8
Alarm Output
1
Power Output
1 12V/100mA
Door Bell
Yes, use alarm input port
Network Port
1 10M/100M Ethernet
Alarm
SOS
Yes
Performance
Housing Material
PC+ABS
Regular
Color
Black
Power Supply
12V DC 1AStandard POE
Installation
Surface mount
Certifications
CEFCC
Accessory
Surface mount bracket, alarm ribbon cable, RS-485 cable, and power-supply pins are provided
Product Dimensions
260 mm×170 mm×15 mm (10.24"×6.69"×0.59") (ports are not counted) 260 mm×170 mm×25.4 mm (convex) (10.24"×6.69"×1") (ports are counted)
Operating Temperature
-10°C to +55°C (+14°F to +131°F)
Operating Humidity
10%RH–95%RH (Non-condensing)
Operating Altitude
Less than 3,000 meters (9842.52 ft)
Power Consumption
≤1.5W (standby), ≤7W (working)
Net Weight
770g (1.70lb)
Gross Weight
1.1kg (2.43lb)
Downloads
DHI-VTH5341G-W_datasheet_20200113
IP Indoor Monitor_Quick Start Guide_V1.0.0-Eng
IP Indoor Monitor_User's Manual_V1.0.0-Eng
DHI-VTH5341G-W_INSTALLATION_PROCEDURE
DHI-VTH5341G-W_DIMENSIONS
Customised encasing for UniFi Protect G4 Doorbell.
With the UniFi Protect G4 Doorbell Skin Cover, the G4 Doorbell smoothly blends into the background of your choosing.
Customised encasing for UniFi Protect G4 Doorbell.
With the UniFi Protect G4 Doorbell Skin Cover, the G4 Doorbell smoothly blends into the background of your choosing.
WiFi-connected doorbell with an integrated night vision camera and porch light.Features:
(1) 5MP, 30 FPS camera with infrared LEDs
Two-way audio
Motion detection
IPX4-rated, weather-resistant casing
Note: UniFi Protect is required to run this product with full functionality. We recommend adopting it with a Dream Machine Pro or Network Video Recorder.
UniFi Protect G4 Doorbell is a Wi-Fi video doorbell with a built-in display and real-time two-way audio communication.
View Compatible Chimes
Compatible Mechanical Chimes
ManufacturerBroan-NuToneBroan-NuToneHeath ZenithCraftmadeBroan-NuToneNewhouse Hardware
ModelLA126WHLA11WHSL-2735CTPW-RGLA39WHCHM3D
Compatible Digital Chimes
ManufacturerBroan-NuToneIQ AMERICAIQ AMERICA
ModelLA600WHDW-2850DW-2840
Downloads
Datasheet Installation Guide
Capture video and communicate with visitors at your front door with the UniFi Protect G4 2MP Doorbell from Ubiquiti Networks. This Wi-Fi device uses a CMOS sensor to capture 1600 x 1200 resolution video at 30 fps. It features a fixed lens that delivers a 155° diagonal field of view, a PIR sensor for motion detection, and a built-in speaker and microphone for two-way audio communication. Remote management is possible thanks to the UniFi Protect app for iOS and Android. The unit is housed in an IPX4-rated enclosure for protection against inclement weather.
Ambarella SoC processor
Built-in display
Built-in IR LED illumination and IR cut filter
PIR sensor
H.264 video codec
Built-in microphone and speaker
UniFi Protect for iOS and Android
Factory reset button
LED indicators
Mounts included
FCC, IC, and CE certified
Dahua 4-Wire 7-inch Indoor Monitor Intercom Kit DHI-KTA02
Dahua 4-Wire indoor monitor KIT, 7-inch screen, indoor monitor function: unlock, video call, volume adjustment, and doorway monitoring
7" TFT screen
Video intercom function: Unlock, voice call, video call, volume adjustment
System Capacity：2 door stations + 3 indoor monitors
Multiple bell sounds
Supports digital wide dynamic range (DWDR)
Kit include:
1 x 7-inch White Analog Monitor
1 x Outdoor Station
1 x Power Supply and Accessories
Dahua 2MP IP Villa 1 button Outdoor Station, Viewing Wide Angle 140 degree, Night vision, Mifare Card Reader
2MP HD CMOS camera
Aluminum panel, IP65, IK08
ICR Night vision & Voice indication
Video & Audio messaging
Remote intercom with mobile APP
Surface mounted
Specifications
OUTDOOR STATION
RESOLUTION
2MP
TECHNOLOGY
IP
POWER SUPPLY
DC 12V, PoE
PROTECTION
IP65, IK08
MOUNT
Surface
MATERIAL
Alumimum
Downloads
Datasheet of VTO3211D
Quick Start Guide of VTO3211D
Villa VTO_User's Manual_V1.0.0-Eng
Villa Door Station (Version 4.3)_Quick Start Guide_V1.0.0-Eng
Villa Door Station_Installation Guide_V1.0.0-Eng
Dahua 2-wire IP Villa Door Station comes with both 2-wire and ethernet port
Anodised aluminium front panel
CMOS low illumination 2MP HD colourful 160° fisheye camera
Video intercom function
Access control function that supports two locks
Mobile phone app, talk to the visitor or unlock the door remotely on
Compatible with 2-wire interface & RJ45 interface
IK07 & IP65
Support H.265
Support surface and flush mount
PoE
Specifications
System
Main Processor
Embedded processor
Operating System
Embedded Linux Operation System
Button Type
Mechanical
Interoperability
ONVIF; CGI
Network Protocol
SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP
Basic
Camera
1/2.5" 2MP CMOS Low Illumination HD Colourful Fisheye Camera
Field of View
Horizontal: 168.6°; vertical: 87.1; diagonal:176.7°
Focal Length
1.9 mm
WDR
120 dB
Noise Reduction
3D NR
Video Compression
H.265
Video Resolution
50Hz: Main Stream (720P@25 fps), sub stream (1080P@25 fps) 60Hz: Main Stream (720P@30 fps), sub stream (1080P@30 fps)
Video Frame Rate
25 fps
Video Bit Rate
256 Kbps to 4 Mbps
Light Compensation
Auto IR
Day/Night
Auto (ICR)
Audio Compression
G.711u
Audio Input
1 channel
Audio Output
Built-in speaker
Audio Mode
2-way voice communication
Audio Enhancement
Echo suppression/digital noise reduction
Audio Bit Rate
16 KHz, 16 Bit
Status Indicator Light
3
Port
Electric Lock
1
Alarm Output
1
Power Output
1-ch 12 VDC 100mA
Exit Button
1
Door Status Detection
1
Lock Control
1
Network Port
One RJ45 10M/100M network port
General
Appearance colour
Silver
Power Supply
Dahua 2-wire switch (max. power supply distance 50 m)DC 48V 1AStandard PoE
Power Adapter
Optional
Installation
Flush/surface mount
Certifications
CE; FCC; UL
Accessory
Flush/surface mount
Product Dimensions
130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")
Protection
IK07; IP65
Operating Temperature
–30°C to +60°C (–22°F to 140°F)
Operating Humidity
10%–90% (RH, non-condensing)
Operating Altitude
0 m–3000 m
Power Consumption
≤ 12W
Net Weight
0.35 kg (0.77 lb)
Gross Weight
0.4 kg (0.88 lb)
Downloads
Datasheet of DHI-VTO2202F-P-S2_20210120Quick Start Guide of DHI-VTO2202F-P-S2Villa Door Station_User's_Manual_V1.0.0-EngDahua Villa Intercom Setup GuideDahua Villa N VTHx NVTO via template
Dahua 7-inch Touch Screen IP Video Intercom Kit is the modern doorbell for your home or office. Receive notifications on your Dahua's official DMSS app when visitors press the door station. You can also view on your 7-inch IPC indoor monitor which can be beautifully hanged in your living room. The surface mounted outdoor station offer adjustable viewing angle with can turn 100 degree and features ICR 5m Night Vision. This is the IP video intercoms and cabling can be done by using RJ45 ethernet cables.
Inside the bundle:
1 x 7-inch Black Monitor VTH2621GW-P
1 x Outdoor Station VTO2101E-P
1 x Uniarch 8 Port PoE Switch with Power Supply, SW-2110-P
1 x 7-inch Monitor VTH2621GW-PThis Dahua IP Indoor Monitor features white colour frame, 7 inch touch screen, 1024×600 pixels resolution with standard PoE. 6 alarms can be connected and security cameras footage can be viewed as well.
7'' TFT capacitive touch screen, 1024 x 600
6-channel alarm input and 1-channel alarm output
Standard PoE
Door station and IPC monitor
H.265 and H.264 video coding
High performance & cost-effective
1 x Outdoor Station VTO2101E-PDahua 2MP IP Villa Outdoor Station, Viewing Wide Angle 100 degree, Adjustable Viewing Angle, ICR 5m Night Vision
HD CMOS camera.
Zinc alloy panel, IP65 and IK10 rated.
ICR night vision and voice prompt.
Video and audio messaging.
TCP/IP, and SIP.
Surface mounted.
1 x Uniarch 8 Port PoE Switch with Power Supply, SW-2110-PUniarch Switch, 10 x 100Mbps network ports, including 8 PoE/PoE+ ports, 2 x 100Mbps uplink ports, Max capacity for single port 30W, total capacity 120W, up to 250m transmission distance, all-metal housing
Multiple working modes to address your business needs: Normal, Secure and Surveillance
Support port traffic control
Support for secure mode, all downlink ports can communicate only with uplink ports
Up to 250m transmission distance on surveillance mode
Support buffer optimization
All-metal housing, safe and reliable
Dahua 4-Wire Analog Indoor Outdoor Station DHI-VTO1000J
Dahua 4-wire indoor outdoor station
Video intercom function: Unlock, voice call, video call and volume adjustment
Multiple bell sounds
Supports digital wide dynamic range (DWDR)
Mechanical button
Specifications
OUTDOOR STATION
RESOLUTION
1.3MP
TECHNOLOGY
Analog
POWER SUPPLY
DC 12V
PROTECTION
IP66
MOUNT
Surface
MATERIAL
Front Panel: Zinc alloy Rear Panel: Aluminum alloy Holder: Aluminum alloy
Downloads
DHI-VTO1000J_datasheet_20200824
DHI-VTO1000J_INSTALLATION_PROCEDURE
DHI-VTO1000J_DIMENSIONS
DHI-VTO1000J_INSTALLATION_METHOD_EN
7 inch Screen, indoor monitor function: Unlock, video call, volume adjustment, and doorway monitoring
Notes: Power Supply doesn't come with this unit. Please shop here.
7" TFT screen
Video intercom function: Unlock, voice call, video call and volume adjustment
Mechanical button
Multiple bell sounds
Specifications
INDOOR MONITORS
SIZE
7 Inch TFT display
COLOUR
White
RESOLUTION
800x480
STORAGE
-
POWER SUPPLY
DC 12V
TECHNOLOGY
Analog
Downloads
Datasheet of DHI-VTH1020J
Dahua all-black 7-inch Touch Screen IP Video Intercom Kit is the modern doorbell for your home or office. Receive notifications on your Dahua's official DMSS app when visitors press the door station. You can also view on your 7-inch IPC black indoor monitor which can be beautifully hanged in your living room. The surface mounted black outdoor station offer adjustable viewing angle with can turn 140 degree and features Night Vision. You can also use it with Mifare card. This is the IP video intercoms and cabling can be done by using RJ45 ethernet cables.
Inside the bundle:
1 x 7-inch Black
Touch Screen Monitor VTH2621G-P
1 x Outdoor Station VTO3211D-P
1 x Uniarch 8 Port PoE Switch with Power Supply, SW-2110-P
1 x 7-inch Black Touch Screen Monitor VTH2621G-PThis Dahua 7-inch IP Indoor Monitor features stylish black colour comes with capacitive touch screen, 1024×600 pixels resolution and Standard PoE. 6 alarms can be connected and security cameras footage can be viewed as well.
7'' TFT capacitive touch screen, 1024 x 600
6-channel alarm input and 1-channel alarm output
Standard PoE
Outdoor station and IPC monitor
H.265 and H.264 video coding
High performance & cost-effective
1 x Black Outdoor Station DHI-VTO3211D-PDahua 2MP IP Villa 1 button Outdoor Station, Viewing Wide Angle 140 degree, Night vision, Mifare Card Reader
2MP HD CMOS camera
Aluminum panel, IP65, IK08
ICR Night vision & Voice indication
Video & Audio messaging
Remote intercom with mobile APP
Surface mounted
1 x Uniarch 8 Port PoE Switch with Power Supply, SW-2110-PUniarch Switch, 10 x 100Mbps network ports, including 8 PoE/PoE+ ports, 2 x 100Mbps uplink ports, Max capacity for single port 30W, total capacity 120W, up to 250m transmission distance, all-metal housing
Multiple working modes to address your business needs: Normal, Secure and Surveillance
Support port traffic control
Support for secure mode, all downlink ports can communicate only with uplink ports
Up to 250m transmission distance on surveillance mode
Support buffer optimization
All-metal housing, safe and reliable
Dahua 7-inch Touch Screen IP Video Intercom Kit is the modern doorbell for your home or office. Receive notifications on your Dahua's official DMSS app when visitors press the door station. You can also view on your 7-inch IPC indoor monitor which can be beautifully hanged in your living room. The surface mounted outdoor station offer adjustable viewing angle with can turn 100 degree and features ICR 5m Night Vision. This is the IP video intercoms and cabling can be done by using RJ45 ethernet cables.
Inside the bundle:
1 x 7-inch Black Monitor DHI-VTH2621G-P
1 x Outdoor Station VTO2101E-P
1 x Uniarch 8 Port PoE Switch with Power Supply, SW-2110-P
1 x 7-inch Black Monitor DHI-VTH2621G-PThis Dahua IP Indoor Monitor features white colour frame, 7 inch touch screen, 1024×600 pixels resolution with standard PoE. 6 alarms can be connected and security cameras footage can be viewed as well.
7'' TFT capacitive touch screen, 1024 x 600
6-channel alarm input and 1-channel alarm output
Standard PoE
Door station and IPC monitor
H.265 and H.264 video coding
High performance & cost-effective
1 x Outdoor Station VTO2101E-PDahua 2MP IP Villa Outdoor Station, Viewing Wide Angle 100 degree, Adjustable Viewing Angle, ICR 5m Night Vision
HD CMOS camera.
Zinc alloy panel, IP65 and IK10 rated.
ICR night vision and voice prompt.
Video and audio messaging.
TCP/IP, and SIP.
Surface mounted.
1 x Uniarch 8 Port PoE Switch with Power Supply, SW-2110-PUniarch Switch, 10 x 100Mbps network ports, including 8 PoE/PoE+ ports, 2 x 100Mbps uplink ports, Max capacity for single port 30W, total capacity 120W, up to 250m transmission distance, all-metal housing
Multiple working modes to address your business needs: Normal, Secure and Surveillance
Support port traffic control
Support for secure mode, all downlink ports can communicate only with uplink ports
Up to 250m transmission distance on surveillance mode
Support buffer optimization
All-metal housing, safe and reliable
Dahua 7-inch Touch Screen IP Intercom Kit is the modern doorbell for your home or office. Receive notifications on your Dahua's official DMSS app when visitors press the door station. You can also view on your 7-inch IPC indoor monitor which can be beautifully hanged in your living room. This kits come with rain shade for your outdoor station to protect from different weather for durability. This is the IP video intercoms and cabling can be done by using RJ45 ethernet cables.
1 x 7-inch Monitor DHI-VTH2621GW-P1 x Outdoor Station DHI-VTO2202F-P-S21 x Uniarch 8 Port PoE Switch with Power Supply, SW-2110-P1 x Surface Mount Bracket DH-AC-VTM05R
1 x 7-inch Monitor DHI-VTH2621GW-PDahua IP Indoor Monitor White, 7" TFT capacitive touch screen, 1024 × 600, 6-channel alarm input and 1-channel alarm output, Standard PoE, Outdoor station and IPC monitor, H.265 and H.264 video coding, High performance & cost-effective
7'' TFT capacitive touch screen, 1024 x 600
6-channel alarm input and 1-channel alarm output
Standard PoE
Outdoor station and IPC monitor
H.265 and H.264 video coding
High performance & cost-effective
1 x Outdoor Station DHI-VTO2202F-P-S2Dahua 2-wire IP Villa Door Station comes with both 2-wire and ethernet port
Anodised aluminium front panel
CMOS low illumination 2MP HD colourful 160° fisheye camera
Video intercom function
Access control function that supports two locks
Mobile phone app, talk to the visitor or unlock the door remotely on
Compatible with 2-wire interface & RJ45 interface
IK07 & IP65
Support H.265
Support surface and flush mount
PoE
1 x Uniarch 8 Port PoE Switch with Power Supply, SW-2110-PUniarch switch, 10 x 100Mbps network ports, including 8 PoE/PoE+ ports, 2 x 100Mbps uplink ports, Max capacity for single port 30W, total capacity 120W, up to 250m transmission distance, all-metal housing
Multiple working modes to address your business needs: Normal, Secure and Surveillance
Support port traffic control
Support for secure mode, all downlink ports can communicate only with uplink ports
Up to 250m transmission distance on surveillance mode
Support buffer optimization
All-metal housing, safe and reliable
1 x Surface Mount Bracket DH-AC-VTM05R
This Dahua 7-inch Touch Screen IP Intercom Kit (black colour monitor) is the modern doorbell for your home or office. Receive notifications on your Dahua's official DMSS app when visitors press the door station. You can also view on your 7-inch IPC black indoor monitor which can be beautifully hanged in your living room. This kits come with rain shade for your outdoor station to protect from different weather for durability. This is the IP video intercoms and cabling can be done by using RJ45 ethernet cables.
Inside the bundle:
1 x 7-inch Monitor VTH2621G-P
1 x Outdoor Station DHI-VTO2202F-P-S2
1 x Door Station Surface Mount Bracket VTM05R
1 x Uniarch 8 Port PoE Switch with Power Supply, SW-2110-P
1 x 7-inch Monitor VTH2621G-PThis Dahua 7-inch IP Indoor Monitor features stylish black colour comes with capacitive touch screen, 1024×600 pixels resolution and Standard PoE. 6 alarms can be connected and security cameras footage can be viewed as well.
7'' TFT capacitive touch screen, 1024 x 600
6-channel alarm input and 1-channel alarm output
Standard PoE
Outdoor station and IPC monitor
H.265 and H.264 video coding
High performance & cost-effective
1 x Outdoor Station DHI-VTO2202F-P-S2Dahua 2-wire IP Villa Door Station comes with both 2-wire and ethernet port
Anodised aluminium front panel
CMOS low illumination 2MP HD colourful 160° fisheye camera
Video intercom function
Access control function that supports two locks
Mobile phone app, talk to the visitor or unlock the door remotely on
Compatible with 2-wire interface & RJ45 interface
IK07 & IP65
Support H.265
Support surface and flush mount
PoE
1 x Uniarch 8 Port PoE Switch with Power Supply, SW-2110-PUniarch switch, 10 x 100Mbps network ports, including 8 PoE/PoE+ ports, 2 x 100Mbps uplink ports, Max capacity for single port 30W, total capacity 120W, up to 250m transmission distance, all-metal housing
Multiple working modes to address your business needs: Normal, Secure and Surveillance
Support port traffic control
Support for secure mode, all downlink ports can communicate only with uplink ports
Up to 250m transmission distance on surveillance mode
Support buffer optimization
All-metal housing, safe and reliable
1 x Door Station Surface Mount Bracket VTM05R
Dahua 7-inch Touch Screen IP Video Intercom Kit is the modern doorbell for your home or office. Receive notifications on your Dahua's official DMSS app when visitors press the door station. You can also view on your 7-inch IPC indoor monitor which can be beautifully hanged in your living room. The surface mounted outdoor station offer adjustable viewing angle with can turn 140 degree and features Night Vision. You can also use it with Mifare card. This is the IP video intercoms and cabling can be done by using RJ45 ethernet cables.
Inside the bundle:
1 x 7-inch Monitor DHI-VTH2621GW-P
1 x Outdoor Station DHI-VTO3211D-P
1 x Uniarch 8 Port PoE Switch with Power Supply, SW-2110-P
1 x 7-inch Monitor DHI-VTH2621GW-PThis Dahua IP Indoor Monitor features white colour frame, 7 inch touch screen, 1024×600 pixels resolution with standard PoE. 6 alarms can be connected and security cameras footage can be viewed as well.
7'' TFT capacitive touch screen, 1024 x 600
6-channel alarm input and 1-channel alarm output
Standard PoE
Door station and IPC monitor
H.265 and H.264 video coding
High performance & cost-effective
1 x Outdoor Station DHI-VTO3211D-PDahua 2MP IP Villa 1 button Outdoor Station, Viewing Wide Angle 140 degree, Night vision, Mifare Card Reader
2MP HD CMOS camera
Aluminum panel, IP65, IK08
ICR Night vision & Voice indication
Video & Audio messaging
Remote intercom with mobile APP
Surface mounted
1 x Uniarch 8 Port PoE Switch with Power Supply, SW-2110-PUniarch Switch, 10 x 100Mbps network ports, including 8 PoE/PoE+ ports, 2 x 100Mbps uplink ports, Max capacity for single port 30W, total capacity 120W, up to 250m transmission distance, all-metal housing
Multiple working modes to address your business needs: Normal, Secure and Surveillance
Support port traffic control
Support for secure mode, all downlink ports can communicate only with uplink ports
Up to 250m transmission distance on surveillance mode
Support buffer optimization
All-metal housing, safe and reliable
Dahua 2MP IP Villa 2 button Outdoor Station, Viewing Wide Angle 140 degree, Night vision, Mifare Card Reader
2MP HD CMOS camera
Aluminum panel, IP65,IK08
ICR Night vision &Voice indication
Video & Audio messaging
Remote intercom with mobile APP
Surface mounted
Specifications
OUTDOOR STATION
RESOLUTION
2MP
TECHNOLOGY
IP
POWER SUPPLY
DC 12V, PoE
PROTECTION
IP65, IK08
MOUNT
Surface
MATERIAL
Alumimum
Downloads
Datasheet of DHI-VTO3211D-P2
Villa Door Station (Version 4.3)_Quick Start Guide_V1.0.0-Eng
Villa Door Station_Installation Guide_V1.0.0-Eng
Villa VTO_User's Manual_V1.0.0-Eng
Dahua 2MP IP Villa Outdoor Station, Viewing Wide Angle 100 degree, Adjustable Viewing Angle, ICR 5m Night Vision DHI-VTO2101E-P-S2
HD CMOS camera.
Zinc alloy panel, IP65 and IK10 rated.
ICR night vision and voice prompt.
Video and audio messaging.
TCP/IP, and SIP.
Surface mounted.
Specifications
OUTDOOR STATION
RESOLUTION
2MP
TECHNOLOGY
IP
POWER SUPPLY
DC 12V, PoE
PROTECTION
IP65, IK10
MOUNT
Surface
MATERIAL
Front Panel: Zinc alloy Rear Panel: Aluminum alloy Holder: Aluminum alloy
Downloads
Datasheet of DHI-VTO2101E-P
Quick Start Guide of DHI-VTO2101E-P
Dahua Villa Intercom Setup Guide
Dahua Villa N VTHx NVTO via template
Dahua 2MP IP Villa 4 button Outdoor Station, Viewing Wide Angle 140 degree, Night vision, Mifare Card Reader
2MP HD CMOS camera
Aluminum panel, IP65, IK08
ICR Night vision &Voice indication
Video & Audio messaging
Remote intercom with mobile APP
Surface mounted
Specifications
OUTDOOR STATION
RESOLUTION
2MP
TECHNOLOGY
IP
POWER SUPPLY
DC 12V, PoE
PROTECTION
IP65, IK08
MOUNT
Surface
MATERIAL
Alumimum
Downloads
Datasheet of DHI-VTO3211D-P2
Villa Door Station (Version 4.3)_Quick Start Guide_V1.0.0-Eng
Villa Door Station_Installation Guide_V1.0.0-Eng
Villa VTO_User's Manual_V1.0.0-Eng
Dahua 7-inch 2-wire & Wi-Fi Indoor Monitor
7" TFT capacitive touchscreen, 1024 × 600
6-channel alarm input and 1-channel alarm output
Wi-Fi
Outdoor station and IPC monitor
H.265 and H.264 video decoding
2-wire digital communication
Specifications
System
Main Processor
Embedded processor
Operating System
Embedded Linux operating system
Network Protocol
RTSP; RTP; SIP; DNS; SSH
Basic
Screen Type
Capacitive touchscreen
Display
7" TFT
Screen Resolution
1024 × 600
Audio Compression
G.711a; G.711Mu; G.711u; PCM
Audio Input
1
Audio Output
Built-in speaker
Audio Mode
2-way Audio
Audio Enhancement
Echo suppression
Audio Bit Rate
16 kHz; 16 Bit
Function
Communication Mode
Digital 2-wire
Information Release
Receive and view text information released by the management center
Leave Videos
Yes (insert an SD card into the indoor monitor)
DND Mode
Do not disturb period can be set; Do not disturb mode
Number of Extensions
Villa: 3
Apartment: 2
Wi-Fi
Yes
Wireless Standard
IEEE802.11b/802.11g/802.11n
Wireless Frequency Range
2.4 GHz
Wireless Security Encryption
WPA/WPA2; WPA-PSK/WPA2-PSK
Storage
Micro SD card (up to 64 GB)
Performance
Casing
PC + ABS
Port
RS-485
1
Alarm Input
6
Alarm Output
1
Power Output
1 (12 V/200 mA)
Door Bell
Yes (use any alarm input port)
Network
One two-wire port and one 10 Mbps/100 Mbps Ethernet port (one of them can be selected)
Alarm
SOS
Yes
General
Color
White/Black
Power Supply
48 VDC 1.25 A
Installation
Surface mount
Certifications
CE; FCC
Accessory
Bracket and alarm ribbon cable (included)
Dimensions
189.0 mm × 130.0 mm × 26.9 mm (7.44" × 5.12" × 1.06")
Operating Temperature
–10 °C to +55 °C (+14 °F to 131 °F)
Operating Humidity
10%-95% RH (non-condensing)
Operating Altitude
Beneath 3000 m (9842.52 ft)
Power Consumption
Standby ≤ 2 W; working ≤ 6 W
Net Weight
0.35 kg (0.78 lb)
Gross Weight
0.56 kg (1.23 lb)
Downloads
VTH5422HW(B)-W Datasheet 202111220Digital VTH User's Manual_V1.0.0Digital Indoor Monitor Quick Start Guide (Model H) _V1.0.1
Dahua 2-wire Switch Intercom DHI-AC-VTNS1001B-2
Supports connecting through RJ45 port
Supports guide rail mount
Specifications
Basic
Status Indicator Light
2
Communication Mode
2-wire
Port
2-wire port
1 × 2-wire port;
RJ45
1
General
Casing
PC + ABS
Appearance colour
White
Power Supply
DC 48V 1A–3A
Power Adapter
NA
Installation
Guide rail mount
Certifications
CE; FCC; UL
Accessory
Power converter cable
Product Dimensions
131 mm × 103 mm × 40 mm (5.16" × 4.06" × 1.57")
Operating Temperature
–10°C to +55°C (14°F to 131°F)
Operating Humidity
10%°–95% (RH, non-condensing)
Operating Altitude
0–3000 m (0–9842.52 ft)
Power Consumption
≤ 15W (KIT)
Net Weight
0.25 kg (0.55 lb)
Gross Weight
0.39 kg (0.86 lb)
Downloads
VTNS1001B-2 Datasheet_202107292-wire Switch_Installation Guide_V1.0.02-wire Switch_User's Manual_V1.0.0
This Dahua 7-inch IP Indoor Monitor features stylish black colour comes with capacitive touch screen, 1024×600 pixels resolution and Standard PoE. 6 alarms can be connected and security cameras footage can be viewed as well.
7'' TFT capacitive touch screen, 1024 x 600
6-channel alarm input and 1-channel alarm output
Standard PoE
Outdoor station and IPC monitor
H.265 and H.264 video coding
High performance & cost-effective
Specifications
SIZE
7-inch TFT display
COLOUR
Black
RESOLUTION
1024x600 pixels
STORAGE
Not Support
POWER SUPPLY
DC 12V, PoE
TECHNOLOGY
IP
Downloads
DHI-VTH2621G-P DatasheetPrivacy_PolicyUser's ManualOPEN SOURCE SOFTWARE NOTICESOFTWARE LICENSE AGREEMENT
This high performance & cost-effective Dahua IP Indoor Monitor features white colour frame, 7 inch touch screen, 1024×600 pixels resolution with standard PoE. 6 alarms can be connected and security cameras footage can be viewed as well.
7'' TFT capacitive touch screen, 1024 x 600
6-channel alarm input and 1-channel alarm output
Standard PoE
Door station and IPC monitor
H.265 and H.264 video coding
High performance & cost-effective
Specifications
INDOOR MONITORS
Size
7 Inch TFT display
Colour
White
Resolution
1024 x 600
Storage
Not Support
Power Supply
DC 12V, PoE
Tehnology
IP
Downloads
DHI-VTH2621GW-P DatasheetDHI-VTH2621GW-P Privacy_PolicyDHI-VTH2621GW-P User's ManualOPEN SOURCE SOFTWARE NOTICESOFTWARE LICENSE AGREEMENT
