System
|
|
Main Processor
|
Embedded processor
|
|
Operating System
|
Android 8.1
|
|
Network Protocol
|
IPv4, TCP, SIP, UDP, RTSP
|
|
Basic
|
|
Screen Type
|
Capacitive screen
|
|

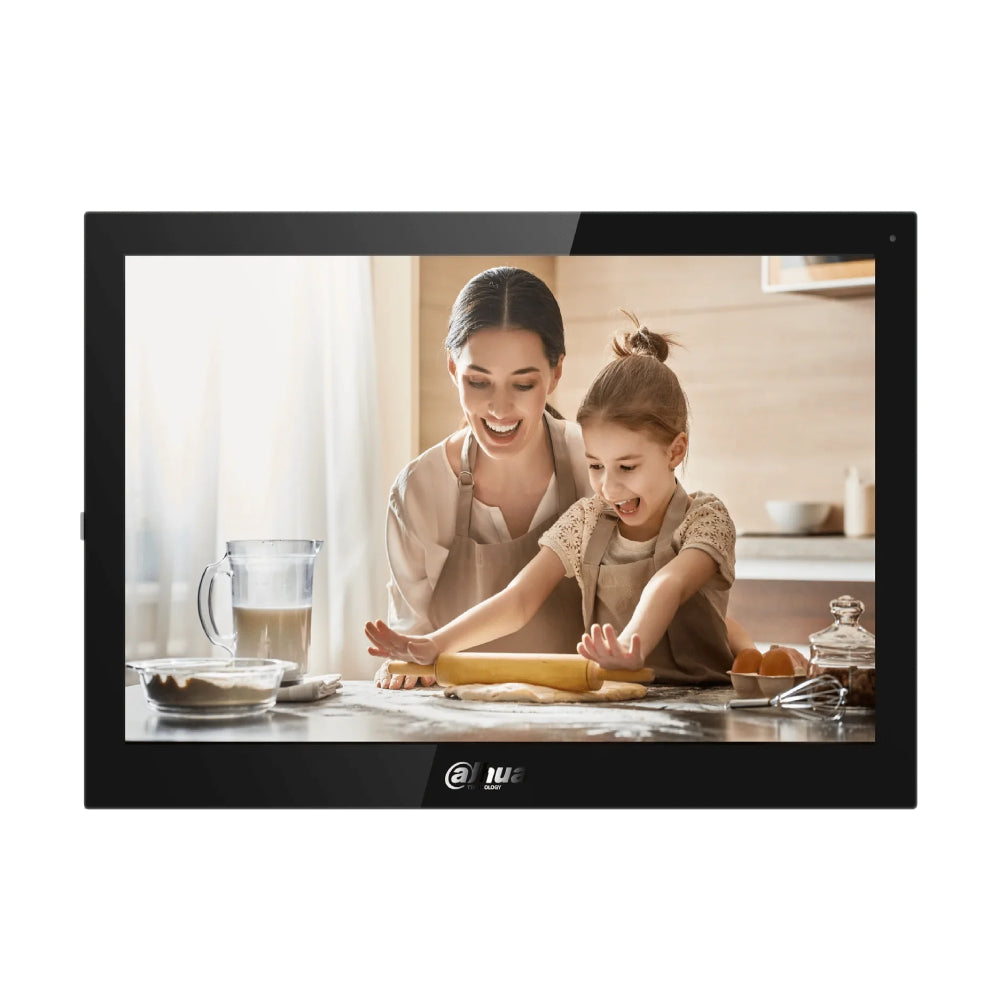

Display Screen
|
10 inch TFT LCD
|
|
Resolution
|
1024×600
|
|
Video Compression
|
H.264
|
|
Audio Compression
|
PCM
|
|
Audio Input
|
1 omnidirectional microphone
|
|
Audio Output
|
Built-in 1.5W speaker
|
|
Audio Mode
|
Two-way voice call
|
|
Audio Enhancement
|
Echo suppression/DNR
|
|
Audio Bit Rate
|
16KHz, 16Bit
|
|
Function
|
|
Information Release
|
Text announcements released by the management center can be viewed
|
|
Communication Mode
|
Full digital
|
|
Elevator Control
|
You can control the elevator through the indoor monitor
|
|
Leave Videos or Text Messages
|
Yes (SD card is needed)
|
|
DND Mode
|
Do not disturb period can be set.
|
|
Extension Number
|
Villa: 4
Apartment: 9
|
|
Wi-Fi
|
Yes
|
|
Wireless Standard
|
IEEE802.11b/802.11g/802.11n
|
|
Wireless Frequency Range
|
2.4GHz
|
|
Wireless Security-Encryption
|
64/128bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
|
|
Storage
|
Micro SD storage, the maximum space is 256GB
|
|
Port
|
|
RS-485
|
1
|
|
Alarm Input
|
8
|
|
Alarm Output
|
1
|
|
Power Output
|
1 12V/100mA
|
|
Door Bell
|
Yes, use alarm input port
|
|
Network Port
|
1 10M/100M Ethernet
|
|
Alarm
|
|
SOS
|
Yes
|
|
Performance
|
|
Housing Material
|
PC+ABS
|
|
Regular
|
|
Color
|
Black
|
|
Power Supply
|
12V DC 1A
Standard POE
|
|
Installation
|
Surface mount
|
|
Certifications
|
CE
FCC
|
|
Accessory
|
Surface mount bracket, alarm ribbon cable, RS-485 cable, and power-supply pins are provided
|
|
Product Dimensions
|
260 mm×170 mm×15 mm (10.24"×6.69"×0.59") (ports are not counted) 260 mm×170 mm×25.4 mm (convex) (10.24"×6.69"×1") (ports are counted)
|
|
Operating Temperature
|
-10°C to +55°C (+14°F to +131°F)
|
|
Operating Humidity
|
10%RH–95%RH (Non-condensing)
|
|
Operating Altitude
|
Less than 3,000 meters (9842.52 ft)
|
|
Power Consumption
|
≤1.5W (standby), ≤7W (working)
|
|
Net Weight
|
770g (1.70lb)
|
|
Gross Weight
|
1.1kg (2.43lb)
|
