Dahua IP Video Intercom Kit · White or Black Monitor · DMSS App Unlock
Dahua IP Video Intercom Kit with 7" Monitor, VTO2202F-P-S2 Door Station & PoE Switch

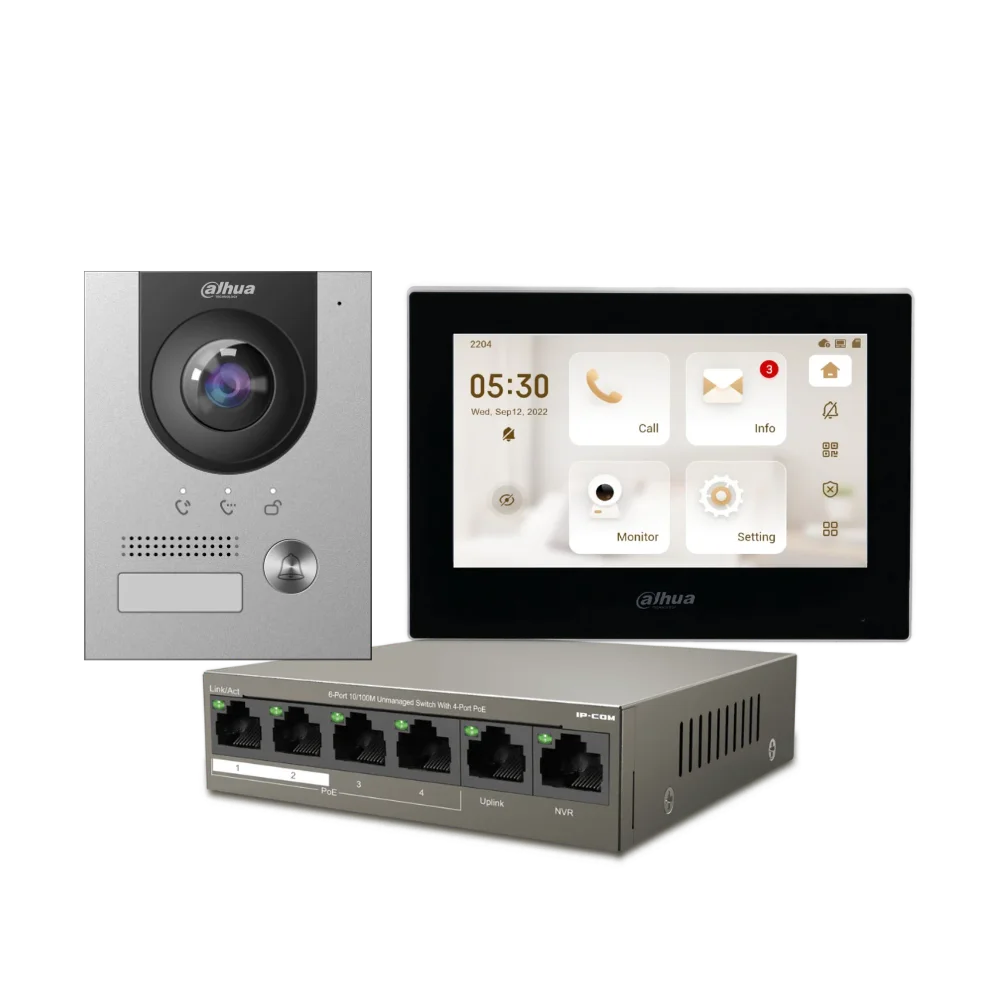

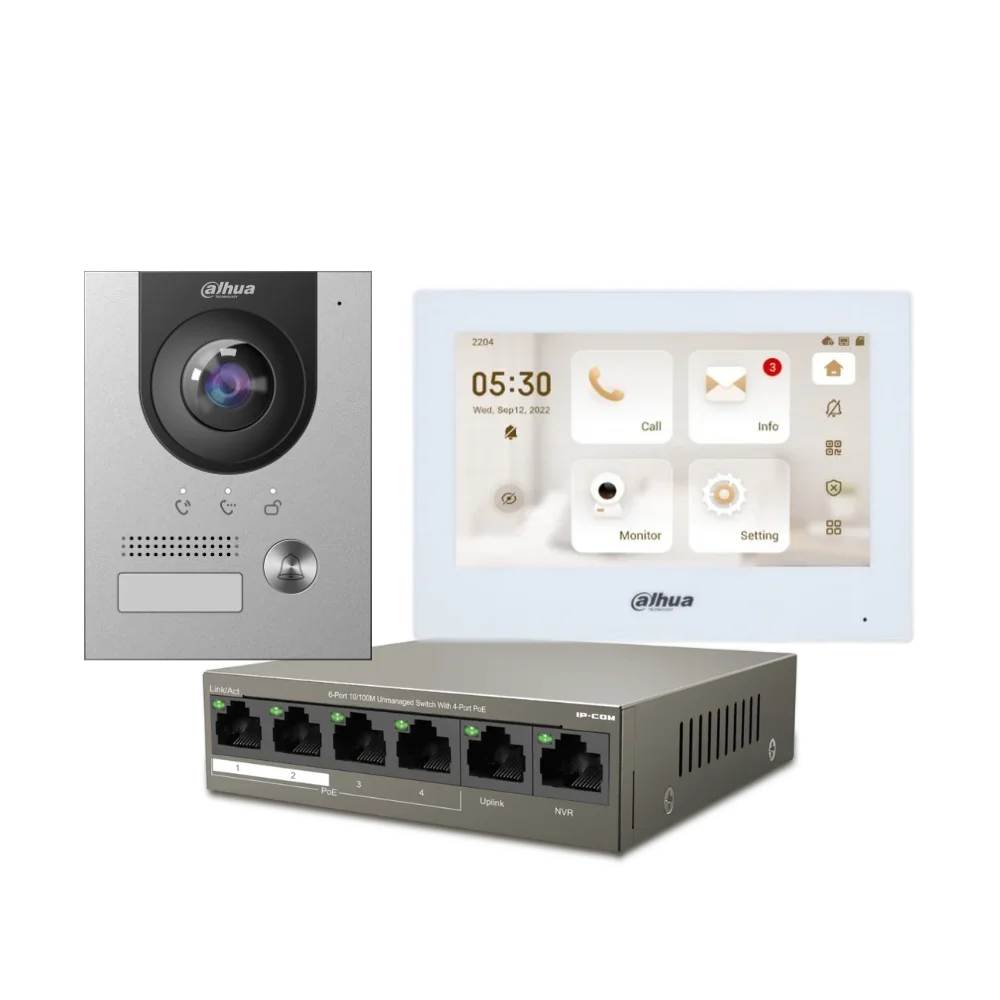

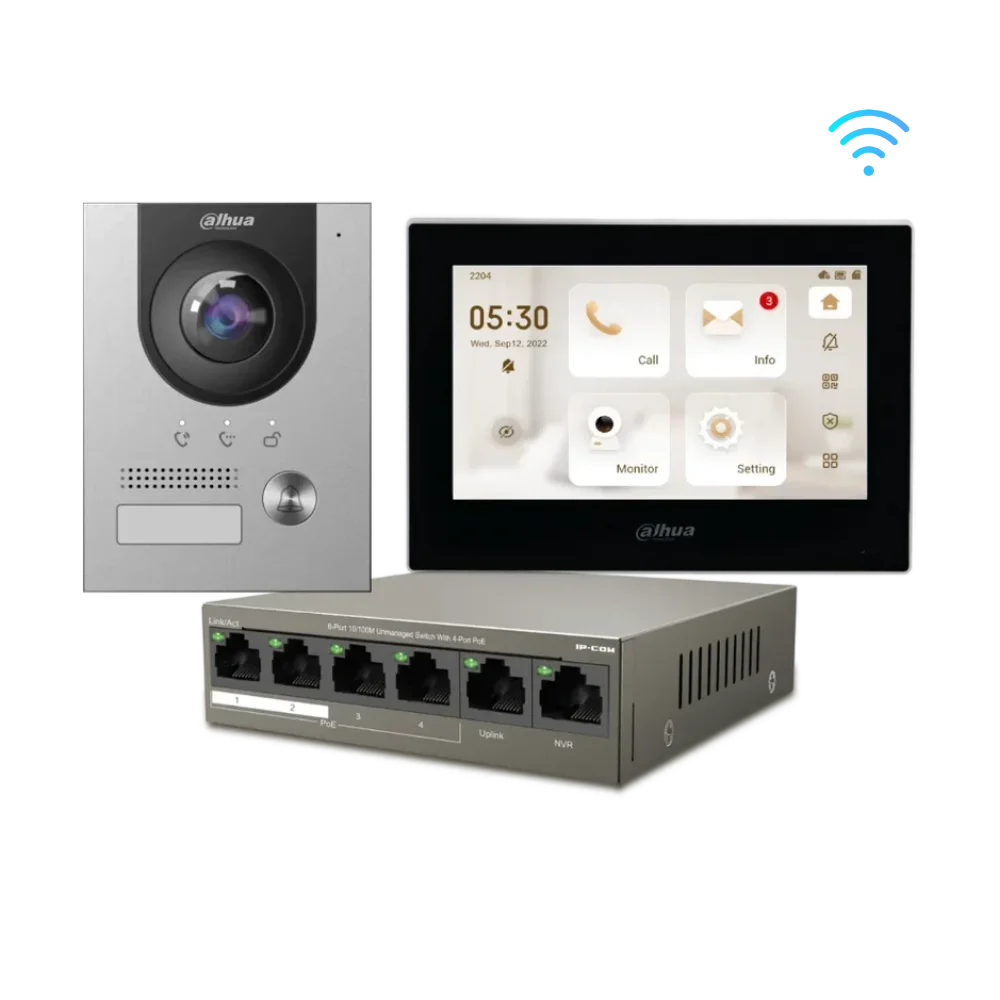

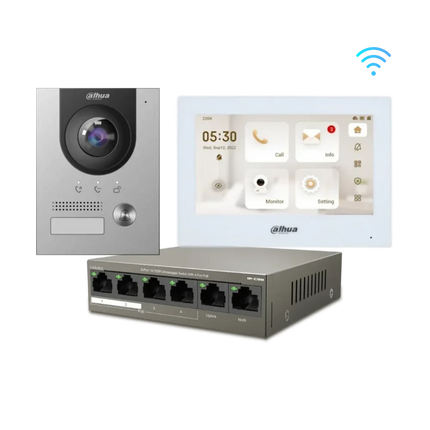

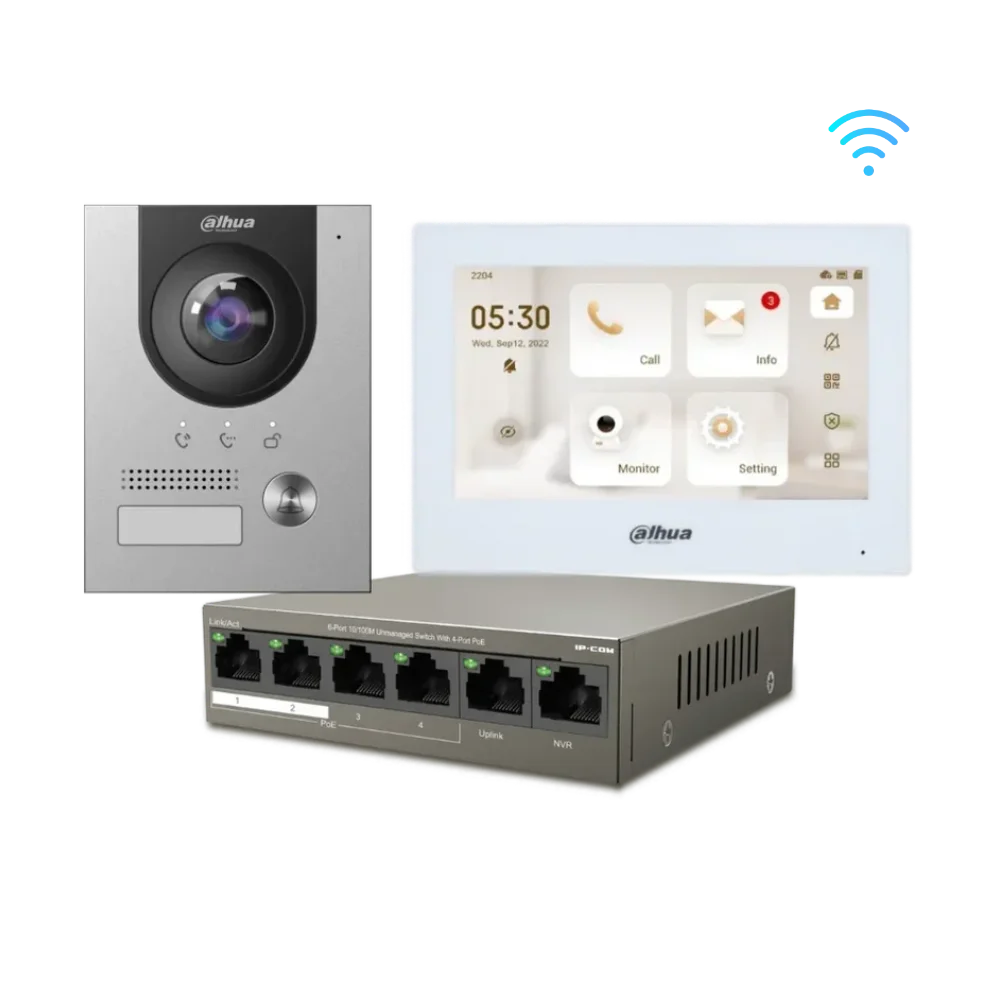

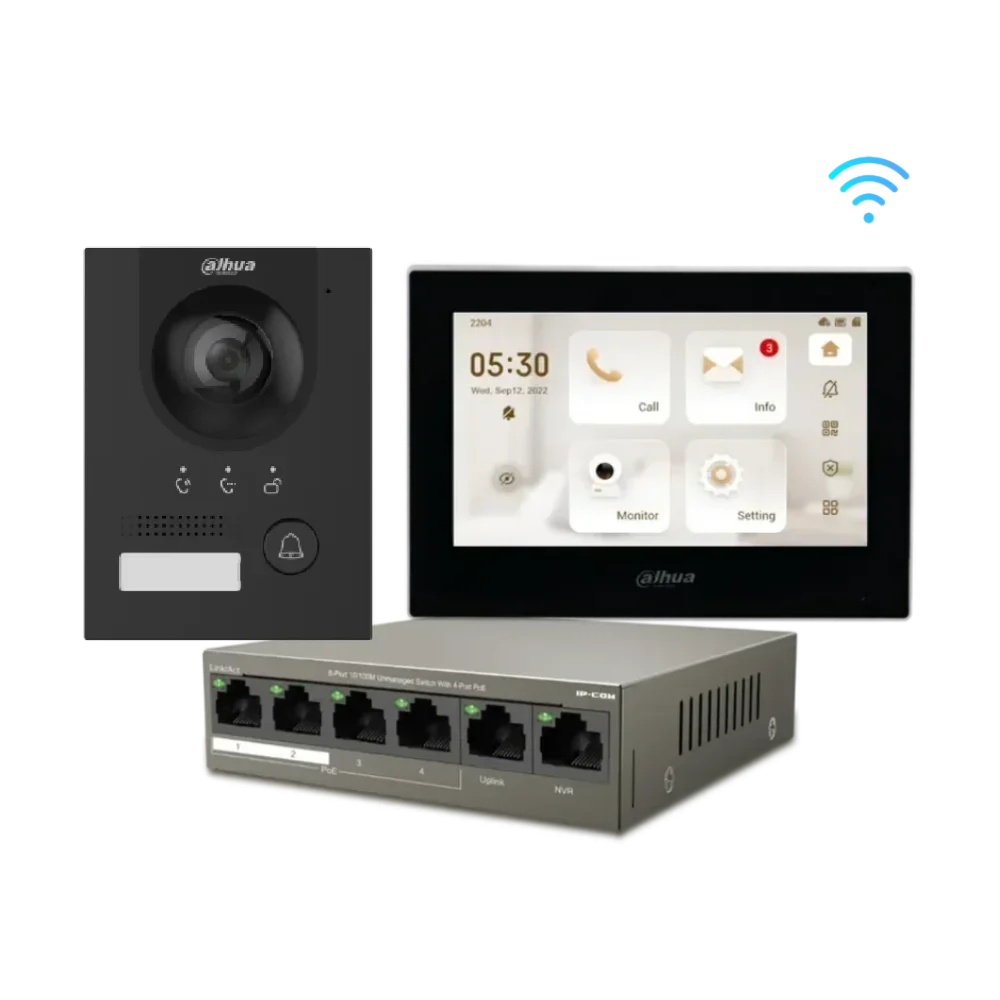

The Dahua IP Video Intercom Kit is a complete smart entry solution for Australian homes, townhouses, villas, offices and small businesses. It includes a 7-inch indoor touch screen monitor, a Dahua VTO2202F-P-S2 IP villa door station, a PoE switch and a VTM05R surface mount bracket for a clean, practical installation.
Choose a white or black indoor monitor to match your interior. When someone presses the outdoor station, you can answer from the indoor screen or use the DMSS mobile app to talk to visitors and remotely unlock a compatible door or gate.
Monitor Options
White or Black 7"
Door Station
2MP 160° Fisheye
Mobile App
DMSS Remote Access
Network
PoE Switch Included
Access Control
Remote Unlock
Outdoor Rating
IP65 · IK07
Authorised Dahua Reseller
Fast Australia-Wide Shipping
What’s in the Box
1 × 7" Dahua Indoor Monitor
Choose white or black monitor to match your home or office. The 7-inch capacitive touch screen gives you a clean wall-mounted interface for answering visitors, viewing the door station and managing access.
1 × Dahua DHI-VTO2202F-P-S2 Door Station
Premium IP villa door station with anodised aluminium front panel, 2MP low-light camera, wide 160° fisheye view, video intercom function, access control support, PoE and H.265.
1 × 4-Port PoE Switch
The included PoE switch helps power and connect the intercom system using network cabling, making the installation cleaner than separate power adapters at each device.
1 × VTM05R Surface Mount Bracket
Surface mount bracket included as standard. For customers wanting a cleaner in-wall finish, the VTM05 flush mount box can be offered as an optional add-on.
Why This Dahua Intercom Kit Stands Out
Choose White or Black Monitor
Unlike many fixed kits, this product can be positioned with a white or black indoor monitor option. White suits clean modern interiors, while black gives a sharper contrast for darker walls or commercial spaces.
Answer Visitors from Anywhere
With DMSS app support, you can receive visitor calls, talk through your phone and unlock a compatible door or gate remotely. Perfect for deliveries, guests, family access and small business entrances.
Wide-Angle Door Station Coverage
The 2MP fisheye door station gives a wide view of your entry area, helping you see more of the visitor and surroundings compared with narrow-view door stations.
Flexible Mounting Options
The VTO2202F-P-S2 supports surface and flush mounting. The kit includes the VTM05R surface mount bracket, with flush mount available as an optional upgrade for a sleeker built-in finish.
Recommended For
Homes & Townhouses
See who is at the front door, speak with visitors and unlock a compatible door or gate from the indoor monitor or phone.
Villas & Duplexes
A premium single-entry intercom solution with a proper indoor screen, outdoor station and app-based remote answering.
Offices & Reception Areas
Let staff screen visitors before granting access to reception, side doors, staff entries or controlled business areas.
Clinics & Professional Suites
Ideal for small practices and consulting rooms where secure visitor screening and controlled entry matter.
White vs Black Monitor Option
White Monitor
Best for modern homes, apartments, townhouses and clean interior walls where you want the monitor to blend into the space.
Black Monitor
Best for darker interiors, offices, commercial fit-outs and customers who prefer a bolder premium screen appearance.
Upgrade Path & Recommended Add-Ons
Add Flush Mount Box
Add the optional VTM05 flush mount box if you want the outdoor station recessed into the wall for a cleaner architectural finish.
Add Electric Strike or Gate Release
Connect a compatible lock, electric strike or gate trigger so the intercom can unlock access from the monitor or DMSS app.
Add Extra Indoor Monitor
Add another compatible Dahua monitor for upstairs, a second living area, reception desk or back office.
Add UPS Backup
Pair the PoE switch and network equipment with a UPS to help keep your intercom running during short power interruptions.
Technical Specifications
Indoor Monitor — White or Black 7" Touch Screen
| Display |
7" TFT capacitive touch screen |
| Resolution |
1024 × 600 |
| Alarm Input |
6-channel alarm input |
| Alarm Output |
1-channel alarm output |
| Power |
Standard PoE |
| Monitoring |
Outdoor station and IPC monitor support |
| Video Coding |
H.265 and H.264 |
| Colour Options |
White or black monitor option |
Outdoor Station — DHI-VTO2202F-P-S2
| Camera |
2MP low-illumination HD camera |
| Viewing Angle |
160° fisheye view |
| Front Panel |
Anodised aluminium |
| Communication |
Video intercom function with mobile phone app support |
| Access Control |
Supports two locks |
| Interface |
Compatible with 2-wire interface and RJ45 interface |
| Power |
PoE supported |
| Video Coding |
H.265 supported |
| Protection |
IP65 and IK07 |
| Mounting |
Surface mount with VTM05R included, flush mount optional |
PoE Switch
| PoE Ports |
4 × 10/100 Mbps PoE ports |
| Uplink Ports |
2 × 10/100 Mbps uplink ports |
| Single Port Output |
Up to 30W per PoE port |
| Total Power |
Up to 58W switch power consumption |
| Installation |
Desktop or wall mount |
| Setup |
Plug and play |
FAQs
Can I choose a white or black monitor?
Yes. This kit can be offered with a white or black 7-inch Dahua indoor monitor, making it easier to match the screen to your home or business interior.
Does this Dahua intercom work with the DMSS app?
Yes. You can receive visitor calls through the Dahua DMSS app, talk to the visitor and remotely unlock a compatible door or gate from your phone.
Does it include the PoE switch?
Yes. The kit includes a 4-port PoE switch, helping power and connect the monitor and door station over network cabling.
Can it unlock a gate or electric strike?
Yes. The outdoor station supports access control functions and can be connected to compatible electric strikes, locks or gate release setups.
Is the outdoor station weather rated?
Yes. The VTO2202F-P-S2 is rated IP65 and IK07 when installed correctly, making it suitable for outdoor entry points.
What is the difference between surface mount and flush mount?
Surface mount uses the included VTM05R bracket and sits on the wall. Flush mount uses the optional VTM05 box to recess the station for a cleaner in-wall finish.
More Information
IP-Com 4-Port PoE Switch Datasheet
VTM05R Rain Cover Datasheet
CCTV Guru supplies genuine Dahua intercom products for Australian homes, townhouses, offices, clinics and small businesses. Order this Dahua IP Video Intercom Kit with 7-inch monitor, VTO2202F-P-S2 outdoor station and PoE switch today for fast Australia-wide shipping, local product support and expert advice on monitor colour, flush mounting, access cards, electric locks and gate release accessories.
