Hikvision QR Access Intercom Kit · PoE · Hik-Connect
DS-K1T502DBWX-CQRE1 Terminal + 7" Indoor Monitor + Hikvision 4-Port PoE Switch — Australian Stock & 3-Year Warranty

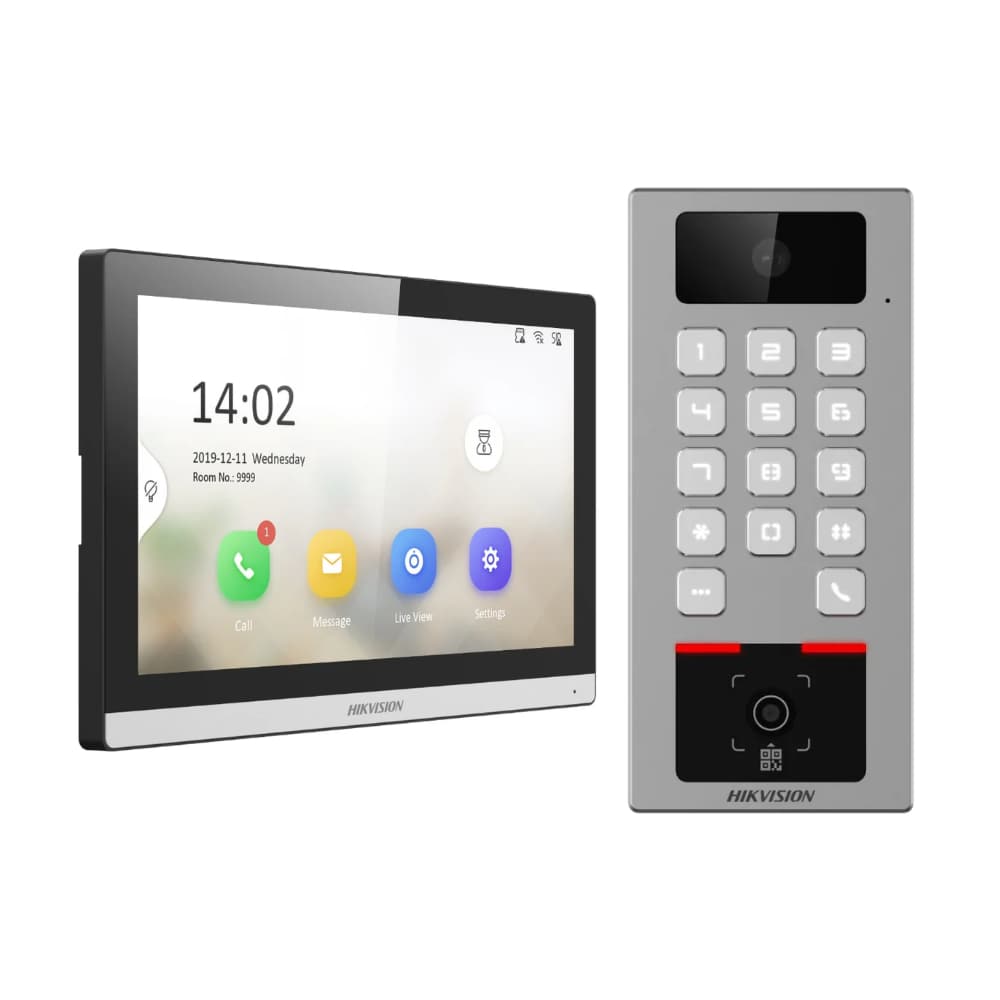

The Hikvision QR Code Access Control Intercom Kit is a complete, fully PoE-powered door entry solution for Australian offices, apartments, strata entries, warehouses, clinics, retail stores and gated commercial sites. It pairs the DS-K1T502DBWX-CQRE1 Pro access & intercom terminal, the DS-KH6350-WTE1 7" indoor monitor and a Hikvision DS-3E1105P-EI 4-port smart PoE switch into one matched, ready-to-install package.
Visitors and staff unlock with a QR code, RFID card, PIN or Bluetooth, while the built-in 2MP camera and SIP intercom let you see and speak to callers on the indoor monitor or through the Hik-Connect app and unlock remotely. Because both the terminal and the monitor are PoE, a single network cable carries power and data to each device from the included switch — a cleaner, more reliable install than Wi-Fi-only video doorbells.
Door Terminal
QR · Card · PIN
Remote Access
Hik-Connect App
Unlock
QR · Card · App · Monitor
What's Included
1 × Hikvision DS-K1T502DBWX-CQRE1
Pro access & intercom door terminal with QR code, RFID card, PIN and Bluetooth entry, a 2MP intercom camera, SIP video calling and Hik-Connect. PoE-powered, IP65 / IK09, zinc-alloy body for outdoor entries.
1 × Hikvision DS-KH6350-WTE1
7" capacitive touchscreen IP indoor station (1024 × 600) to answer calls, view the door terminal and public-area cameras, and release the door. Wi-Fi + PoE, Hik-Connect, black or white panel.
1 × Hikvision DS-3E1105P-EI
4-port smart managed PoE switch (60W budget, 802.3af/at) with a 1-port uplink. Powers and networks both the door terminal and indoor monitor over single cables, with PoE watchdog auto-restart, VLAN and STP/RSTP for a more stable, professional setup.
Ready-to-Install Bundle
Pre-matched genuine Hikvision components remove compatibility guesswork and give your installer the core hardware for a clean, professional wired PoE entry system.
Why Choose This Access Control Intercom Kit?
Access Control + Intercom in One
The terminal handles door access (QR, card, PIN, Bluetooth) and two-way video intercom from a single unit — far more capable than a basic doorbell or standalone card reader.
QR Codes for Visitors
Issue scannable QR passes for tenants, contractors and guests for temporary or scheduled access, without handing out a permanent card to everyone.
All-Hikvision, One Cable Per Device
Terminal, monitor and switch are all genuine Hikvision. Both endpoints are PoE, so the smart switch carries power and data over a single Cat5e/Cat6 run to each — no plug-packs, no weak Wi-Fi.
See & Answer Anywhere
Use the 7" indoor monitor at home or the office, or Hik-Connect on your phone to view, talk and unlock remotely when the system is configured by your installer.
Built for Australian Entries
IP65 weather sealing and IK09 impact resistance suit exposed front doors, gates, loading docks and high-traffic commercial entrances.
Smarter, More Reliable PoE
The DS-3E1105P-EI adds PoE watchdog auto-restart, VLAN segmentation and STP/RSTP loop protection — and up to 300 m long-range PoE for distant gates and doors.
Recommended For
Offices & Staff Doors
Card, PIN or QR access for employees with controlled, logged visitor entry at the front door.
Apartments & Strata
Intercom calling, QR visitor passes and remote unlock for shared lobby and gate entrances.
Warehouses & Industrial
Rugged IP65 / IK09 terminal for staff doors, loading docks and secure storage zones.
Clinics & Studios
Manage appointments, after-hours visitors and controlled entry with flexible authentication.
Retail & Back-of-House
Secure stockrooms, offices and rear entries with QR and card access plus event logging.
Gated Entries
Pair with a compatible electric strike, maglock or gate controller for controlled vehicle and pedestrian access.
Optional Add-Ons
RFID Cards & Fobs
Add Hikvision DS-PT-M1 MIFARE tags for staff, tenants and regular users who unlock by card or fob.
Extra Indoor Monitor
Add another DS-KH6350-WTE1 for upstairs, reception or a second office so calls can be answered in more than one room.
Cat6 Patch Leads
Quality 8ware Cat6 leads for clean, reliable PoE power and data between the switch, terminal and monitor.
Backup UPS
Keep the entry system online during power cuts with a Hikvision DS-UPS3000 line-interactive UPS.
Technical Specifications
Door Terminal — Hikvision DS-K1T502DBWX-CQRE1
| Type |
Pro access control terminal with video intercom |
| Authentication |
QR code, RFID card (M1 / DESFire), PIN, Bluetooth |
| Intercom Camera |
2MP · HFOV 110° · VFOV 81° · DFOV 122° |
| Video Compression |
H.264 / H.265 |
| Intercom |
Two-way SIP video (3CX, Asterisk, FreePBX & compatible) · Hik-Connect |
| Network |
1 × RJ-45 10/100 Mbps · Wi-Fi 2.4 GHz · Bluetooth |
| Access I/O |
2 lock relays · exit button · door contact · 2 alarm in / 1 out · tamper |
| Integration |
Wiegand (Hik 26/34-bit) · RS-485 · SD card slot |
| Power |
PoE 802.3at · ≤ 24 W |
| Protection |
IP65 weather · IK09 impact · zinc-alloy body |
| Operating Temp. |
−40 °C to +65 °C |
Indoor Monitor — Hikvision DS-KH6350-WTE1
| Display |
7" colour TFT capacitive touch, 1024 × 600 |
| Type |
G2 IP network indoor station |
| Network |
1 × RJ-45 10/100 Mbps · Wi-Fi 2.4 GHz |
| App |
Hik-Connect — remote answer, live view, unlock |
| Functions |
Door & camera live view · voice messages · alarm linkage · elevator control |
| I/O |
8 alarm in · 2 alarm out · 2 lock relays · RS-485 · TF card (to 128 GB) |
| Panel Colour |
Black or White (selectable) |
| Power |
12 VDC 1 A or Standard PoE 802.3af · ≤ 5 W |
| Operating Temp. |
−10 °C to +50 °C (indoor) |
PoE Switch — Hikvision DS-3E1105P-EI
| Ports |
4 × 10/100 Mbps PoE + 1 × 10/100 Mbps RJ45 uplink |
| PoE Standard |
IEEE 802.3af / 802.3at · up to 30 W per port |
| Total PoE Budget |
60 W |
| Smart Features |
PoE watchdog · 802.1Q VLAN · STP / RSTP · cable diagnostics |
| Long Range |
Up to 300 m (Ports 1–4) |
| Surge Protection |
6 kV on PoE ports |
| Build |
Metal housing · desk or wall mount |
Installation Notes
Power Budget
The terminal (≤ 24 W) and monitor (≤ 5 W) draw about 29 W combined — well inside the switch's 60 W budget, leaving two PoE ports free for an extra monitor or device.
Plan the Door Hardware
Door locks, exit buttons, door contacts and any high-current maglock supply are selected separately to suit your door type and fail-safe / fail-secure requirements.
Use Quality Cat6
Run quality Cat5e/Cat6 from the switch to the terminal and monitor for reliable PoE power and data. Keep the switch in a dry, ventilated comms location.
Professional Setup
We recommend commissioning by a licensed security or data-cabling technician for lock wiring, Hik-Connect/SIP configuration and access-control programming.
Downloads & Resources
Official Hikvision datasheets and documentation for every component in this kit.
Frequently Asked Questions
What's included in this kit?
The Hikvision DS-K1T502DBWX-CQRE1 door terminal, the DS-KH6350-WTE1 7" indoor monitor and a Hikvision DS-3E1105P-EI 4-port smart PoE switch.
Is the whole kit PoE-powered?
Yes. The terminal (802.3at) and the monitor (802.3af) are both powered and networked from the included smart PoE switch — one cable per device, no plug-packs at the door.
How do people unlock the door?
By QR code, RFID card, PIN or Bluetooth at the terminal, from the indoor monitor, or remotely through the Hik-Connect app when configured.
Can I answer from my phone?
Yes. Hik-Connect lets you receive calls, see the visitor, talk and unlock remotely once the system is set up by your installer.
Can it be used outdoors?
The door terminal is rated IP65 for weather and IK09 for impact, suitable for many outdoor entries. The indoor monitor is for indoor use only.
Does it include the door lock?
No. Electric strikes, maglocks, exit buttons, door contacts and lock power are selected separately to match your door and access design.
Can I add more indoor monitors?
Yes. The switch's 60 W budget and spare ports let you add compatible Hikvision indoor stations for multi-room or multi-floor setups, and you can link CCTV and elevator control.
Do you ship Australia-wide?
Yes. CCTV Guru ships genuine Hikvision hardware Australia-wide with local technical support and a 3-year warranty.
