Complete 4-piece kit · 5 MP · 10.1-inch display · PoE
A premium modular video intercom kit for a clear, connected entrance

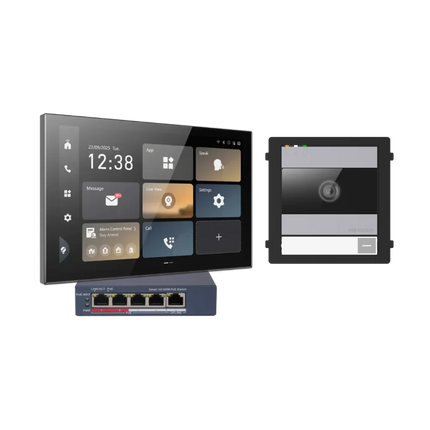

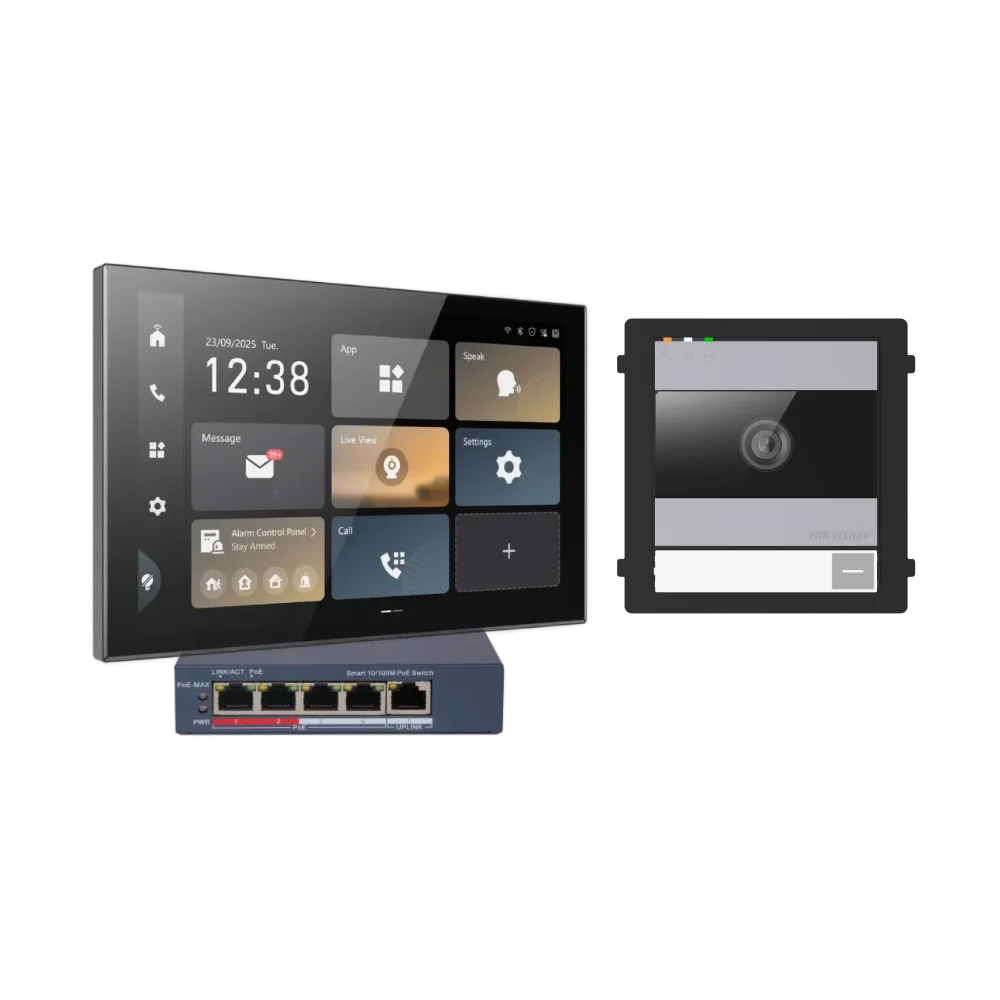

This complete Hikvision modular video intercom kit combines the DS-KD8005-IME1 5 MP main door station, its matching DS-KD-ACW1 surface-mount box, a large DS-KH9570-WTE1 10.1-inch indoor monitor and the DS-3E1105P-EI 4-port smart PoE switch.
It is a practical foundation for a premium home, office or small commercial entrance: see and speak with visitors, release up to two correctly connected doors or gates, and use Hik-Connect remote features after compatible network and app configuration.
Door station
5 MP · 134° view
Indoor monitor
10.1-inch IPS
Mounting
Surface box included
Door control
Up to 2 lock relays
All four listed components included
Save $77 versus separate prices
Australian product support
What is included
1 × DS-KD8005-IME1 main door station
A 5 MP modular outdoor station with a 134° horizontal field of view, two-way audio, infrared supplement lighting, 100 dB WDR, standard PoE and two lock relays.
1 × DS-KD-ACW1 surface-mount box
The matching single-module aluminium surface-mount enclosure for a neat wall-mounted DS-KD8005-IME1 installation. It is included in the kit even though it is not shown in the main product image.
1 × DS-KH9570-WTE1 indoor monitor
A premium 10.1-inch IPS touch display with 1920 × 1200 resolution, Android 14, Wi-Fi 6, Bluetooth 5.0, dual microphones and dual speakers.
1 × DS-3E1105P-EI smart PoE switch
A compact switch with four 10/100 Mbps PoE ports, one uplink port, a 60 W PoE budget and IEEE 802.3af/at support for convenient system power and networking.
Why this kit works well
See more at the doorway
The 5 MP door camera and wide 134° view help capture visitors standing close to the entrance, while WDR helps balance faces against a bright outdoor background.
A larger indoor experience
The 10.1-inch high-resolution display gives you more room to view visitors, handle calls and operate compatible intercom and security functions.
One switch for a tidy PoE setup
The included four-port smart PoE switch supplies data and compatible PoE power over Ethernet, helping reduce the number of separate power supplies around the installation.
Flexible access control
Two door-station relays can control up to two correctly designed lock or gate circuits. Electric locks and their suitable power arrangements are selected separately.
Remote convenience
With compatible internet, Hik-Connect and system configuration, supported calls and entry functions can be extended to a mobile device.
Correct mounting hardware included
The DS-KD-ACW1 single-module surface box is already matched to the main door station, so there is no separate mounting-box purchase for a standard surface installation.
Before you order
- This is a surface-mount kit. The included DS-KD-ACW1 box is not pictured in the main bundle image.
- Electric locks or strikes, lock power supplies, exit buttons, door contacts, network cabling and installation are not included.
- The PoE switch is included, but internet/router access and mobile-app configuration depend on the site network.
- Lock type, fail-safe or fail-secure operation, power requirements and door hardware should be confirmed before installation.
- Professional installation is recommended for reliable PoE, lock, network and weather-sealing performance.
Technical summary
DS-KD8005-IME1 door station
| Camera |
5 MP, 3200 × 1800 |
| Field of view |
134° horizontal; 82° vertical |
| Image and night support |
100 dB WDR with infrared supplement lighting |
| Audio |
Built-in omnidirectional microphone and loudspeaker; noise suppression and echo cancellation |
| Door control |
2 lock relays, 2 door-contact inputs and 2 exit-button inputs |
| Network and power |
10/100 Mbps Ethernet; IEEE 802.3af PoE or 12 VDC |
| Protection |
IP65 and IK08 |
DS-KH9570-WTE1 indoor monitor
| Display |
10.1-inch IPS capacitive touchscreen |
| Resolution |
1920 × 1200 |
| Operating system |
Android 14 |
| Wireless connectivity |
Wi-Fi 6 and Bluetooth 5.0 |
| Audio |
Dual built-in microphones and dual speakers |
| Power |
Standard PoE or 12 VDC |
DS-3E1105P-EI PoE switch and DS-KD-ACW1 mount
| PoE switch ports |
4 × 10/100 Mbps PoE ports plus 1 × 10/100 Mbps uplink |
| PoE standard and budget |
IEEE 802.3af/at; up to 60 W total |
| Switch features |
Smart management, PoE watchdog and long-range transmission mode |
| Mounting box |
Single-module aluminium surface-mount enclosure |
| Mount compatibility |
Designed for compatible Hikvision KD8 modular door-station hardware |
Frequently asked questions
What exactly comes in this kit?
You receive one DS-KD8005-IME1 main door station, one DS-KD-ACW1 surface-mount box, one DS-KH9570-WTE1 indoor monitor and one DS-3E1105P-EI four-port smart PoE switch.
Is the mounting box included?
Yes. The DS-KD-ACW1 single-module surface-mount box is included. It is deliberately not shown in the main product image so the three active devices remain easy to recognise.
Does the kit include an electric lock?
No. Electric strikes, magnetic locks, gate interfaces and their suitable power supplies must be selected for the door and desired fail-safe or fail-secure operation.
Is the PoE switch included?
Yes. The supplied DS-3E1105P-EI has four PoE ports, one uplink port and a total PoE budget of up to 60 W.
Can I answer visitors from my phone?
Supported remote calling and entry features can be used through Hik-Connect after the intercom has compatible internet access and has been correctly commissioned and linked to the app.
Does the indoor monitor support Wi-Fi?
Yes. The DS-KH9570-WTE1 supports Wi-Fi 6, although wired PoE is generally preferred where practical for dependable power and networking.
Can the kit control two doors?
The DS-KD8005-IME1 provides two lock relays. Actual two-door or door-and-gate operation depends on suitable locks, power, wiring and system configuration.
Is installation included?
No. This is a hardware bundle. Cabling, lock hardware, commissioning and labour are not included unless separately quoted.
Downloads & resources
Official Hikvision documents are linked without version query strings so the storefront displays the correct PDF file icons.
Need the locks or cabling matched as well?
Tell us whether the entrance is a pedestrian door or gate, whether it should fail safe or fail secure, and the approximate cable runs. We can help identify the remaining lock, power and cabling requirements before installation.
