Hikvision Premium Modular Intercom · PIN Access · PoE Ready
Complete Video Entry, Keypad Access & PoE Bundle
This Hikvision premium modular video intercom kit combines a 10.1-inch indoor touchscreen, 2MP modular door station, stainless steel keypad, two-module surface-mount housing and compact Hikvision Smart PoE switch. It is a complete hardware package for a professional single-entry video intercom installation with indoor door release and PIN-code access.
Indoor Display
10.1-inch touchscreen
Outdoor Video
2MP modular station
Entry Method
Video + PIN access
Network Power
4-port Smart PoE
Why Choose This Intercom Kit?
Premium Indoor ControlView visitors, answer calls and release the configured door from the large 10.1-inch Hikvision indoor touchscreen.
Flexible Door AccessCombine video verification with indoor release and keypad PIN entry for authorised users.
Clean Modular EntranceThe camera station and stainless keypad fit the included two-module surface-mount housing for a professional finish.
Simplified PoE NetworkingThe included Hikvision four-port Smart PoE switch supports a streamlined power and data installation.

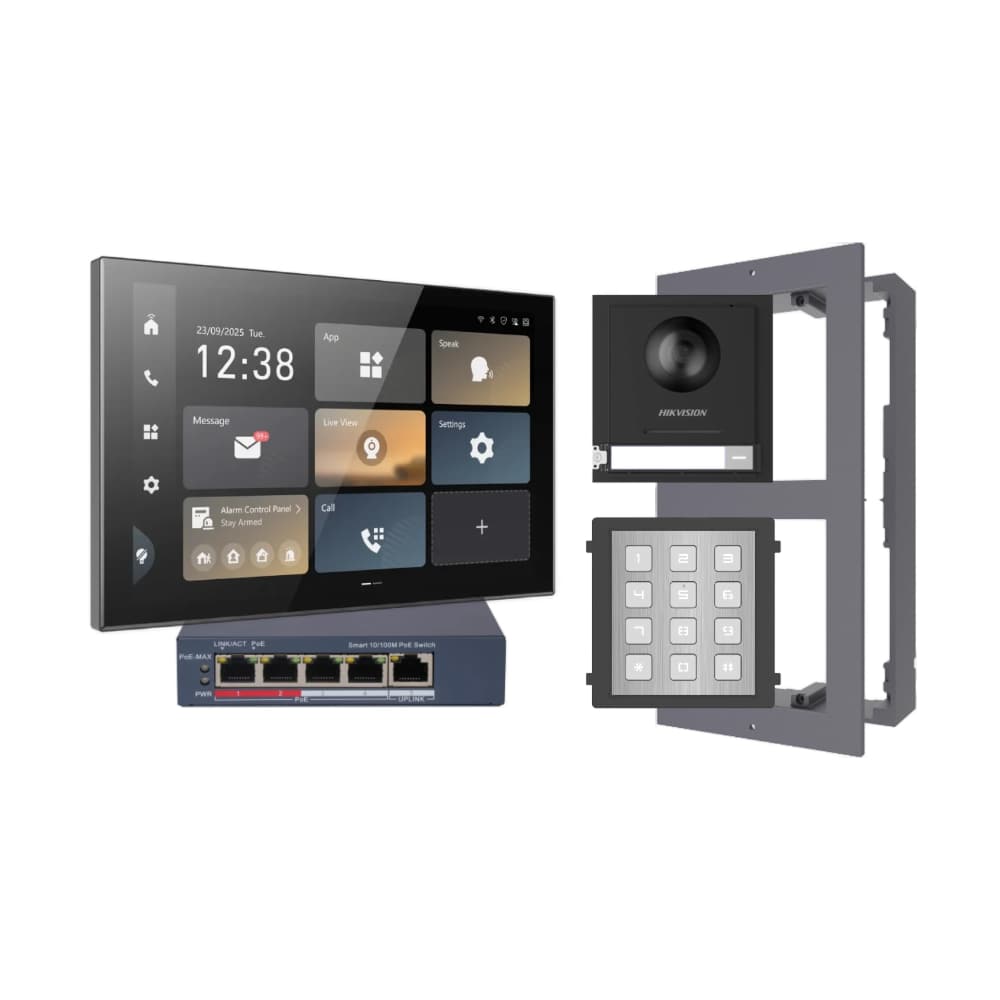

Bundle Components
| Indoor monitor |
1 × DS-KH9570-WTE1/S — 10.1-inch IP indoor intercom touchscreen |
| Mounting box |
1 × DS-KD-ACW2 — two-module surface mounting box |
| Door station |
1 × DS-KD8003-IME1 — 2MP modular IP video door station |
| Keypad module |
1 × DS-KD-KP/S — stainless steel keypad module |
| PoE switch |
1 × DS-3E1105P-EI — four-port Smart PoE switch with 60W PoE budget |
How the System Works
The outdoor door station provides live video and visitor calling, while the keypad adds PIN-code access for authorised users. Calls are answered from the indoor monitor, where the user can view the entrance and release a configured electric lock. The Hikvision Smart PoE switch supplies network connectivity and compatible power delivery, reducing separate cabling and power requirements.
Best Suited For
Premium Homes
A modern video intercom and PIN-entry solution for a main pedestrian entrance.
Offices & Studios
Screen visitors indoors and provide code access for authorised staff.
Small Commercial Sites
A professional modular entry system for a single controlled doorway.
Important Before Installation
- Professional installation and system configuration are recommended.
- Confirm cabling, network, PoE budget and door-release requirements before installation.
- An electric lock, exit button, power supply or additional access-control hardware may be required depending on the site design.
- Product appearance and included accessories may vary slightly by hardware revision.
Frequently Asked Questions
Does this kit support PIN access?Yes. The included DS-KD-KP/S keypad module can provide PIN-code entry when the system is correctly installed and configured.
Can I answer visitors from indoors?Yes. The DS-KH9570-WTE1/S indoor monitor supports visitor calling, live viewing and configured door release.
Is the outdoor station surface mounted?Yes. This bundle includes the DS-KD-ACW2 two-module surface mounting box for the door station and keypad.
Does the bundle include a PoE switch?Yes. The Hikvision DS-3E1105P-EI four-port Smart PoE switch is included for network connectivity and compatible PoE devices.
