Hikvision CAT6 UTP · 305m · Solid Bare Copper

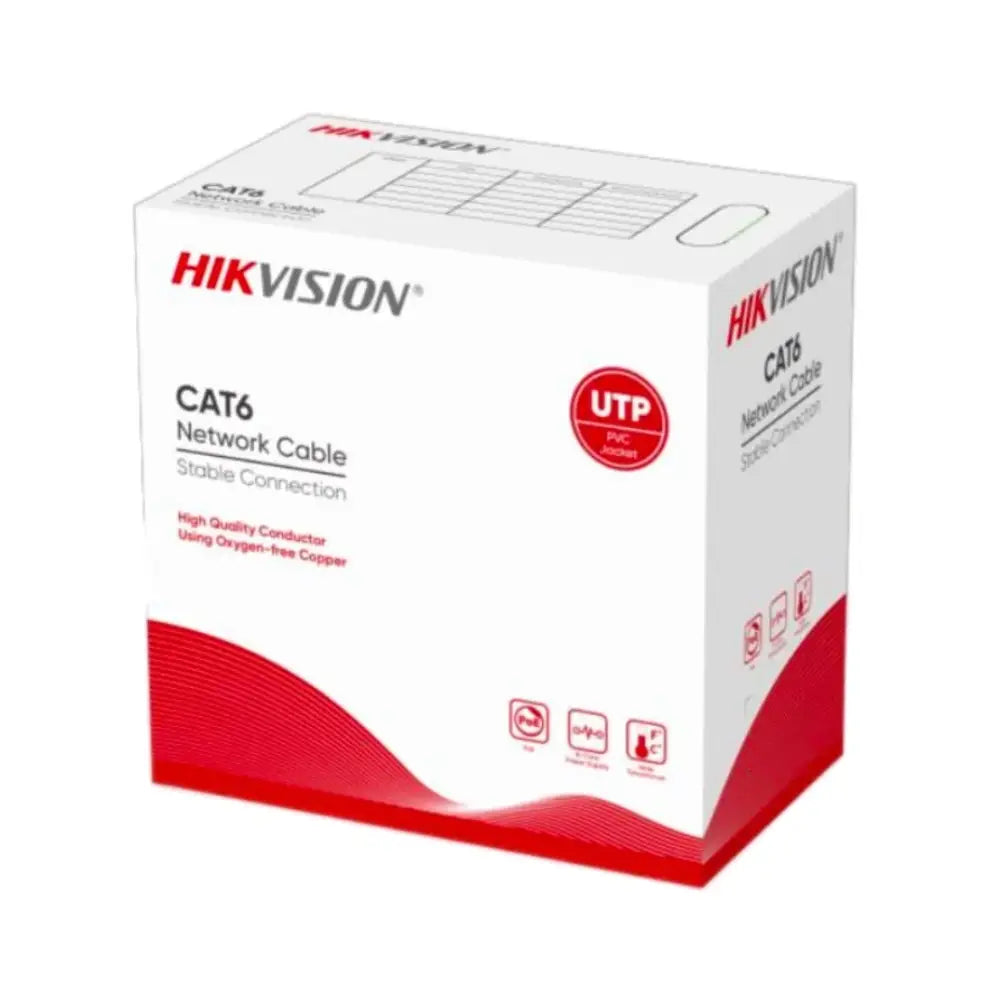

DS-1LN6UZC0 — Hikvision CAT6 UTP 305m Solid Copper Network Cable (Blue)
The Hikvision DS-1LN6UZC0 is a 305 m CAT6 U/UTP installation cable for reliable, high-performance data and IP CCTV networks. Its 0.5 mm solid bare copper conductors give low resistance and superior electrical properties, and the cable is built to ANSI/TIA-568.2-D, IEC61156 and ISO/IEC11801 standards.
It holds performance in the Fluke 90 m permanent-link test at a continuous 50 °C, and in the 100 m channel test under 57 V / 1 A DC PoE load. A high-tensile sheath reduces damage on conduit pulls. Fully RoHS 2.0 compliant.
Solid Bare Copper
0.5 mm true copper cores — low resistance, stable PoE delivery.
Standards Compliant
Meets ANSI/TIA-568.2-D, IEC61156 and ISO/IEC11801.
PoE & Heat Tested
Fluke-verified at 50 °C and under 57 V / 1 A PoE load.
Tough Sheath
High tensile and compressive strength for damage-free pulls.
Technical Specifications
| Model |
DS-1LN6UZC0 (Blue) |
| Category |
CAT6 U/UTP, 4 pair |
| Conductor |
Solid bare copper, 0.5 mm |
| Length |
305 m |
| Standards |
ANSI/TIA-568.2-D, IEC61156, ISO/IEC11801 |
| Compliance |
RoHS 2.0 |
Is this safe for PoE?
Yes. The solid bare copper cores are channel-tested under 57 V / 1 A DC load, suitable for PoE and PoE+ cameras.
Is it copper or CCA?
100% solid bare copper — not copper-clad aluminium — for stable resistance and full PoE compliance.
A genuine Hikvision 305 m CAT6 solid-copper cable, standards-certified and PoE-ready — a dependable backbone for professional IP networks.
