Hikvision Gen2 · Two-Module Housing · Surface Mount

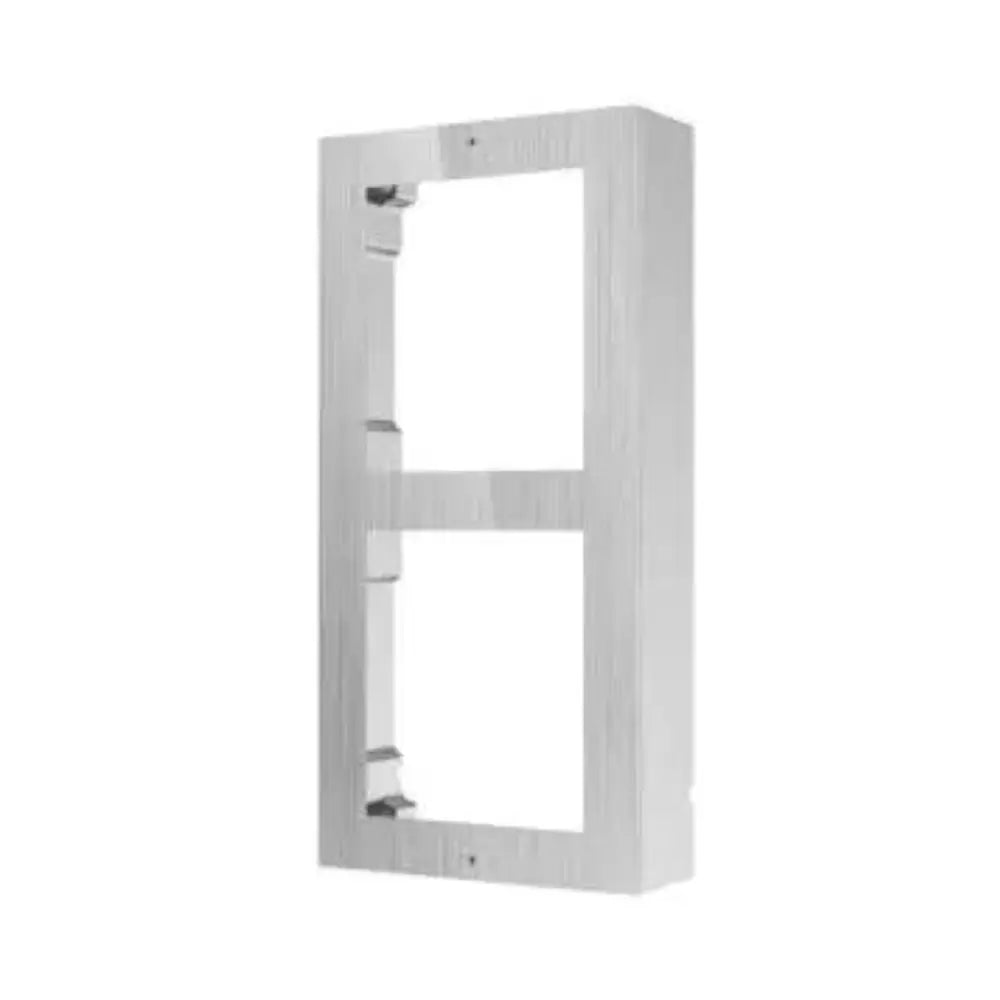

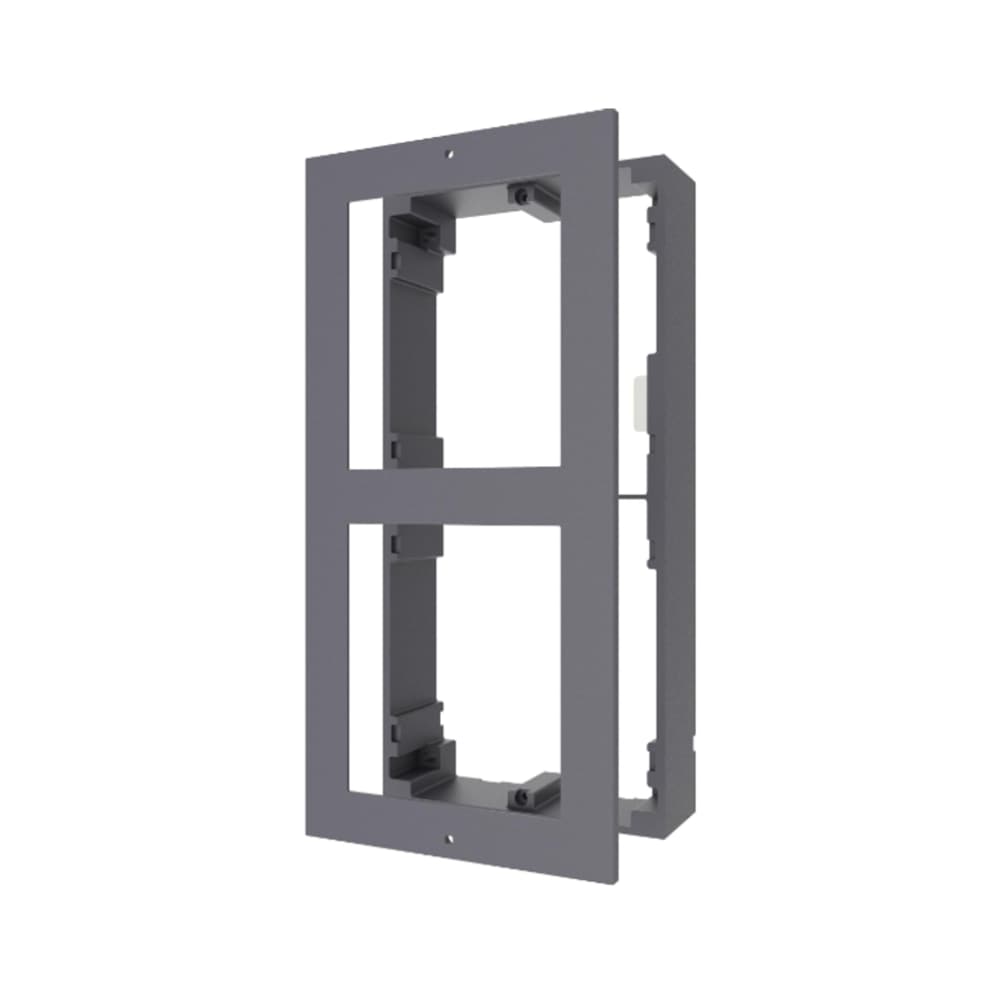

Clean Surface-Mount Housing for a Two-Module Hikvision Door Station
The Hikvision DS-KD-ACW2 is a two-module surface-mount enclosure for compatible Hikvision Gen2 modular video intercom door stations. It provides a neat, purpose-built installation where cutting a deep wall recess for a flush box is not practical.
The kit includes the two-module mounting frame, front panel, button cover and required mounting accessories. Add a compatible main door-station module plus one functional sub-module—such as a keypad, MIFARE reader, display or nametag module—to build the entry panel required for the site.
Installation
Surface mount
Package
Complete mounting kit
Why Choose the DS-KD-ACW2?
Two-Module ConfigurationCreates a complete housing for a compatible main door-station module and one selected Gen2 sub-module.
No Deep Wall RecessMounts on the wall surface, making it useful for solid walls, retrofit projects and locations where flush mounting is unsuitable.
Purpose-Built FitDesigned around Hikvision Gen2 modular door-station components for a consistent fit and professional finished appearance.
Installation Hardware IncludedSupplied with the two-module frame, front panel, button cover and mounting accessories required for the enclosure assembly.
Product Specifications
| Official model |
DS-KD-ACW2 |
| Product type |
Two-module surface mounting box |
| Mounting method |
Surface mount |
| Module capacity |
2 × compatible Hikvision Gen2 modular door-station modules |
| Package contents |
Two-module frame, front panel, button cover and mounting accessories |
| Compatibility |
Hikvision Gen2 modular video intercom door-station system |
| Modules included |
No — door-station and function modules are sold separately |
Build a Two-Module Entry Panel
Start with a compatible main module such as the DS-KD8003-IME1 IP door station or DS-KD8003Y-IME2 two-wire door station. Use the second position for the access or visitor function required by the project:
DS-KD-KP KeypadAdd PIN-code entry and keypad calling functions to a compatible modular system.
DS-KD-DIS DisplayAdd a 3.5-inch display and directory interface for visitor guidance.
Surface or Flush Mount?
| Installation |
Recommended Product |
Best For |
| Surface mount |
DS-KD-ACW2 |
Solid walls, retrofit work and installations where a recessed cavity is not practical |
| Flush mount |
DS-KD-ACF2 |
New construction or walls that can accommodate a recessed two-module enclosure |
Installation Planning
- Confirm that both selected modules are compatible with the same Hikvision Gen2 system.
- Plan network, two-wire or PoE cabling before fixing the enclosure to the wall.
- For extra weather coverage on exposed entries, add the compatible DS-KABD8003-RS2 rain shield.
- Use suitable cable sealing and wall fixings for the installation surface.
- Professional installation and system commissioning are recommended.
Frequently Asked Questions
How many modules does the DS-KD-ACW2 hold?It provides two positions for compatible Hikvision Gen2 modular door-station modules.
Are the intercom modules included?No. This product is the mounting enclosure. The main door station and selected function module are sold separately.
Can I use it with the DS-KD8003-IME1?Yes. The DS-KD8003-IME1 can be paired with a compatible second Gen2 module in this two-module surface enclosure.
Can I install it flush with the wall?No. The DS-KD-ACW2 is for surface mounting. Choose the DS-KD-ACF2 when a recessed flush installation is required.
Is a rain shield available?Yes. The DS-KABD8003-RS2 is the corresponding rain shield for a two-module surface-mount assembly.
Which second module should I choose?Select the function needed at the entrance, such as PIN access, MIFARE card access, a display or multiple labelled call buttons.
