UNIVIEW · VIDEO INTERCOM KITSUniview 0250T0P3 7-Inch IP Video Intercom Kit with PoE Switch

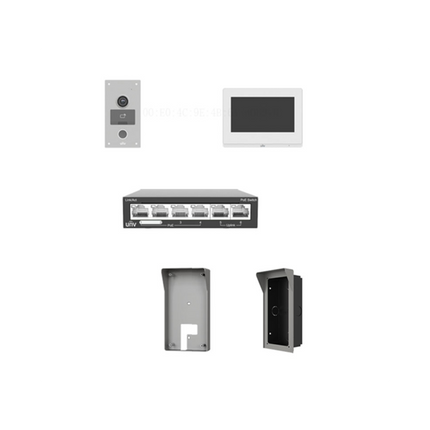

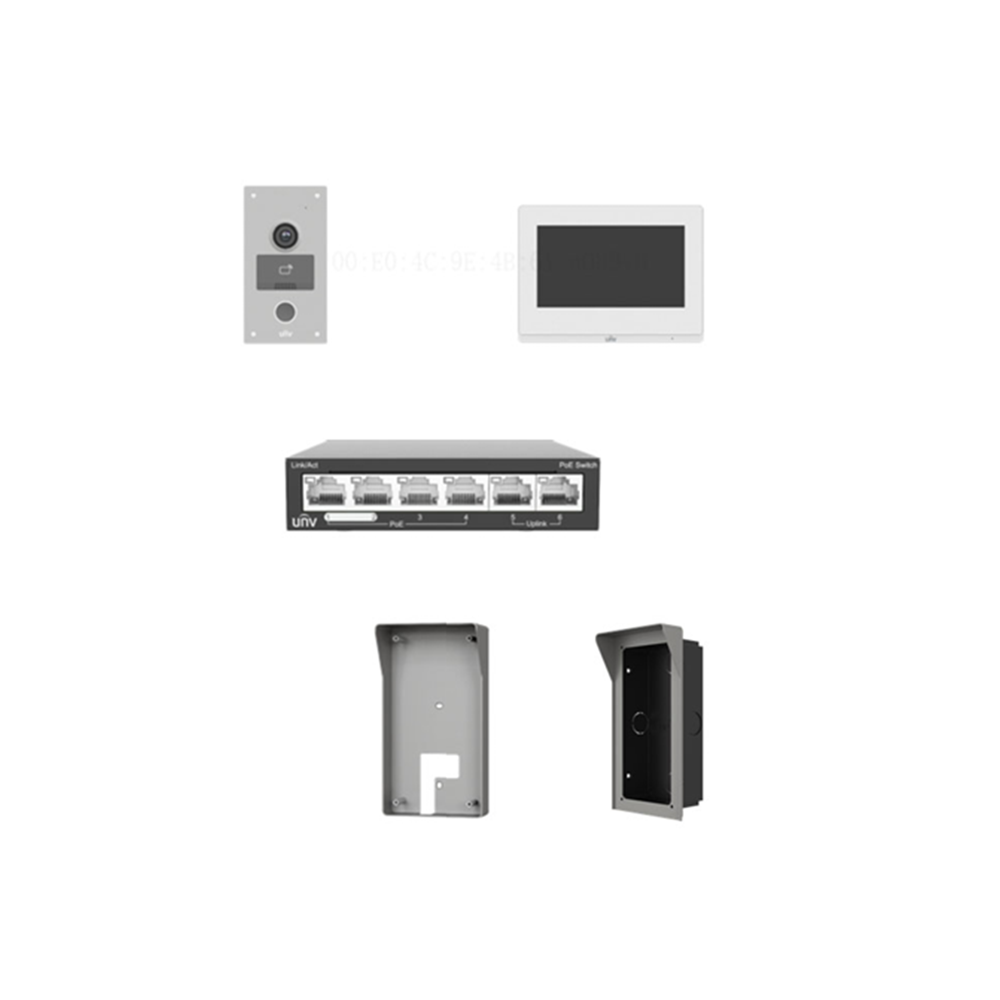

See visitors, speak before opening the door and manage access from a 7-inch indoor screen. This Uniview IP video intercom kit combines the OEU-201S-HMK-Z door station, OEI-372S-H-W-Z Wi-Fi indoor monitor and NSW2020-6T-POE-IN PoE switch in one coordinated package.
Kit reference
0250T0P3 / KIT/201S-Z/372S-W/NSW2020
Door station
OEU-201S-HMK-Z with metal front panel
Indoor monitor
OEI-372S-H-W-Z, 7-inch, 1024 × 600
Network switch
NSW2020-6T-POE-IN, 4 PoE ports plus 2 uplinks
Designed for your installation
A practical choice for a new front entrance or an IP intercom upgrade where a wired connection to the outdoor station can be installed. The indoor monitor adds Wi-Fi connectivity, while the included PoE switch distributes power and network connectivity to compatible devices.
PoE budget
60 W total, up to 30 W per port
Up to 10,000 cards at the door station
Technical Specifications
| Model |
0250T0P3 |
| Kit reference |
0250T0P3 / KIT/201S-Z/372S-W/NSW2020 |
| Door station |
OEU-201S-HMK-Z with metal front panel |
| Indoor monitor |
OEI-372S-H-W-Z, 7-inch, 1024 × 600 |
| Network switch |
NSW2020-6T-POE-IN, 4 PoE ports plus 2 uplinks |
| Switch speed |
10/100 Mbps |
| PoE budget |
60 W total, up to 30 W per port |
| Access control |
Up to 10,000 cards at the door station |
| Door viewing angle |
124.3° horizontal |
| Door protection |
IP65 when correctly sealed, IK08 |
| Power |
12 VDC or compatible PoE for door station and monitor |
| Included accessories |
EP-CS201-Z-NB wall box, EP-CSS201-Z-NB recessed mount, 32 GB TF card |
| Indoor placement |
Indoor monitor is not weatherproof |
Setup and compatibility
Plan the electric lock, lock power supply, exit button and network cabling separately. IP65 performance requires correct sealing. Check lock wiring and commissioning requirements with your installer before installation.
Downloads
0250T0P3 Datasheet (PDF)
Frequently asked questions
Which components are included in 0250T0P3?
OEU-201S-HMK-Z door station, OEI-372S-H-W-Z 7-inch indoor monitor, NSW2020-6T-POE-IN switch, listed wall/recess mounting accessories and a 32 GB TF card.
What should I check before installation?
Plan the electric lock, lock power supply, exit button and network cabling separately. IP65 performance requires correct sealing. Check lock wiring and commissioning requirements with your installer before installation.
Where can I download the 0250T0P3 datasheet?
The manufacturer PDF is hosted on CCTV Guru’s Shopify file library and linked in Downloads on this product page.
