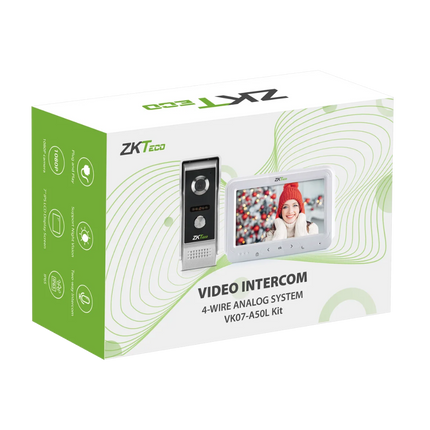

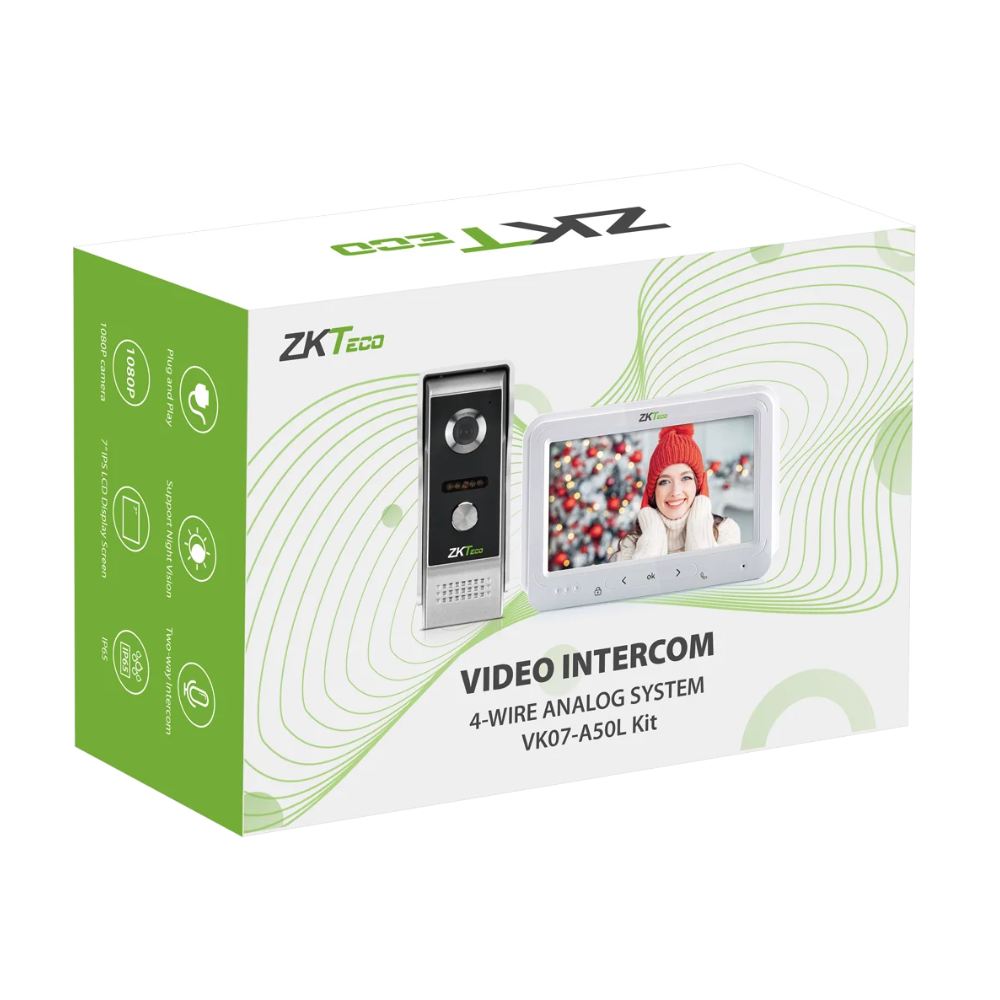

The ZKTeco VK07-A50L is a comprehensive 4-wire analog video intercom kit designed for villas, residential homes, and small offices. This all-in-one security solution provides high-definition video monitoring, two-way audio communication, and remote door release capabilities, ensuring you can manage visitors with ease and safety.
Complete Kit Components
-

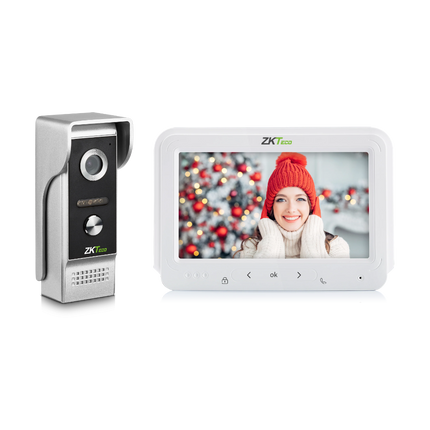

1 x VM07-A50L Indoor Monitor: A slim 7-inch color TFT display with capacitive touch buttons for hands-free communication and door control.
-

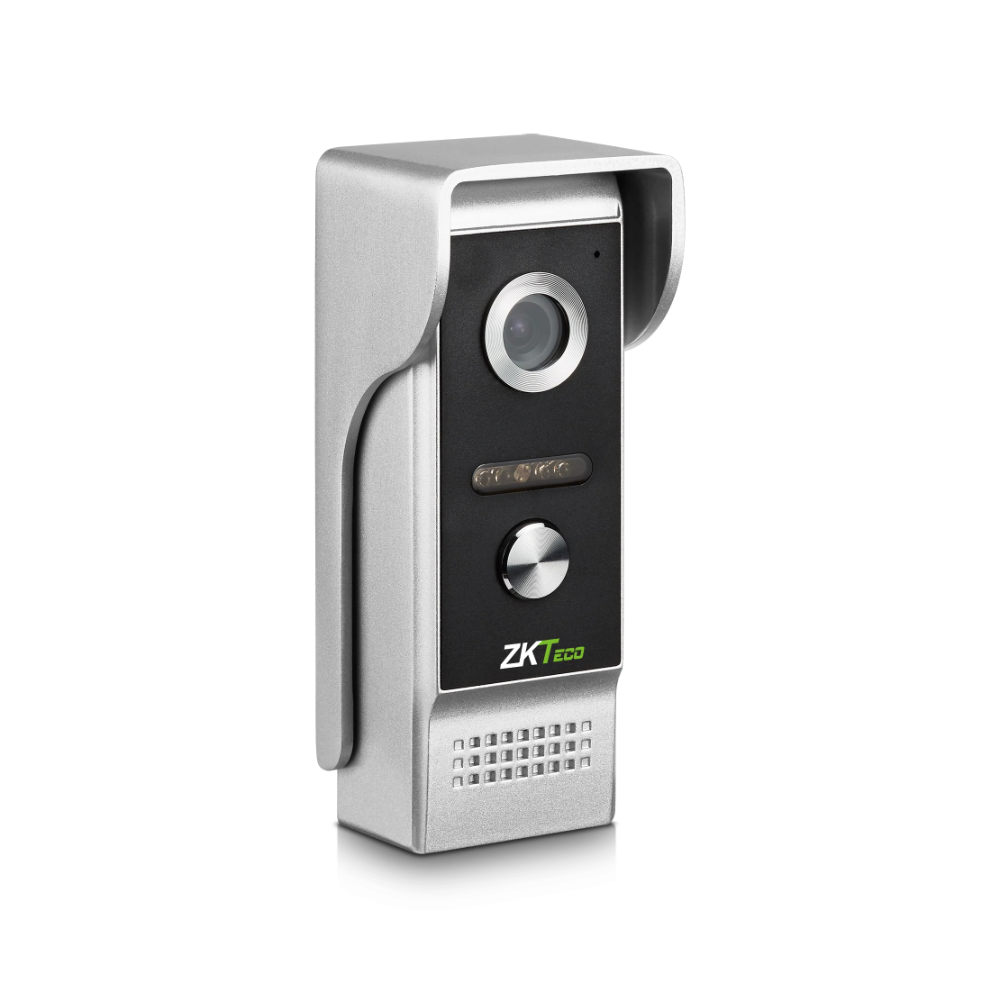

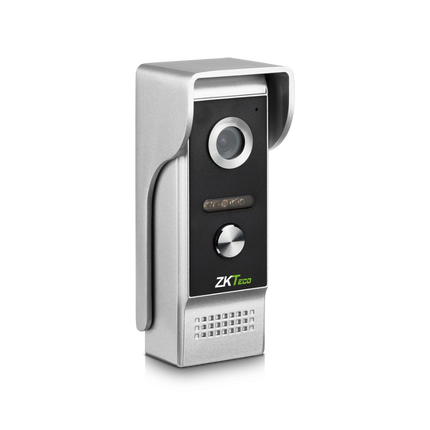

1 x VE01-A50L Outdoor Station: A rugged 2MP high-definition camera unit with a wide-angle lens and infrared night vision.
-
Power Adapter & Mounting Accessories: Includes everything needed for a standard surface-mount installation.
-
RFID Proximity Tags: Supports quick access for residents via the integrated card reader on the outdoor station.
Key Features
-
2MP HD Visuals: The outdoor camera delivers 1080p resolution, providing crystal-clear imagery of visitors at your entrance.
-
7-Inch Widescreen Monitor: A high-quality indoor screen that blends into modern interiors, allowing for easy monitoring of the front door at any time.
-
Advanced Night Vision: Integrated IR LEDs ensure that you can see visitors clearly even in low-light or total darkness.
-
Durable IP65 Protection: The outdoor station is built to withstand the elements with a dust-tight and water-resistant zinc alloy housing.
-
Electronic Lock Control: Supports connection to electronic strikes or magnetic locks, allowing you to unlock gates directly from the indoor monitor.
-
Expandable System: The 4-wire architecture allows for the addition of extra monitors or outdoor stations to cover larger properties.
Technical Specifications
| Camera Resolution |
2 Megapixel (HD) |
| Monitor Display |
7" Color TFT LCD |
| System Wiring |
4-Wire Analog |
| Access Control |
RFID Cards / Proximity Tags |
| Outdoor Rating |
IP65 Weatherproof |
| Audio Type |
Half-Duplex Two-Way Audio |
More Information
For detailed wiring diagrams and configuration steps, please refer to the technical documentation:
