Hikvision Intercom Kit · 2MP Door Station · PoE Powered
Hikvision DS-KIS602 IP Video Intercom Kit with 2MP Door Station, 7" Indoor Monitor & PoE Switch
The Hikvision DS-KIS602 is a complete Gen 2 IP video intercom kit for Australian villas, houses, offices and small commercial sites. It pairs the DS-KD8003-IME1 modular door station, DS-KH6320-WTE1 7" indoor monitor and a 4-port PoE switch into one wired, ready-to-install bundle with a single call button for simple, reliable door entry.
The PoE design powers and connects each device over one network cable, giving a cleaner and more dependable installation than Wi-Fi-only doorbells. Answer visitors from the 7" touchscreen or the Hik-Connect app, view the entrance live, and release a compatible electric strike or gate using the door station's two lock relays.
Power
PoE Switch Included
Remote Access
Hik-Connect App
Protection
IP65 Door Station
What's Included
1 × Hikvision DS-KD8003-IME1 Door StationModular main unit with a 2MP HD fisheye colour camera, IR supplement light, one physical call button, two lock relay outputs and 4-channel alarm input. IP65 rated, powered by 12 VDC or standard PoE. Requires a surface or flush mount bracket.
1 × Hikvision DS-KH6320-WTE1 Indoor Monitor7" TFT touchscreen (1024 × 600) with Wi-Fi and PoE, Hik-Connect app control, one-touch setup wizard, live view of the door station and public-area cameras, plus voice-message and alarm linkage support.
1 × 4-Port PoE SwitchPowers and connects the door station and indoor monitor over network cabling for a clean, single-cable-per-device installation.
16GB microSD Card + AU Power AdaptorIncludes a 16GB TF card for local snapshots and an Australian power adaptor, so the kit is ready to commission out of the box.
Why Choose the DS-KIS602?
Wired PoE ReliabilityOne network cable carries power and data to each device, avoiding the dropouts common with Wi-Fi-only video doorbells.
See & Speak ClearlyThe 2MP fisheye camera with IR supplement gives a wide, clear view of callers day or night.
Answer From AnywhereTake calls, view the entrance and unlock remotely through the Hik-Connect app when configured.
Two-Lock ControlTwo relay outputs let the door station release a compatible electric strike, mag lock or gate.
Simple One-Button CallingA single call button keeps operation easy for families, visitors and staff.
Matched, Ready-to-Install KitPre-paired Hikvision parts remove compatibility guesswork for your installer.
Recommended For
Villas & Family HomesFront door or gate entry with an indoor monitor and mobile app control.
Small OfficesLet reception or staff see and speak with visitors before opening the door.
Clinics & StudiosManage appointment and after-hours entry from a single touchscreen.
Gated EntriesPair with a compatible strike or gate controller for controlled access.
Technical Specifications
Door Station — Hikvision DS-KD8003-IME1
| Camera |
2MP HD fisheye colour camera with IR supplement |
| Call Button |
1 physical call button |
| Lock Control |
2 lock relay outputs |
| Alarm |
4-channel alarm input |
| Protection |
IP65 rated |
| Power |
12 VDC or standard PoE |
| Mounting |
Modular — requires surface/flush bracket |
Indoor Monitor — Hikvision DS-KH6320-WTE1
| Display |
7" TFT capacitive touchscreen |
| Resolution |
1024 × 600 |
| Network |
Wi-Fi and PoE |
| App |
Hik-Connect remote call, view & unlock |
| Features |
Live view, voice message, alarm linkage, setup wizard |
Included Accessories
| Network Switch |
4-port standard PoE switch |
| Storage |
16GB microSD (TF) card |
| Power |
Australian power adaptor included |
| System |
Gen 2 IP, 1-to-1 surface mount |
Downloads & Resources
Frequently Asked Questions
Does the DS-KIS602 include a PoE switch?
Yes. The kit includes a 4-port PoE switch to power and connect the door station and indoor monitor over network cabling.
Can I answer the door from my phone?
Yes. With Hik-Connect you can view callers, talk and unlock remotely when the system is configured correctly.
Can it unlock an electric strike or gate?
Yes. The door station has two lock relay outputs. Final compatibility depends on your strike, mag lock or gate controller and wiring.
Does the door station need a separate bracket?
The DS-KD8003-IME1 is modular and uses a surface or flush mount bracket. This kit is configured for surface mounting.
Is it weatherproof?

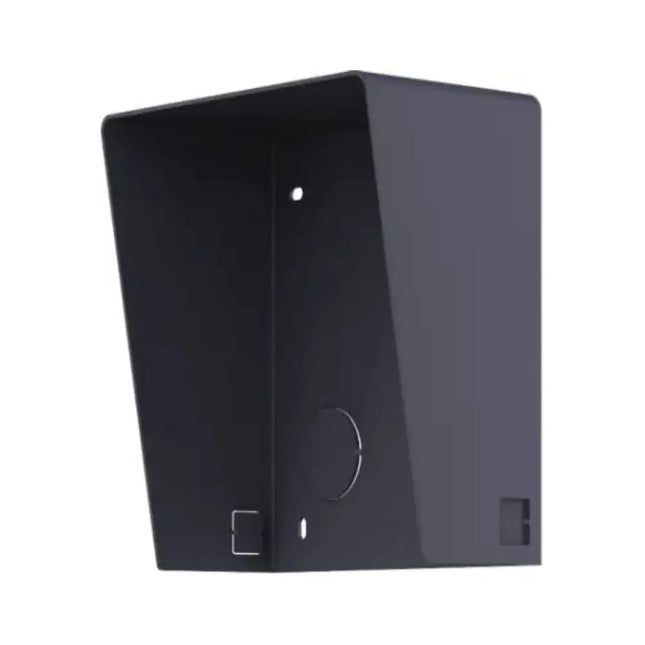

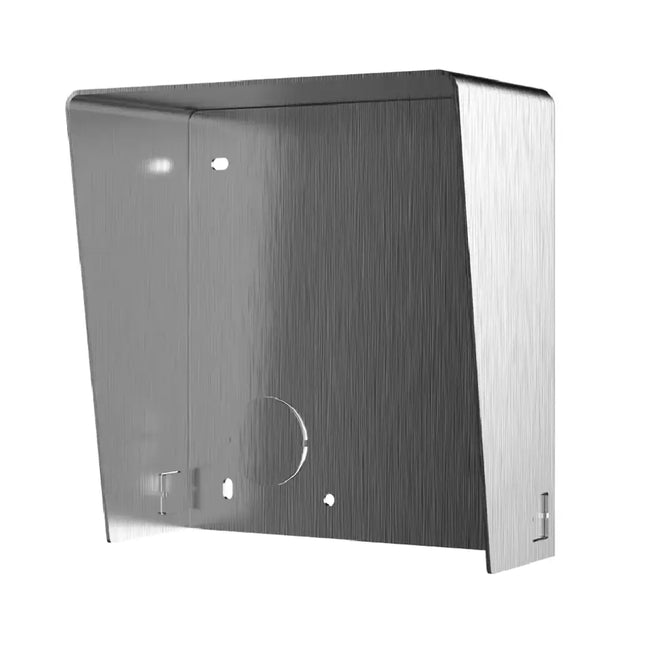

The door station is IP65 rated for outdoor entry use. A weather shield is still recommended in fully exposed positions.
Is installation included?
No. This is a hardware kit. We recommend installation by a licensed security or data cabling technician.
Order Your Hikvision DS-KIS602 Intercom Kit from CCTV Guru
Order the Hikvision DS-KIS602 IP Video Intercom Kit from CCTV Guru for a complete wired PoE entry solution with a 2MP door station, 7" indoor monitor, PoE switch and app control. Ideal for Australian villas, homes, offices and gated entries wanting a reliable upgrade from a basic doorbell. Australian stock, backed by a 3-year warranty and local support.
