Dahua DHI-KTP01L-S IP Video Intercom Kit with 7" Monitor & PoE Switch
The Dahua DHI-KTP01L-S is a complete IP video intercom kit for Australian homes, villas, townhouses, offices and small businesses that want a smarter way to manage front-door access. It includes a 7-inch indoor touch screen monitor, a 2MP IP villa door station and a PoE network switch for a clean, modern installation.
Visitors can call from the outdoor station, while users can answer from the indoor monitor or use the DMSS mobile app to talk to visitors and remotely unlock a compatible door or gate. It is a strong upgrade from basic analogue intercoms and consumer doorbells.
Indoor Monitor
7" Touch Screen
Door Station
2MP Wide Angle
Mobile App
DMSS Remote Access
Outdoor Rating
IP65 · IK07
Authorised Dahua Reseller
Fast Australia-Wide Shipping

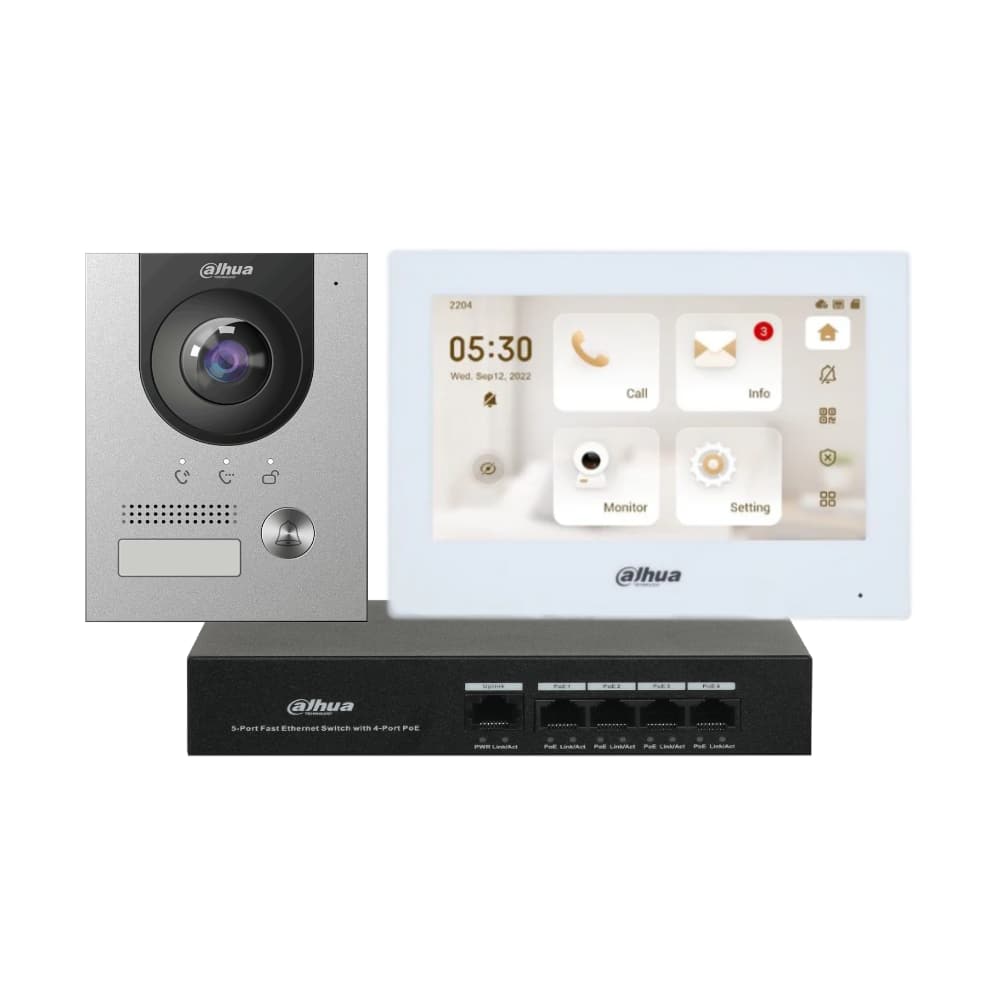

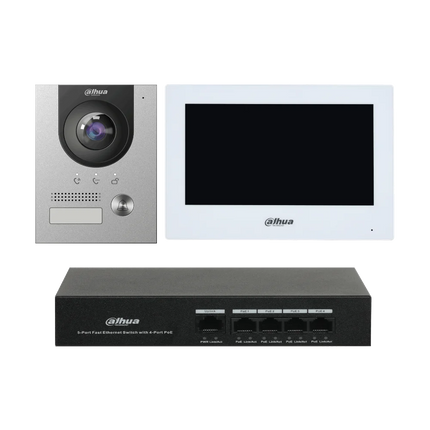

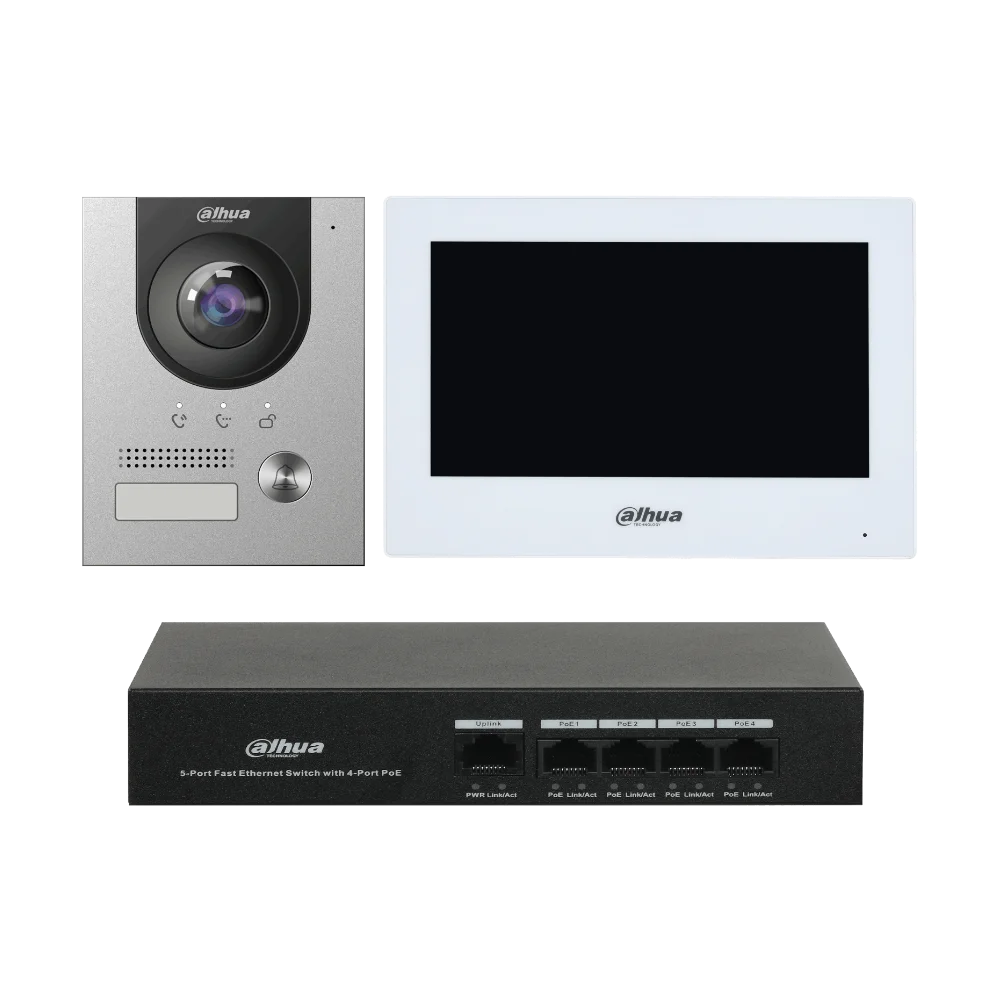

What’s in the Box
1 × IP Villa Door Station
2MP IP villa door station with anodised aluminium front panel, 168.6° wide-angle camera, auto IR, two-way audio, tamper alarm, IP65 / IK07 protection and remote unlock support.
1 × 7" IP Indoor Monitor
7-inch TFT capacitive touch screen monitor with 1024 × 600 resolution, two-way audio, door station monitoring, IPC monitoring, 6 alarm inputs and 1 alarm output.
1 × PoE Network Switch
Compact PoE switch with 4 × PoE ports and 2 × uplink ports, designed to power and connect the intercom system cleanly over network cabling.
Mounting Accessories Included
Includes surface-mount hardware for the outdoor station and indoor monitor, helping create a cleaner installation for homes, villas and business entrances.
Why Choose the Dahua KTP01L-S?
Answer from the Monitor or Phone
Use the indoor monitor when you are inside, or use the DMSS mobile app to talk to visitors and unlock compatible access points remotely.
Ultra-Wide Visitor View
The 2MP door station provides a wide 168.6° horizontal view, helping capture more of the entry area than narrow-view door stations.
Cleaner IP-Based Installation
Standard PoE support helps reduce wiring complexity by carrying power and data through network cabling.
Expandable Smart Entry System
Supports additional compatible indoor monitors and can integrate with compatible door locks, exit buttons and door status detection.
Recommended For
Homes & Villas
See who is at the front door, speak to visitors and unlock a compatible gate or door from the screen or your phone.
Townhouses & Duplexes
A clean single-entry intercom solution with a proper monitor, outdoor station and app-based remote answering.
Small Offices & Reception Areas
Let staff screen visitors before granting access to reception, side doors or controlled business entries.
Clinics & Professional Suites
Ideal for customer-facing offices where visitor screening and controlled access matter.
Technical Specifications
Door Station — IP Villa Station
| Camera |
1/2.9" 2MP CMOS |
| Field of View |
H: 168.6° · V: 87.1° · D: 176.7° |
| WDR |
120 dB |
| Noise Reduction |
3D NR |
| Video Compression |
H.265 / H.264 |
| Audio |
Two-way audio with echo suppression and digital noise reduction |
| Unlock Mode |
Remote unlock |
| Storage |
MicroSD card support up to 256GB |
| Network Port |
1 × RJ-45 10/100 Mbps |
| Power |
12 VDC 2A or PoE 802.3af/at |
| Protection |
IP65 · IK07 |
| Installation |
Surface mount, surface mount box included |
| Dimensions |
130 mm × 96 mm × 28.5 mm |
| Operating Temperature |
-30°C to +60°C |
Indoor Monitor — 7" IP Monitor
| Display |
7" TFT capacitive touch screen |
| Resolution |
1024 × 600 |
| Audio |
Two-way audio, built-in speaker |
| Video Decoding |
H.265 / H.264 |
| Door Station Monitor |
Supported |
| IPC Monitor |
Supported |
| Alarm Input |
6 channels |
| Alarm Output |
1 channel |
| Door Bell |
Supported, reusing alarm input port |
| Network Port |
1 × RJ-45 10/100 Mbps Ethernet |
| Power |
12 VDC 1A or Standard PoE |
| Installation |
Surface mount |
| Colour |
White |
| Dimensions |
189.6 mm × 134.6 mm × 26.0 mm |
| Operating Temperature |
-10°C to +55°C |
Networking Device — PoE Switch
| PoE Ports |
4 × 10/100 Mbps PoE ports |
| Uplink Ports |
2 × 10/100 Mbps uplink ports |
| Power Supply |
Built-in 100–240 VAC power supply |
| Power Consumption |
0.5 W idle, 36 W full load |
| Operating Temperature |
-10°C to +55°C |
| Colour |
Black |
| Dimensions |
194.0 mm × 108.1 mm × 35.0 mm |
FAQs
Does the Dahua DHI-KTP01L-S work with the DMSS app?
Yes. The system supports mobile app access, allowing you to talk to visitors and unlock a compatible door remotely from your phone.
Does the kit include a PoE switch?
Yes. The kit includes a PoE networking device with 4 PoE ports and 2 uplink ports.
Can it unlock a door or gate?
Yes. The door station supports remote unlock when connected to a compatible electric strike, lock or gate release.
Is the outdoor station weather rated?
Yes. The door station is rated IP65 and IK07 when installed correctly with appropriate sealing.
Can I connect cameras to the monitor?
Yes. The indoor monitor supports door station and IPC monitoring, depending on the final system configuration.
Is this better than an analogue intercom?
Yes, for most modern installations. This is an IP-based system with app access, PoE support and better expansion options than basic analogue intercom kits.
