Hikvision Intercom Kit · Keypad Access · PoE Powered
Hikvision Keypad Video Intercom Kit with 4MP Door Station, 10.1" Monitor & PoE Switch

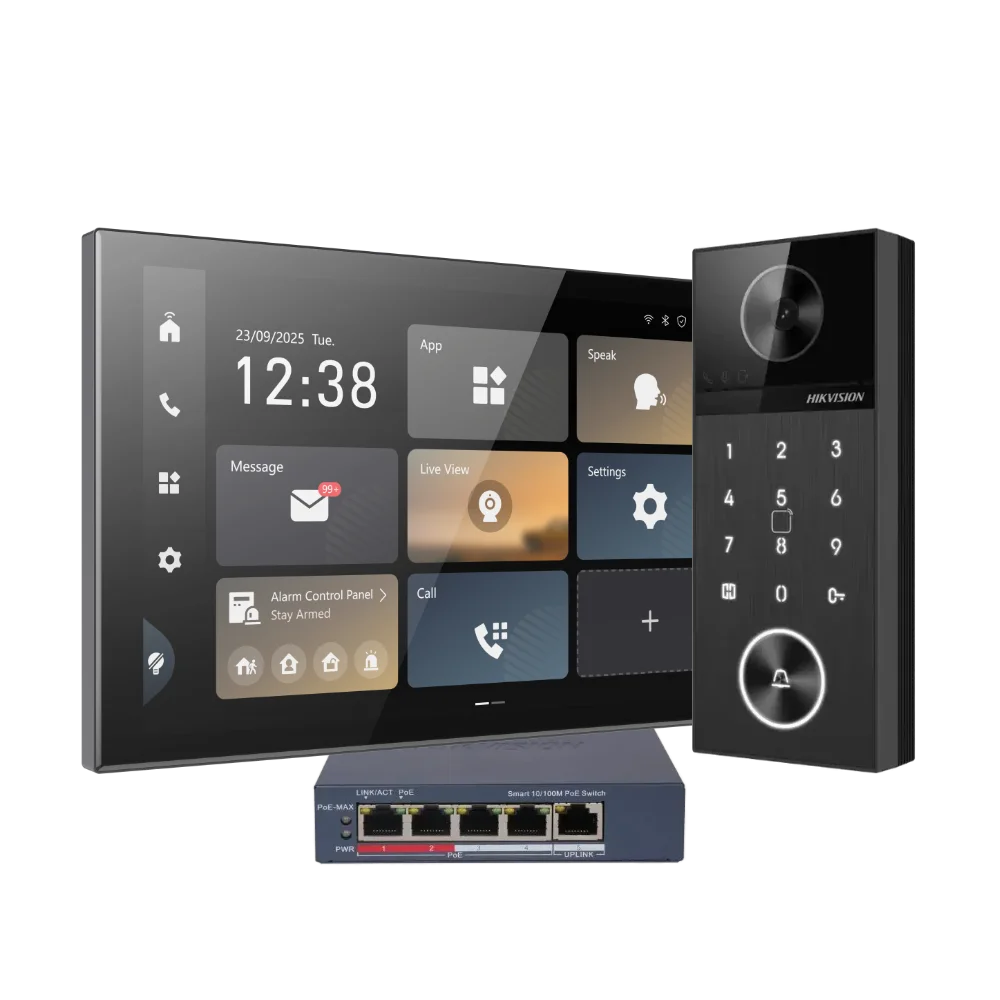

The Hikvision Keypad Video Intercom Kit is a complete PoE-powered access control solution for Australian homes, offices, rental properties, gated entries and small commercial sites. It combines the DS-KV6124-WBE1 4MP villa door station, DS-KH9570-WTE1/S 10.1" indoor station and DS-3E1105P-EI PoE switch into one ready-to-install bundle.
Unlike a basic video doorbell, this kit gives you multiple unlock options including PIN code, RFID card, Bluetooth, indoor monitor unlock and Hik-Connect app control. The wired PoE design provides a cleaner, more reliable installation than Wi-Fi-only intercoms, while the large 10.1" indoor touchscreen gives users a premium control point inside the property.
Monitor
10.1" Touchscreen
Power
PoE Switch Included
Remote Access
Hik-Connect App
What’s Included
1 × Hikvision DS-KV6124-WBE14MP villa door station with keypad, 150° viewing angle, card access, PIN code unlock, Bluetooth unlock, Hik-Connect unlock, indoor station unlock and 2-lock control.
1 × Hikvision DS-KH9570-WTE1/SPremium 10.1" IPS indoor station with 1920 × 1200 resolution, Android 14 platform, dual microphones and speakers, noise suppression and echo cancellation.
1 × Hikvision DS-3E1105P-EI4-port Fast Ethernet smart PoE switch with 4 × 10/100 Mbps PoE ports, 1 × 10/100 Mbps uplink port, 60W PoE budget and 6kV surge protection on PoE ports.
Installer-Ready PoE SetupDesigned for a clean wired installation. The PoE switch powers the door station and indoor monitor over network cabling, reducing messy power adapters and Wi-Fi reliability issues.
Why Choose This Keypad Intercom Kit?
PIN Access Without KeysGive family, staff, tenants or trusted visitors a PIN code instead of handing out physical keys.
Multiple Unlock MethodsUnlock using PIN code, RFID card, Bluetooth, the indoor monitor or Hik-Connect mobile app.
Premium Indoor ControlThe 10.1" indoor screen provides a modern control point for answering calls, viewing the door station and unlocking the entry.
Wired PoE ReliabilityPoE is more stable than Wi-Fi-only doorbells and is better suited to permanent homes, offices, gates and rental properties.
Great for Multi-User SitesIdeal where different users need different access methods — homeowners, staff, cleaners, trades or short-stay guests.
Remote App ControlUse Hik-Connect to view the door station, talk to visitors and unlock remotely where configured correctly.
Recommended For
Family HomesFront door, side gate or pedestrian gate access with indoor screen and mobile app control.
Offices & StudiosAllow staff entry by PIN or card while keeping visitor calls visible from the monitor.
Airbnb & RentalsUseful for properties where codes are easier than physical keys or remote handovers.
Gated EntriesUse the 2-lock control capability for pedestrian gates, electric strikes or compatible access hardware.
Technical Specifications
Door Station — Hikvision DS-KV6124-WBE1
| Camera |
4MP door station camera |
| Viewing Angle |
150° viewing angle |
| Unlock Methods |
Card, PIN code, Bluetooth, Hik-Connect and indoor station unlock |
| Lock Control |
2 locks control |
| Remote Features |
Video recording and playback via Hik-Connect or PC web |
| Power |
IEEE 802.3at PoE |
| Application |
Villa / residential / small commercial door station |

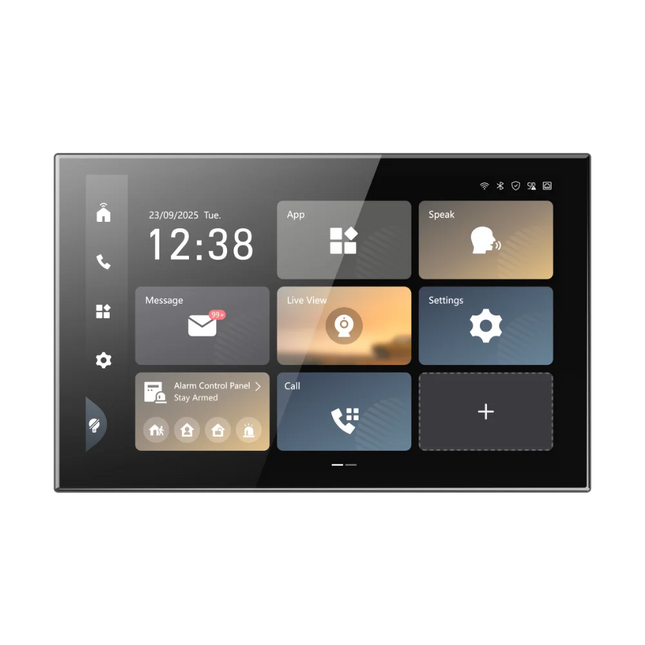

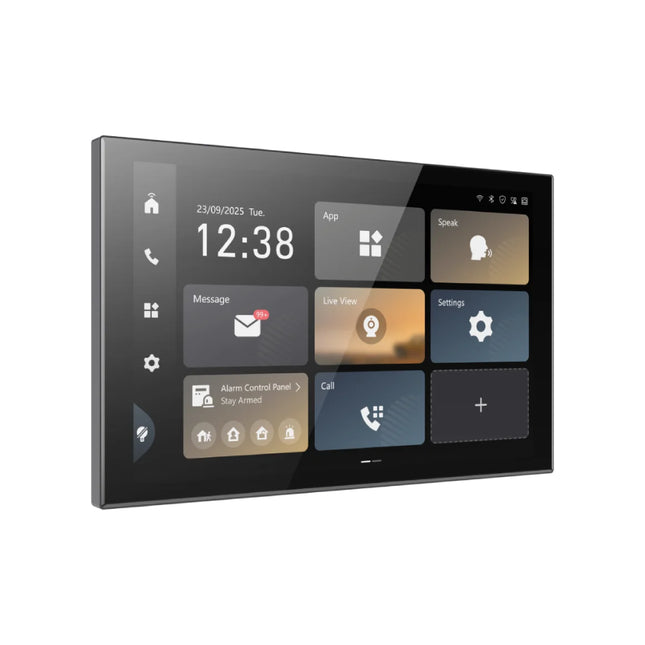

Indoor Station — Hikvision DS-KH9570-WTE1/S
| Display |
10.1" IPS touch display |
| Resolution |
1920 × 1200 |
| Operating Platform |
Android 14 |
| Performance |
4-core processor · Up to 4GB RAM + 8GB ROM |
| Audio |
Dual microphones and speakers |
| Audio Processing |
Noise suppression and echo cancellation |
| Use Case |
Indoor call answering, monitoring and access control |
PoE Switch — Hikvision DS-3E1105P-EI
| PoE Ports |
4 × 10/100 Mbps PoE RJ45 ports |
| Uplink Port |
1 × 10/100 Mbps RJ45 port |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| PoE Budget |
60W total |
| Max Port Power |
30W per PoE port |
| Surge Protection |
6kV surge protection for PoE ports |
| Housing |
Metal shell, fan-free design |
Downloads & Resources
Frequently Asked Questions
Does this kit support PIN code access?
Yes. The DS-KV6124-WBE1 door station includes keypad access for PIN code unlocking.
Can I unlock from my phone?
Yes, remote unlock is supported through Hik-Connect when the system is configured correctly.
Does it include the PoE switch?
Yes. This bundle includes the DS-3E1105P-EI PoE switch for wired power and data connection.
Is this better than a Wi-Fi doorbell?
For permanent installs, yes. A wired PoE intercom is generally more stable and installer-friendly than Wi-Fi-only doorbells.
Can it control an electric strike?
Yes, the door station supports 2-lock control. Final lock compatibility depends on your strike, gate controller and wiring design.
Is installation included?
No. This is a hardware kit. CCTV Guru can help with product selection and recommend suitable setup guidance for your installer.
Order Your Hikvision Keypad Video Intercom Kit from CCTV Guru
Order the Hikvision Keypad Video Intercom Kit with PoE from CCTV Guru for a complete access control intercom solution with keypad entry, mobile app unlock, 10.1" indoor monitor and PoE switch. Ideal for homes, offices, rental properties and gated entries needing a more secure, flexible upgrade from a standard doorbell.
