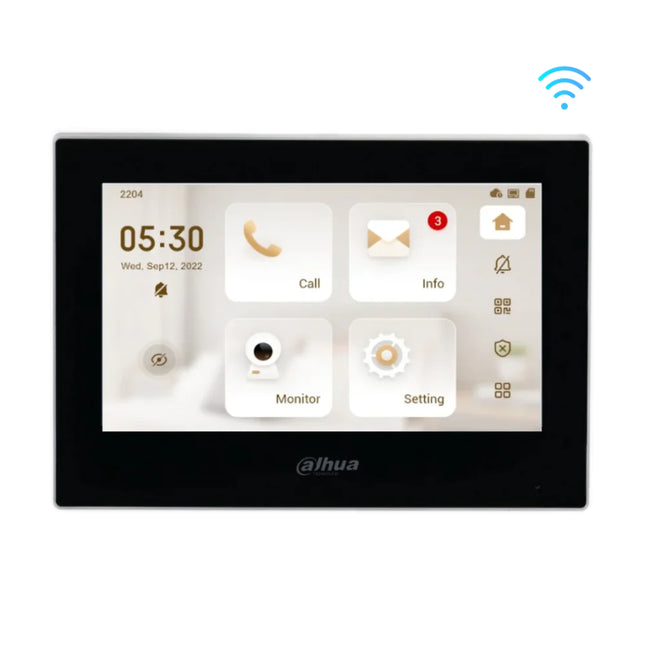

Dahua Lite Series VTH2621GIP & Wi-Fi Indoor Monitor Black, 7-inch Touch, PoE, Surface, 3 Year Warranty, DHI-VTH2621G-WP 7" TFT capacitive touch screen, 1024 × 600 6-channel alarm input and 1-channel alarm output Wi-Fi Standard PoE Door station and IPC monitor H.265 and H.264 video decoding High performance & cost-effective Specifications Technical Specification System Main Processor Embedded processor Operating System Embedded Linux operating system Interoperability ONVIF; SDK Network Protocol RTSP; RTP; SIP; DNS; SSH ROM 128 MB RAM 128 MB CPU Dual core 1.2 GHz Basic Screen Type Capacitive Touchscreen Display 7" TFT Screen Resolution 1024 × 600 Audio Compression G.711a; G.711u; PCM Audio Input 1 Audio Output Built-in speaker Audio Mode 2-way Audio Audio Enhancement Echo suppression Audio Bit Rate 116 bit Function Communication Mode Full digital Information Release Receive and view text information released by the management center DND Mode Do not disturb period can be set; Do not disturb mode Number of Extensions Villa: 9 Apartment: 4 Wi-Fi intercom: 1 main monitor, 2 extension monitors Wi-Fi Yes Wireless Standard IEEE802.11b/802.11g/802.11n Wireless Frequency Range 2,412–2,472 MHz Wireless Security Encryption WPA/WPA2; WPA-PSK/WPA2-PSK Performance Casing PC + ABS Port Alarm Input 6 Alarm Output 1 Door Bell Yes (use any alarm input port) Network One 10 /100 Mbps Ethernet Storage Micro SD Card, Max 64 GB (reserved for software) General Appearance Color Black/White Power Supply 12 VDC 1A; Standard PoE (36–57 V, 0.35 A) Installation Surface Mount Certifications CE; FCC Dimensions 189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00") Operating Temperature –10 °C to +55 °C (+14 °F to 131 °F) Operating Humidity 10%–95% RH (non-condensing) Operating Altitude Beneath 3,000 m (9,842.52 ft) Power Consumption Standby ≤ 2W; working ≤ 6W Net Weight 0.34 kg (0.74 lb) Gross Weight 0.58 kg (1.27 lb) Downloads DatasheetPrivacy_PolicyUser's ManualOPEN SOURCE SOFTWARE NOTICESOFTWARE LICENSE AGREEMENT

Read more less

Dahua Android 10-inch digital indoor monitor Android 8.1 More User-Friendly UI Ethernet and Wi-Fi 10'' TFT Capacitive touch Screen, 1024x600 Micro-SD Card optional, max 256GB Specifications System Main Processor Embedded processor Operating System Android 8.1 Network Protocol IPv4, TCP, SIP, UDP, RTSP Basic Screen Type Capacitive screen Display Screen 10 inch TFT LCD Resolution 1024×600 Video Compression H.264 Audio Compression PCM Audio Input 1 omnidirectional microphone Audio Output Built-in 1.5W speaker Audio Mode Two-way voice call Audio Enhancement Echo suppression/DNR Audio Bit Rate 16KHz, 16Bit Function Information Release Text announcements released by the management center can be viewed Communication Mode Full digital Elevator Control You can control the elevator through the indoor monitor Leave Videos or Text Messages Yes (SD card is needed) DND Mode Do not disturb period can be set. Extension Number Villa: 4 Apartment: 9 Wi-Fi Yes Wireless Standard IEEE802.11b/802.11g/802.11n Wireless Frequency Range 2.4GHz Wireless Security-Encryption 64/128bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS Storage Micro SD storage, the maximum space is 256GB Port RS-485 1 Alarm Input 8 Alarm Output 1 Power Output 1 12V/100mA Door Bell Yes, use alarm input port Network Port 1 10M/100M Ethernet Alarm SOS Yes Performance Housing Material PC+ABS Regular Color Black Power Supply 12V DC 1AStandard POE Installation Surface mount Certifications CEFCC Accessory Surface mount bracket, alarm ribbon cable, RS-485 cable, and power-supply pins are provided Product Dimensions 260 mm×170 mm×15 mm (10.24"×6.69"×0.59") (ports are not counted) 260 mm×170 mm×25.4 mm (convex) (10.24"×6.69"×1") (ports are counted) Operating Temperature -10°C to +55°C (+14°F to +131°F) Operating Humidity 10%RH–95%RH (Non-condensing) Operating Altitude Less than 3,000 meters (9842.52 ft) Power Consumption ≤1.5W (standby), ≤7W (working) Net Weight 770g (1.70lb) Gross Weight 1.1kg (2.43lb) Downloads DHI-VTH5341G-W_datasheet_20200113 IP Indoor Monitor_Quick Start Guide_V1.0.0-Eng IP Indoor Monitor_User's Manual_V1.0.0-Eng DHI-VTH5341G-W_INSTALLATION_PROCEDURE DHI-VTH5341G-W_DIMENSIONS

Read more less

Dahua 2MP IP Villa 1 button Outdoor Station, Viewing Wide Angle 140 degree, Night vision, Mifare Card Reader 2MP HD CMOS camera Aluminum panel, IP65, IK08 ICR Night vision & Voice indication Video & Audio messaging Remote intercom with mobile APP Surface mounted Specifications OUTDOOR STATION RESOLUTION 2MP TECHNOLOGY IP POWER SUPPLY DC 12V, PoE PROTECTION IP65, IK08 MOUNT Surface MATERIAL Alumimum Downloads Datasheet of VTO3211D Quick Start Guide of VTO3211D Villa VTO_User's Manual_V1.0.0-Eng Villa Door Station (Version 4.3)_Quick Start Guide_V1.0.0-Eng Villa Door Station_Installation Guide_V1.0.0-Eng

Read more less

Dahua 2-wire IP Villa Door Station comes with both 2-wire and ethernet port Anodised aluminium front panel CMOS low illumination 2MP HD colourful 160° fisheye camera Video intercom function Access control function that supports two locks Mobile phone app, talk to the visitor or unlock the door remotely on Compatible with 2-wire interface & RJ45 interface IK07 & IP65 Support H.265 Support surface and flush mount PoE Specifications System Main Processor Embedded processor Operating System Embedded Linux Operation System Button Type Mechanical Interoperability ONVIF; CGI Network Protocol SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP Basic Camera 1/2.5" 2MP CMOS Low Illumination HD Colourful Fisheye Camera Field of View Horizontal: 168.6°; vertical: 87.1; diagonal:176.7° Focal Length 1.9 mm WDR 120 dB Noise Reduction 3D NR Video Compression H.265 Video Resolution 50Hz: Main Stream (720P@25 fps), sub stream (1080P@25 fps) 60Hz: Main Stream (720P@30 fps), sub stream (1080P@30 fps) Video Frame Rate 25 fps Video Bit Rate 256 Kbps to 4 Mbps Light Compensation Auto IR Day/Night Auto (ICR) Audio Compression G.711u Audio Input 1 channel Audio Output Built-in speaker Audio Mode 2-way voice communication Audio Enhancement Echo suppression/digital noise reduction Audio Bit Rate 16 KHz, 16 Bit Status Indicator Light 3 Port Electric Lock 1 Alarm Output 1 Power Output 1-ch 12 VDC 100mA Exit Button 1 Door Status Detection 1 Lock Control 1 Network Port One RJ45 10M/100M network port General Appearance colour Silver Power Supply Dahua 2-wire switch (max. power supply distance 50 m)DC 48V 1AStandard PoE Power Adapter Optional Installation Flush/surface mount Certifications CE; FCC; UL Accessory Flush/surface mount Product Dimensions 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12") Protection IK07; IP65 Operating Temperature –30°C to +60°C (–22°F to 140°F) Operating Humidity 10%–90% (RH, non-condensing) Operating Altitude 0 m–3000 m Power Consumption ≤ 12W Net Weight 0.35 kg (0.77 lb) Gross Weight 0.4 kg (0.88 lb) Downloads Datasheet of DHI-VTO2202F-P-S2_20210120Quick Start Guide of DHI-VTO2202F-P-S2Villa Door Station_User's_Manual_V1.0.0-EngDahua Villa Intercom Setup GuideDahua Villa N VTHx NVTO via template

Read more less

Dahua 4-Wire Analog Indoor Outdoor Station DHI-VTO1000J Dahua 4-wire indoor outdoor station Video intercom function: Unlock, voice call, video call and volume adjustment Multiple bell sounds Supports digital wide dynamic range (DWDR) Mechanical button Specifications OUTDOOR STATION RESOLUTION 1.3MP TECHNOLOGY Analog POWER SUPPLY DC 12V PROTECTION IP66 MOUNT Surface MATERIAL Front Panel: Zinc alloy Rear Panel: Aluminum alloy Holder: Aluminum alloy Downloads DHI-VTO1000J_datasheet_20200824 DHI-VTO1000J_INSTALLATION_PROCEDURE DHI-VTO1000J_DIMENSIONS DHI-VTO1000J_INSTALLATION_METHOD_EN

Read more less

7 inch Screen, indoor monitor function: Unlock, video call, volume adjustment, and doorway monitoring Notes: Power Supply doesn't come with this unit. Please shop here. 7" TFT screen Video intercom function: Unlock, voice call, video call and volume adjustment Mechanical button Multiple bell sounds Specifications INDOOR MONITORS SIZE 7 Inch TFT display COLOUR White RESOLUTION 800x480 STORAGE - POWER SUPPLY DC 12V TECHNOLOGY Analog Downloads Datasheet of DHI-VTH1020J

Read more less

Dahua 2MP IP Villa 2 button Outdoor Station, Viewing Wide Angle 140 degree, Night vision, Mifare Card Reader 2MP HD CMOS camera Aluminum panel, IP65,IK08 ICR Night vision &Voice indication Video & Audio messaging Remote intercom with mobile APP Surface mounted Specifications OUTDOOR STATION RESOLUTION 2MP TECHNOLOGY IP POWER SUPPLY DC 12V, PoE PROTECTION IP65, IK08 MOUNT Surface MATERIAL Alumimum Downloads Datasheet of DHI-VTO3211D-P2 Villa Door Station (Version 4.3)_Quick Start Guide_V1.0.0-Eng Villa Door Station_Installation Guide_V1.0.0-Eng Villa VTO_User's Manual_V1.0.0-Eng

Read more less

Dahua 2MP IP Villa Outdoor Station, Viewing Wide Angle 100 degree, Adjustable Viewing Angle, ICR 5m Night Vision DHI-VTO2101E-P-S2  HD CMOS camera. Zinc alloy panel, IP65 and IK10 rated. ICR night vision and voice prompt. Video and audio messaging. TCP/IP, and SIP. Surface mounted. Specifications OUTDOOR STATION RESOLUTION 2MP TECHNOLOGY IP POWER SUPPLY DC 12V, PoE PROTECTION IP65, IK10 MOUNT Surface MATERIAL Front Panel: Zinc alloy Rear Panel: Aluminum alloy Holder: Aluminum alloy Downloads Datasheet of DHI-VTO2101E-P Quick Start Guide of DHI-VTO2101E-P Dahua Villa Intercom Setup Guide Dahua Villa N VTHx NVTO via template

Read more less

Dahua 2MP IP Villa 4 button Outdoor Station, Viewing Wide Angle 140 degree, Night vision, Mifare Card Reader 2MP HD CMOS camera Aluminum panel, IP65, IK08 ICR Night vision &Voice indication Video & Audio messaging Remote intercom with mobile APP Surface mounted Specifications OUTDOOR STATION RESOLUTION 2MP TECHNOLOGY IP POWER SUPPLY DC 12V, PoE PROTECTION IP65, IK08 MOUNT Surface MATERIAL Alumimum Downloads Datasheet of DHI-VTO3211D-P2 Villa Door Station (Version 4.3)_Quick Start Guide_V1.0.0-Eng Villa Door Station_Installation Guide_V1.0.0-Eng Villa VTO_User's Manual_V1.0.0-Eng

Read more less

Dahua 7-inch 2-wire & Wi-Fi Indoor Monitor 7" TFT capacitive touchscreen, 1024 × 600 6-channel alarm input and 1-channel alarm output Wi-Fi Outdoor station and IPC monitor H.265 and H.264 video decoding 2-wire digital communication Specifications System Main Processor Embedded processor Operating System Embedded Linux operating system Network Protocol RTSP; RTP; SIP; DNS; SSH Basic Screen Type Capacitive touchscreen Display 7" TFT Screen Resolution 1024 × 600 Audio Compression G.711a; G.711Mu; G.711u; PCM Audio Input 1 Audio Output Built-in speaker Audio Mode 2-way Audio Audio Enhancement Echo suppression Audio Bit Rate 16 kHz; 16 Bit Function Communication Mode Digital 2-wire Information Release Receive and view text information released by the management center Leave Videos Yes (insert an SD card into the indoor monitor) DND Mode Do not disturb period can be set; Do not disturb mode Number of Extensions Villa: 3 Apartment: 2 Wi-Fi Yes Wireless Standard IEEE802.11b/802.11g/802.11n Wireless Frequency Range 2.4 GHz Wireless Security Encryption WPA/WPA2; WPA-PSK/WPA2-PSK Storage Micro SD card (up to 64 GB) Performance Casing PC + ABS Port RS-485 1 Alarm Input 6 Alarm Output 1 Power Output 1 (12 V/200 mA) Door Bell Yes (use any alarm input port) Network One two-wire port and one 10 Mbps/100 Mbps Ethernet port (one of them can be selected) Alarm SOS Yes General Color White/Black Power Supply 48 VDC 1.25 A Installation Surface mount Certifications CE; FCC Accessory Bracket and alarm ribbon cable (included) Dimensions 189.0 mm × 130.0 mm × 26.9 mm (7.44" × 5.12" × 1.06") Operating Temperature –10 °C to +55 °C (+14 °F to 131 °F) Operating Humidity 10%-95% RH (non-condensing) Operating Altitude Beneath 3000 m (9842.52 ft) Power Consumption Standby ≤ 2 W; working ≤ 6 W Net Weight 0.35 kg (0.78 lb) Gross Weight 0.56 kg (1.23 lb) Downloads VTH5422HW(B)-W Datasheet 202111220Digital VTH User's Manual_V1.0.0Digital Indoor Monitor Quick Start Guide (Model H) _V1.0.1

Read more less

Dahua 2-wire Switch Intercom DHI-AC-VTNS1001B-2 Supports connecting through RJ45 port Supports guide rail mount Specifications Basic Status Indicator Light 2 Communication Mode 2-wire Port 2-wire port 1 × 2-wire port; RJ45 1 General Casing PC + ABS Appearance colour White Power Supply DC 48V 1A–3A Power Adapter NA Installation Guide rail mount Certifications CE; FCC; UL Accessory Power converter cable Product Dimensions 131 mm × 103 mm × 40 mm (5.16" × 4.06" × 1.57") Operating Temperature –10°C to +55°C (14°F to 131°F) Operating Humidity 10%°–95% (RH, non-condensing) Operating Altitude 0–3000 m (0–9842.52 ft) Power Consumption ≤ 15W (KIT) Net Weight 0.25 kg (0.55 lb) Gross Weight 0.39 kg (0.86 lb) Downloads VTNS1001B-2 Datasheet_202107292-wire Switch_Installation Guide_V1.0.02-wire Switch_User's Manual_V1.0.0

Read more less

This Dahua 7-inch IP Indoor Monitor features stylish black colour comes with capacitive touch screen, 1024×600 pixels resolution and Standard PoE. 6 alarms can be connected and security cameras footage can be viewed as well.  7'' TFT capacitive touch screen, 1024 x 600 6-channel alarm input and 1-channel alarm output Standard PoE Outdoor station and IPC monitor H.265 and H.264 video coding High performance & cost-effective Specifications SIZE 7-inch TFT display COLOUR Black RESOLUTION 1024x600 pixels STORAGE Not Support POWER SUPPLY DC 12V, PoE TECHNOLOGY IP Downloads DHI-VTH2621G-P DatasheetPrivacy_PolicyUser's ManualOPEN SOURCE SOFTWARE NOTICESOFTWARE LICENSE AGREEMENT

Read more less

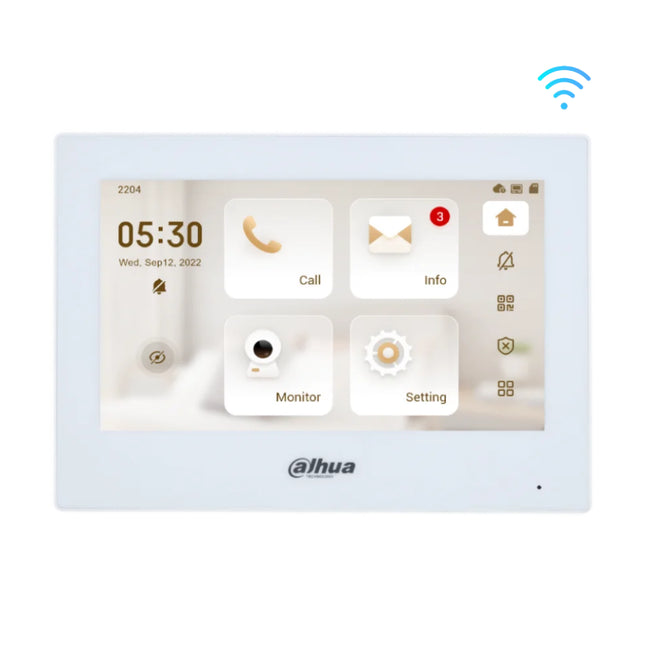

This high performance & cost-effective Dahua IP Indoor Monitor features white colour frame, 7 inch touch screen, 1024×600 pixels resolution with standard PoE. 6 alarms can be connected and security cameras footage can be viewed as well.  7'' TFT capacitive touch screen, 1024 x 600 6-channel alarm input and 1-channel alarm output Standard PoE Door station and IPC monitor H.265 and H.264 video coding High performance & cost-effective Specifications INDOOR MONITORS Size 7 Inch TFT display Colour White Resolution 1024 x 600 Storage Not Support Power Supply DC 12V, PoE Tehnology IP Downloads DHI-VTH2621GW-P DatasheetDHI-VTH2621GW-P Privacy_PolicyDHI-VTH2621GW-P User's ManualOPEN SOURCE SOFTWARE NOTICESOFTWARE LICENSE AGREEMENT

Read more less
