Ubiquiti Authorised Reseller in Australia for UI products; New York-based Ubiquiti access point to extend wireless signals with maximum performance for indoor and outdoor settings. Shop the latest with the best prices on UniFi Cameras, UniFi NVRs, UnFi OS Consoles, UnFi Switches & Accessories.
Ubiquiti UniFi AP AC Outdoor Mesh 1167Mbps, dual-omni antennas - PoE injector includedScalable Enterprise Wi-Fi ManagementUniFi is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi AC Mesh APs have a refined industrial design and can be easily installed using the included mounting hardware.
FeaturesSave money and save time - UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service. You also have the option of using the UniFi Cloud Key with built-in software.Powerful Hardware - The UniFi AC Mesh APs feature Wi-Fi 802.11AC with Plug & Play Mesh technology. Intuitive UniFi Controller Software Configure and manage your APs with the easy-to-learn user interface.Expandable Unlimited scalability - build wireless networks as big or small as needed. Start with one and expand to thousands while maintaining a single unified management system.Antenna Flexibility - The UAP-AC-M can use any other 2.4GHz / 5GHz / Dual Band Ubiquiti airMAX antenna, be it Omni or Sector, to enhance coverage.
Layer 2 switch with (5) GbE RJ45 ports, including (1) 802.3af PoE input.The Switch Flex Mini (USW Flex Mini) is a fully managed, Layer 2 switch with (5) GbE RJ45 ports, including (1) 802.3af PoE input. The USW Flex Mini can be powered with either PoE (via Port 1) or its included USB-C power adapter*. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
(1) GbE, 802.3af PoE RJ45 input(4) GbE RJ45 portsCompact, slim housingCan be powered with a 5V, 1A USB-C adapter (Only Comes In Single Pack)
NanoStation Loco 5AC - Previousely Known as the 5ACLClassic Nano Station design with updated proprietary airMAX ac chipset and dedicated management Wi-Fi for easy U Mobile app support and fast setup. Excellent solution for a simple PtP bridge or use as a PtMP station (CPE).
New Antenna
Improved Design
Management WiFi Radio/U-Mobile App
AirOS v8.1 New UI
High-performing The NanoStation Loco AC M5 is known for its much smaller size than the other NanoStation, which makes it ideal for residential or small building use. It has a good throughput of around 150 mbps, sufficient to cover multitudes of devices and users simultaneously. It has a great reach at 13dBi through its integrated antenna. It operates at a frequency of GHz, which is ideal if you want to maximize throughput. This signal is seldom interrupted by noise or clutter as most devices and appliances work on 2.4GHz frequency. NanoStation Loco AC M5 can be controlled via the software AirOS and AirController. It’s a web-based management interface. PoE The NanoStation Loco AC M5 is also compatible with a PoE (power over Ethernet setup) so you can deal with fewer wires. Moreover, you can now reset its power directly from the main source than on the equipment itself, saving you the hassle.
Ubiquiti's EdgePoint POE-54V-80W PoE Injector is designed to power Ubiquiti's EP-R8 and EP-S16 EdgePoint models. Australian (AU) Power cable included
Dimensions 123 x 65 x 34 mm
Weight 299 g
Output Voltage 54VDC @ 1.5A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability No
Reset Button 100-240AC @ 50/60Hz
Input Voltage 100-240AC @ 50/60Hz
Input Current 0.8A @ 120VAC
0.4A @ 240VAC
Inrush Current <80A Peak @ 120VAC,
<120A Peak @ 230VAC
Efficiency 87+%
Output Ripple 1% Max
Switching Frequency 100 kHz Max.
Line Regulation ± 1%
Load Regulation ± 3%
4-Pair Powering Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70° C (-22 to 158° F)
Operating Humidity 35 to 95% Noncondensing
AC Connector IEC-320 C6
Data IN / POE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 µs) Power
Peak Pulse Current 36A (10/1000 µs) Data
Shunt Capacitance <5 pF data
Response Time <1 ns
Compliance IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B AC Cable with Earth Ground RCM
Toolless Quick-Mounts for Ubiquiti CPE Products.Designed for additional mounting flexibility and device alignment options, the Quick-Mount accessory kit features an easy-to-use, toolless design.
The USW Flex Utility is an outdoor weatherproof enclosure designed for use with the UniFi Switch Flex, USW-Flex. It includes an Ethernet patch cable and a 60W PoE adapter, which provides a maximum PoE budget of 46W. The USW Flex Utility can be easily mounted on a pole, provides clean cable management and screw lock for security.
Downloads
Datasheet
UniFi Pro Aggregation Switch
The Switch Pro Aggregation is a fully managed, Layer 3 switch with (28) 10G SFP+ ports and (4) 25G SFP28 ports designed to enhance your network's switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 760 Gbps switching capacity and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.Additionally, the Switch Pro Aggregation offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
(1) 1.3” LCM color touchscreen with AR switch management
(28) 10G SFP+ ports
(4) 25G SFP28 ports
(1) USP RPS DC input
760 Gbps switching capacity
Layer 3 switching features
Mechanical
Dimensions 442 x 325 x 44 mm
(17.4 x 12.8 x 1.7")
Weight Without Mount: 4.6 kg (10.14 lb)
With Mount: 4.7 kg (10.36 lb)
Enclosure Material SGCC Steel
Hardware
Total Non-Blocking Throughput 380 Gbps
Switching Capacity 760 Gbps
Forwarding Rate 565.44 Mpps
Max. Power Consumption 100W
Power Method (1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz
(1) USP-RPS DC input, 11.5VDC, 8.7A
Power Supply AC/DC, Internal, 100W
Network Interface (28) 1/10 Gbps SFP+ Ethernet
(4) 1/10/25 Gbps SFP28 Ethernet*
LCM Display (1) 1.3" Touchscreen
Management Interface Ethernet In-Band
Modes SMB Layer 3 10/25 G Fiber Switch
ESD/EMP Protection Air: ± 16kV, Contact: ± 12kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 - 90% Noncondensing
*The four SFP28 ports don't support mixed speed at 25Gbps mode.
Once one of the SFP28 ports is configured at 25Gbps mode, the others will be limited at 25Gbps too.
The SFP28 ports only support mixed speed when all ports are at 1Gbps or 10Gbps.
Downloads
Datasheet
Installation Guide
Customised encasing for UniFi Protect G4 Doorbell.
With the UniFi Protect G4 Doorbell Skin Cover, the G4 Doorbell smoothly blends into the background of your choosing.
Ubiquiti Ethernet Surge Protector, Engineered Protect Any Power‑over‑Ethernet (PoE) /Nnon‑PoE Device, Connection Speeds Up to 1 Gbps
ESD protection for outdoor high-speed networks.
Protects outdoor Ethernet devices(2) Passive, surge-protected RJ45 connectionsQuick and easy installationCompatible with GbE networks
Technical Specifications
Mechanical
Dimensions
91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")
Weight
80 g (2.8 oz)
Weatherproofing
IPX5
Hardware
Networking interface
(2) RJ45 female connectors
ESD/EMP protection
Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
DC spark-over voltage
90V @ 100V/s
Max. impulse spark-over voltage
700V @ 1kV/µs
Discharge Current
10kA+
Max. insulation resistance
1G ohm @ 50V
Max. capacitance
1.0 pF @ 1 MHz
Data line protection
GbE
PoE support
Yes
Shock and vibration certification
ETSI300-019-1.4 Standard
Ambient operating temperature
-30 to 65° C (-22 to 149° F)
Ambient operating humidity
10 to 90% noncondensing
NOTES: SINGLE UNIT NOT PAIR. Buy two for P2P.
NanoStation Loco M5
Do you have to spend thousands of dollars just to have a very efficient and reliable wireless network? The answer is no. NanoStation Loco M5 is a great proof for that. A cost-effective solution, it performs just as well as its more expensive counterparts. Plus it has a very elegant form factor that can stand up against rain, snow, and heat. It’s truly a device that doesn’t immediately wear out, a perfect option for a long-term wireless network investment.High-performingThe NanoStation Loco M5 is known for its much smaller size than the other NanoStation, which makes it ideal for residential or small building use. It has a good throughput of around 150 mbps, sufficient to cover multitudes of devices and users simultaneously. It has a great reach at 13dBi through its integrated antenna. It operates at a frequency of GHz, which is ideal if you want to maximize throughput. This signal is seldom interrupted by noise or clutter as most devices and appliances work on 2.4GHz frequency.AirMaxThe unit also makes use of the AirMax technology and its TDMA protocol. It lets you compartmentalize time schedules so you’ll be able to enjoy a smoother transmission and receipt of wireless connection. Moreover, you are also able to reduce latency, even if there are already a lot of devices that are connected into the network. It works very well along with quality of service so you can prioritize the allocation of the available bandwidth.NanoStation Loco M5 can be controlled via the software AirOS and AirController. It’s a web-based management interface.PoEThe NanoStation Loco M5 is also compatible with a PoE (power over Ethernet setup) so you can deal with fewer wires. Moreover, you can now reset its power directly from the main source than on the equipment itself, saving you the hassle.Compact CPE DesignThe NanoStation®M features the CPE design that expanded the global Wireless ISP industry.
The Innovative Ubiquiti UniFi G5 Dream Machine 2K Resolution Surveillance Kit comes with 2 x bullet style UniFi cameras, 2 x dome cameras, 1 x G5 flex indoor camera and 1 x Dream Machine Special Edition, UDM-SE, with 8 x PoE ports which comes with 128GB 128 GB SSD for NVR detection recordings.
1 x UDM-SEThe UniFi Dream Machine - Special Edition is the first UniFi Console that offers a full UniFi application suite right out of the box. Instantly run a complete UniFi deployment without the need for an additional PoE Switch, NVR, or Hard Disk Drive for storage. The UDM SE is an all-in-one router/security gateway that can power your UniFi devices directly from the integrated 8 port gigabit PoE switch and store your UniFi Protect recordings on the integrated 128GB internal hard drive. UDM SE is completely scalable and customizable, so you can easily expand your deployment.
Includes full UniFi application suite for device management 3.5+ Gbps routing with IDS/IPS (1) 10G SFP+*, (8) GbE RJ45 LAN ports including (2) PoE+, and (6) PoE (1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports (1) 3.5" NVR HDD bay Built-in 128 GB SSD for NVR detection recordings 1.3" touchscreen
2 x UVC-G5-DomeNext-gen 2K HD PoE ceiling camera with enhanced dynamic range and low-light performance.
2K (4MP) video resolution Ultra-wide viewing angle (102.4°) 9 m (30 ft) IR night vision AI event detections Integrated 2-way audio Connect and power using PoE Weather-resistant (outdoor covered) Vandal resistant
2 x UVC-G5-BulletUbiquiti UniFi Protect Camera G5-Bullet, Next-gen indoor/outdoor 2K HD PoE Camera
2K (4MP) video resolution Flexible 3-axis adjust mount 9 m (30 ft) IR night vision AI event detections Record audio with an integrated microphone Connect and power using PoE Weatherproof (outdoor exposed)
1 x UVC-G5-FlexCompact, easy-to-deploy 2K HD PoE camera that can be staged indoors or outside.
2K (4MP) video resolution Versatile table or ceiling mounting 6 m (20 ft) IR night vision AI event detections Connect and power using PoE Record audio with an integrated microphone Weather-resistant (outdoor covered)
Ubiquiti Pro Max 48, 48-port, Layer 3 Etherlighting Switch, 2.5 GbE, 16 GbE RJ45 Ports, 32 GbE RJ45 , 4 10G SFP+, Throughput 112 Gbps
A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE.
Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network* (16) 2.5 GbE RJ45 ports (32) GbE RJ45 ports (4) 10G SFP+ ports DC power backup ready Managed with UniFi Network 8.0.24 and later*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
Technical Specifications
Mechanical
Dimensions
442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Weight
Without mounting brackets: 4.8 kg (10.6 lb)With mounting brackets: 4.9 kg (10.8 lb)
Enclosure material
SGCC steel
Hardware
Management interface
Ethernet In-Band
Networking interface
(32) GbE RJ45 ports(16) 1/2.5 GbE RJ45 ports(4) 10G SFP+ ports
Total non-blocking throughput
112 Gbps
Switching capacity
224 Gbps
Power method
(1) Universal input, 100—240V AC, 50/60 Hz(1) USP-RPS DC input
Power supply
AC/DC, internal, 100W
Supported voltage range
100—240V AC
Max. power consumption
100W
LCM display
(1) 1.3" touchscreen
Button
Factory reset
Ambient operating temperature
-5 to 40° C (23 to 104° F)
Ambient operating humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
Switching Features
Layer 2 features
IGMP snoopingSTP / RSTP with priorities and port-level disablePort isolationStorm controlVoice VLANPort mirroringLACP port aggregationMulticast / broadcast rate limitingMAC address blockingFlow control802.1X controlJumbo framesProprietary loop protectionDHCP snooping / guardingEgress rate limitLLDP-MEDPort restricted by MACDevice isolation with ACLs
Layer 3 features
DHCP for locally-managed networksDHCP relayInter-VLAN routing between networks on same switchStatic routing between local networksNetwork isolation with ACLs
Etherlighting™
Ethernet
LocatingSpeed/linkNative VLAN/network
SFP+
LocatingSpeed/linkNative VLAN/network
LEDs
System
Status
RPS
Status
Application Requirements
UniFi Network
Version 8.0.24 and later
Downloads
USW-PRO-MAX-48 Installation Guide
5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate.High-Performance airMAX® ac Bridge Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam™ ac is ideal for CPE deployments requiring maximum performance.Features:
Highly Efficient Antenna Beam Performance
Custom Ubiquiti® airMAX® ac Processor
Up to 450+ Mbps Real TCP/IP Throughput
Innovative Snap and Lock Assembly
Proprietary InnerFeed™ Technology
Downloads
Datasheet
Installation Guide
UniFi Patch Cable Outdoor 8M Black, all-weather, RJ45 Ethernet Cable, Category 5e, WeatherproofRugged, outdoor patch cable designed to function in the harshest environmentsThe UniFi Patch Cable Outdoor is an all-weather patch cable designed for outdoor UniFi deployments that require enhanced protection from the elements. It features a shielded RJ45 plug, internal foil shielding, and a built-in ESD drain wire—all encased in a weatherproof, insulating jacket. The UniFi Patch Cable Outdoor is available in multiple lengths (1, 2, 3, 5, and 8 meters) to ensure that you can reach all of your devices.Features:
Weatherproof, insulating jacket designed to offer extreme elemental protection.
Internal foil shielding.
Integrated ESD drain wire.
Shielded RJ45 plug.
24 AWG stranded copper wire.
Available in 1, 2, 3, 5 and 8-meter lengths
Downloads
Datasheet
UniFi Patch Cable Outdoor 5M White, all-weather, RJ45 Ethernet Cable, Category 5e, Weatherproof
Rugged, outdoor patch cable designed to function in the harshest environments
The UniFi Patch Cable Outdoor is an all-weather patch cable designed for outdoor UniFi deployments that require enhanced protection from the elements. It features a shielded RJ45 plug, internal foil shielding, and a built-in ESD drain wire—all encased in a weatherproof, insulating jacket. The UniFi Patch Cable Outdoor is available in multiple lengths (1, 2, 3, 5, and 8 meters) to ensure that you can reach all of your devices.Features:
Weatherproof, insulating jacket designed to offer extreme elemental protection.
Internal foil shielding.
Integrated ESD drain wire.
Shielded RJ45 plug.
24 AWG stranded copper wire.
Available in 1, 2, 3, 5 and 8-meter lengths
Downloads
Datasheet
Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports.The Switch Enterprise XG 24 (USW Enterprise XG 24) is a fully managed, mult-gigabit, Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports. The USW Enterprise XG 24 also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.Additionally, the USW Enterprise XG 24 offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.Features:
(1) 1.3" LCM color touchscreen with AR switch management
(24) 10GbE RJ45 ports
(2) 25G SFP28 ports
(1) USP RPS DC input
Layer 3 switching features
Single-row RJ45 port layout for easy patch panel cable management
Downloads
Datasheet Installation Guide
Advanced Port Management
Each switch port offers custom settings: port name, PoE, network/VLAN configuration, and operation mode (switching, mirroring, or aggregate) - as well as 802.1X Authentication and Radius VLAN support.
MULTI-SITE MANAGEMENTA single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
OPTICAL FIBRE BACKHAULTwo SFP ports support uplinks of up to 1 Gbps. VERSATILE MOUNTING OPTIONSThe UniFi Switch can be placed on a desktop or mounted on a wall or in a rack.UNIFI CONTROLLERYou can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:
Operation mode (switching, mirroring, or aggregate) per port
Network/VLAN configuration
Jumbo frame and flow control services
Network settings
Storm control setting per port
Spanning tree configuration
802.1x control and RADIUS VLAN
Debug terminal option for command-line interface
FEATURES
(24) Gigabit RJ45 ports
(2) SFP ports
Non-blocking throughput: 26 Gbps
Switching capacity: 52 Gbps
Forwarding rate: 38.69 Mpps
Maximum power consumption: 250W
Supports POE+ IEEE 802.3at/af and 24V Pass
The NanoStation M5 proves that efficiency can still be equated to affordability. Even if it’s low cost, its performance is luxurious. It has a maximum transmission speed of about 300 mbps, allowing it to serve multiple devices at one time. It follows the TDMA (Time Division Multiple Access) protocol, which permits users to effectively schedule time slots in order to maximize the transmission and lower the latency period. It works at a frequency of 5.5GHz, a channel that is not prone to noise and interference. The integrated antenna connects via the 2x2 MIMO technology with a reach of 16dBi, so it’s ideal for complexes or buildings made up of different floors. Paired with QoS, you can easily prioritize bandwidth allocation.It runs on an Atheros 24KC MIPS chipset with a clock speed of 400 MHz. It has a 32MB RAM and 8MB NAND Flash.PoE ConnectionThe NanoStation M5 is equipped with the “intelligent PoE.” This means you can reset it through its power supply, not directly in the unit. This is accomplished via the dual Ethernet port, one of which is dedicated for PoE use. In the process, you’re able to make the most of your electric power and save yourself the hassle of dealing a lot of wires. You can also add an IP camera, which permits you to keep track of your property, among others, through a web-based access.Various Connectivity OptionsThe NanoStation M5 can be used as an access point, connecting to hundreds of devices all at the same time, or as a client, which can be connected to other networks through a bridge. The level of flexibility makes this a fantastic and convenient addition to your networking system.Quick Monitoring ProcessThe NanoStation M5 is easy to monitor through its strength indicators following the integration of 2 pairs of LEDs.Compact CPE DesignThe NanoStation®M features the CPE design that expanded the global Wireless ISP industry.
Ubiquiti airMAX 2.4Ghz 10dBi AMO-2G10 Omni The first of its kind, Ubiquiti airMAX Omni antennas deliver carrier-class, 2X2 dual-polarity, omni-directional MIMO performance. They are designed for seamless integration with Ubiquiti airMAX Rocket hardware.
Versatile mounting system for UAP-AC-PRO, UAP-AC-HD, UAP-AC-SHD, and above
Professional mounting system for UniFi Access Points.
Compatible with U6 Enterprise, U6 Pro, U6 Long-Range, AC Professional, AC HD, AC SHD, AC XG
Variety of mounting holes for different applications
Legend printed on the mounting plate for identifying the holes used for each AP
Technical Specifications
Mechanical
Dimensions
175.6 mm (6.9")
Weight
139 g (4.9 oz)
Enclosure material
Stainless steel
Downloads
Installation Guide
Ubiquiti IR Range Extender for UniFi Protect G4 Bullet Camera - UVC-G4-BULLET
Long-range IR LED accessory for UniFi Protect G4 Camera.
Extends IR Range Up to 25 m (82 ft)
Weather Resistent for Outdoor Use
Powered and Controlled by the UniFi Video Camera
Compatible with UniFi Video Camera G3, model UVC-G3
Ubiquiti Bullet, Dual Band, AC, TitaniumBullet™ AC IP67 covers both 2.4 and 5 GHz bands, covering a wide range of frequency bands that work well for both short and long-distance links. It also features IP 67 protection for deploy-anywhere reliability.
The Switch Flex XG (USW Flex XG) is a fully managed, mult-gigabit, Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE PoE input. The USW Flex XG sports slim, compact housing and can be mounted on a desktop*. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.Features:
(1) GbE, 802.3at PoE+ RJ45 input
(4) 10GbE RJ45 ports
Compact, slim housing
Can be powered with a 5V, 5A USB-C adapter
* Fanless Switch, Do not stack other hardware on the USW Flex XG, will affect heat dissipation
Downloads
Datasheet
Installation Guide

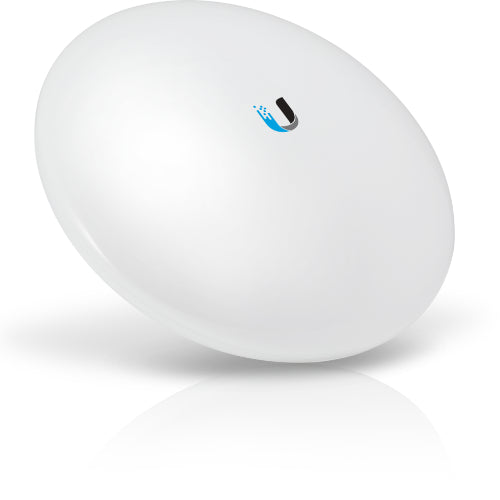

NanoBeam 5AC 2nd Generation 19dBi High-Performance airMAX BridgeIncorporating innovative industrial design with proprietary airMAX AC technology, the NanoBeam AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint. The updated version has all the benefits of the old NBE-5AC-19, but also includes a Management Wi-Fi Radio and increased surge protection.Management Wi-Fi RadioThe NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.Improved Surge ProtectionThe NanoBeam AC features enhanced protection against ESD events.(PoE Included)
Ubiquiti airMAX 5Ghz 10dBi AMO-5G10 Omni The first of its kind, Ubiquiti airMAX Omni antennas deliver carrier-class, 2X2 dual-polarity, omni-directional MIMO performance. They are designed for seamless integration with Ubiquiti airMAX Rocket hardware.
Recessed ceiling mount accessory for the UniFi FLEX HD access point. Mount the UAP-FlexHD to a drop ceiling tile, drywall ceiling or solid ceiling for discreet, low profile appearance. Sliding retainer with locking threads and a snap-in mechanism for the UAP-FlexHD make mounting simple. Magnetic face place hides the bracket for a stylish finish.Features:• Low profile (2”, 51mm), discreet ceiling installation• Guided snap-in locking mechanism for UAP-FlexHD• Adjustable, sliding retainer for mounting without screws• Magnetic 3 1/3” inch (85 mm) face plate• Requires 2 1/8” inch (54 mm) cutout• Includes drywall mounting hardware and anchors
Layer 3, PoE switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.The Switch Enterprise 8 PoE (USW Enterprise 8 PoE) is a fully managed, Layer 3* switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.The USW Enterprise 8 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.Features:
(1) 1.3" LCM color touchscreen with AR switch management
(8) 2.5GbE, 802.3at PoE+ RJ45 ports
(2) 10G SFP+ ports
120W total PoE supply
Wall-mountable (kit included)
* Layer 3 switching will become available in a future firmware update.
Managed with the UniFi Network application: Version 6.3.51 and later
Downloads
Datasheet
Installation Guide
Managed Layer 3 switch with (12) 2.5G RJ45 ports with PoE+ for WiFi 6 APs, (12) Gigabit RJ45 ports with PoE+, and (2) 10G SFP+ ports for fiber uplinks.Configurable Gigabit Layer 3 switch with auto-sensing 802.3at PoE+. It offers (12) 2.5G RJ45 Ethernet ports, (12) 1G RJ45 Ethernet ports, and (2) 10G SFP+ ports, providing 2.5G PoE links to your WiFi 6 APs and 10G fiber uplinks to your network. Features include a 1.3" touchscreen, single-row RJ45 port layout for easy patch panel cable management, and UniFi SmartPower Redundant Power System* (USP-RPS) support for intelligent protection from internal PSU interruption or failure.Features:
(12) 2.5G 802.3af/at PoE+ RJ45 ports
(12) 1G 802.3af/at PoE+ RJ45 ports
(2) 10G SFP+ ports
400W total PoE capacity
1.3" touchscreen with AR switch management
UniFi SmartPower RPS DC input
Managed with UniFi Network Application Version: 5.14.12 or higherMechanical
Dimensions 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")
Weight Without Mount: 5.11 kg (11.27 lb)
With Mount: 5.2 kg (11.46 lb)
Enclosure Materials SGCC Steel
Mount Material SGCC Steel
Hardware
Total Non-Blocking Throughput 62 Gbps
Switching Capacity 124 Gbps
Forwarding Rate 92.25 Mpps
Max. Power Consumption 550W
Power Method (1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz
(1) USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A
Power Supply AC/DC, Internal, 550W
Management Interface Ethernet In-Band
Networking Interfaces (12) 10/100/1000 Mbps RJ45 Ethernet
(12) 100/1000/2500 Mbps RJ45 Ethernet
SFP+ Interfaces (2) 1/10G SFP+
PoE Interfaces (24) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3af Mode 44 to 57V
Voltage Range 802.3at Mode 50 to 57V
Services SMB Layer 3 PoE Gigabit Ethernet Switch
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 - 95% Noncondensing
Certifications CE, FCC, IC
Ubiquiti airMAX 2.4Ghz 13dBi AMO-2G13 Omni The first of its kind, Ubiquiti airMAX Omni antennas deliver carrier-class, 2X2 dual-polarity, omni-directional MIMO performance. They are designed for seamless integration with Ubiquiti airMAX Rocket hardware.
Ubiquiti Cloud Key+, UniFi OS Console Connects To Site Manager, Pre-installed 1TB SSD, Connect & Power via PoE, Optional USB-C Power
Compact UniFi Console that connects directly to the Site Manager at https://unifi.ui.com/ for powerful, multi-application site management.
Features
Includes full UniFi application suite for device management Pre-installed 1TB SSD Connect and power using PoE Optional USB-C power with Quick Charge 2.0/3.0 compliant adapter only Bluetooth for instant setup
Downloads
Installation Guide
Technical Specifications
Mechanical
Dimensions
131.2 x 27.1 x 134.2 mm (5.2 x 1.1 x 5.3")
Weight
560 g (1.2 lb)
Enclosure material
Anodized aluminum
Hardware
Processor
Octa-core Arm® Cortex®-A53 based chip
Management interface
EthernetBluetooth
Networking interface
(1) GbE RJ45 port
Memory
32 GB eMMC3 GB RAM
SSD capacity
1 TB 2.5" SATA SSD (user-upgradeable*)*CloudKey+ only supports drives that can operate on 5V power. Drives that require additional power are not supported.
Power method
PoEQuick charge 2.0/3.0 power adapter, 9V DC, 2A
Max. power consumption
9.6W
Display
1.42" gray-scale OLED
LEDs
(1) Power: white/blue
Buttons
(1) Power(1) Factory reset
Ambient operating temperature
0 to 35° C (32 to 104° F)
Ambient operating humidity
20 to 80% noncondensing
Certifications
FCC, CE, IC
Capacity
HD cameras2K cameras4K cameras
24148Assumes the UCK-G2-SSD is dedicated to UniFi Protect only. If it’s also running UniFi Network, your maximum camera limit will be lower.
Ubiquiti UniFi G5 Dome Ultra, Ultra-compact & IK06 Tamper-resistant 2K HD PoE Camera, Night Vision For Low-profile Indoor Security
Ultra-compact and tamper-resistant 2K HD PoE camera with night vision designed for low-profile indoor security.
Features
2K (4MP) video resolution Ultra-wide viewing angle (102.4°) 20 m (65 ft) IR night vision AI event detections Connect and power using PoE Optional Flush Mount for in-ceiling installation
Technical Specifications
Mechanical
Dimensions
Ø63.6 x 68.2 mm (Ø2.5 x 2.7")
Weight
175 g (6.2 oz)
Enclosure material
Aluminum alloy, polycarbonate
Mount material
Stainless steel
Resistance
IK06
Optics
Sensor
1/2.4" CMOS
Lens
Fixed focal length
View angle
H: 102.4°, V: 54.9°, D: 120.6°
Night mode
Built-in IR LED illumination and IR cut filter
IR distance
20 m (65 ft)
Video
Resolution
4MP 2688 x 1512 (16:9)
Max. frame rate
30 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor
Dual-core Arm® Cortex®-A7 based chip
Networking interface
10/100 MbE RJ45 port
Max. power consumption
4.2W
Power method
PoE
Supported voltage range
37–57V DC
Button
Factory reset
Mounting
Surface mount
Ambient operating temperature
-20 to 40º C (-4 to 104º F)
Ambient operating humidity
10 to 90% noncondensing
Certifications
FCC, IC, CE
Software
Web application
UniFi Protect
Mobile app
UniFi Protect iOS™ and Android™
Downloads
UniFi G5 Dome Ultra Installation Guide
Ubiquiti Intercom Viewer, Display Pair With Access Intercom For Visitor Screening & Remote Access Control, Allow Multiple Location, PoE
Display that pairs with the Access Intercom for visitor screening and remote access control, to mount in multiple locations throughout your building.
Features
Two-way audio Instant live view 5" touch display Connect and power using a PoE switch
Technical Specifications
Mechanical
Dimensions
135 x 72 x 31.8 mm (5.3 x 2.8 x 1.3")
Weight
168 g (5.9 oz)
Enclosure materials
Glass, polycarbonate
Mount material
Aluminum alloy
Mounting
Wall (Included)Gang box mount (Gang box not included)
Hardware
Networking interface
(1) 10/100 Mbps RJ45 port
Management interface
Ethernet
Power method
PoE
Supported voltage range
48V DC
Max. power consumption
5W
Display
127 mm (5") diagonal
Resolution
720 x 1280 (9:16)
Display luminance
300 nits (typical)
Touch screen technology
Capacitive multi-touch
Screen orientation
Portrait
Microphone
Yes
Speaker
Yes
Button
Factory reset
Ambient operating temperature
-10 to 40° C (14 to 104° F)
Ambient operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Software
Management application
UniFi Access: Version 1.22.17 and later
Downloads
Installation Guide
Ubiquiti UniFi Access Reader G2 Professional, 2-Way Intercom, Unlock Via NFC or Unifi Identity, IP55 Weather Resistance, Pin Unlock
This is a 2-Way Intercom, Unlock Via NFC or Unifi Identity, IP55 Weather Resistance, Pin Unlock. Empower employees with a wide variety of unlock options suitable for any weather conditions.
Features:
Unlock using an NFC card or UniFi Identity mobile app
Doorbell to unlock, triggering the intercom with a video of a visitor
Video works at ADA-compliant mounting height
PIN unlocking on the screen
Connects to UniFi Access Hub using PoE
IP55 rain resistance (-10 to 40° C)
Technical Specifications
Mechanical
Dimensions
160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
Weight
136 g (4.8 oz)
Enclosure material
Polycarbonate, glass
Mount material
Aluminum alloy
Mounting
Wall, gang box
Weatherproofing
IP55
Hardware
Networking interface
(1) GbE RJ45 port
Connectivity
BLE 4.2NFC
Power method
PoEUL 294 Power-limited Class 2 PSUUL 60950-1/62368-1 LPS/PS2 PSU
Supported voltage range
48V DC
Max. power consumption
6W
ESD/EMP protection
Air: ±15kV, contact: ±8kV
Sensor
Proximity sensor
Camera
4000 x 3000, 12 MP, 30 FPS
View angle
H: 96.67°, V: 123.15°, D: 153.11°
Microphone
Yes
Speaker
(1) 4 ohm, 1.5W
LEDs
R/G/B/WFlash
Button
(1) Factory-reset
NFC frequency
13.56 MHz
NFC read range
< 30 mm
NFC standards
ISO 14443A, 14443B, 15693
NFC technology
NFC Tag 1,2,3,4,5MIFARE ClassicMIFAREPlusMIFARE UltralightMIFARE DESFire
Operating environment
Outdoor use
Ambient operating temperature
Device: -30 to 45° C (-22 to 113° F)Display:* -10 to 45° C (14 to 113° F)*The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional. (Effective after firmware v1.3.28)
Ambient operating humidity
5 to 90% noncondensing
Software information
The software version of a product can be checked at https://unifi.ui.com
UL 294 level
Destructive attack: Level ILine security: Level IEndurance: Level IStandby power: Level I
UL 294 statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294.The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
PoE cabling requirements
Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-G2-Pro/UA-G2-Pro-Black, V02
LED
System
Steady blue: Adopted/device is readySteady white: Pending adoptionBlinking white/blue: Upgrading firmwareStrobing red: Emergency lockdown
Software
Management application
UniFi Access: Version 1.5.9 and later
Downloads
Installation Guide
Ubiquiti airCube Wireless Dual-Band Wi-Fi Access Point, 802.11AC 2x2 Wireless, 4x Gigabit Ethernet, Super Antenna, Wide-area Coverage
High-performance home WiFi access point made to interoperate with airMAX CPE devices, with remote management by UISP.
Features
802.11ac 2x2 Integrated 24V PoE passthrough via included PSU UISP support for remote network management
Technical Specifications
Mechanical
Dimensions
87.8 x 89.5 x 89.25 mm (3.5 x 3.5 x 3.5")
Weight
280 g (9.9 oz)
Hardware
Networking interface
(4) GbE RJ45 ports
Management interface
EthernetWiFi
Power method
Micro-USB adapter (Included)24V DC, 0.83A PoE 24V In on Ethernet port 1
Power supply
24V
Supported voltage range
22—27V DC
Max. power consumption
8.5W
PoE Out
Controllable 24V PoE Out (4, 5+, 7, 8-) on WAN Port
Operating frequency
2.4 GHz/5 GHz
Antenna gain2.4 GHz5 GHz
4 dBi5 dBi
Max. speeds2.4 GHz5 GHz
300 Mbps866.7 Mbps
Max. TX power
22 dBm
ESD/EMP protection
± 24 kV Contact / Air
LED
Status
Ambient operating temperature
-10 to 50° C (14 to 122° F)
Ambient operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Downloads
Installation Guide
Ubiquiti Pro Max 24, 24-port, Layer 3 Etherlighting Switch, 2.5 GbE, 16 GbE RJ45 Ports, 16 GbE RJ45 2 10G SFP+, Throughput 56 Gbps, USW-Pro-Max-24
A 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE.
Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network* (8) 2.5 GbE RJ45 ports (16) GbE RJ45 ports (2) 10G SFP+ ports DC power backup ready Managed with UniFi Network 8.0.24 and later*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
Technical Specifications
Mechanical
Dimensions
442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Weight
Without mounting brackets: 4.2 kg (9.3 lb)With mounting brackets: 4.3 kg (9.5 lb)
Enclosure material
SGCC steel
Hardware
Management interface
Ethernet In-Band
Networking interface
(16) GbE RJ45 ports(8) 1/2.5 GbE RJ45 ports(2) 10G SFP+ ports
Total non-blocking throughput
56 Gbps
Switching capacity
112 Gbps
Power method
(1) Universal input, 100—240V AC, 50/60 Hz(1) USP-RPS DC input
Power supply
AC/DC, internal, 50W
Supported voltage range
100—240V AC
Max. power consumption
50W
LCM display
(1) 1.3" touchscreen
Button
Factory reset
Ambient operating temperature
-5 to 40° C (23 to 104° F)
Ambient operating humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
Switching Features
Layer 2 features
IGMP snoopingSTP / RSTP with priorities and port-level disablePort isolationStorm controlVoice VLANPort mirroringLACP port aggregationMulticast / broadcast rate limitingMAC address blockingFlow control802.1X controlJumbo framesProprietary loop protectionDHCP snooping / guardingEgress rate limitLLDP-MEDPort restricted by MACDevice isolation with ACLs
Layer 3 features
DHCP for locally-managed networksDHCP relayInter-VLAN routing between networks on same switchStatic routing between local networksNetwork isolation with ACLs
Etherlighting™
Ethernet
LocatingSpeed/linkNative VLAN/network
SFP+
LocatingSpeed/linkNative VLAN/network
LEDs
System
Status
RPS
Status
Application Requirements
UniFi Network
Version 8.0.24 and later
Downloads
USW-Pro-Max-24 Installation Guide
Ubiquiti Dream Machine Pro Max, 10 Gbps Cloud Gateway with 200+ UniFi device / 2,000+ client support, 5 Gbps IPS routing, and redundant NVR storage
Enhanced computing power and memory for 2x the UniFi device and client capacity of Dream Machine Pro/SE Includes full UniFi application suite for device management 5 Gbps routing with IDS/IPS (1) 10G SFP+*, (8) GbE RJ45 LAN ports (1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports (2) 3.5" NVR HDD bays with RAID data protection Built-in 128 GB SSD for NVR detection recordings 1.3" touchscreen
Technical Specifications
Mechanical
Dimensions
442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Weight
4.7 kg (10.4 lb)
Enclosure material
Aluminium CNC, SGCC steel
Mount material
SGCC steel
Hardware
Processor
Quad-core ARM® Cortex®-A57 at 2.0 GHz
System memory
8 GB DDR4
On-board storage
32 GB eMMCIntegrated 128 GB SSD
Management interface
Ethernet Bluetooth
Networking interface
LAN:(8) GbE RJ45 ports(1) 10G SFP+ portWAN:(1) 2.5 GbE RJ45 port(1) 10G SFP+ port
IDS/IPS throughput
5 Gbps**Measured with iPerf3.
Power method
(1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz(1) USP-RPS DC input,12V DC, 4.6A
Power supply
AC/DC, internal, 100W
Supported voltage range
100—240V AC
Max. power consumption
60W
ESD/EMP protection
Air: ± 15kV, contact: ± 8kV
LCM display
(1) 1.3" touchscreen
Button
Factory reset
Ambient operating temperature
-10° to 40° C (14° to 104° F)
Ambient operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Gateway Features
Performance
Redundant WAN with failover and load balancingWiFi QoS with UniFi APsApplication, domain, and country-based QoSApplication and device type identificationAdditional internet failover with LTE BackupInternet quality and outage reporting
Next-generation security
Application-aware firewall rulesSignature-based IPS/IDS threat detectionContent, country, domain, and ad filteringVLAN/subnet-based traffic segmentationFull stateful firewall
Advanced networking
License-free SD-WANWireGuard, L2TP and OpenVPN serverOpenVPN clientOpenVPN and IPsec site-to-site VPNOne-click Teleport and Identity VPNPolicy-based WAN and VPN routingDHCP relayCustomizable DHCP serverIGMP proxyIPv6 ISP support
LEDs
Ethernet
Green: link/activity
SFP+
Green: link/activity
HDD
White: disk activityAmber: disk error
RPS
Blue: ready
Downloads
Installation Guide
Ubiquiti PoE Injector, 24VDC, 12W, Black, Surge and Clamping Protection, Max Surge Discharge, Earth Ground AC Cable, Peak Pulse Current
Ubiquiti POE Injector, 24VDC, 12W, Features earth grounding/ESD protection and power LED
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices.
Features
Surge protection
Clamping protection
Maximum surge discharge
Peak pulse current
AC cable with earth ground
A compact and powerful UniFi gateway with a full suite of advanced routing and security features.
Up to 10x routing performance increase over USG (tested with IPS/IDS, QoS, and Smart Queues) Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server (1) GbE WAN port (1) GbE LAN port Compact footprint USB-C powered (adapter included) Managed with UniFi Network 8.0.7 and later
Downloads
Installation Guide
Technical Specifications
Mechanical
Dimensions
98 x 98 x 30 mm (3.9 x 3.9 x 1.2")
Weight
320 g (11.3 oz)
Enclosure material
Polycarbonate
Hardware
Processor
Dual-core ARM® Cortex®-A53 at 1 GHz
Memory information
1 GB DDR3L
Management interface
EthernetBluetooth 5.1
Networking interface
LAN:(1) GbE RJ45 portWAN:(1) GbE RJ45 port
Power method
USB type C (5V/3A)
Supported voltage range
100–240V
Max. power consumption
3.83W
Ambient operating temperature
-10 to 40° C (14 to 104° F)
Ambient operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Gateway Features
Performance
WiFi QoS with UniFi APsApplication, domain, and country-based QoSApplication and device type identificationInternet quality and outage reporting
Next-generation security
Application-aware firewall rulesSignature-based IPS/IDS threat detectionContent, country, domain, and ad filteringVLAN/subnet-based traffic segmentationFull stateful firewall
Advanced networking
License-free SD-WAN*WireGuard, L2TP and OpenVPN serverOpenVPN clientOpenVPN and IPsec site-to-site VPNOne-click Teleport* and Identity Enterprise VPN**Policy-based WAN and VPN routingDHCP relayCustomizable DHCP serverIPv6 ISP support*When paired with a Cloud Key or Official UniFi Hosting.**When paired with a Cloud Key.
Application Requirements
UniFi Network
Version 8.0.7 and later
