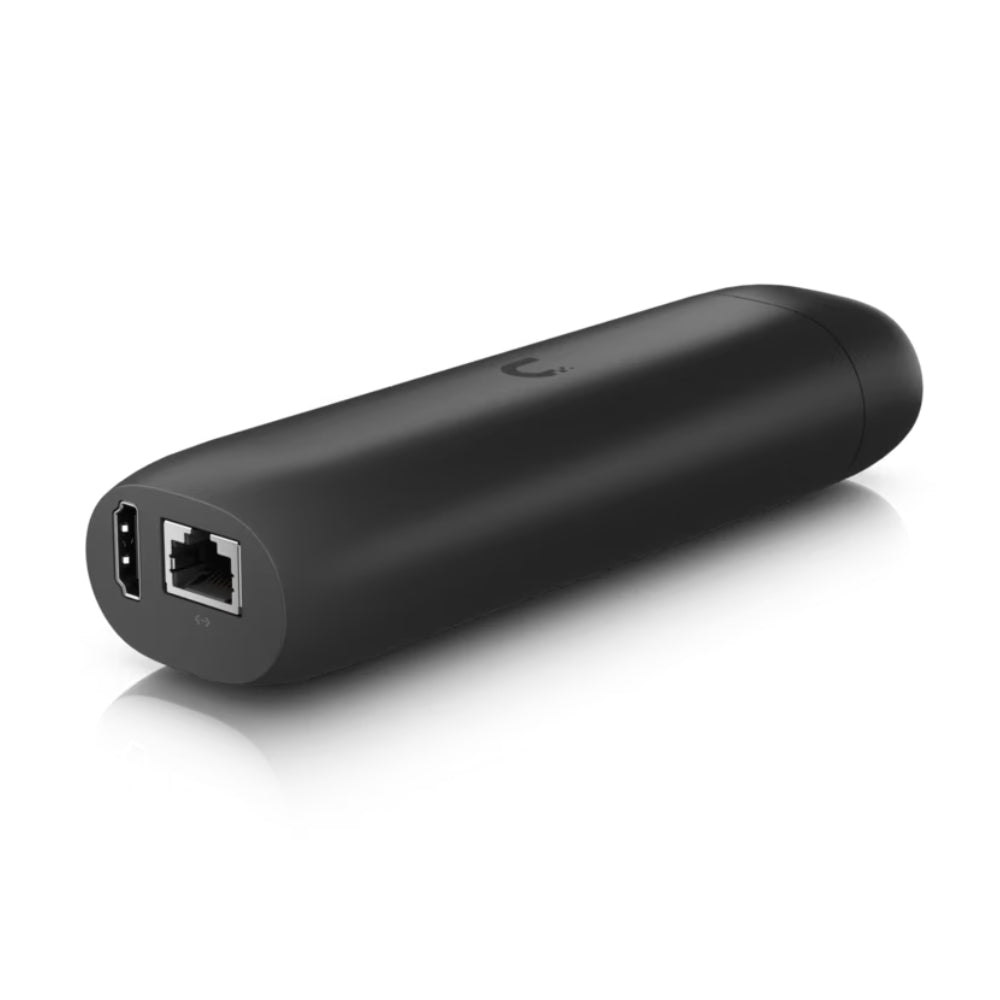

Ubiquiti UniFi Protect ViewPort PoE HDMI Adapter (UP-Viewport)

Description

UniFi Protect · NDAA Compliant

Ubiquiti UniFi Protect ViewPort PoE HDMI Adapter (UP-Viewport)

The UniFi Protect ViewPort (UP-Viewport) connects a UniFi Protect camera system to an HDMI television or monitor, providing a dedicated live surveillance display without requiring a computer. It supports flexible camera layouts with up to a 16-stream matrix view and HDMI output up to 4K at 30 FPS.

Video Output
HDMI up to 4K/30 FPS
Live View
Up to 16 Streams
Network & Power
Gigabit PoE
Model
UP-Viewport

Purpose-Built UniFi Protect Display

Use the ViewPort at a reception desk, security office, control room, retail counter or other monitoring point. After adoption in UniFi Protect, select the required camera-view layout and display it on a connected HDMI screen. The compact adapter can mount discreetly behind a television or monitor.

4K HDMI Output

Outputs UniFi Protect live views to a compatible HDMI display at up to 4K resolution and 30 frames per second.

16-Stream Matrix

Supports flexible multi-camera layouts containing up to 16 simultaneous Protect camera streams.

Single-Cable PoE

A Gigabit Ethernet connection supplies network connectivity and PoE power, reducing cabling at the display.

Dedicated Live View

Displays camera feeds without leaving a computer connected to the television or monitor.

Flexible Mounting

The included TV mount allows discreet placement behind a compatible display.

UniFi Protect Managed

Configuration and camera-view selection are managed through the UniFi Protect web application or mobile app.

Technical Specifications

Official model UP-Viewport
Function UniFi Protect camera-feed viewer for HDMI displays
HDMI output Up to 4K at 30 FPS
Matrix view Up to 16 camera streams
Networking (1) GbE RJ45 port
Power method PoE
Maximum power consumption 9.5 W
Dimensions 157 × 52 × 37 mm
Weight 230 g without mount; 252 g with TV mount
Operating temperature 0 to 40°C
Operating humidity 20–80% non-condensing
Compliance NDAA compliant
Application UniFi Protect web, iOS and Android

What You Need

  • A working UniFi Protect deployment with compatible Protect cameras.
  • A PoE network connection. A PoE switch or injector is required and is not included unless specifically stated.
  • An HDMI television or monitor and an HDMI cable. The display and HDMI cable are sold separately.

What's Included

  • 1 × UniFi Protect ViewPort (UP-Viewport)
  • TV/display mounting hardware supplied by Ubiquiti

Downloads & Resources

Official Ubiquiti Specifications

Frequently Asked Questions

Does the ViewPort record footage?

No. It is a viewing adapter. Recording and storage are provided by your compatible UniFi Protect console or NVR.

Can it display multiple cameras?

Yes. It supports matrix layouts containing up to 16 Protect camera streams.

Does it require separate power?

No local power adapter is required when connected to a compatible PoE source.

Is an HDMI cable included?

No. Use a suitable HDMI cable for the required resolution and installation distance.
