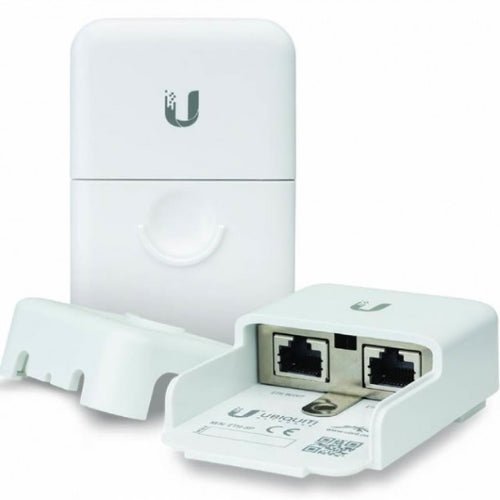

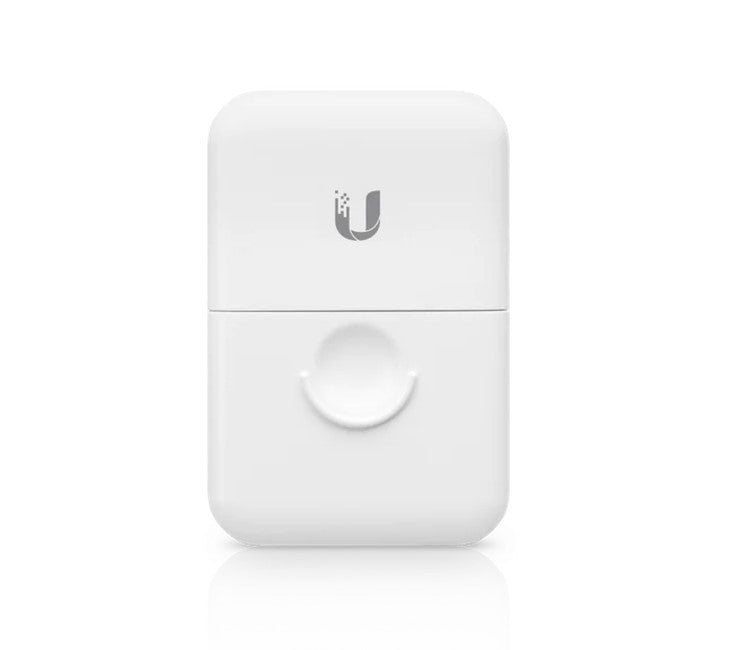

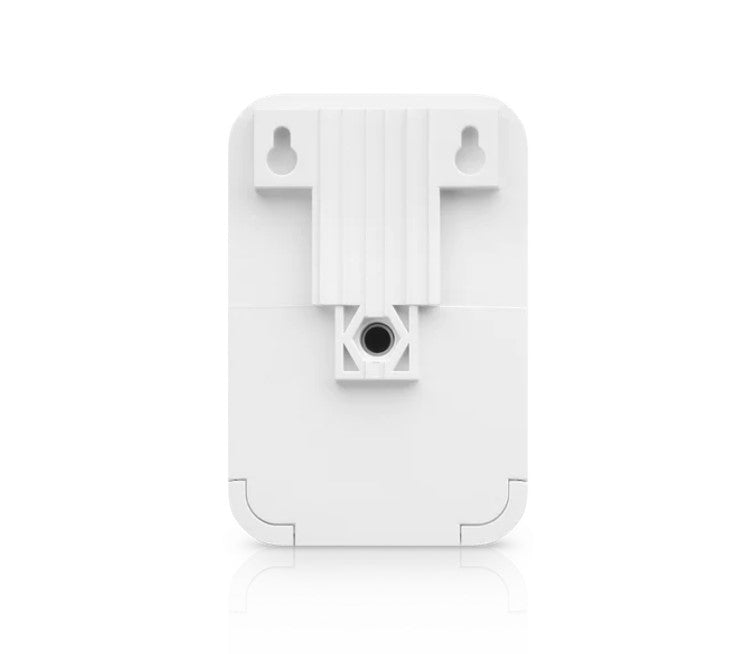

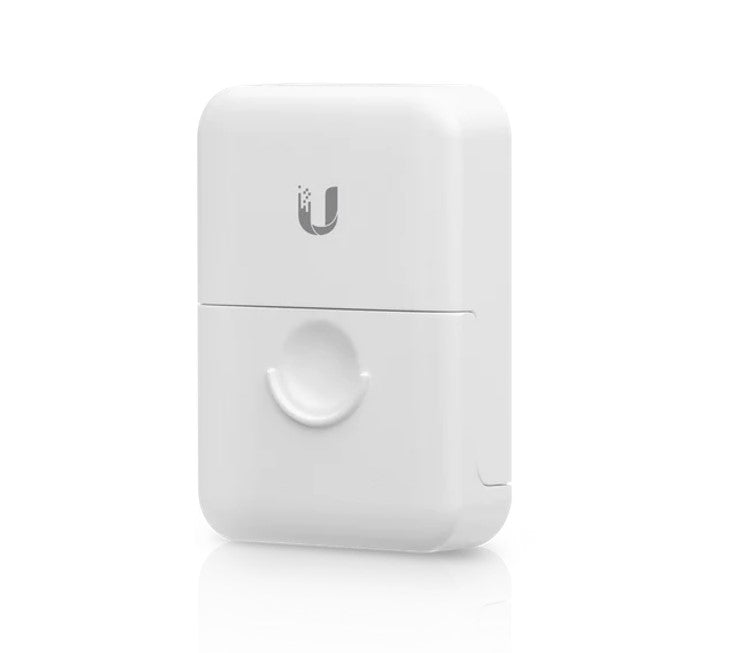

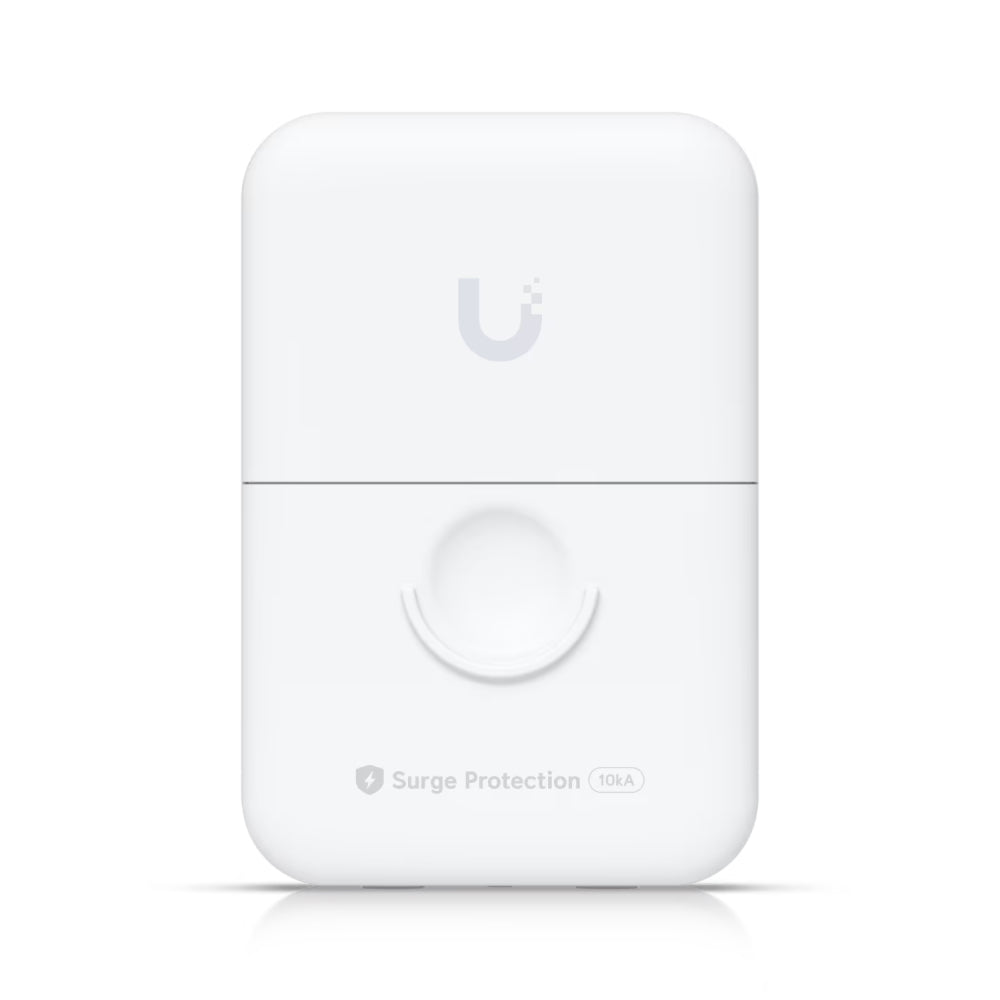

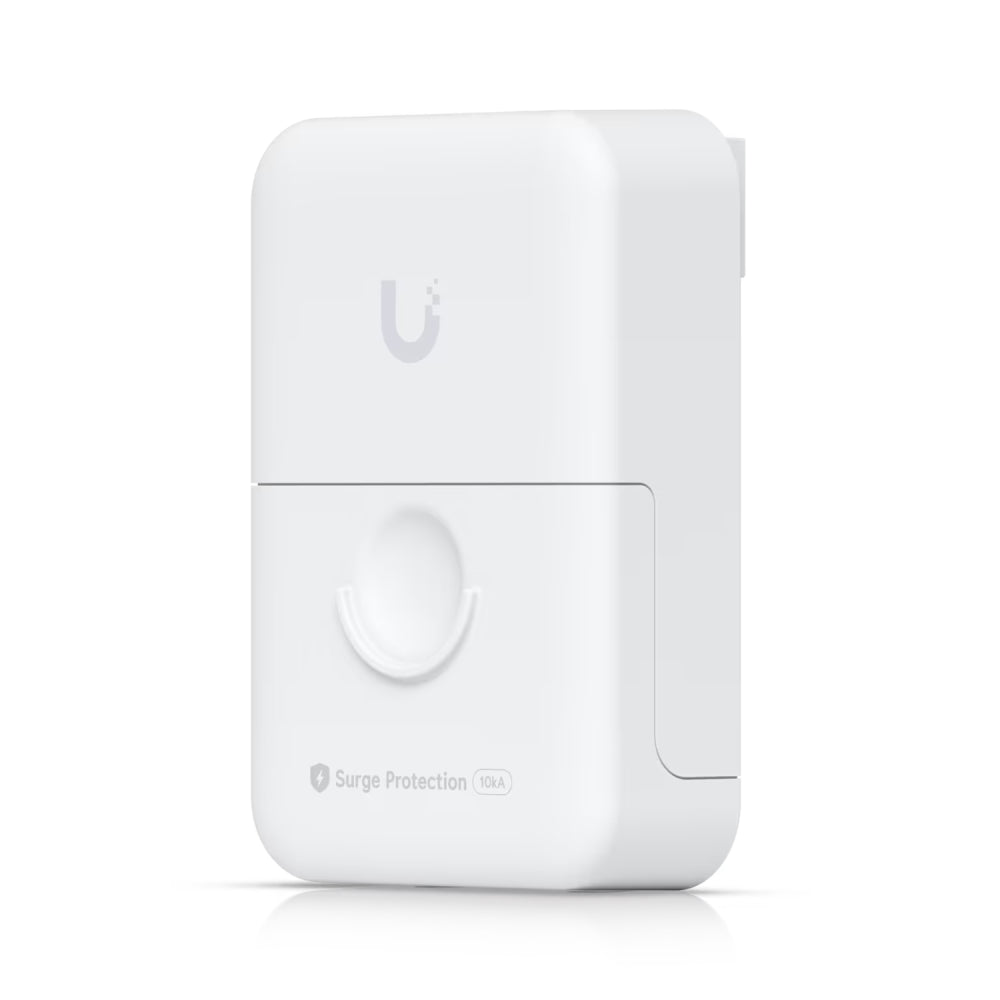

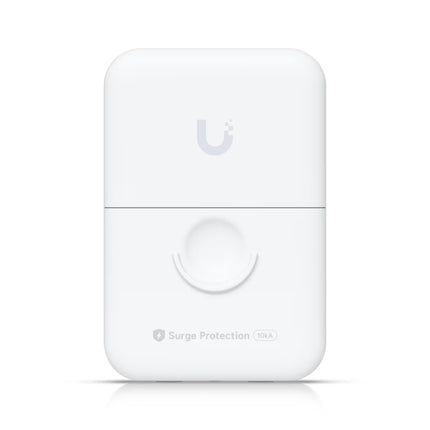

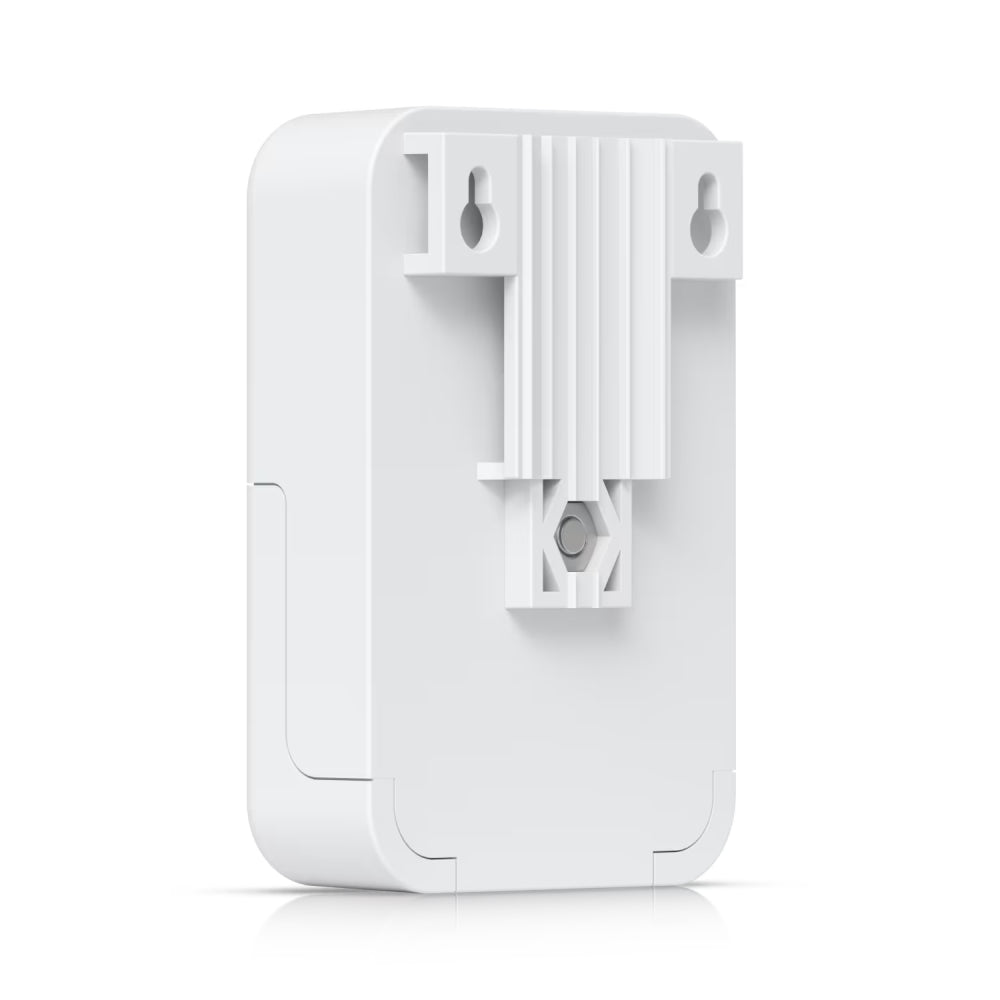

Ubiquiti Ethernet Surge Protector, Engineered Protect Any Power‑over‑Ethernet (PoE) /Nnon‑PoE Device, Connection Speeds Up to 1 Gbps

Description

Ubiquiti Ethernet Surge Protector, Engineered Protect Any Power‑over‑Ethernet (PoE) /Nnon‑PoE Device, Connection Speeds Up to 1 Gbps

ESD protection for outdoor high-speed networks.

Protects outdoor Ethernet devices
(2) Passive, surge-protected RJ45 connections
Quick and easy installation
Compatible with GbE networks

Technical Specifications

Mechanical
Dimensions 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")
Weight 80 g (2.8 oz)
Weatherproofing IPX5
Hardware

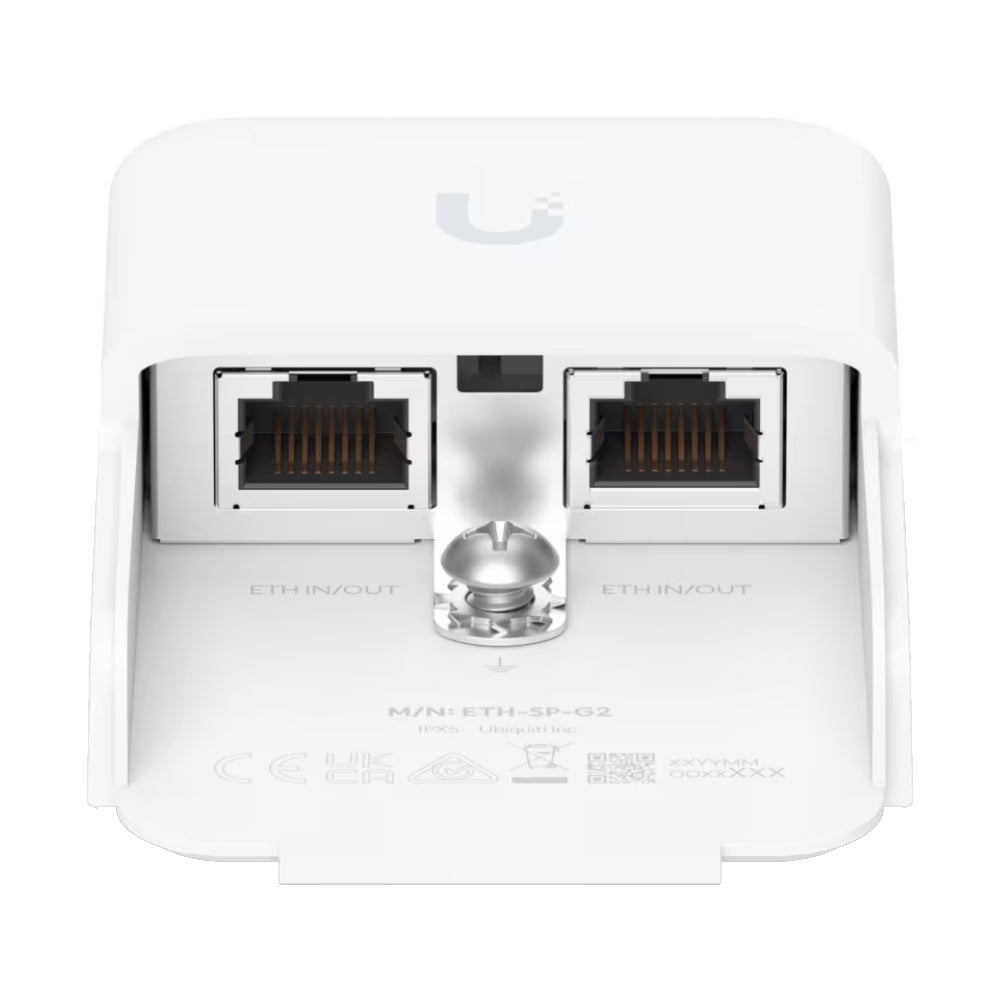

Networking interface (2) RJ45 female connectors
ESD/EMP protection Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
DC spark-over voltage 90V @ 100V/s
Max. impulse spark-over voltage 700V @ 1kV/µs
Discharge Current 10kA+
Max. insulation resistance 1G ohm @ 50V
Max. capacitance 1.0 pF @ 1 MHz
Data line protection GbE
PoE support Yes
Shock and vibration certification ETSI300-019-1.4 Standard
Ambient operating temperature -30 to 65° C (-22 to 149° F)
Ambient operating humidity 10 to 90% noncondensing

Ubiquiti Ethernet Surge Protector, Engineered Protect Any Power‑over‑Ethernet (PoE) /Nnon‑PoE Device, Connection Speeds Up to 1 Gbps

Product form

SKU: ETH-SP-G2

Ubiquiti Ethernet Surge Protector, Engineered Protect Any Power‑over‑Ethernet (PoE) /Nnon‑PoE Device, Connection Speeds Up to 1 Gbps ESD protection for... Read more

$27.50 Incl. GST

  • Dispatch today? Order within: Oct 14, 2024 14:00:00 +1100
  • Warranty: 12 months
  • 30 day money back guarantee
  • Australian Stocks & Express Delivery
  • Back-to-base Warranty & Tech Support
    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • Zip
    • Klarna
    • Afterpay

    Description

    Ubiquiti Ethernet Surge Protector, Engineered Protect Any Power‑over‑Ethernet (PoE) /Nnon‑PoE Device, Connection Speeds Up to 1 Gbps

    ESD protection for outdoor high-speed networks.

    Protects outdoor Ethernet devices
    (2) Passive, surge-protected RJ45 connections
    Quick and easy installation
    Compatible with GbE networks

    Technical Specifications

    Mechanical
    Dimensions 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")
    Weight 80 g (2.8 oz)
    Weatherproofing IPX5
    Hardware
    Networking interface (2) RJ45 female connectors
    ESD/EMP protection Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
    DC spark-over voltage 90V @ 100V/s
    Max. impulse spark-over voltage 700V @ 1kV/µs
    Discharge Current 10kA+
    Max. insulation resistance 1G ohm @ 50V
    Max. capacitance 1.0 pF @ 1 MHz
    Data line protection GbE
    PoE support Yes
    Shock and vibration certification ETSI300-019-1.4 Standard
    Ambient operating temperature -30 to 65° C (-22 to 149° F)
    Ambient operating humidity 10 to 90% noncondensing
