Ubiquiti UniFi · NDAA & TAA COMPLIANT

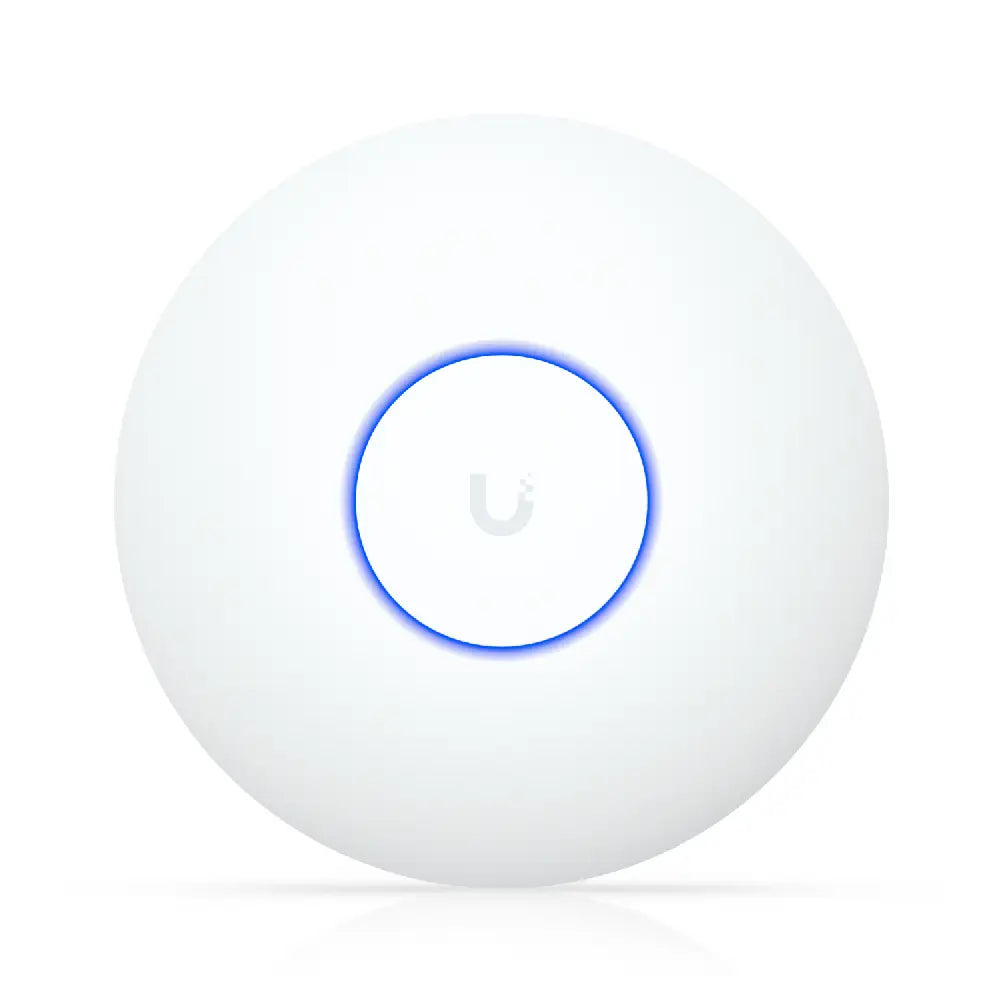

Next-Generation Connectivity with Ubiquiti U7-Lite
Engineered for dense environments and high-speed commercial deployments, the Ubiquiti U7-Lite brings cutting-edge WiFi 7 technology to modern offices, multi-dwelling units, and enterprise spaces. Combining a streamlined form factor with advanced dual-band capabilities and a robust 2.5 GbE uplink, it delivers ultra-low latency and seamless wireless distribution across demanding networks.
WiFi Standard
WiFi 7 (802.11be)
Throughput / Speed
4.3 Gbps (5 GHz)
Client Capacity
200+ Concurrent
Wired Uplink
2.5 GbE RJ45 Port

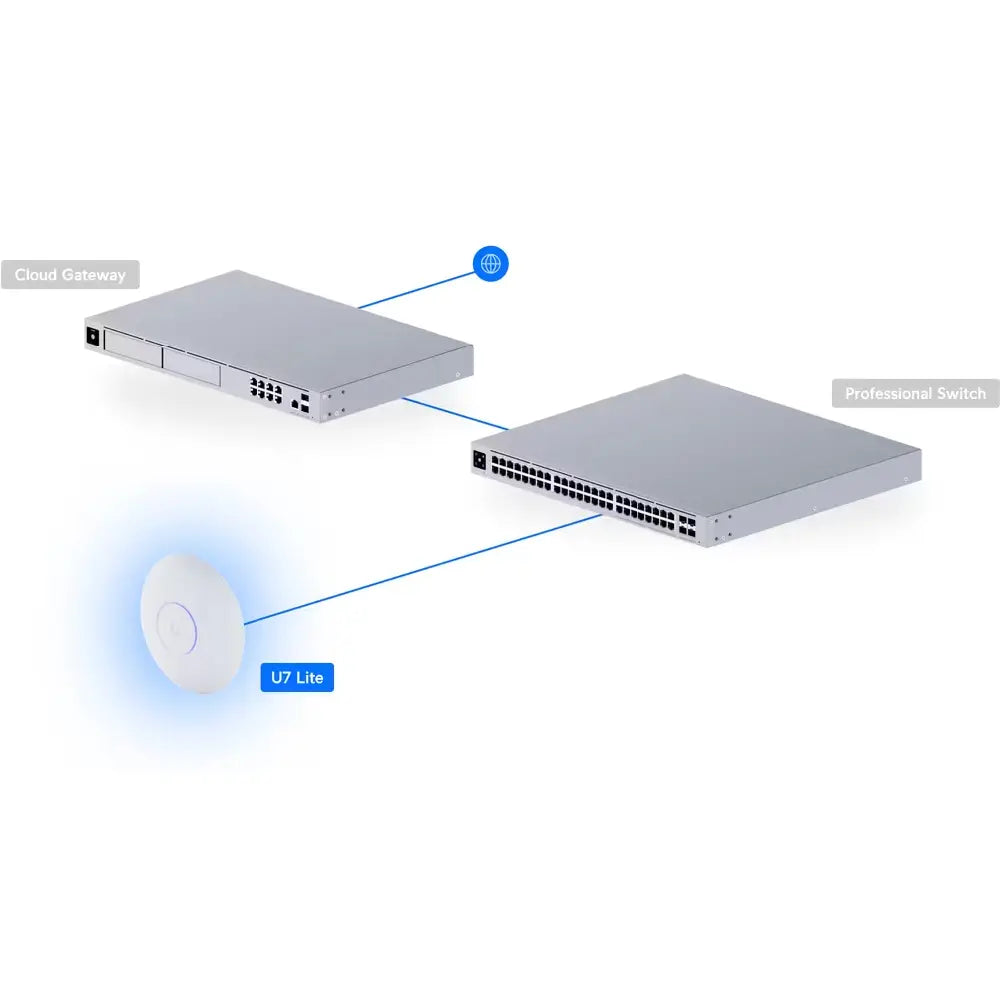

Enterprise Management & Advanced Architecture
Integrated seamlessly into the UniFi ecosystem via the UniFi Network Application, the U7-Lite delivers enterprise-grade protocol handling, advanced radio management, and guest network isolation. Supporting 802.11r fast roaming, band steering, and individual VLAN assignment per SSID, network administrators can ensure optimal load balancing and high security across complex multi-user architectures.
Advanced WiFi 7 Performance
Utilizes dual-band architecture with 2x2 MU-MIMO spatial streams across both 2.4 GHz and 5 GHz radios, achieving up to 4.3 Gbps throughput on wide 240 MHz channels to effortlessly process bandwidth-heavy workloads.
Streamlined Power & Deployment
Powered cleanly via standard 802.3af Power over Ethernet (PoE) with a maximum consumption of only 13W, housed in a durable UV-stabilized polycarbonate enclosure built for versatile ceiling or wall mounting.
Technical Specification Matrix
| Model |
U7-Lite |
| WiFi Standard |
WiFi 7 (802.11be) |
| Spatial Streams |
4 Total (2x2 Dual-Band DL/UL MU-MIMO) |
| Max Data Rate |
5 GHz: 4.3 Gbps (BW240) | 2.4 GHz: 688 Mbps (BW40) |
| Coverage Area |
Up to 115 m² (1,250 ft²) |
| Networking Interface |
(1) 2.5 GbE RJ45 port |
| Power Method / Max Power |
PoE 802.3af (42.5–57V DC) / 13W max |
| Dimensions & Weight |
Ø171.5 x 33 mm (Ø6.8 x 1.3") | 313 g (11 oz) |
Does the U7-Lite include a PoE injector out of the box?
No, the unit is typically supplied as an enterprise AP intended to be powered via a compatible PoE switch or an optional standalone 802.3af injector.
What management software is required to operate this access point?
The U7-Lite requires UniFi Network application version 9.0.114 or later for full provisioning, monitoring, and administrative control.
Is the access point suitable for outdoor mounting?
No, the U7-Lite features an indoor-rated UV-stabilized polycarbonate chassis designed for ceiling or wall installations within climate-controlled or protected environments.
Is this hardware NDAA and TAA compliant?
Yes, this model meets government and commercial supply chain mandates, ensuring full compliance with NDAA and TAA requirements.
