Ubiquiti UniFi · NDAA & TAA COMPLIANT

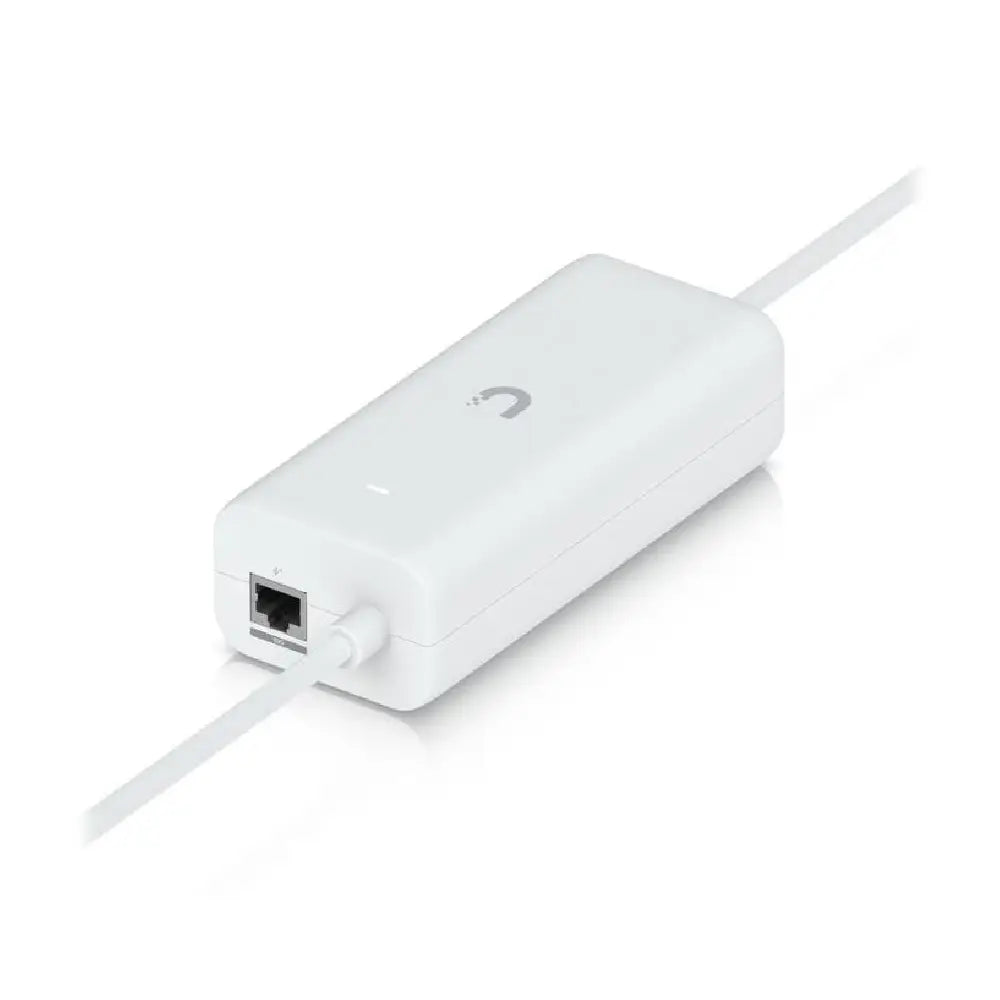

Power and Network Integration: Ubiquiti UACC-POE-PLUS-USBC PoE+ Integrated AC Adapter
Engineered for high-density enterprise setups and advanced UniFi Cloud Gateway deployments, the Ubiquiti UACC-POE-PLUS-USBC delivers up to 30W of robust PoE+ power alongside simultaneous 5V/5A USB-C output and Gigabit Ethernet connectivity. This integrated AC adapter streamlines complex single-line drops, making it an indispensable asset for modern commercial environments, network closets, and secure edge deployments requiring reliable, regulated power delivery.
Power Delivery
30W PoE+ / 5V@5A
Interface Speed
Gigabit LAN Port
Surge Protection
1500A Max Discharge
Compliance
NDAA Compliant
Advanced Circuit Protection & Flexible Mounting Architecture
Designed to maintain uninterrupted operations, the UACC-POE-PLUS-USBC features comprehensive common-mode and differential-mode surge protection, alongside 11V data and 60V power clamping to safeguard sensitive connected hardware from transient electrical events. It supports versatile deployment configurations including wall, DIN rail, and floating mounting options, complete with a secure lockable power cord latch to prevent accidental disconnects in mission-critical environments.
Dual-Output Efficiency

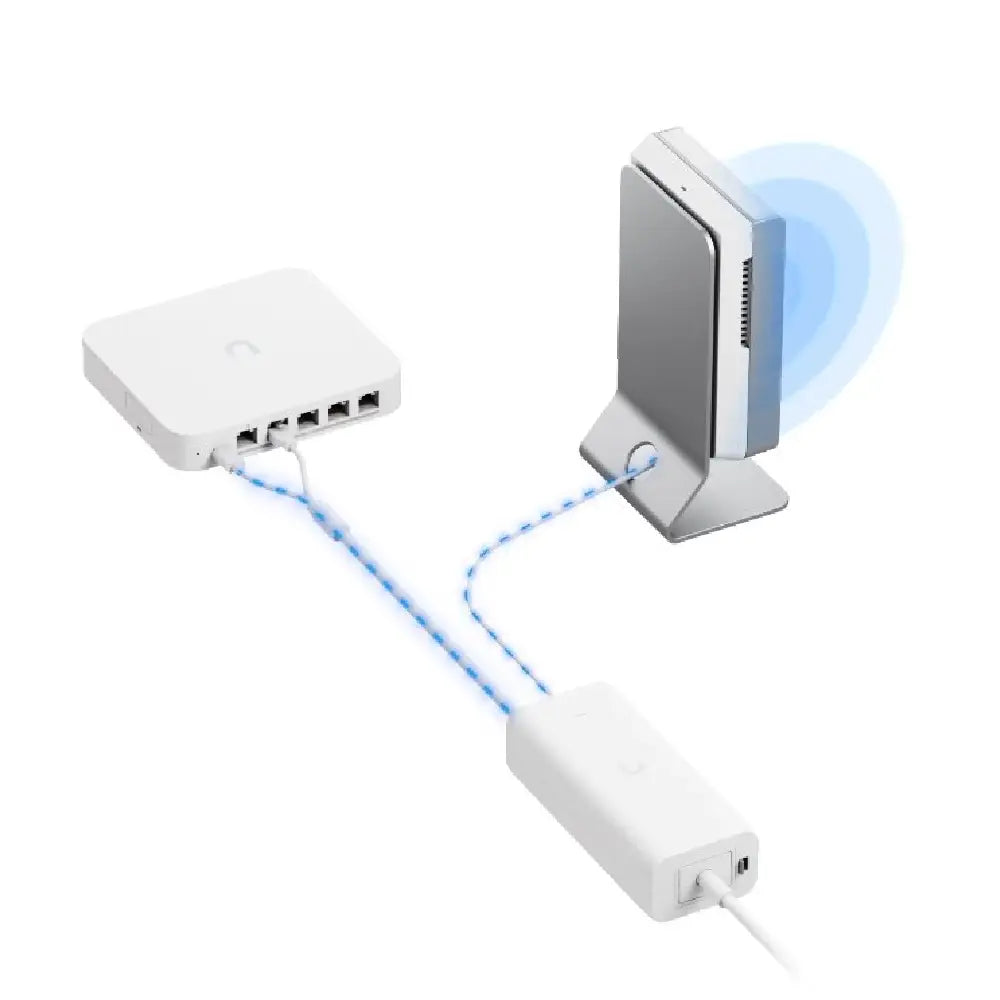

Simultaneously powers USB-C accessories and high-draw UniFi gateways from a single unified connection, eliminating clutter and redundant power bricks at the install location.
Enterprise Reliability
Built with an 82% operational efficiency rating and robust thermal thresholds, minimizing energy waste and heat dissipation during continuous 24/7 commercial deployment.
Technical Specification Matrix
| Model |
UACC-POE-PLUS-USBC |
| Dimensions |
146 x 62 x 42 mm (5.7 x 2.4 x 1.7") |
| Weight |
358 g (12.6 oz) |
| Output Voltage |
Type-C: 5V@5A; PoE+: 48V@0.65A |
| Rated Voltage |
100–240V AC @ 50/60Hz |
| Max. Surge Discharge |
1500A (8/20 µs) power |
| Operating Temperature |
0 to 40° C (32 to 104° F) |
| Compliance & Certifications |
NDAA Compliant, CE, FCC, IC, UL, UKCA, RoHS |
Which UniFi devices are compatible with this adapter?
The UACC-POE-PLUS-USBC is engineered specifically for UniFi Cloud Gateway components and compatible hardware requiring unified USB-C and PoE+ power delivery, such as the UCG-Ultra, UCG-Max, and UXG-Lite.
Does this unit support DIN rail mounting?
Yes, the unit supports wall mount, DIN rail, and floating mount configurations, though DIN rail and floating mounts are sold separately.
Is the adapter compliant with federal procurement standards?
Yes, the unit is fully NDAA compliant, making it cleared for enterprise, government, and commercial security integrations.
What kind of surge protection is integrated?
It features common-mode and differential-mode surge protection with a 1500A maximum surge discharge capacity on power lines and 36A peak pulse protection on data lines.
