Ubiquiti UniFi Cloud Gateway Ultra – Compact Multi-WAN Security Gateway (UCG-Ultra)

Description

UniFi — NDAA Compliant

UniFi Cloud Gateway Ultra — Compact Multi-WAN Security Gateway (UCG-Ultra)

The Ubiquiti UniFi Cloud Gateway Ultra (UCG-Ultra) is a powerful, palm-sized UniFi OS console that runs the full UniFi Network application with built-in enterprise security — all without a subscription. It routes up to 1 Gbps of IDS/IPS, supports multi-WAN load balancing and failover, and manages 30+ UniFi devices and 300+ clients from a single pane of glass. Powered over USB-C and silent by design, the UCG-Ultra is ideal for homes, home offices, and small businesses anywhere in Australia. Genuine Ubiquiti stock with fast Australia-wide shipping.

WAN Port
2.5 GbE
IDS / IPS
1 Gbps
Manages
30+ Devices
Power
USB-C, 6.2 W

Why Choose the UniFi Cloud Gateway Ultra?

Runs UniFi Network — No Subscription

A complete UniFi OS console that hosts the UniFi Network application locally. Manage routing, switching, and WiFi for your whole site with no monthly fees and full local control.

1 Gbps IDS/IPS Security

Enterprise-grade intrusion detection & prevention at up to 1 Gbps, with 55,000+ threat signatures via CyberSecure, a stateful and Layer 7 application-aware firewall, DPI, content filtering, and ad blocking.

Multi-WAN Load Balancing & Failover

A native 2.5 GbE WAN plus support for up to 4 WAN ports lets you load-balance or fail over across connections — with optional UniFi LTE backup for always-on internet.

License-Free SD-WAN & VPN

Build secure site-to-site links with Site Magic SD-WAN and IPsec, plus a full VPN server & client suite — WireGuard, OpenVPN, L2TP, Teleport and one-click Identity VPN.

Advanced Networking

OSPF dynamic routing, advanced QoS, VLAN traffic segmentation, advanced NAT, an integrated RADIUS server with RadSec, policy-based routing, and full IPv6 ISP support.

Silent, Compact & Simple

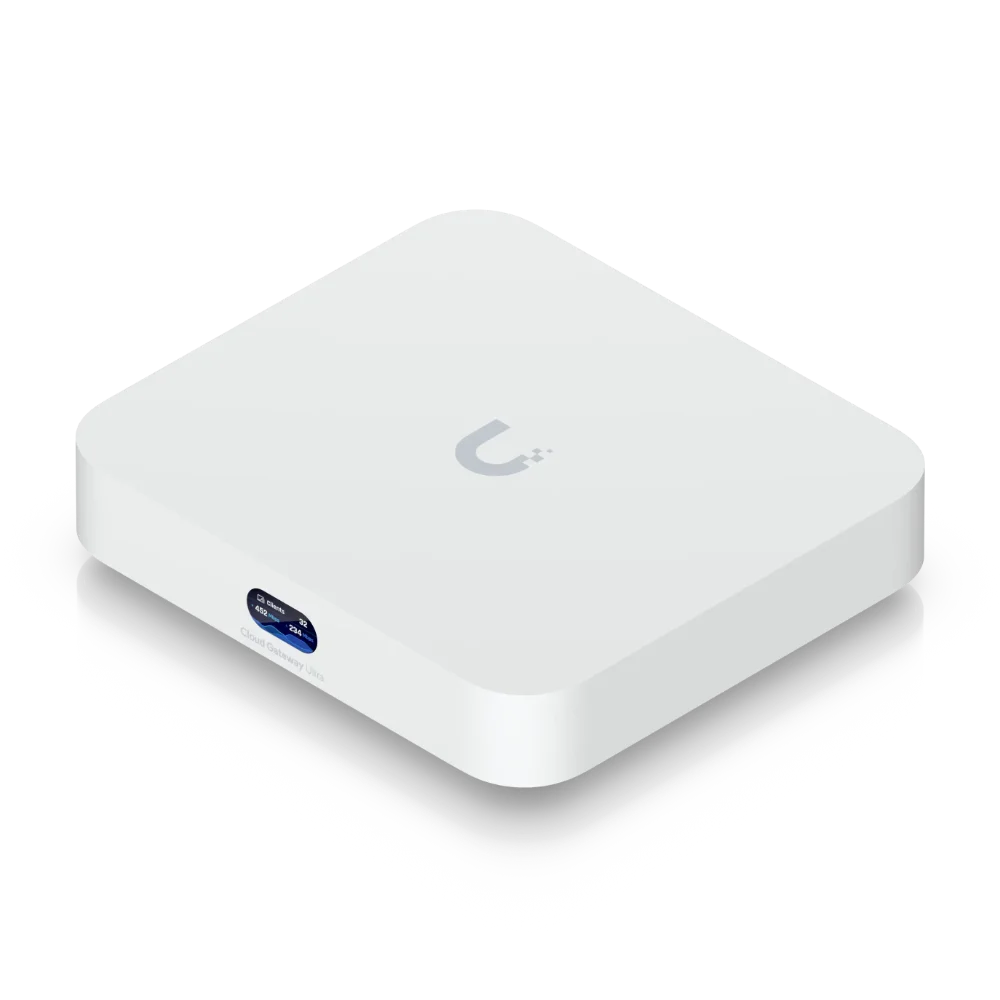

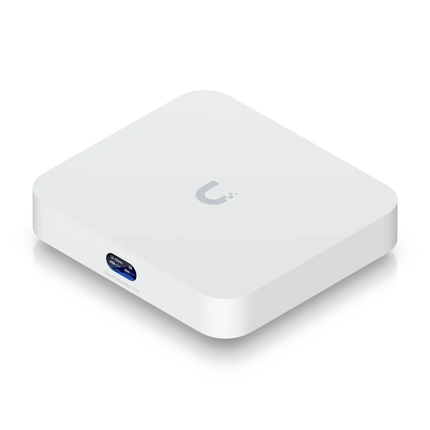

A fanless polycarbonate desktop unit (141.8 × 127.6 × 30 mm) powered by USB-C at just 6.2 W, with a 0.96″ status display and quick mobile-app setup via Bluetooth.

NDAA Compliant

Fully NDAA Section 889 compliant for government, defence, and security-sensitive networks where supply-chain integrity matters.

Technical Specifications

Model UCG-Ultra (UniFi Cloud Gateway Ultra)
UniFi Application UniFi Network (runs locally on UniFi OS)
Managed UniFi Devices 30+
Simultaneous Clients 300+

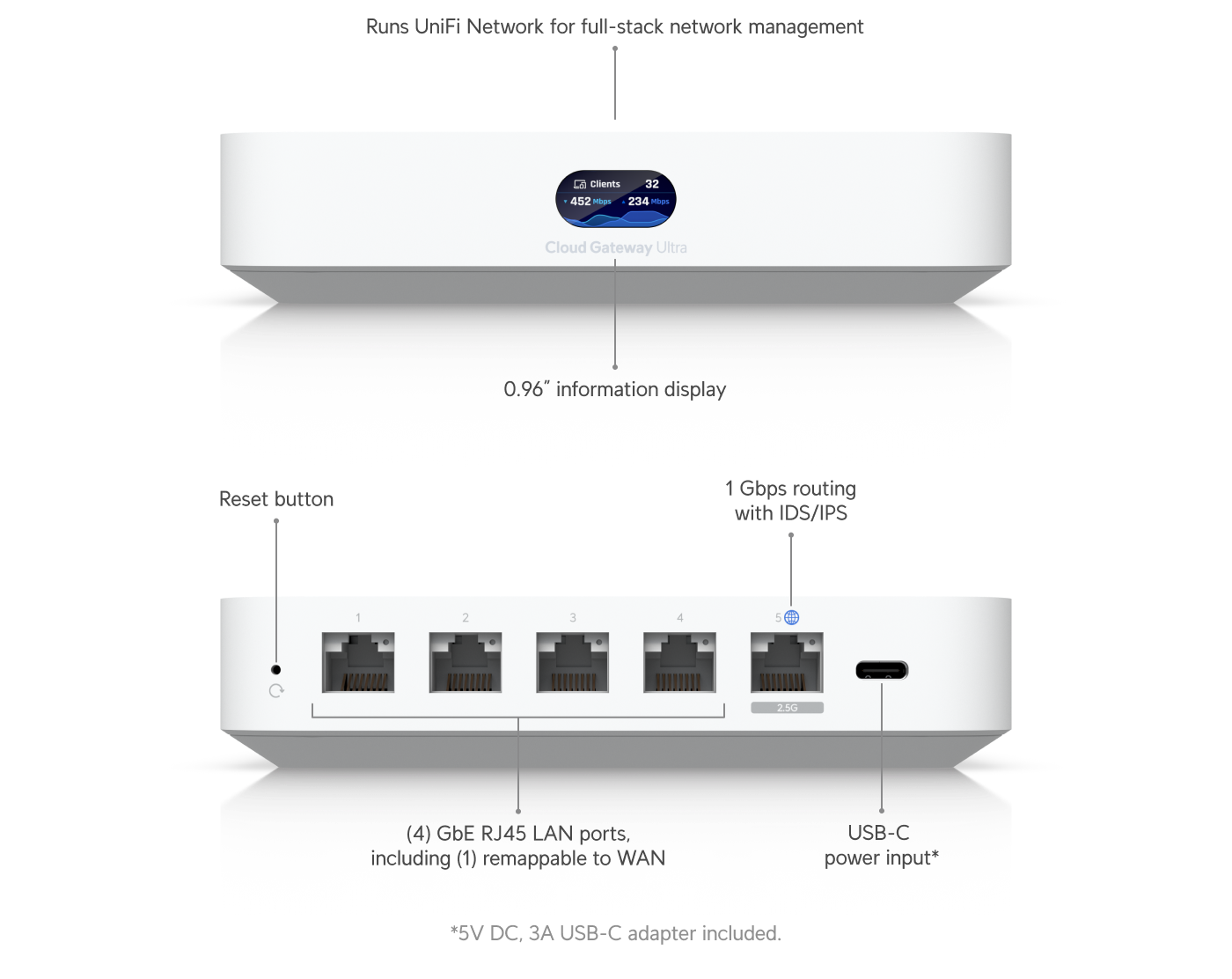

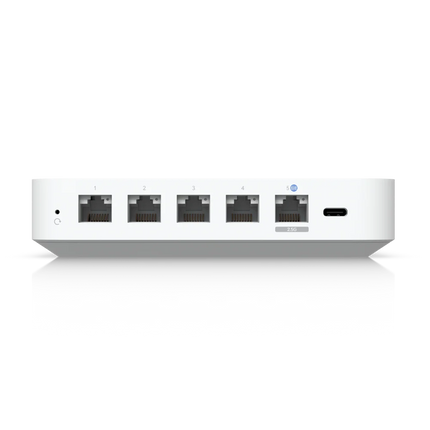

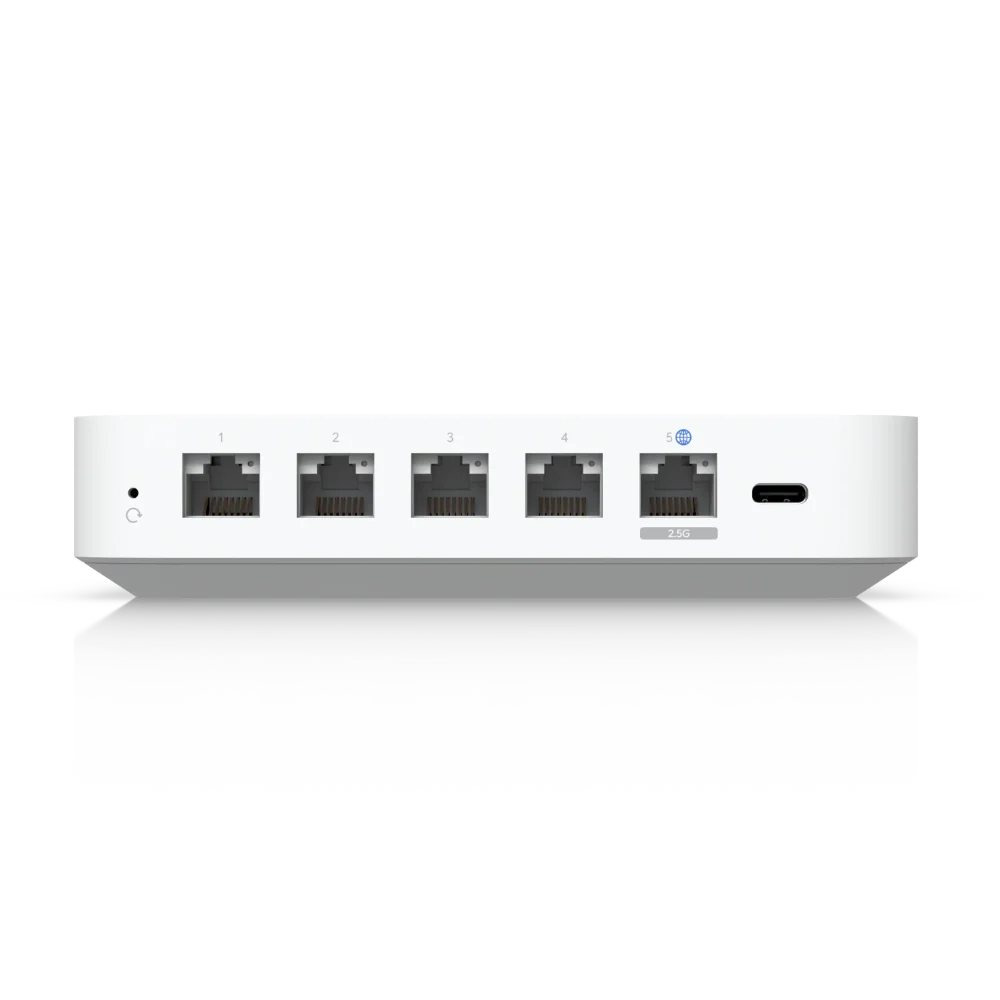

Ports 1 × 2.5 GbE RJ45 (default WAN) • 4 × 1 GbE RJ45
Max WAN Ports 4 (multi-WAN load balancing & failover)
IDS/IPS Throughput 1 Gbps
Security Stateful + Layer 7 firewall, DPI, zone-based filtering, content filtering, ad blocking, IPS/IDS (55,000+ signatures with CyberSecure)
VPN & SD-WAN License-free SD-WAN, Site Magic, IPsec, WireGuard, OpenVPN, L2TP, Teleport, Identity One-Click VPN
Routing OSPF, advanced QoS, advanced NAT, RADIUS (RadSec), policy-based routing, IPv6, IGMP proxy
Processor Quad-core Arm® Cortex®-A53 @ 1.5 GHz
Memory / Storage 3 GB RAM • 16 GB on-board

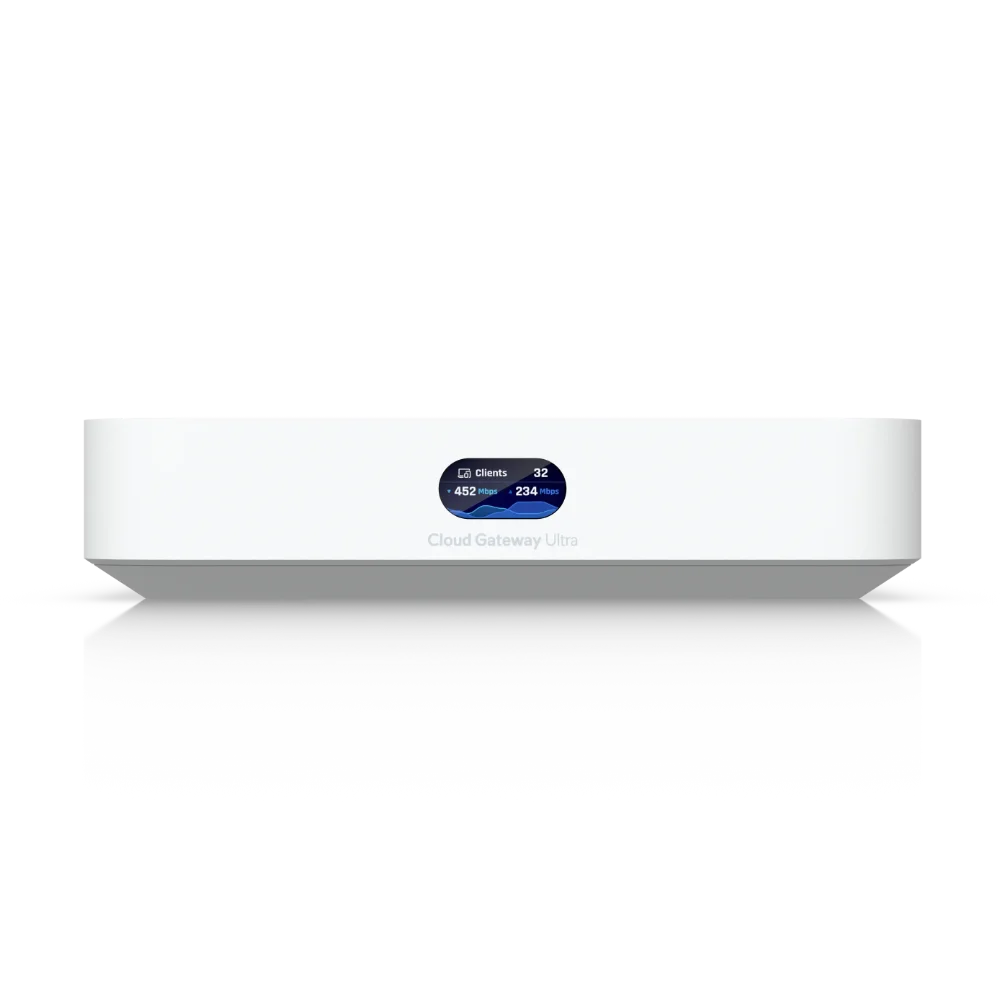

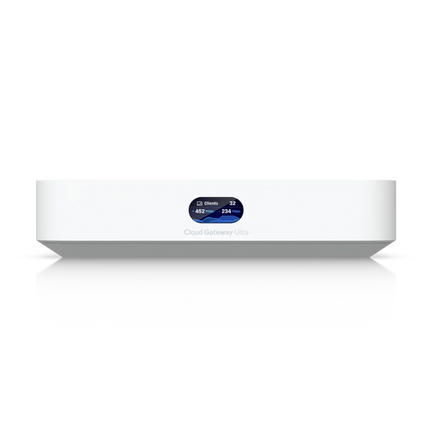

Display 0.96″ status LCM
Power USB-C (5 V DC / 3 A), 100–240 V AC adapter included • max 6.2 W
Dimensions / Weight 141.8 × 127.6 × 30 mm • 520 g
Enclosure Polycarbonate, fanless desktop
Operating Temperature −10 to 40°C, 5–95% non-condensing
Certifications CE, FCC, IC, Anatel, SRRC
Compliance NDAA compliant

Downloads & Resources

UCG-Ultra Datasheet Ubiquiti Gateway Quick Start Guide

What's in the Box

UniFi Cloud Gateway Ultra

UCG-Ultra console.

USB-C Power Adapter

5 V DC / 3 A power supply (100–240 V AC).

Ethernet Cable

Patch cable for initial setup.

Quick Start Guide

Setup and mounting instructions.

Best For

Homes & Home Offices

A silent, single-box UniFi network core with enterprise security and no monthly fees.

Small Business

Multi-WAN failover, VLAN segmentation and VPN for reliable, secure connectivity.

UniFi Upgrades

Adopt existing UniFi switches and access points into one easy UniFi OS console.

Remote Access

WireGuard, Teleport and one-click VPN for secure work-from-anywhere access.

  • Runs the UniFi Network application — pair with UniFi switches and access points for a full UniFi stack.
  • Native 2.5 GbE WAN; use the 1 GbE ports for LAN or as additional WAN (up to 4 WAN total).
  • Powered by the included USB-C adapter — no separate PoE or power injector required.
  • This gateway does not output PoE; power UniFi APs/cameras from a PoE switch or injector.

Frequently Asked Questions

Does the UCG-Ultra require a subscription?

No. It runs the UniFi Network application locally on UniFi OS with no monthly fees. CyberSecure (optional) adds the 55,000+ IDS/IPS signature set.

How many devices and clients can it manage?

It manages 30+ UniFi devices and 300+ simultaneous clients — ideal for homes, home offices, and small businesses.

Does it support multiple internet connections?

Yes. It has a native 2.5 GbE WAN and supports up to 4 WAN ports for load balancing and failover, plus optional UniFi LTE backup.

Does it output PoE?

No. The UCG-Ultra is powered by USB-C and does not provide PoE. Power your UniFi access points and cameras from a PoE switch or injector.

What VPN options are supported?

WireGuard, OpenVPN, L2TP and IPsec, plus Teleport zero-config VPN, Site Magic SD-WAN, and one-click Identity VPN.

Is the UCG-Ultra NDAA compliant?

Yes. Ubiquiti is a US-based manufacturer and the UCG-Ultra is NDAA Section 889 compliant.

Fast AU Shipping
Genuine Ubiquiti Stock
Expert AU Support

Ubiquiti UniFi Cloud Gateway Ultra – Compact Multi-WAN Security Gateway (UCG-Ultra)

Product form

SKU: UCG-Ultra

UniFi — NDAA Compliant UniFi Cloud Gateway Ultra — Compact Multi-WAN Security Gateway (UCG-Ultra) The Ubiquiti UniFi Cloud Gateway Ultra... Read more
