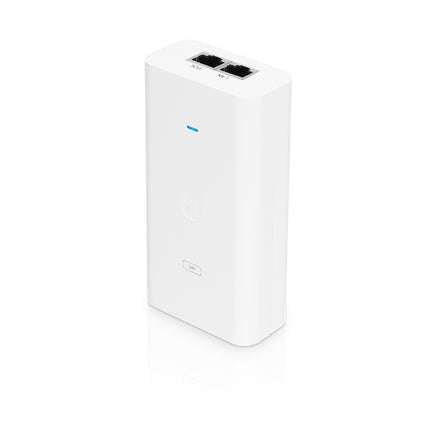

Ubiquiti POE Injector 54V 80W for EdgePoint

Description

Ubiquiti's EdgePoint POE-54V-80W PoE Injector is designed to power Ubiquiti's EP-R8 and EP-S16 EdgePoint models. Australian (AU) Power cable included

  • Dimensions 123 x 65 x 34 mm
  • Weight 299 g
  • Output Voltage 54VDC @ 1.5A
  • LAN Activity Indicator No
  • Gigabit LAN Port Yes
  • Remote Reset Capability No
  • Reset Button 100-240AC @ 50/60Hz
  • Input Voltage 100-240AC @ 50/60Hz
  • Input Current 0.8A @ 120VAC
  • 0.4A @ 240VAC
  • Inrush Current <80A Peak @ 120VAC,
  • <120A Peak @ 230VAC
  • Efficiency 87+%
  • Output Ripple 1% Max
  • Switching Frequency 100 kHz Max.
  • Line Regulation ± 1%
  • Load Regulation ± 3%
  • 4-Pair Powering Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
  • Operating Temperature 0 to 40° C (32 to 104° F)
  • Storage Temperature -30 to 70° C (-22 to 158° F)
  • Operating Humidity 35 to 95% Noncondensing
  • AC Connector IEC-320 C6
  • Data IN / POE RJ45 Shielded Socket
  • Surge Protection Difference and Common Mode
  • Clamping Protection 11V Data, 60V Power
  • Max. Surge Discharge 1500A (8/20 µs) Power
  • Peak Pulse Current 36A (10/1000 µs) Data
  • Shunt Capacitance <5 pF data
  • Response Time <1 ns
  • Compliance IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B AC Cable with Earth Ground RCM

Ubiquiti POE Injector 54V 80W for EdgePoint

Product form

SKU: POE-54V-80W

Ubiquiti's EdgePoint POE-54V-80W PoE Injector is designed to power Ubiquiti's EP-R8 and EP-S16 EdgePoint models. Australian (AU) Power cable included... Read more

$61.60 Incl. GST

    • Warranty: 12 months
    • 30 day money back guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
      • PayPal
      • Apple Pay
      • Visa
      • Mastercard
      • Zip
      • Klarna
      • Afterpay

      Description

      Ubiquiti's EdgePoint POE-54V-80W PoE Injector is designed to power Ubiquiti's EP-R8 and EP-S16 EdgePoint models. Australian (AU) Power cable included

      • Dimensions 123 x 65 x 34 mm
      • Weight 299 g
      • Output Voltage 54VDC @ 1.5A
      • LAN Activity Indicator No
      • Gigabit LAN Port Yes
      • Remote Reset Capability No
      • Reset Button 100-240AC @ 50/60Hz
      • Input Voltage 100-240AC @ 50/60Hz
      • Input Current 0.8A @ 120VAC
      • 0.4A @ 240VAC
      • Inrush Current <80A Peak @ 120VAC,
      • <120A Peak @ 230VAC
      • Efficiency 87+%
      • Output Ripple 1% Max
      • Switching Frequency 100 kHz Max.
      • Line Regulation ± 1%
      • Load Regulation ± 3%
      • 4-Pair Powering Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
      • Operating Temperature 0 to 40° C (32 to 104° F)
      • Storage Temperature -30 to 70° C (-22 to 158° F)
      • Operating Humidity 35 to 95% Noncondensing
      • AC Connector IEC-320 C6
      • Data IN / POE RJ45 Shielded Socket
      • Surge Protection Difference and Common Mode
      • Clamping Protection 11V Data, 60V Power
      • Max. Surge Discharge 1500A (8/20 µs) Power
      • Peak Pulse Current 36A (10/1000 µs) Data
      • Shunt Capacitance <5 pF data
      • Response Time <1 ns
      • Compliance IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B AC Cable with Earth Ground RCM
