| Model |
UA-Hub-Door |
| Solution Type |
Single-door access controller (hub) |
| Supported Doors |
1 |
| Maximum User Count |
6,000 |
| Networking Interface |
(5) 10/100/1000 Base-T Gigabit |
| PoE Interface |
(1) PoE++ input, 50V DC, 1A • (4) PoE+ outputs, 50V DC, 30W per port (max 45W aggregated) |
| Power Method |
PoE++ • UL 294 Power-limited Class 2 PSU |
| Max. Power Consumption |
30W (without PoE output) • 50W (with PoE output) |

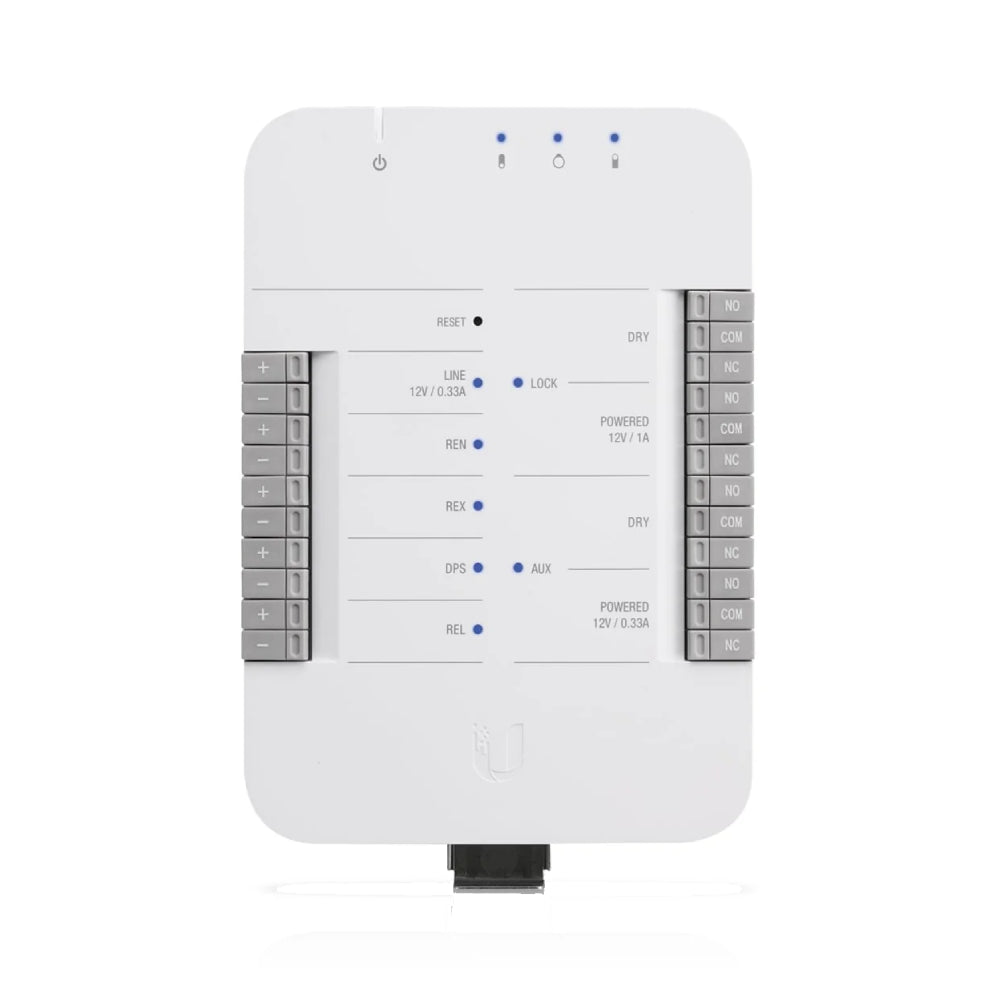

| Input Terminals |
(2) Door exit request • (1) Door position • (1) Emergency |
| Digital Inputs |
Request to exit, request to enter, remote release, door position sensor |
| Dry Output Relay |
Lock: 30V DC, 1A • Aux: 30V DC, 1A |
| Powered Output Relay |
Lock: 12V DC, 1A • Aux: 12V DC, 0.33A |
| Authentication (with readers) |
NFC cards & fobs, mobile BLE, PIN, remote unlock |
| Management |
UniFi Access app & web console |
| Indoor / Outdoor |
Indoor use only |
| Operating Temperature |
0°C to 40°C (32–104°F) |
| Operating Humidity |
5–95% non-condensing |

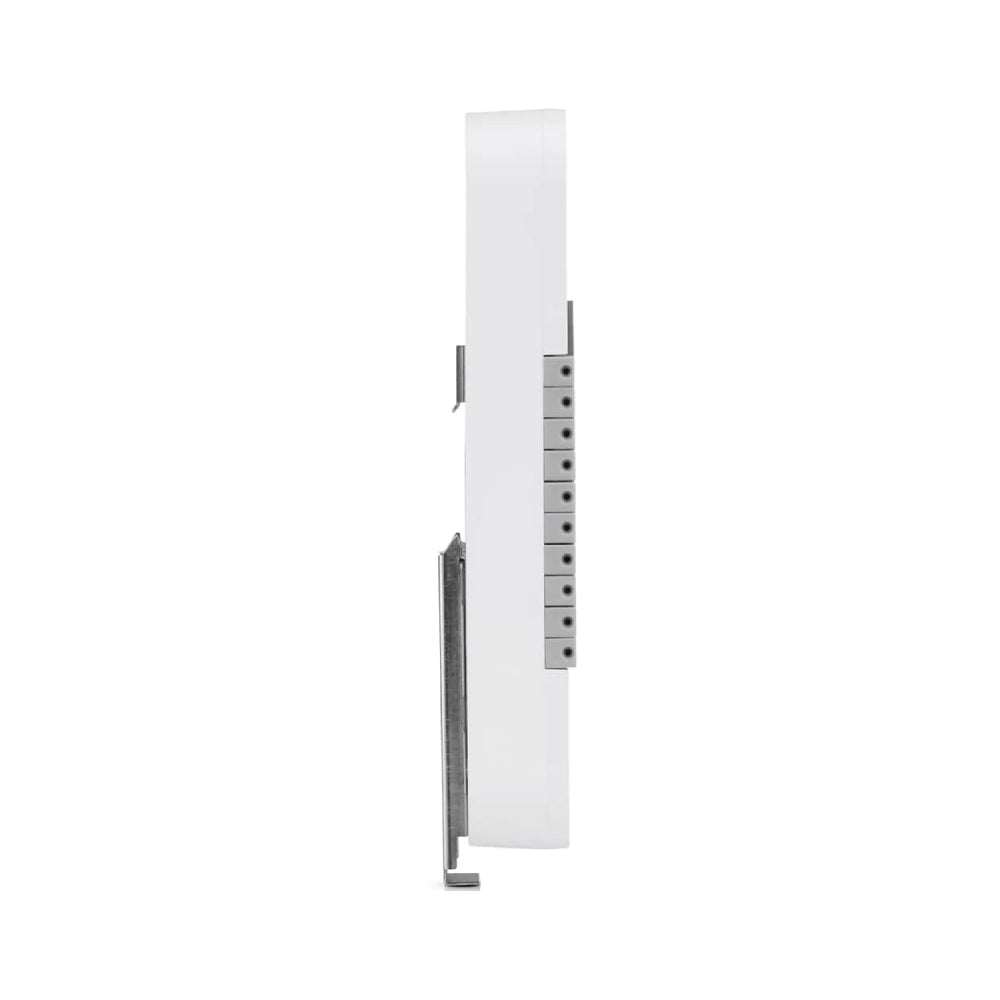

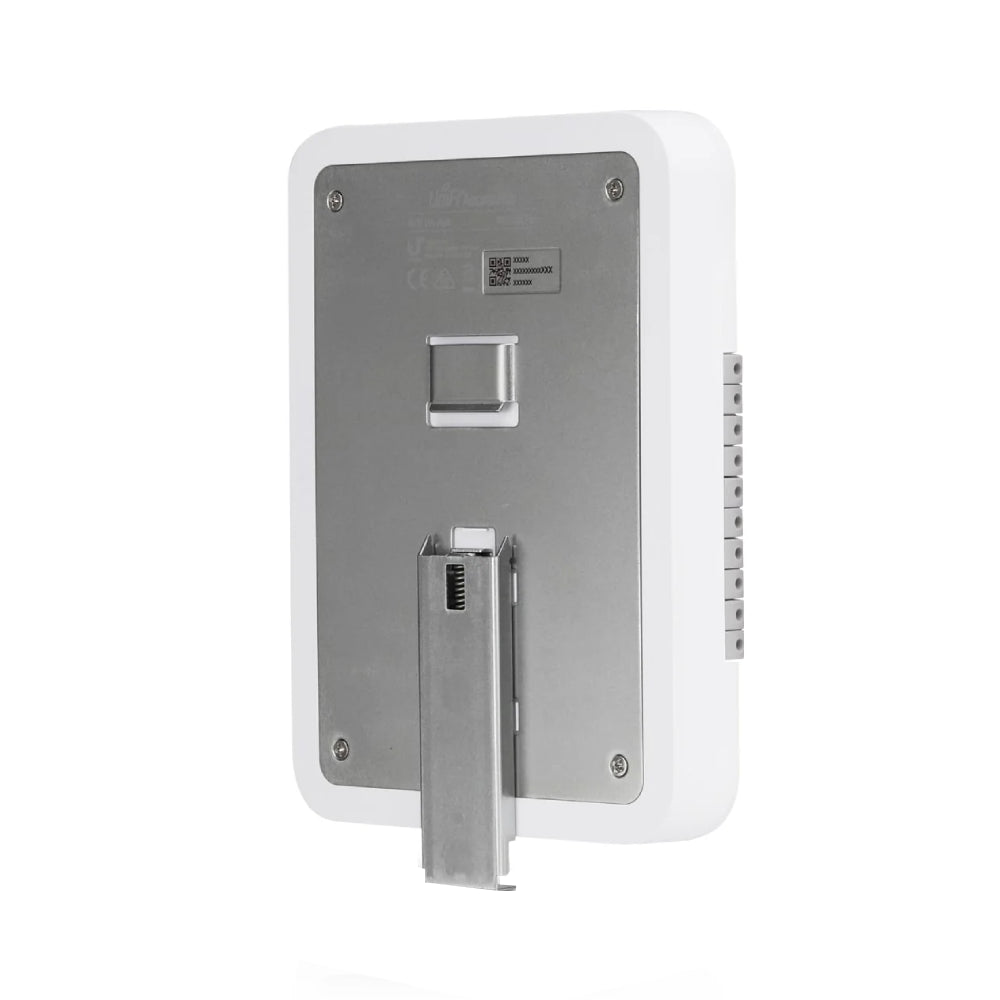

| Enclosure / Mount |
Polycarbonate • DIN-rail mount (included) |
| Dimensions |
174.9 × 126 × 32.9 mm (6.9 × 5 × 1.3″) |
| Weight |
363 g (12.8 oz) |
| Certifications |
CE, FCC, IC, UL 294 (Level I), CAN/ULC-60839-11-1 (Grade 1) |
| Compliance |
NDAA compliant |
