Dahua 4-Wire 7-inch Indoor Monitor Intercom Kit DHI-KTA02
Dahua 4-Wire indoor monitor KIT, 7-inch screen, indoor monitor function: unlock, video call, volume adjustment, and doorway monitoring
7" TFT screen
Video intercom function: Unlock, voice call, video call, volume adjustment
System Capacity：2 door stations + 3 indoor monitors
Multiple bell sounds
Supports digital wide dynamic range (DWDR)
Kit include:
1 x 7-inch White Analog Monitor
1 x Outdoor Station
1 x Power Supply and Accessories
This high performance & cost-effective Dahua IP Indoor Monitor features white colour frame, 7 inch touch screen, 1024×600 pixels resolution with standard PoE. 6 alarms can be connected and security cameras footage can be viewed as well.
7'' TFT capacitive touch screen, 1024 x 600
6-channel alarm input and 1-channel alarm output
Standard PoE
Door station and IPC monitor
H.265 and H.264 video coding
High performance & cost-effective
Specifications
INDOOR MONITORS
Size
7 Inch TFT display
Colour
White
Resolution
1024 x 600
Storage
Not Support
Power Supply
DC 12V, PoE
Tehnology
IP
Downloads
DHI-VTH2621GW-P DatasheetDHI-VTH2621GW-P Privacy_PolicyDHI-VTH2621GW-P User's ManualOPEN SOURCE SOFTWARE NOTICESOFTWARE LICENSE AGREEMENT
Mifare Key Fob, 13.56MHz Working Frequency
IC card ( Mifare card) with frequency 13.56MHz
Public transportation
Access management
Electronic toll collection
Car parking
Loyalty programs
Dahua IP Video Intercom Kit, KTP03 comes with stylish black colour for both 7-inch monitor and outdoor doorbell with camera.
IP Villa Door Station
Megapixel image sensor
Supports IR illumination and night vision.
Two-way audio and voice call through app.
Can be managed through the management platform; supports voice call between App and the door station.
Card unlock, unlock on the indoor monitor, and remote unlock through the App.
Supports IP65 (Silicone sealant is needed.
For details, see the quick start guide.)
Supports 10000 cards.
Supports standard PoE power supply.
Controls two locks.
IP Indoor Monitor
7" TFT capacitive touch screen, 1024 × 600.
6-channel alarm input and 1-channel alarm output.
Standard PoE.
Door station and IPC monitor.
H.265 and H.264 video decoding.
High performance & cost-effective.
Downloads
KTP03 Datasheet
KTP03 User Manual
KTP03 Installation Guide
Dahua IP Villa Outdoor Station & Indoor Monitor Video Intercom Kit, DHI-KTP01L(S)-AUS
Material:AL5052 t=2.0mm
Dimensions: 129.0mmx95.0mmx28.5mm (5.08''x3.74''x1.12'')
In the Box:1 x IP Villa Door Station DHI-VTO2201F-P
Anodised aluminium front panel
CMOS low illumination 2MP HD colourful camera
Video intercom function
Access control function that supports two locks
Use the app to talk to visitors or unlock the door remotely on your phone.
Surface mounted and flush mounted.
PoE
IK07&IP65
1 x IP Indoor Monitor DHI-VTH2621GW-P
7'' TFT capacitive touch screen, 1024 x 600
6-channel alarm input and 1-channel alarm output
Standard PoE
Outdoor station and IPC monitor
H.265 and H.264 video decoding
High performance & cost-effective
1 x Switch
Port 1-4: 4 x RJ-45 10/100 M (PoE) Port 5: 1 x RJ-45 10/100 M (uplink)
Supports guide rail mount.
1 x Surface Mount Bracket VTM115
Downloads
DHI-KTP01L(S)-AUS Datasheet
Dahua Horizontally Inclined Bracket for VTO1000J Door Station
Horizontal angle 15° and supports combination (2 brackets maximum)
Specifications
CAMERA BRACKETS
TYPE
Horizontally inclined bracket
MATERIAL
PC + ABS
COLOUR
Black
DIMENSION
49.63mm x 136.35mm x 16.57 mm (1.95'' x 5.37'' x 0.65'')
Downloads
DH-AC-VTM22A Datasheet
Dahua Keyboard Villa Door Station
Keyboard villa door station
Supplemental lighting with white light
2MP CMOS camera
Mechanical button with Braille
Aluminium alloy plate, IK08, IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
Door release via password and Mifare card
Specifications
OUTDOOR STATION
RESOLUTION
2MP
TECHNOLOGY
IP
POWER SUPPLY
DC 12V, PoE
PROTECTION
IP65, IK08
MOUNT
Surface & Flush
MATERIAL
Alumimum
Downloads
Datasheet of DHI-VTO3221E-PQuick Start Guide of DHI-VTO3221E-PDahua Villa Intercom Setup GuideDahua Villa N VTHx NVTO via template
Dahua 7-inch Touch Screen IP Intercom Kit is the modern doorbell for your home or office. Receive notifications on your Dahua's official DMSS app when visitors press the door station. You can also view on your 7-inch IPC indoor monitor which can be beautifully hanged in your living room. This kits come with rain shade for your outdoor station to protect from different weather for durability. This is the IP video intercoms and cabling can be done by using RJ45 ethernet cables.
1 x 7-inch Monitor DHI-VTH2621GW-P1 x Outdoor Station DHI-VTO2202F-P-S21 x Uniarch 8 Port PoE Switch with Power Supply, SW-2110-P1 x Surface Mount Bracket DH-AC-VTM05R
1 x 7-inch Monitor DHI-VTH2621GW-PDahua IP Indoor Monitor White, 7" TFT capacitive touch screen, 1024 × 600, 6-channel alarm input and 1-channel alarm output, Standard PoE, Outdoor station and IPC monitor, H.265 and H.264 video coding, High performance & cost-effective
7'' TFT capacitive touch screen, 1024 x 600
6-channel alarm input and 1-channel alarm output
Standard PoE
Outdoor station and IPC monitor
H.265 and H.264 video coding
High performance & cost-effective
1 x Outdoor Station DHI-VTO2202F-P-S2Dahua 2-wire IP Villa Door Station comes with both 2-wire and ethernet port
Anodised aluminium front panel
CMOS low illumination 2MP HD colourful 160° fisheye camera
Video intercom function
Access control function that supports two locks
Mobile phone app, talk to the visitor or unlock the door remotely on
Compatible with 2-wire interface & RJ45 interface
IK07 & IP65
Support H.265
Support surface and flush mount
PoE
1 x Uniarch 8 Port PoE Switch with Power Supply, SW-2110-PUniarch switch, 10 x 100Mbps network ports, including 8 PoE/PoE+ ports, 2 x 100Mbps uplink ports, Max capacity for single port 30W, total capacity 120W, up to 250m transmission distance, all-metal housing
Multiple working modes to address your business needs: Normal, Secure and Surveillance
Support port traffic control
Support for secure mode, all downlink ports can communicate only with uplink ports
Up to 250m transmission distance on surveillance mode
Support buffer optimization
All-metal housing, safe and reliable
1 x Surface Mount Bracket DH-AC-VTM05R
This Dahua 7-inch IP Indoor Monitor features stylish black colour comes with capacitive touch screen, 1024×600 pixels resolution and Standard PoE. 6 alarms can be connected and security cameras footage can be viewed as well.
7'' TFT capacitive touch screen, 1024 x 600
6-channel alarm input and 1-channel alarm output
Standard PoE
Outdoor station and IPC monitor
H.265 and H.264 video coding
High performance & cost-effective
Specifications
SIZE
7-inch TFT display
COLOUR
Black
RESOLUTION
1024x600 pixels
STORAGE
Not Support
POWER SUPPLY
DC 12V, PoE
TECHNOLOGY
IP
Downloads
DHI-VTH2621G-P DatasheetPrivacy_PolicyUser's ManualOPEN SOURCE SOFTWARE NOTICESOFTWARE LICENSE AGREEMENT
Surface-mounted Rain Cover for VTO6221E-/VTO3221E-P
Specifications
Video Intercom Brackets
TYPE
Rain Cover
MATERIAL
Aluminum
COLOUR
Silver
DIMENSION
205.1 mm x 108.9 mm x 39.8 mm(8.01'' x 4.29'' x 1.57'')
Downloads
DH-AC-VTM08R Datasheet
7 inch Screen, indoor monitor function: Unlock, video call, volume adjustment, and doorway monitoring
Notes: Power Supply doesn't come with this unit. Please shop here.
7" TFT screen
Video intercom function: Unlock, voice call, video call and volume adjustment
Mechanical button
Multiple bell sounds
Specifications
INDOOR MONITORS
SIZE
7 Inch TFT display
COLOUR
White
RESOLUTION
800x480
STORAGE
-
POWER SUPPLY
DC 12V
TECHNOLOGY
Analog
Downloads
Datasheet of DHI-VTH1020J
Dahua 2-wire IP Villa Door Station comes with both 2-wire and ethernet port
The Dahua 2-wire IP Villa Door Station is a state-of-the-art security solution designed to enhance the safety and convenience of your home or office. This versatile device features both 2-wire and Ethernet ports, allowing flexible installation options to suit your needs. The anodised aluminium front panel ensures durability and a sleek appearance, making it a stylish addition to any entrance.
Features
Anodised aluminium front panel
CMOS low illumination 2MP HD colourful 160° fisheye camera
Video intercom function
Access control function that supports two locks
Mobile phone app, talk to the visitor or unlock the door remotely on
Compatible with 2-wire interface & RJ45 interface
IK07 & IP65
Support H.265
Support surface and flush mount
PoE
Specifications
System
Main Processor
Embedded processor
Operating System
Embedded Linux Operation System
Button Type
Mechanical
Interoperability
ONVIF; CGI
Network Protocol
SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP
Basic
Camera
1/2.5" 2MP CMOS Low Illumination HD Colourful Fisheye Camera
Field of View
Horizontal: 168.6°; vertical: 87.1; diagonal:176.7°
Focal Length
1.9 mm
WDR
120 dB
Noise Reduction
3D NR
Video Compression
H.265
Video Resolution
50Hz: Main Stream (720P@25 fps), sub stream (1080P@25 fps) 60Hz: Main Stream (720P@30 fps), sub stream (1080P@30 fps)
Video Frame Rate
25 fps
Video Bit Rate
256 Kbps to 4 Mbps
Light Compensation
Auto IR
Day/Night
Auto (ICR)
Audio Compression
G.711u
Audio Input
1 channel
Audio Output
Built-in speaker
Audio Mode
2-way voice communication
Audio Enhancement
Echo suppression/digital noise reduction
Audio Bit Rate
16 KHz, 16 Bit
Status Indicator Light
3
Port
Electric Lock
1
Alarm Output
1
Power Output
1-ch 12 VDC 100mA
Exit Button
1
Door Status Detection
1
Lock Control
1
Network Port
One RJ45 10M/100M network port
General
Appearance colour
Silver
Power Supply
Dahua 2-wire switch (max. power supply distance 50 m)DC 48V 1AStandard PoE
Power Adapter
Optional
Installation
Flush/surface mount
Certifications
CE; FCC; UL
Accessory
Flush/surface mount
Product Dimensions
130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")
Protection
IK07; IP65
Operating Temperature
–30°C to +60°C (–22°F to 140°F)
Operating Humidity
10%–90% (RH, non-condensing)
Operating Altitude
0 m–3000 m
Power Consumption
≤ 12W
Net Weight
0.35 kg (0.77 lb)
Gross Weight
0.4 kg (0.88 lb)
Downloads
DHI-VTO2202F-P-S3 DatasheetQuick Start Guide of DHI-VTO2202F-P-S2Villa Door Station_User's_Manual_V1.0.0-EngDahua Villa Intercom Setup GuideDahua Villa N VTHx NVTO via template
Surface-mounted Rain Cover for VTO2202F and DHI-VTO2202F-P-S2
Specifications
Video Intercom Brackets
TYPE
Rain Cover
MATERIAL
Aluminum
COLOUR
Silver
DIMENSION
141.1 mm x 101.6 mm x 48.5 mm(5.56'' x 4'' x 1.91'')
Downloads
DH-AC-VTM05R Datasheet
Dahua 2MP IP Villa Outdoor Station, Viewing Wide Angle 100 degree, Adjustable Viewing Angle, ICR 5m Night Vision DHI-VTO2101E-P-S2
HD CMOS camera.
Zinc alloy panel, IP65 and IK10 rated.
ICR night vision and voice prompt.
Video and audio messaging.
TCP/IP, and SIP.
Surface mounted.
Specifications
OUTDOOR STATION
RESOLUTION
2MP
TECHNOLOGY
IP
POWER SUPPLY
DC 12V, PoE
PROTECTION
IP65, IK10
MOUNT
Surface
MATERIAL
Front Panel: Zinc alloy Rear Panel: Aluminum alloy Holder: Aluminum alloy
Downloads
Datasheet of DHI-VTO2101E-P
Quick Start Guide of DHI-VTO2101E-P
Dahua Villa Intercom Setup Guide
Dahua Villa N VTHx NVTO via template
Dahua Android 10-inch digital indoor monitor
Android 8.1
More User-Friendly UI
Ethernet and Wi-Fi
10'' TFT Capacitive touch Screen, 1024x600
Micro-SD Card optional, max 256GB
Specifications
System
Main Processor
Embedded processor
Operating System
Android 8.1
Network Protocol
IPv4, TCP, SIP, UDP, RTSP
Basic
Screen Type
Capacitive screen
Display Screen
10 inch TFT LCD
Resolution
1024×600
Video Compression
H.264
Audio Compression
PCM
Audio Input
1 omnidirectional microphone
Audio Output
Built-in 1.5W speaker
Audio Mode
Two-way voice call
Audio Enhancement
Echo suppression/DNR
Audio Bit Rate
16KHz, 16Bit
Function
Information Release
Text announcements released by the management center can be viewed
Communication Mode
Full digital
Elevator Control
You can control the elevator through the indoor monitor
Leave Videos or Text Messages
Yes (SD card is needed)
DND Mode
Do not disturb period can be set.
Extension Number
Villa: 4
Apartment: 9
Wi-Fi
Yes
Wireless Standard
IEEE802.11b/802.11g/802.11n
Wireless Frequency Range
2.4GHz
Wireless Security-Encryption
64/128bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Storage
Micro SD storage, the maximum space is 256GB
Port
RS-485
1
Alarm Input
8
Alarm Output
1
Power Output
1 12V/100mA
Door Bell
Yes, use alarm input port
Network Port
1 10M/100M Ethernet
Alarm
SOS
Yes
Performance
Housing Material
PC+ABS
Regular
Color
Black
Power Supply
12V DC 1AStandard POE
Installation
Surface mount
Certifications
CEFCC
Accessory
Surface mount bracket, alarm ribbon cable, RS-485 cable, and power-supply pins are provided
Product Dimensions
260 mm×170 mm×15 mm (10.24"×6.69"×0.59") (ports are not counted) 260 mm×170 mm×25.4 mm (convex) (10.24"×6.69"×1") (ports are counted)
Operating Temperature
-10°C to +55°C (+14°F to +131°F)
Operating Humidity
10%RH–95%RH (Non-condensing)
Operating Altitude
Less than 3,000 meters (9842.52 ft)
Power Consumption
≤1.5W (standby), ≤7W (working)
Net Weight
770g (1.70lb)
Gross Weight
1.1kg (2.43lb)
Downloads
DHI-VTH5341G-W_datasheet_20200113
IP Indoor Monitor_Quick Start Guide_V1.0.0-Eng
IP Indoor Monitor_User's Manual_V1.0.0-Eng
DHI-VTH5341G-W_INSTALLATION_PROCEDURE
DHI-VTH5341G-W_DIMENSIONS
This Dahua 7-inch Touch Screen IP Intercom Kit (black colour monitor) is the modern doorbell for your home or office. Receive notifications on your Dahua's official DMSS app when visitors press the door station. You can also view on your 7-inch IPC black indoor monitor which can be beautifully hanged in your living room. This kits come with rain shade for your outdoor station to protect from different weather for durability. This is the IP video intercoms and cabling can be done by using RJ45 ethernet cables.
Inside the bundle:
1 x 7-inch Monitor VTH2621G-P
1 x Outdoor Station DHI-VTO2202F-P-S2
1 x Door Station Surface Mount Bracket VTM05R
1 x Uniarch 8 Port PoE Switch with Power Supply, SW-2110-P
1 x 7-inch Monitor VTH2621G-PThis Dahua 7-inch IP Indoor Monitor features stylish black colour comes with capacitive touch screen, 1024×600 pixels resolution and Standard PoE. 6 alarms can be connected and security cameras footage can be viewed as well.
7'' TFT capacitive touch screen, 1024 x 600
6-channel alarm input and 1-channel alarm output
Standard PoE
Outdoor station and IPC monitor
H.265 and H.264 video coding
High performance & cost-effective
1 x Outdoor Station DHI-VTO2202F-P-S2Dahua 2-wire IP Villa Door Station comes with both 2-wire and ethernet port
Anodised aluminium front panel
CMOS low illumination 2MP HD colourful 160° fisheye camera
Video intercom function
Access control function that supports two locks
Mobile phone app, talk to the visitor or unlock the door remotely on
Compatible with 2-wire interface & RJ45 interface
IK07 & IP65
Support H.265
Support surface and flush mount
PoE
1 x Uniarch 8 Port PoE Switch with Power Supply, SW-2110-PUniarch switch, 10 x 100Mbps network ports, including 8 PoE/PoE+ ports, 2 x 100Mbps uplink ports, Max capacity for single port 30W, total capacity 120W, up to 250m transmission distance, all-metal housing
Multiple working modes to address your business needs: Normal, Secure and Surveillance
Support port traffic control
Support for secure mode, all downlink ports can communicate only with uplink ports
Up to 250m transmission distance on surveillance mode
Support buffer optimization
All-metal housing, safe and reliable
1 x Door Station Surface Mount Bracket VTM05R
Dahua Access Control Extension Module DHI-DEE1010B-S2
Used to expand access control functions by working with access control terminal and door station.
Supports RS-485 communication.
Connects to electronic or magnetic locks to bolster security.
Offers 3 indicators to indicate when the device is on or off, functioning, and the status of the door.
Specifications
Port
RS-485
2
Exit Button
1
Door Status Detection
1
Lock Control
1
General
Power Supply
12 VDC, 1 A
Power Consumption
≤ 0.9 W (standby), ≤ 1 W (working)
Product Dimensions
58.2 mm × 49.2 mm × 20.2 mm (2.29" × 1.94" × 0.8") (W × H × D)
Operating Temperature
–10 °C to +60 °C (+14 °F to +140 °F)
Operating Humidity
0%–95% (RH), non-condensing
Net Weight
0.09 kg (0.20 lb)
Gross Weight
0.12 kg (0.26 lb)
Certifications
CE; FCC
Downloads
DEE1010B-S2_datasheet_20220316
Access Control Extension Module_User's Manual_V1.0.0
Dahua 7-inch 2-wire & Wi-Fi Indoor Monitor
7" TFT capacitive touchscreen, 1024 × 600
6-channel alarm input and 1-channel alarm output
Wi-Fi
Outdoor station and IPC monitor
H.265 and H.264 video decoding
2-wire digital communication
Specifications
System
Main Processor
Embedded processor
Operating System
Embedded Linux operating system
Network Protocol
RTSP; RTP; SIP; DNS; SSH
Basic
Screen Type
Capacitive touchscreen
Display
7" TFT
Screen Resolution
1024 × 600
Audio Compression
G.711a; G.711Mu; G.711u; PCM
Audio Input
1
Audio Output
Built-in speaker
Audio Mode
2-way Audio
Audio Enhancement
Echo suppression
Audio Bit Rate
16 kHz; 16 Bit
Function
Communication Mode
Digital 2-wire
Information Release
Receive and view text information released by the management center
Leave Videos
Yes (insert an SD card into the indoor monitor)
DND Mode
Do not disturb period can be set; Do not disturb mode
Number of Extensions
Villa: 3
Apartment: 2
Wi-Fi
Yes
Wireless Standard
IEEE802.11b/802.11g/802.11n
Wireless Frequency Range
2.4 GHz
Wireless Security Encryption
WPA/WPA2; WPA-PSK/WPA2-PSK
Storage
Micro SD card (up to 64 GB)
Performance
Casing
PC + ABS
Port
RS-485
1
Alarm Input
6
Alarm Output
1
Power Output
1 (12 V/200 mA)
Door Bell
Yes (use any alarm input port)
Network
One two-wire port and one 10 Mbps/100 Mbps Ethernet port (one of them can be selected)
Alarm
SOS
Yes
General
Color
White/Black
Power Supply
48 VDC 1.25 A
Installation
Surface mount
Certifications
CE; FCC
Accessory
Bracket and alarm ribbon cable (included)
Dimensions
189.0 mm × 130.0 mm × 26.9 mm (7.44" × 5.12" × 1.06")
Operating Temperature
–10 °C to +55 °C (+14 °F to 131 °F)
Operating Humidity
10%-95% RH (non-condensing)
Operating Altitude
Beneath 3000 m (9842.52 ft)
Power Consumption
Standby ≤ 2 W; working ≤ 6 W
Net Weight
0.35 kg (0.78 lb)
Gross Weight
0.56 kg (1.23 lb)
Downloads
VTH5422HW(B)-W Datasheet 202111220Digital VTH User's Manual_V1.0.0Digital Indoor Monitor Quick Start Guide (Model H) _V1.0.1
Hikvision Intercom, Gen 2, Rain Hood to Suit ACW2 (RS2), Rain Shield of Module Door Station, HIK-DS-KABD8003-RS2
Convenient design available for the 2 module surface mounting of the modular door station (DS-KD8003-IME1 or DS-KD8003-IME2)
Material: SECC
DownloadDS-KABD8003-RS2 Datasheet

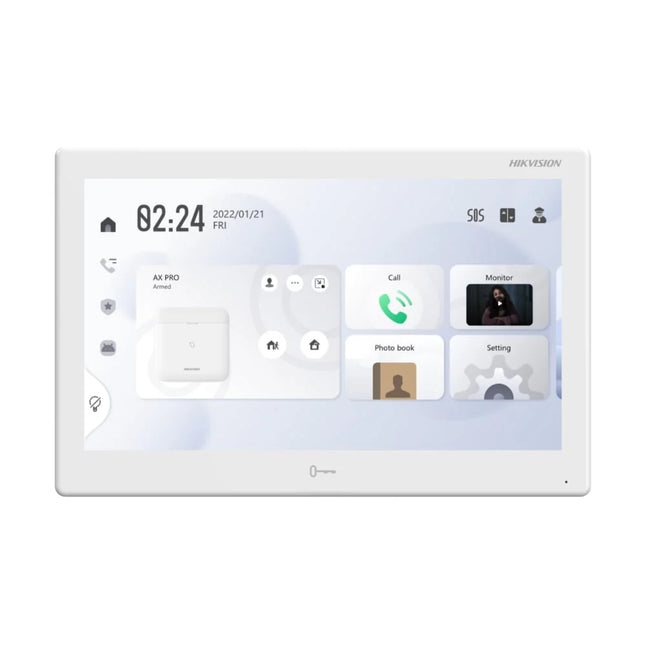

Hikvision IP Intercom, Gen 2, 10" Android Control Centre to Suit Intercom, AX Pro & CCTV, Wifi, POE, White (9510), All-in-one Indoor Station, HIK-DS-KH9510-WTE1-WHITE(B)
10.1-inch colorful touch screen with 1024 × 600 resolution
Built-in Android System
Supports Android APP installation
Support for three-party software integration
Built-in Hik-Connect APP
For all-in-one management of Hikvision’s devices on tablet
DownloadDatasheet

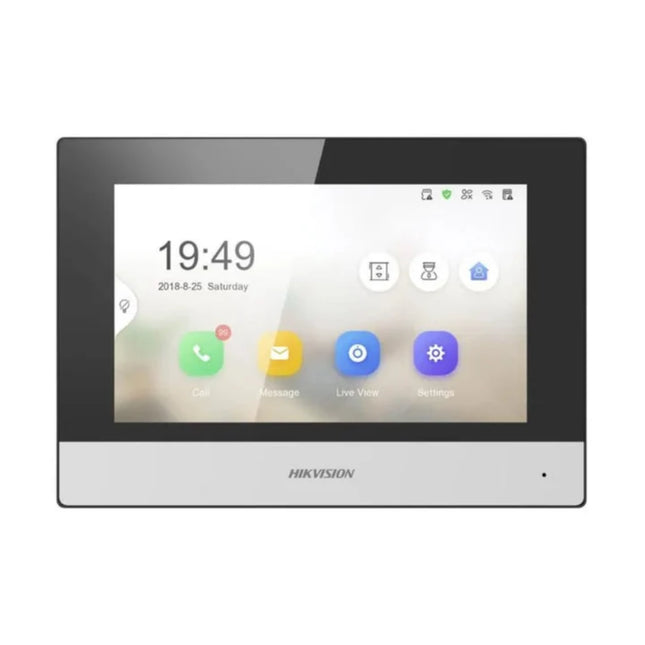

Hikvision IP Intercom, Gen. 2, 7" Colour Monitor, WiFi, PoE, White KH6 Series IP-Based Indoor Station (6320)
The Hikvision IP Intercom DS-KH6320-WTE1 offers convenient control with a 7-inch TFT touch screen and Hik-Connect APP mobile access. It allows remote communication, door opening, and live viewing. The easy set up wizard allows configuration of the entire system on one touch screen, with additional benefits such as elevator access control and alarm system linkage.
Features
7-inch TFT touch screen with 1024 × 600 resolution
Convenient Hik-Connect APP Mobile Control
Receive calls, open the door and live view remotely
Easy to use without PC
Easy wizard for quick set up
Configure the whole system on one touch screen
Live view of the door station and cameras in public areas
Support voice messages when no response from the indoor station
Receive alarms by linkage with a alarm system and notify the center to handle in time
Elevator access control
Downloads
DS-KH6320-WTE1 DatasheetDS-KH6320-WTE1 Operation ManualDS-KH6320-WTE1 Configuration Manual
Dahua 4-Wire Analog Indoor Outdoor Station DHI-VTO1000J
Dahua 4-wire indoor outdoor station
Video intercom function: Unlock, voice call, video call and volume adjustment
Multiple bell sounds
Supports digital wide dynamic range (DWDR)
Mechanical button
Specifications
OUTDOOR STATION
RESOLUTION
1.3MP
TECHNOLOGY
Analog
POWER SUPPLY
DC 12V
PROTECTION
IP66
MOUNT
Surface
MATERIAL
Front Panel: Zinc alloy Rear Panel: Aluminum alloy Holder: Aluminum alloy
Downloads
DHI-VTO1000J_datasheet_20200824
DHI-VTO1000J_INSTALLATION_PROCEDURE
DHI-VTO1000J_DIMENSIONS
DHI-VTO1000J_INSTALLATION_METHOD_EN
Dahua Lite Series VTO2111D IP Villa Outdoor Station, Black, 1MP, Card Unlock, PoE
Features
High definition camera; WDR
Operating temperature -30°C–60°C
IP65(Silicone sealant is needed. For details, see the quick start guide.)
Supports auto IR illumination and D/N
Card/app remote/indoor monitor unlock
Supports two-way voice call; support calls between door stations and app
10,000 cards
Tamper Alarm
Support standard PoE power supply
Control two locks
Downloads
Datasheet
Hikvision Intercom, KD8003-IME1-S 2MP, G2 Modular Door Station, Stainless Steel, IP65
Experience secure and efficient entry control with the Hikvision Intercom, featuring a 2MP HD camera with fish eye and IR supplement for clear footage. Its modular design and call button allow for easy installation, while its IP65 rating and POE compatibility ensure durability. Enjoy video intercom capabilities to both indoor and main stations.
Features
Modular door station Main unit, needs mounting bracket
2MP HD Camera, Fish eye, IR Supplement
1 Call physical Button, 2 lock relays, 4-ch alarm input
IP65, 12 VDC or standard POE
Video intercom to indoor station and main station
Downloads
DS-KD8003-IME1/S Datasheet
HiLook HA-KIT-P2 Villa Two Wire Video Intercom Kit
This package contains
1 x HA-IN72, Indoor Video Monitor
1 x HA-DS2, Intercom Door Station
1 x DS-KAB8103-IMEX, Villa Door Station Rain Shield
1 x NS-0105P-35, 4 Port Fast Ethernet Unmanaged POE Switch
Features
Two-Wire Indoor Station:
Receives Video Call And Unlocks On Mobile App Anywhere, Anytime
7 inch Touch-Screen, User Friendly Interface, Plug & Play
Easy, Cost-Efficient Installation
Villa Door Station:
High quality imaging with 2 MP resolution
Easy, Cost-Efficient Installation
User Friendly Design, Name tag, Communication status LED indicator
IP65 water resistant, preventing water ingress for outdoor use
Hikvision Module Door Station Rain Shield for 2 Module, Stainless, Rain Shield of Module Door Station, HIK-DS-KABD8003-RS2-STAINLESS
Convenient design available for the 2 module surface mounting of the modular door station (DS-KD8003-IME1 or DS-KD8003-IME2)
Material: Stainless Steel
DownloadDS-KABD8003-RS2/S Datasheet
Hikvision IP Intercom, Gen 2, 10" Colour Monitor, Wifi, POE, Black (8520), KH8 Series Indoor Station, HIK-DS-KH8520-WTE1
10.1-inch TFT touch screen with 1024 × 600 resolution
Convenient Hik-Connect APP Mobile Control
Receive calls, open the door and live view remotely
Easy to use without PC
Easy wizard for quick set up
Configure the whole system on one touch screen
Rich functions and extensions
Live-view of the door station and cameras in public areas
Support voice messages when no response from the indoor station
Receive alarms by linkage with a alarm system and notify the center to handle in time
Elevator access control
DownloadDatasheet
Hikvision IP Intercom DS-KD8003-IME1, Gen 2, Colour Camera Module, 1 Button, POE KD8 Series Pro Modular Door Station (KD8003)
Expertly designed for security and convenience, the Hikvision IP Intercom DS-KD8003-IME1, GEN 2, Colour Camera Module, 1 Button, POE KD8 Series Pro Modular Door Station (KD8003) offers a 2MP HD colorful camera with fish eye and IR supplement for clear visuals. With a weatherproof IP65 rating and 1 call button and 2 lock relays, this modular door station provides added protection. Can be powered by 12 VDC or standard PoE, and allows for video intercom to indoor and master stations.
Features
Modular door station Main unit, needs mounting bracket
2MP HD Colorful Camera, Fish eye, IR Supplement
1 Call physical Button, 2 lock relays, 4-ch alarm input
IP65, 12 VDC or standard PoE
Video intercom to indoor station and master station
Downloads
DS-KD8003-IME1 Datasheet
The Dahua 2-Wire Wi-Fi Video Intercom Kit DHI-KTX01(S) brings a sleek design, mobile notifications, and comprehensive security features. Night vision and IP65 waterproof are part of the package, as is the ability to integrate with popular alarm systems such as Bosch. No NVR is required, and HDCVI cameras can be connected too.
In the Box:
1 x 2-wire Wi-Fi Hybrid Indoor Monitor DHI-VTH5123H-W:
7'' TFT capacitive touch screen
Offers video intercom that communicates with VTOs through half-duplex, and the app through full-duplex
Supports recording videos and capturing snapshots. (SD card is required)
6-channel alarm input and 1-channel alarm output
The app can be used to receive calls and alarm notifications
Connects to HDCVI camera.
1 x 2-wire Hybrid Villa Door Station DHI-VTO2003F:
Aluminum alloy front panel
Auto IR illumination
Video messages can be left for unanswered calls. (SD card is required for VTH)
Features nameplate and DWDR
Supports local lock and second lock
Offers anti-tampering alarm
IP65 and IK07 rated.
1 x 2-wire Controller DHI-VTNC1003C1 x Surface Mount Bracket VTM115
Download
KTX01 Datasheet_202303032-Wire Hybrid Door Station User's Manual_V1.0.32-Wire Controller User's Manual_V1.0.42-Wire Hybrid Indoor Monitor (7-inch) User's Manual_V1.0.4Dahua 2-wire Hybrid Indoor Monitor Privacy Policy
Dahua Waterproof Access Reader DHI-ASR2200A
PC material, tempered glass panel and IP66, suitable for indoor and outdoor use
Support contactless recognition of IC card (Mifare card)
Support card unlock
Support RS485 and Wiegand communication
Support buzzer and indicator prompt
Support anti-tampering alarm
The built-in watchdog can detect and control the abnormal operation status of the equipment and perform recovery processing to ensure the long-term operation of the equipment
All connection ports have overcurrent and overvoltage protection
Downloads
ASR2200A ASR2200A-D_datasheet_20201216
Customised encasing for UniFi Protect G4 Doorbell.
With the UniFi Protect G4 Doorbell Skin Cover, the G4 Doorbell smoothly blends into the background of your choosing.
Dahua A-Mifare Card for Intercom Access, 13.56MHz Working Frequency
IC card ( Mifare card) with frequency 13.56MHz
Public transportation
Access management
Electronic toll collection
Car parking
Loyalty programs
Dahua all-black 7-inch Touch Screen IP Video Intercom Kit is the modern doorbell for your home or office. Receive notifications on your Dahua's official DMSS app when visitors press the door station. You can also view on your 7-inch IPC black indoor monitor which can be beautifully hanged in your living room. The surface mounted black outdoor station offer adjustable viewing angle with can turn 140 degree and features Night Vision. You can also use it with Mifare card. This is the IP video intercoms and cabling can be done by using RJ45 ethernet cables.
Inside the bundle:
1 x 7-inch Black
Touch Screen Monitor VTH2621G-P
1 x Outdoor Station VTO3211D-P
1 x Uniarch 8 Port PoE Switch with Power Supply, SW-2110-P
1 x 7-inch Black Touch Screen Monitor VTH2621G-PThis Dahua 7-inch IP Indoor Monitor features stylish black colour comes with capacitive touch screen, 1024×600 pixels resolution and Standard PoE. 6 alarms can be connected and security cameras footage can be viewed as well.
7'' TFT capacitive touch screen, 1024 x 600
6-channel alarm input and 1-channel alarm output
Standard PoE
Outdoor station and IPC monitor
H.265 and H.264 video coding
High performance & cost-effective
1 x Black Outdoor Station DHI-VTO3211D-PDahua 2MP IP Villa 1 button Outdoor Station, Viewing Wide Angle 140 degree, Night vision, Mifare Card Reader
2MP HD CMOS camera
Aluminum panel, IP65, IK08
ICR Night vision & Voice indication
Video & Audio messaging
Remote intercom with mobile APP
Surface mounted
1 x Uniarch 8 Port PoE Switch with Power Supply, SW-2110-PUniarch Switch, 10 x 100Mbps network ports, including 8 PoE/PoE+ ports, 2 x 100Mbps uplink ports, Max capacity for single port 30W, total capacity 120W, up to 250m transmission distance, all-metal housing
Multiple working modes to address your business needs: Normal, Secure and Surveillance
Support port traffic control
Support for secure mode, all downlink ports can communicate only with uplink ports
Up to 250m transmission distance on surveillance mode
Support buffer optimization
All-metal housing, safe and reliable
Dahua Four Door Master Access Controller
Support 200,000 valid cards & 150,000 records
CAN bus can cascade 16 sub controller modules
Support multiple cards
Support card, password, fingerprint and combination
TCP/IP interface
Wiegand or RS-485 interface to readers
Door close time out alarm, intrusion alarm, duress alarm and tamper alarm
Global anti-passback, multi-door interlock, multi-personal open, remote verification unlock
Web service can used to configure sub controller
Support 128 efficient time and holiday schedules
Built-in RTC, support DST
Watch dog function ensure device free from halting
Surface mounted installation
Accumulator battery extension
Onvif Profile C, CGI, SDK to the third party platform
Downloads
ASC2204C-H_datasheet
ASC2204C-H_Master_Controller_Users-Manaul
Connection_guide
Access Main Controller_Quick Start Guide
DHI-ASC2204C-H_A&E
Dahua 2-wire Switch Intercom DHI-AC-VTNS1001B-2
Supports connecting through RJ45 port
Supports guide rail mount
Specifications
Basic
Status Indicator Light
2
Communication Mode
2-wire
Port
2-wire port
1 × 2-wire port;
RJ45
1
General
Casing
PC + ABS
Appearance colour
White
Power Supply
DC 48V 1A–3A
Power Adapter
NA
Installation
Guide rail mount
Certifications
CE; FCC; UL
Accessory
Power converter cable
Product Dimensions
131 mm × 103 mm × 40 mm (5.16" × 4.06" × 1.57")
Operating Temperature
–10°C to +55°C (14°F to 131°F)
Operating Humidity
10%°–95% (RH, non-condensing)
Operating Altitude
0–3000 m (0–9842.52 ft)
Power Consumption
≤ 15W (KIT)
Net Weight
0.25 kg (0.55 lb)
Gross Weight
0.39 kg (0.86 lb)
Downloads
VTNS1001B-2 Datasheet_202107292-wire Switch_Installation Guide_V1.0.02-wire Switch_User's Manual_V1.0.0
Hikvision G2. 2-Wire Digital IP Video Intercom Kit, Y Series Intercom, 1 to 1 Modular Kit, PSU, Surface Mount, DS-KIS703Y-P
Inside this bundle:
1 x DS-KH6320Y-WTPE2
1 x DS-KV8103Y-IMPE2
1 x DS-KABV8103-RS
Features
Indoor Station: 7' touch screen 2-Wire IP indoor station with 1024 × 600 resolution
Indoor Station: Convenient Hik-Connect APP Mobile Control: receive calls, open the door and live view remotely
Indoor Station: Easy wizard for quick set up
Indoor Station: Live-view of the door station
Indoor Station: Support voice messages when no response from the indoor station
Door Station: High quality imaging with 2 MP resolution
Door Station: One call physical button for easier calls
Door Station: Two-lock control
Door Station: IP65 protection level
Door Station: Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply
Door Station: High-quality stainless steel panel
Downloads
DS-KIS703Y-P DatasheetDS-KIS703Y-P Quick Start GuideDS-KIS703Y-P User Manual
Hikvision Intercom Kit, KIS212 4-Wire 2MP HD, Surface Mount With Power Supply
HD TVI video quality
Plug & play
One-press to call
One-press to unlock the door
Max 2 door stations and 3 indoor stations in one system
Downloads
DS-KIS212 DatasheetDS-KIS212 Quick Start GuideDS-KIS212 User Manual
Dahua Lite Series VTH2621GIP & Wi-Fi Indoor Monitor Black, 7-inch Touch, PoE, Surface, 3 Year Warranty, DHI-VTH2621G-WP
7" TFT capacitive touch screen, 1024 × 600
6-channel alarm input and 1-channel alarm output
Wi-Fi
Standard PoE
Door station and IPC monitor
H.265 and H.264 video decoding
High performance & cost-effective
Specifications
Technical Specification
System
Main Processor
Embedded processor
Operating System
Embedded Linux operating system
Interoperability
ONVIF; SDK
Network Protocol
RTSP; RTP; SIP; DNS; SSH
ROM
128 MB
RAM
128 MB
CPU
Dual core 1.2 GHz
Basic
Screen Type
Capacitive Touchscreen
Display
7" TFT
Screen Resolution
1024 × 600
Audio Compression
G.711a; G.711u; PCM
Audio Input
1
Audio Output
Built-in speaker
Audio Mode
2-way Audio
Audio Enhancement
Echo suppression
Audio Bit Rate
116 bit
Function
Communication Mode
Full digital
Information Release
Receive and view text information released by the management center
DND Mode
Do not disturb period can be set; Do not disturb mode
Number of Extensions
Villa: 9
Apartment: 4
Wi-Fi intercom: 1 main monitor, 2 extension monitors
Wi-Fi
Yes
Wireless Standard
IEEE802.11b/802.11g/802.11n
Wireless Frequency Range
2,412–2,472 MHz
Wireless Security Encryption
WPA/WPA2; WPA-PSK/WPA2-PSK
Performance
Casing
PC + ABS
Port
Alarm Input
6
Alarm Output
1
Door Bell
Yes (use any alarm input port)
Network
One 10 /100 Mbps Ethernet
Storage
Micro SD Card, Max 64 GB (reserved for software)
General
Appearance Color
Black/White
Power Supply
12 VDC 1A; Standard PoE (36–57 V, 0.35 A)
Installation
Surface Mount
Certifications
CE; FCC
Dimensions
189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00")
Operating Temperature
–10 °C to +55 °C (+14 °F to 131 °F)
Operating Humidity
10%–95% RH (non-condensing)
Operating Altitude
Beneath 3,000 m (9,842.52 ft)
Power Consumption
Standby ≤ 2W; working ≤ 6W
Net Weight
0.34 kg (0.74 lb)
Gross Weight
0.58 kg (1.27 lb)
Downloads
DatasheetPrivacy_PolicyUser's ManualOPEN SOURCE SOFTWARE NOTICESOFTWARE LICENSE AGREEMENT
Dahua IP Indoor Monitor, DHI-VTH2421FB-P
Dahua IP Indoor Monitor, DHI-VTH2421FB-P, offers a high performance and cost-effective solution for IPC surveillance. With a 7" TFT capacitive touch screen and 1024 x 600 resolution, it also features alarm integration and an embedded 8GB SD card. Compatible with standard PoE for seamless installation.
Features
7" TFT Capacitive touch screen, 1024 x 600
IPC surveillance
Alarm integration
High performance & Cost-effective
Embedded 8GB SD card
Support standard PoE
Downloads
VTH2421FB(W)-P_S0 Datasheet 20230614Digital VTH (Version 4.7)_User's Manual_V1.0.0Dahua Digital Indoor Monitor_OPEN SOURCE SOFTWARE NOTICEDahua Digital Indoor Monitor_Privacy PolicyDahua Digital Indoor Monitor_SOFTWARE LICENSE AGREEMENTVTH2421FB(W)-P_DimensionVTH2421FB(W)-P
Dahua 2-wire Intercom Kit, PROMO_2WIREKIT-1M
Dahua 7-inch Touch Screen 2-wire Intercom Kit is the modern doorbell for your home or office. Receive notifications on your Dahua's official DMSS app when visitors press the door station. You can also view on your 7-inch IPC indoor monitor which can be beautifully hanged in your living room. This kits come with rain shade for your outdoor station to protect from different weather for durability.
This kit comes with
1 x 7 inch Monitor DHI-VTH5422HWDahua 7-inch 2-wire & Wi-Fi Indoor Monitor
7" TFT capacitive touchscreen, 1024 × 600
6-channel alarm input and 1-channel alarm output
Wi-Fi
Outdoor station and IPC monitor
H.265 and H.264 video decoding
2-wire digital communication
1 x Outdoor Station DHI-VTO2202F-P-S2Dahua 2-wire IP Villa Door Station comes with both 2-wire and ethernet port
Anodised aluminium front panel
CMOS low illumination 2MP HD colourful 160° fisheye camera
Video intercom function
Access control function that supports two locks
Mobile phone app, talk to the visitor or unlock the door remotely on
Compatible with 2-wire interface & RJ45 interface
IK07 & IP65
Support H.265
Support surface and flush mount
PoE
1 x VTNS1001B-2-ADahua 2-wire Switch Intercom DHI-AC-VTNS1001B-2
Supports connecting through RJ45 port
Supports guide rail mount
1 x Dahua Surface Mount Backet VTM05R
Dahua IP Apartment Door Station, VTO6521H
4.3 inch IPS display; screen resolution 800×480
2MP CMOS; true WDR
Touch button; IP65
Operating temperature: -30°C to +60°C · Auto light illumination reduces light pollution
Multiple unlock modes: Password unlock, IC card unlock, and remote unlock
Support 20,000 users and 10,000 cards
Support full duplex; management platform, and voice call through APP
Support SIP server
Support duress alarm, tamper alarm, and door sensor timeout alarm
Downloads
VTO6521H Datasheet 20230302 Video Door Phone Quick Start Guide_V1.0.1 Unit VTO (Version 4.6) User's Manual_V1.0.0 Unit VTO (Version-4.3) Users-Manual_V1.0.11 VTO6521H Installation Procedure VTO6521H Dimensions
Hikvision Intercom, Gen 2, Stainless Steel, 2 Module, Flush Mount (ACF2), 2nd Video Intercom Brackets, HIK-DS-KD-ACF2/STAINLESS
2 Flush mounting module brackets of modular door station: includes gang box, cover screws, lines, etc.
Stainless steel high quality material
DownloadDatasheet
Hikvision Intercom, Gen 2, Stainless Steel, 1 Module, Flush Mount (ACF1), 2nd Video Intercom Brackets, HIK-DS-KD-ACF1/STAINLESS
1 Flush mounting module brackets of modular door station: includes gang box, cover screws, lines, etc.
Stainless steel high quality material
DownloadDatasheet
Hikvision Module Door Station Rain Shield, for 1 Module,stainless, Rain Shield of Module Door Station, HIK-DS-KABD8003-RS1-STAINLESS
Convenient design available for the 1 module surface mounting of the modular door station (DS-KD8003-IME1 or DS-KD8003-IME2)
Material: Stainless Steel
DownloadDatasheet
