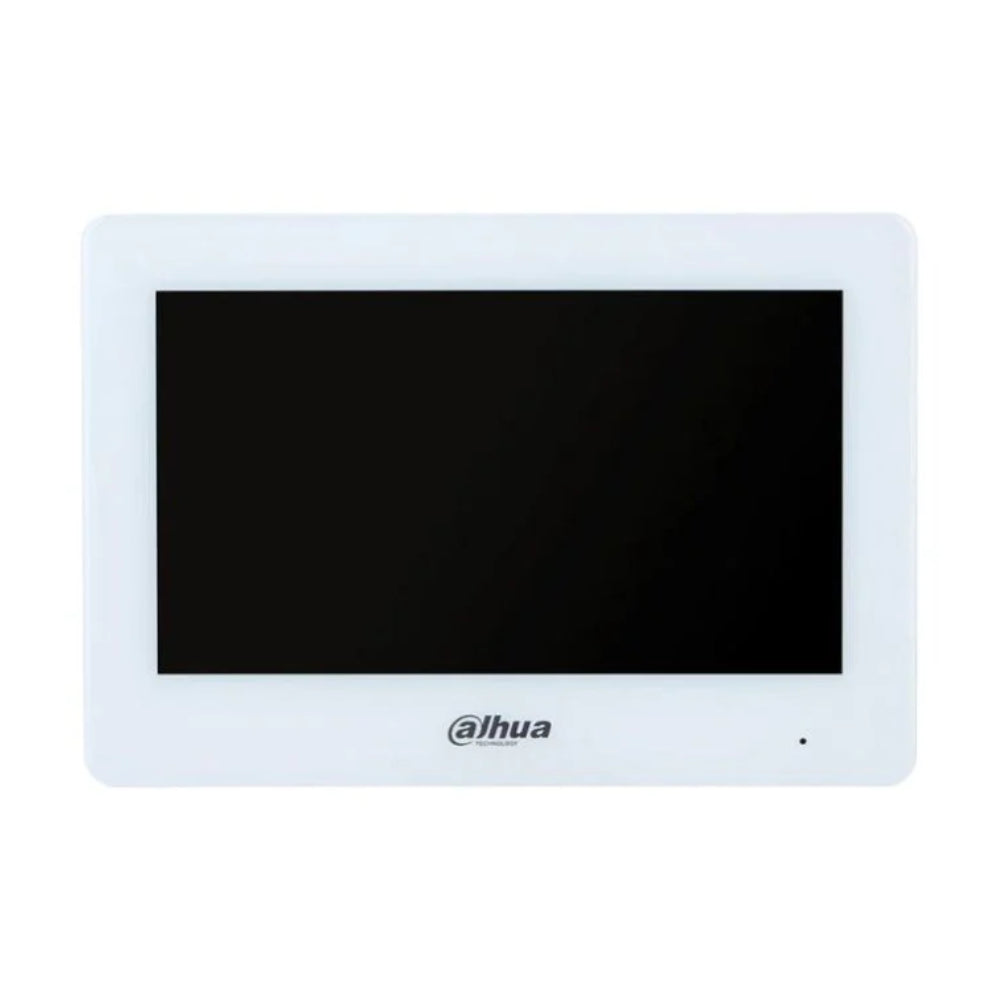

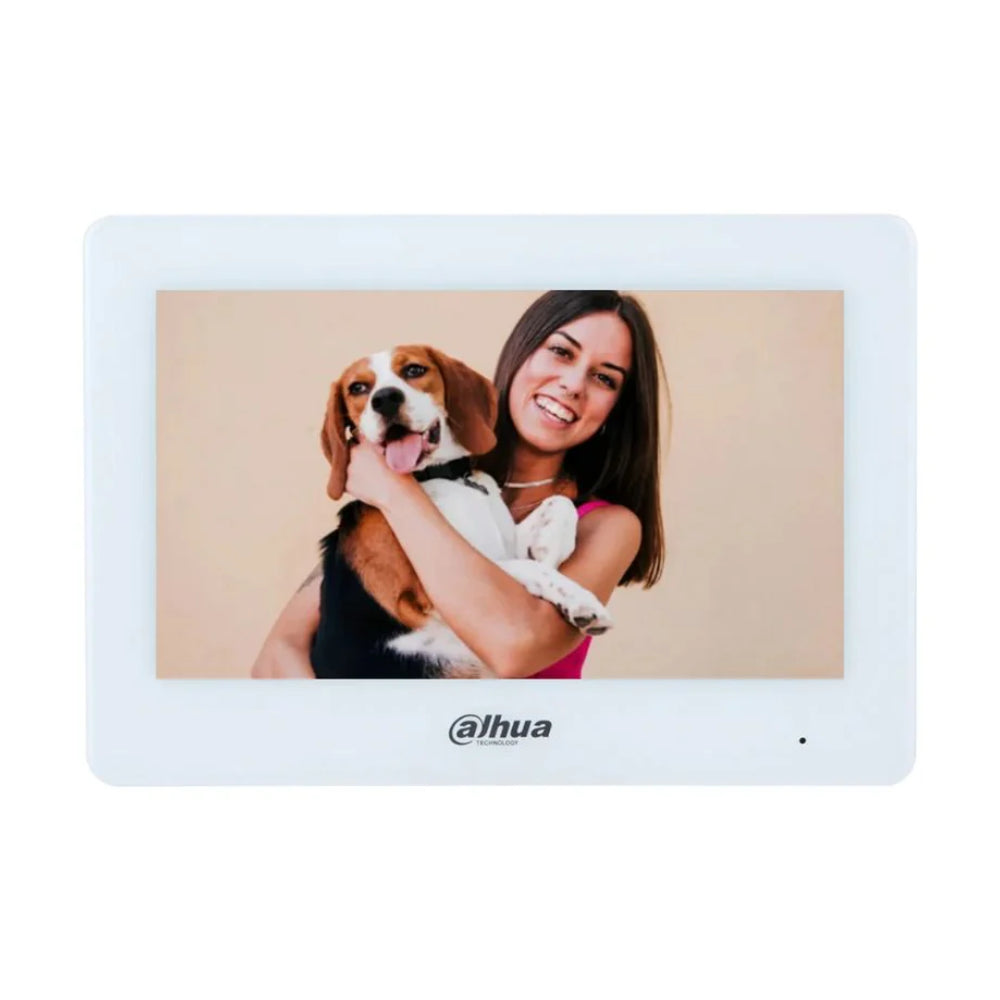

Dahua · DHI-VTH5123H-W · 7" Wi-Fi Hybrid Indoor Monitor · Two-Way IntercomWi-Fi Indoor MonitorDahua DHI-VTH5123H-W 7" 2-Wire Wi-Fi Hybrid Indoor Monitor
The Dahua DHI-VTH5123H-W is a 7-inch capacitive touchscreen indoor monitor built for 2-wire video intercom systems. It talks to door stations through half-duplex video intercom and connects to your phone over Wi-Fi via the DMSS app for full-duplex calls, so you can answer the door from anywhere. With six alarm inputs, one alarm output, HDCVI camera viewing and onboard recording to micro SD, it brings genuine flexibility to a single white surface-mount panel.
Wiring: 2-Wire Hybrid
The VTH5123H-W belongs to Dahua’s two-wire hybrid system, with a wired two-conductor connection to the compatible hybrid controller. Its Wi-Fi feature is for network/app functions; it does not eliminate the intercom wiring. Do not connect the two-wire terminals to an ordinary PoE switch or assume compatibility with Dahua two-wire IP equipment.
Existing cable can be reused only after checking conductor size, cable condition, distance, polarity where applicable and the manufacturer’s wiring diagram. Matching the wire count alone does not establish compatibility. Locks, gate controls and their power requirements must be checked separately.
Answer the door anywhere
Half-duplex video intercom to the door station plus full-duplex calls to your phone over the DMSS app keep you connected whether you are home or away.
Hybrid camera viewing
Connects to HDCVI cameras so you can pull up live footage from your analog surveillance alongside your door station feed on one screen.
Alarm-ready
Six alarm inputs and one alarm output let you wire door, window and PIR sensors directly into the monitor for a layered home security setup.
Record and capture
Records video and captures snapshots to a micro SD card (up to 64 GB) so you always have a visual record of who came to the door.
Technical specifications
| Wiring platform |
2-Wire Hybrid |
| Wiring power requirements |
Powered through a compatible Dahua two-wire hybrid controller |
| Screen |
7" TFT capacitive touchscreen |
| Resolution |
1024 × 600 |
| Colour |
White |
| Communication |
2-wire |
| Wi-Fi |
Yes |
| Audio |
Two-way (half-duplex to VTO, full-duplex to app) |
| Camera Input |
HDCVI camera |
| Alarm I/O |
6-channel input / 1-channel output |
| Storage |
Micro SD, max 64 GB |
| Power Supply |
2-wire controller |
| Mounting |
Surface mount |
| App |
DMSS |
| Warranty |
2 years · CCTV Guru Australia |
Downloads
Frequently asked questions
Which wiring system does this product use?The VTH5123H-W belongs to Dahua’s two-wire hybrid system, with a wired two-conductor connection to the compatible hybrid controller. Its Wi-Fi feature is for network/app functions; it does not eliminate the intercom wiring. Do not connect the two-wire terminals to an ordinary PoE switch or assume compatibility with Dahua two-wire IP equipment.
Can I reuse my existing intercom cable?Existing cable can be reused only after checking conductor size, cable condition, distance, polarity where applicable and the manufacturer’s wiring diagram. Matching the wire count alone does not establish compatibility. Locks, gate controls and their power requirements must be checked separately.
Does the VTH5123H-W work over Wi-Fi?Yes. It connects to your home Wi-Fi so you can answer door calls and receive alarm notifications on your phone through the DMSS app, even when you are away.
What door stations is it compatible with?It pairs with Dahua 2-wire (VTO) door stations. It also connects to HDCVI cameras for live viewing on the same screen.
Does it record?Yes, with a micro SD card (up to 64 GB) installed it records video and captures snapshots of door events.
How is it powered?Power is supplied over the 2-wire connection from the system controller, so no separate plug-pack is needed at the monitor.
