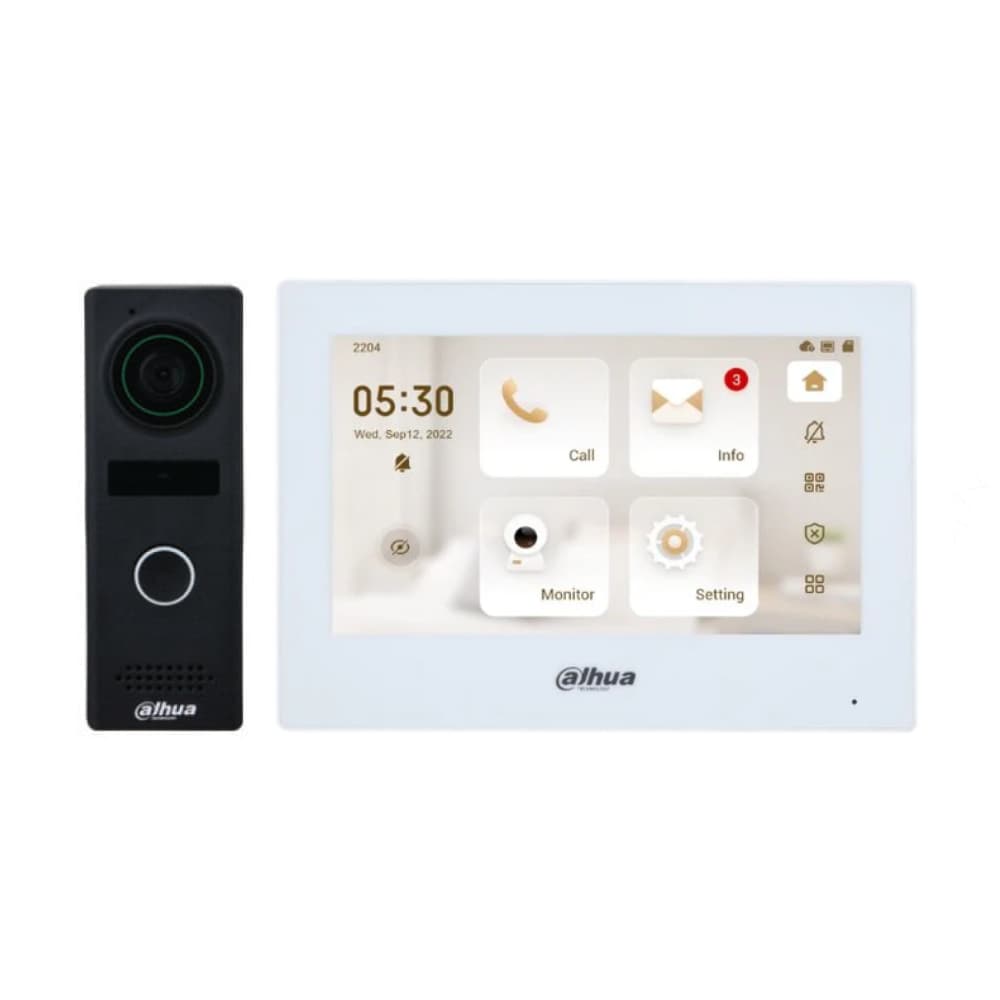

Dahua DHI-KTH01M 4-Wire Hybrid Video Intercom Kit with Wi-Fi Indoor Monitor
The Dahua DHI-KTH01M is a smart hybrid video intercom kit designed for Australian homes, villas, apartments, offices and small commercial buildings. It combines a modern 7-inch touchscreen indoor monitor with a durable outdoor door station, delivering visitor video, two-way audio, remote door release and mobile app control in one complete package.
Unlike traditional analogue intercom systems, the KTH01M bridges both 4-wire analogue installations and modern IP-based functionality. The system supports Wi-Fi connectivity, DMSS mobile app integration, PoE networking, alarm integration and IP camera monitoring, making it an excellent upgrade path for older intercom systems without requiring a complete site rewire.
Outdoor Station
IP66 Rated

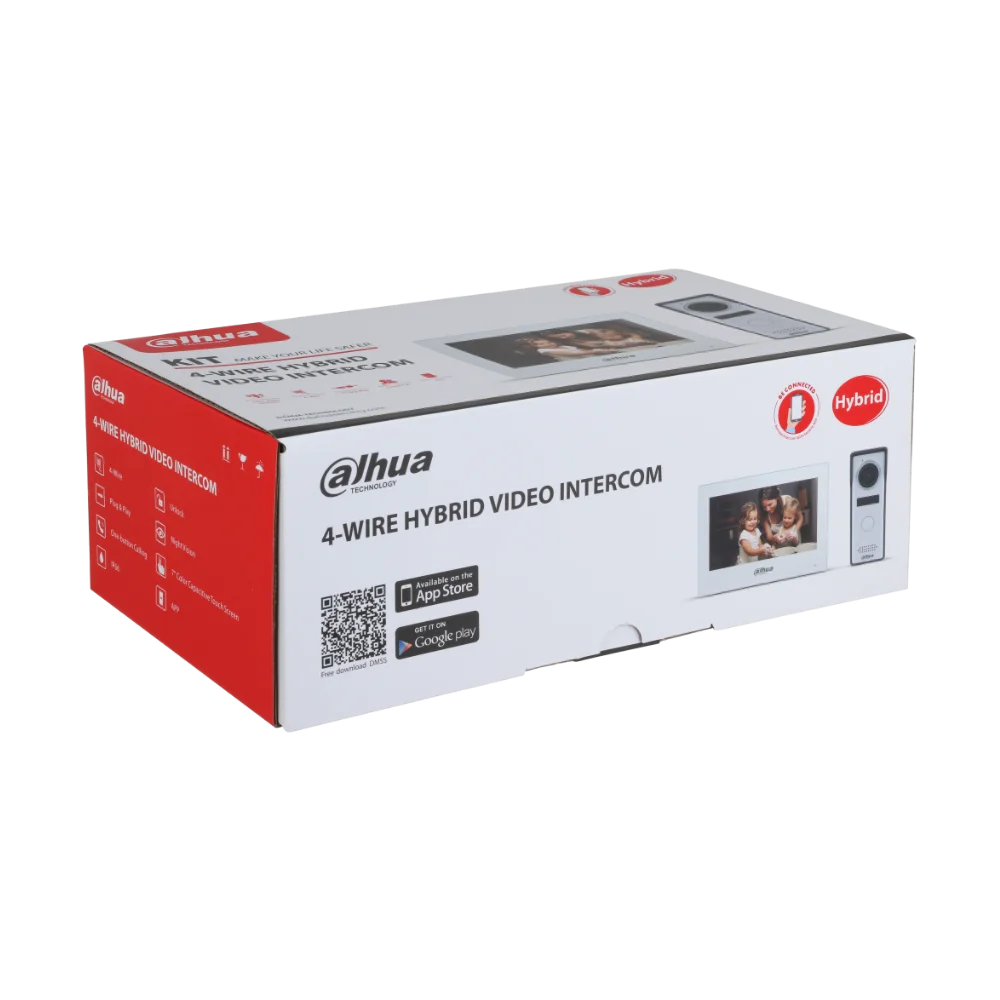

What’s Included in the Kit
1 × DHI-VTH2624GW-WP Indoor Monitor7-inch TFT capacitive touchscreen indoor monitor with Wi-Fi, PoE support, alarm integration, SD card support and DMSS app connectivity.
1 × DHI-VTO1000JM Outdoor StationDurable outdoor video door station with mechanical call button, visitor calling, two-way audio and remote door release support.
Mounting AccessoriesIncludes Dahua-supplied mounting accessories for a clean residential or small commercial installation.
DMSS App SupportAnswer calls, view visitors and unlock the door remotely from your smartphone using the Dahua DMSS app.
Why Choose the Dahua DHI-KTH01M?
Upgrade Older 4-Wire IntercomsIdeal for replacing older analogue intercom systems while adding modern app control, video calling and IP functionality.
7-Inch Touchscreen MonitorThe indoor monitor provides a clear touchscreen interface for answering calls, viewing visitors and unlocking the door.
Remote Unlock with DMSSReceive visitor calls and unlock the door from your phone when configured with the DMSS app and compatible network setup.
Wi-Fi and PoE FlexibilityThe indoor monitor supports Wi-Fi and PoE, giving installers more flexibility across retrofit and new-build applications.
IP Camera MonitoringMonitor compatible Dahua IP cameras from the indoor station for a more complete front-door security experience.
Weather-Resistant Outdoor StationThe outdoor station is designed for Australian entry points with IP66 protection for outdoor use.
Recommended For
Homes & VillasAnswer the front door from the indoor monitor or smartphone, with remote unlock support for visitors and deliveries.
Apartment UpgradesA strong option for selected apartment or unit applications where existing 4-wire cabling can be reused.
Small OfficesControl visitor access at the front entrance and allow staff to answer calls from the monitor or mobile app.
Clinics & Reception AreasManage visitor entry without leaving reception, consultation rooms or staff areas.
Retail & Back EntrancesSecure rear doors, staff entries and delivery points with video calling and controlled release.
Retrofit Intercom ProjectsPerfect when customers want a smarter system without starting again with a full IP intercom rewire.
Watch the Dahua Hybrid Intercom in Action
Dahua hybrid 4-wire video intercom demonstration showing the indoor monitor, outdoor station and smart intercom functionality.
Technical Specifications
Indoor Monitor — DHI-VTH2624GW-WP
| Display |
7-inch TFT capacitive touchscreen |
| Resolution |
1024 × 600 |
| Network |
1 × RJ-45 10/100 Mbps |
| Wi-Fi |
Supported |
| PoE |
Standard PoE supported |
| Alarm Input |
6 channels |
| Alarm Output |
1 channel |
| SD Card |
Up to 64 GB |
| Mobile App |
DMSS |
| IP Camera Monitoring |
Supported |
Outdoor Station — DHI-VTO1000JM
| Product Type |
4-wire outdoor video door station |
| Call Button |
Mechanical button |
| Video Compression |
H.264 |
| Door Release |
Supported with compatible lock hardware |
| Weather Protection |
IP66 |
| Application |
Villa, home, office and small commercial entry points |
Installation Notes
Check Existing 4-Wire CablingFor retrofit jobs, confirm cable condition, cable path and compatibility before replacing an older intercom system.
Plan Door Lock HardwareElectric strikes, magnetic locks, exit buttons and power supplies are normally selected separately based on the door type.
Network Setup Required for App UseDMSS mobile app features require correct network configuration and internet access.
Professional Installation RecommendedFor best results, use a qualified security or intercom installer, especially when door release hardware is required.
Downloads & Resources
Download the Dahua datasheet or contact CCTV Guru for help selecting compatible locks, exit buttons, power supplies and installation accessories.
Frequently Asked Questions
Can the Dahua DHI-KTH01M replace an old 4-wire intercom?
Yes, it is designed as a hybrid 4-wire kit and is a strong option for upgrading many older intercom systems, subject to cabling and site compatibility.
Does it work with the DMSS app?
Yes. The system supports Dahua DMSS app connectivity for mobile viewing, call answering and remote unlock where configured correctly.
Can I unlock the door remotely?
Yes, remote unlock is supported when connected to compatible electric strike or magnetic lock hardware and configured correctly.
Does the indoor monitor connect by Wi-Fi?
Yes. The DHI-VTH2624GW-WP indoor monitor supports Wi-Fi connectivity.
Is the outdoor station weatherproof?
Yes. The outdoor station is IP66 rated for outdoor use.
Can I view Dahua IP cameras on the monitor?
Yes. The system supports compatible IP camera monitoring through the indoor monitor.
Does the kit include a door lock?
No. Electric strikes, magnetic locks, exit buttons and power supplies are selected separately based on your door and installation requirements.
Does it support PoE?
Yes. The indoor monitor supports standard PoE for cleaner installation options.
Is this suitable for apartments?
Yes, it can suit selected apartment, villa and unit applications, depending on the existing wiring and installation design.
Do you ship Australia-wide?
Yes. CCTV Guru ships genuine Dahua intercom products Australia-wide with local support.
Order the Dahua DHI-KTH01M from CCTV Guru
Order the Dahua DHI-KTH01M 4-Wire Hybrid Video Intercom Kit from CCTV Guru for genuine Dahua hardware, fast Australia-wide dispatch and local advice on compatible electric strikes, magnetic locks, exit buttons, power supplies and installation accessories.
