Dahua · DEE1010B-S2 · Extension Module · RS-485Extension ModuleDahua DHI-DEE1010B-S2 Access Control Extension Module

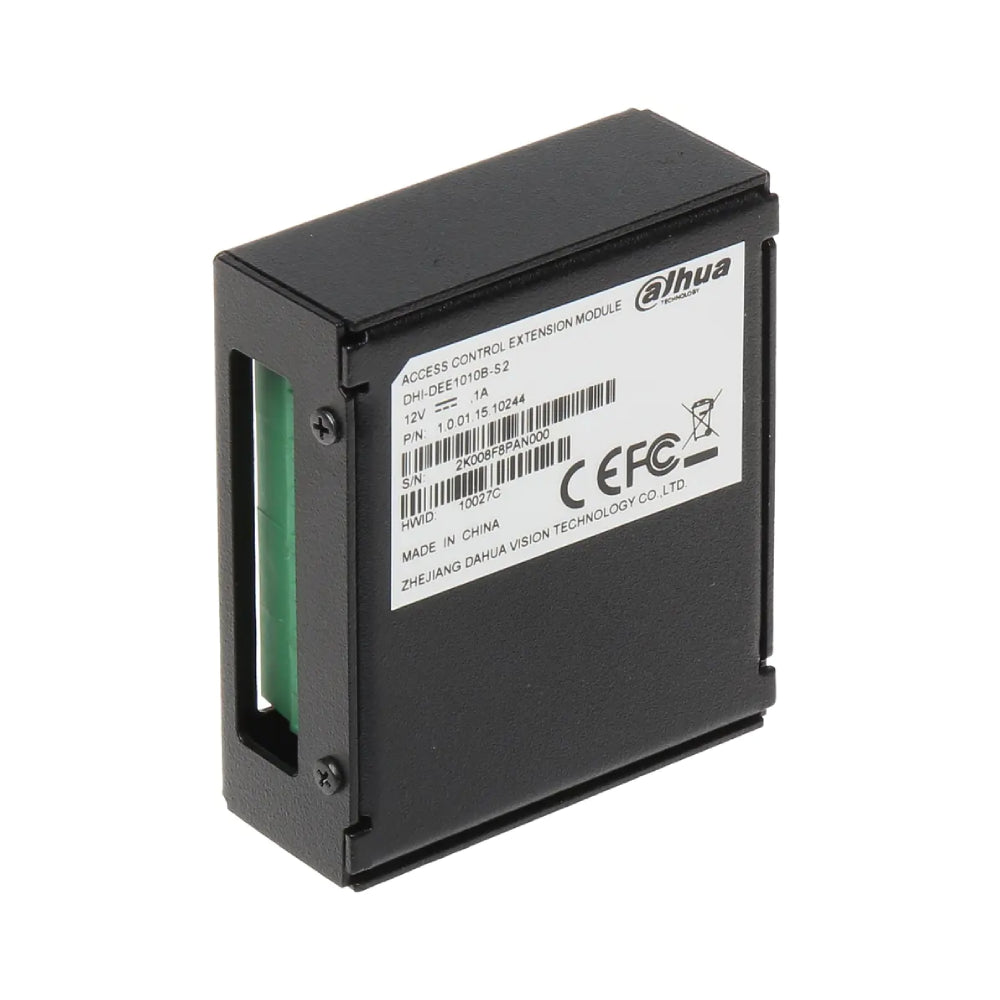

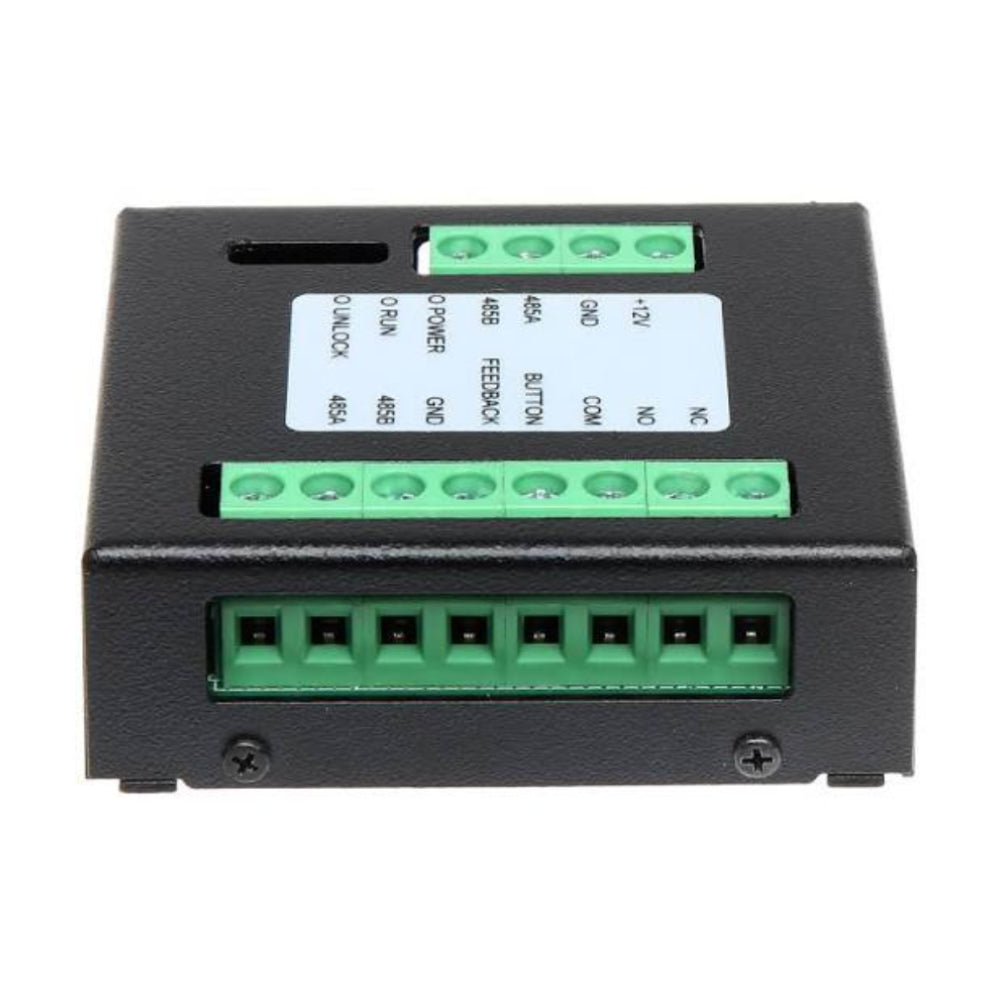

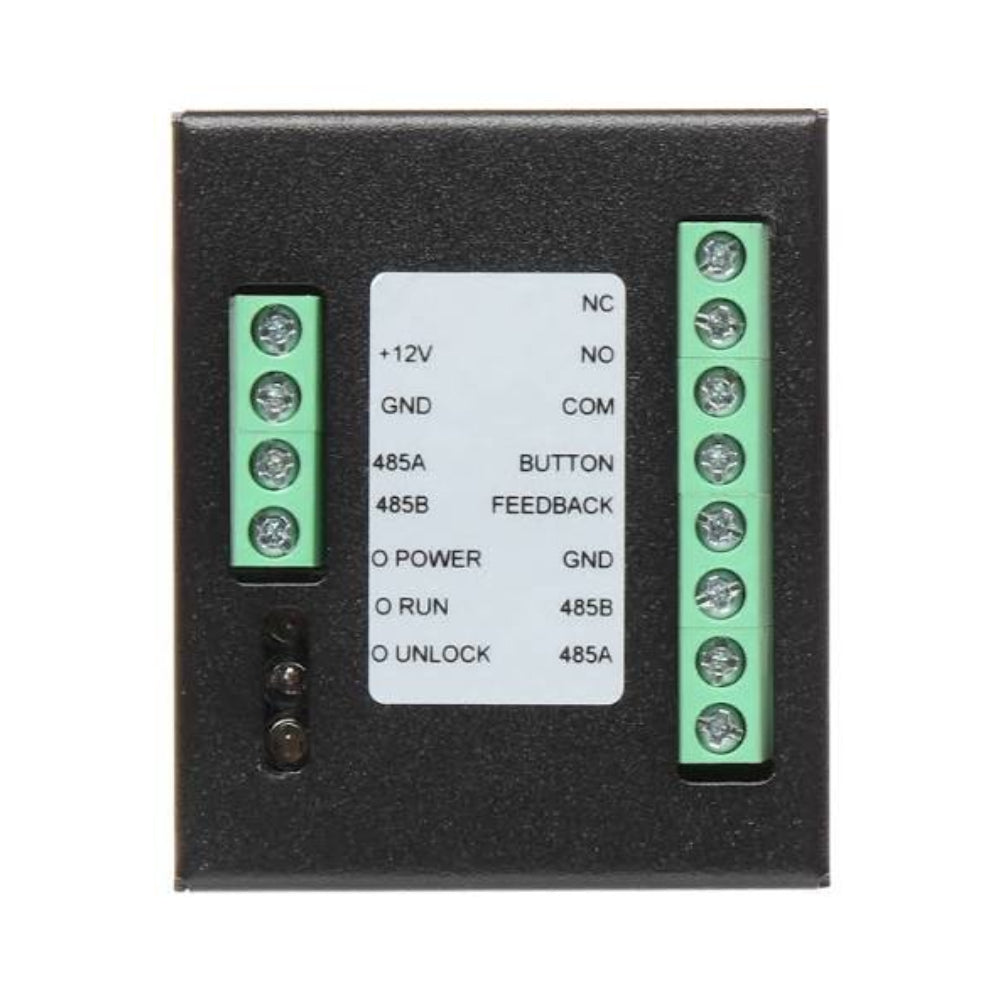

The Dahua DHI-DEE1010B-S2 is a compact access control extension module that works alongside a Dahua access controller or door station to expand door-control functions. Connecting over RS-485, it drives electronic or magnetic locks and provides exit-button input plus door-status detection, with three indicators showing power, operation and door status at a glance.
Specifications — DEE1010B-S2
| Model |
DHI-DEE1010B-S2 |
| Type |
Access control extension module |
| Communication |
RS-485 (2 ports) |
| Lock Control |
1 (electronic or magnetic locks) |
| Exit Button |
1 |
| Door Status Detection |
1 |
| Indicators |
3 (power / operation / door status) |
| Power Supply |
12 VDC, 1 A |
| Power Consumption |
≤ 0.9 W standby, ≤ 1 W working |
| Dimensions (W×H×D) |
58.2 × 49.2 × 20.2 mm |
| Operating Temperature |
−10 °C to +60 °C |
| Operating Humidity |
0%–95% RH, non-condensing |
| Certifications |
CE; FCC |
| Warranty (Australia) |
3 years · CCTV Guru Australia |
