Security Cameras – IP, Wireless & PoE CCTV Systems — Browse Australia’s leading range of security cameras at CCTV Guru. Choose from IP, WiFi, and PoE CCTV camerasdesigned for crystal-clear surveillance at home, in offices, or across commercial sites. Featuring advanced options like ColorVu night vision, AcuSense AI, and 4K resolution, we stock trusted brands including Hikvision, Dahua, Uniarch, HiLook, TP-Link, and more. Enjoy expert advice and fast, nationwide shipping.
The world’s first security camera system designed for interior design professionals.Features:
8 MP wide angle lens 97.5˚(H) for wall mounted application (included)
12 MP fisheye 360° lens for ceiling mounted applications (included)
Two-way audio*
Advanced AI processing engine for long-range smart detections
Color LCM display for device status monitoring
Managed with the UniFi Protect application: Version 2.7.18 and later (web) / 1.11.0 and later (mobile)
*UVC-AI-Theta-Audio sold separately.
Mechanical
Dimensions UVC-AI-Theta-Hub: 140 x 70 x 38 mm (5.5 x 2.8 x 1.5”)
UVC-AI-Theta-Lens/360: Ø22.8. x 43.5 mm (Ø0.9 x 1.7”)
Weight UVC-AI-Theta-Hub: 330 g (11.6 oz)
UVC-AI-Theta-Hub Mount: 35 g (1.2 oz)
UVC-AI-Theta-Lens/360: 15 g (0.5 oz)
UVC-AI-Theta-Lens/360 Flush Mount: 12 g (0.4 oz)
Enclosure materials UVC-AI-Theta-Hub: aluminum alloy
UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate
UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate
Mount materials UVC-AI-Theta-Hub: aluminum alloy
UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate
UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate
Cable jacket enclosure dimensions 28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3")
Cable jacket enclosure material PVC
Cable length 1 m (3.3 ft)
Cable diameter 3.7 mm (0.15")
Cable jacket material Woven fabric
Cable weight 18 g (0.63 oz)
Cable connector type Theta proprietary
Optics
Sensor UVC-AI-Theta-Lens: 8MP CMOS sensor
UVC-AI-Theta-Lens-360: 12MP CMOS sensor
Lens Fixed focal length
View angle UVC-AI-Theta-Lens: H: 97.5°, V: 79.4°, D: 118.2°
UVC-AI-Theta-Lens-360: H: 180°, V: 180°, D: 180°
Video
Video compression H.264, MJPEG
Resolution UVC-AI-Theta-Lens: 3264 x 2448 (4:3)
UVC-AI-Theta-Lens-360: 2560 x 2560 (1:1)
Max. frame rate UVC-AI-Theta-Lens: 24 FPS
UVC-AI-Theta-Lens-360: 20 FPS
Image settings Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Downloads
Datasheet
Installation Guide
TP-Link VIGI 3MP IR Dome Network Camera - VIGI C230I(4MM)
3MP Super-High Definition: The VIGI C230I camera comes with 3MP — more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
2.8 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimetre lens for longer distances in open spaces, C230I comes with two different lens types to better suit your security needs.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.
Looking for a higher resolution? It's right here.3MP Super-High DefinitionThe VIGI C230I camera comes with 3MP—more than enough pixels to pick up some of the more discrete details.Human & Vehicle ClassificationIntegrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.We keep an eye on your business.Smart DetectionBacked by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.IK10 Vandal-Proof & IP67 WaterproofWith vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.More compression. More savings. Same quality.Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.Never miss a detail.SmartVid-Smart Video EnhancementVIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.Discover the best way to power your camera.PoE/12V DCTwo power supply ways not only give you more convenience but also make your wiring remarkably easy.Choose the right lens for your security.2.8/4 mm LensWhether you need a wide angle lens to cover enclosed spaces like elevators or a higher millimeter lens for longer distances in open spaces like parking lots, C230I comes with two different lens versions to better suit your security needs.Flexible ManagementTake full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.One system. Full security.Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
TP-Link VIGI 2MP IR Dome Network Camera - VIGI C220I(2.8MM)
2MP Full-High Definition: The VIGI C220I camera comes with 2MP — more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera are built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve the quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
Simplified Deployment with PoE: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter is needed.
2.8 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimetre lens for longer distances in open spaces, C220I comes with two different lens types to suit your security needs better.
Flexible Management: Take full control over your security via three management methods: NVR UI, VIGI app, and VIGI Security Manager.
Looking for a higher resolution? It's right here.2MP Full-High DefinitionThe VIGI C220I camera comes with 2MP—more than enough pixels to pick up some of the more discrete details.Human & Vehicle ClassificationIntegrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.We keep an eye on your business.Smart DetectionBacked by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.IK10 Vandal-Proof & IP67 WaterproofWith vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.More compression. More savings. Same quality.Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.Never miss a detail.SmartVid-Smart Video EnhancementVIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.Simplified Deployment with PoEEasily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.Choose the right lens for your security.2.8mm LensWhether you need a wide-angle lens to cover enclosed spaces like elevators or a higher millimetre lens for longer distances in open spaces like parking lots, C220I comes with two different lens versions to better suit your security needs.Flexible ManagementTake full control over your security via three management methods: NVR UI, VIGI app, and VIGI Security Manager.One system. Full security.Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
TP-Link VIGI 2MP Outdoor IR Bullet Network Camera - VIGI C320I(6MM)
2MP Full-High Definition: The VIGI C320I camera comes with 2MP — more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve the quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Waterproof: Reliable IP67 for stable outdoor performance.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
2 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimetre lens for longer distances in open spaces, C320I comes with three different lens types to better suit your security needs.
Flexible Management: Take full control over your security via three management methods: NVR UI, VIGI app, and VIGI Security Manager.
Looking for a higher resolution? It's right here.2MP Full-High DefinitionThe VIGI C320I camera comes with 2MP—more than enough pixels to pick up some of the more discrete details.Human & Vehicle ClassificationIntegrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notificationsWe keep an eye on your business.Smart DetectionBacked by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.Never miss a detail.SmartVid-Smart Video EnhancementVIGI's professional technologies process videos to greatly improve their quality which is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.More compression. More savings. Same quality.Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.IP67 for Better ProtectionCapable of withstanding temperatures from -30–60 °C, VIGI performs well even in harsh environments with rain and dust.Simplified Deployment with PoEEasily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter is needed.Choose the right lens for your security.2.8/4/6 mm lensWhether you need a wide-angle lens to cover enclosed spaces like elevators or a higher millimeter lens for longer distances in open areas like parking lots, C320I comes with three different lens versions to better suit your security needs.Flexible Installation Gives You More Convenience.Find the perfect vantage point by simply securing your camera to the ceiling, wall, or pole.Flexible ManagementTake full control over your security via three management methods: NVR UI, VIGI app, and VIGI SecuriManagerger. One system. Full security.Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
TP-Link 3MP IR Mini Dome Network Camera - VIGI C230I MINI(2.8MM)
3MP Super-High Definition: The VIGI C230I Mini camera comes with 3MP—more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
Small but compact with wide views: With a small, compact form factor and a 2.8 mm ultra-wide angle lens, the VIGI C230I Mini camera is ideal for corridors, elevators, small warehouses, and convenience stores, where space is limited and a wide view is required.
IK08 Vandal-Proof: Equipped with a vandal-proof dome encasing, the VIGI dome camera withstands damage and provides more reliable security protection in important scenarios, such as ATMs, corridors, and checkout counters.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
Corridor Mode: Allows you to change the image aspect ratio from 16:9 to 9:16, and helps to monitor long and narrow areas.
Looking for a higher resolution? It's right here.3MP Super-High DefinitionThe VIGI C230I Mini Camera comes with 3MP—more than enough pixels to pick up some of the more discrete details.Human & Vehicle ClassificationIntegrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.We keep an eye on your business.Smart DetectionBacked by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.Small but compact with wide viewsWith a small, compact form factor and a 2.8 mm ultra-wide angle lens, the VIGI C230I Mini Camera is ideal for corridors, elevators, small warehouses, and convenience stores, where space is limited and a wide view is required.Every Event is Under Your Control.VIGI cameras intelligently detect activities, inform you instantly and respond automatically by smart detection and two-way audio.IK08 Vandal-ProofEquipped with a vandal-proof dome encasing, the VIGI dome camera withstands damage and provides more reliable security protection in important scenarios, such as ATMs, corridors, and checkout counters.More compression. More savings. Same quality.Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.Never miss a detail.SmartVid-Smart Video EnhancementVIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.Corridor ModeCorridor mode allows you to change the image aspect ratio from 16:9 to 9:16. This helps to monitor long and narrow areas and provides a more pleasant viewing experience.No need to check long compatibility lists.Onvif Ensures CompatibilityEasily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.Flexible Management and StorageTake full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB).One system. Full security.Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
TP-Link VIGI C330 3MP Full-Colour Outdoor Bullet Network Camera (2.8mm)
The TP-Link VIGI C330 is a compact 3MP full-colour outdoor bullet IP camera designed for cost-effective commercial and residential surveillance across Australia. With 24/7 full-colour night vision, AI human and vehicle classification, smart detection, a built-in microphone, and IP67 weatherproofing, it delivers reliable around-the-clock monitoring in a traditional bullet form factor — ideal for visible deterrence at building entrances, driveways, and perimeter fencing.
Key Features
3MP High Definition — Captures clear 2304×1296 footage with sufficient detail for identification of people and vehicles at typical outdoor monitoring distances.
24/7 Full-Colour Night Vision — Large-aperture lens, high-sensitivity sensor, and built-in spotlight LEDs deliver true-colour footage in complete darkness — not black-and-white IR.
AI Human & Vehicle Classification — On-board AI distinguishes people and vehicles from other motion triggers, reducing false alarms from animals, foliage, or lighting changes.
Smart Detection — Detects area intrusion, line-crossing, object abandoned/removal, and video tampering, with instant push notifications to the VIGI app.
Built-In Microphone — Records audio within approximately 4.5 metres of the camera for more complete situational awareness without a separate audio device.
IP67 Weatherproof — Fully sealed against dust and heavy rain for reliable outdoor performance in all Australian weather conditions.
H.265+ Compression — Reduces bandwidth and storage requirements without compromising image quality.
Smart Video Enhancement — True WDR, 3D DNR, Smart IR, and Night Vision processing ensure clear footage in high-contrast and low-light scenes.
PoE or 12V DC Power — Single-cable PoE installation via RJ45, or 12V DC adaptor where PoE is not available.
Bullet Form Factor — Highly visible housing acts as a visual deterrent; adjustable mounting bracket allows precise aiming after installation.
Flexible Management — Manage via VIGI App (iOS/Android), VIGI NVR, VIGI Security Manager (PC), or web browser UI.
Use Cases
Building entrances, driveways, and front gates where visible deterrence is as important as monitoring
Residential properties requiring affordable full-colour outdoor coverage without a large NVR system
Retail shopfronts and small business exteriors needing AI-classified smart detection
Car parks and loading docks where the bullet form factor allows precise directional aiming
Perimeter fencing and boundary monitoring on farms, rural properties, and commercial sites
Supplementing an existing VIGI NVR system with additional outdoor cameras at a cost-effective price point
Technical Specifications
Specification
Detail
Model
VIGI C330 (2.8mm)
Resolution
3MP (2304 × 1296)
Lens
2.8mm Fixed (also available in 4mm)
Form Factor
Bullet (outdoor)
Night Vision
24/7 Full-Colour (Spotlight LEDs + high-sensitivity sensor)
AI Detection
Human & Vehicle Classification
Smart Detection
Area Intrusion, Line-Crossing, Object Abandoned/Removal, Video Tampering
Audio
Built-in microphone (~4.5m radius)
Smart Video
WDR, 3D DNR, Smart IR, Night Vision
Video Compression
H.265+ / H.265 / H.264+ / H.264
Power Supply
PoE (802.3af) or 12V DC
Weather Rating
IP67
Management
VIGI App, VIGI NVR, VIGI Security Manager, Web UI
Weight
Approx. 460g
Warranty
2 Years
Recommended Accessories
TP-Link VIGI NVR1104H-4P — 4-channel PoE+ NVR for centralised recording and AI event management across multiple VIGI cameras.
TP-Link TL-POE260S 2.5G PoE+ Injector — Powers the C330 via a single Ethernet cable from any non-PoE switch or router.
MicroSD Card (Class 10 / U3) — Enables standalone on-camera recording without an NVR (check supported capacity in datasheet).
Cat6 Ethernet Cable — For reliable PoE data and power delivery to the camera installation point.
Weatherproof Junction Box — Provides a clean, sealed cable entry point for outdoor wall installations.
Frequently Asked Questions
What is the difference between the VIGI C330 and the VIGI C340?
The VIGI C330 is a 3MP bullet camera, while the VIGI C340 is a 4MP dome camera. The C330’s bullet form factor provides a more visible deterrent effect and allows precise directional aiming via its adjustable bracket. The C340’s dome form factor is more discreet and vandal-resistant. Both cameras share full-colour night vision and AI smart detection capabilities.
Does the VIGI C330 work without an NVR?
Yes. The C330 supports standalone operation with local recording to a microSD card and remote management via the VIGI app or web browser. A VIGI NVR is optional but recommended for multi-camera deployments requiring centralised recording, playback, and AI event management.
Is 3MP resolution sufficient for outdoor surveillance?
Yes, for most standard outdoor monitoring applications. At 3MP (2304×1296), the C330 provides clear footage for identifying people and vehicles at typical driveway and entrance distances. For applications requiring identification at greater distances or finer detail (such as number plate capture), a 4MP or 5MP camera such as the VIGI C340 or VIGI C250 may be more appropriate.
What PoE standard does this camera require?
The VIGI C330 is powered by IEEE 802.3af PoE, which is the standard supported by most PoE switches and NVRs. It also accepts 12V DC power if PoE is not available at the installation point.
Does the built-in microphone record audio continuously?
The built-in microphone records audio when the camera is actively recording — either continuously to an NVR/microSD card, or during motion-triggered recording events. Audio recording laws vary by state in Australia; ensure you comply with relevant privacy legislation before enabling audio recording in your installation.
Is the C330 compatible with third-party NVRs?
The VIGI C330 supports ONVIF, allowing basic integration with compatible third-party NVRs and VMS platforms. Full AI features including human/vehicle classification and smart detection events are only available within the TP-Link VIGI ecosystem.
TP-Link VIGI 3MP Full-Color Dome Network Camera - VIGI C230(2.8MM)
3MP Super-High Definition: The camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.
24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera.
IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.
Clarity and Colours, All in OneMonitor 24-hour clear colourful details even in pitch dark night. VIGI Full-Colour camera provides maximum 3MP resolutions and ensures colourful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.Human & Vehicle ClassificationIntegrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.We keep an eye on your business.Smart DetectionBacked by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.No more silent surveillance.Built-In MicrophoneThe VIGI camera features a built-in microphone to record anything going on within a 4.5 metres radius of the camera. This gives you more detailed monitoring for greater peace of mind.IK10 Vandal-Proof & IP67 WaterproofWith vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.More compression. More savings. Same quality.Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.Never miss a detail.SmartVid-Smart Video EnhancementVIGI’s professional technologies process videos to greatly improve their quality which is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.Discover the best way to power your camera.PoE/12V DCTwo power supply ways not only give you more convenience but also make your wiring remarkably easy.Flexible ManagementTake full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Flexible Installation Gives You More Convenience.Easily route your camera’s cable into a dropped ceiling or avoid drilling by slotting it through the camera’s side outlet.One system. Full security.Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
TP-Link VIGI 3MP Full-Color Dome Network Camera - VIGI C230(4MM)
3MP Super-High Definition: The camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.
24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera.
IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.
Clarity and Colours, All in OneMonitor 24-hour clear colourful details even in pitch dark night. VIGI Full-Colour camera provides maximum 3MP resolutions and ensures colourful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.Human & Vehicle ClassificationIntegrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.We keep an eye on your business.Smart DetectionBacked by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.No more silent surveillance.Built-In MicrophoneThe VIGI camera features a built-in microphone to record anything going on within a 4.5 metres radius of the camera. This gives you more detailed monitoring for greater peace of mind.IK10 Vandal-Proof & IP67 WaterproofWith vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.More compression. More savings. Same quality.Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.Never miss a detail.SmartVid-Smart Video EnhancementVIGI’s professional technologies process videos to greatly improve their quality which is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.Discover the best way to power your camera.PoE/12V DCTwo power supply ways not only give you more convenience but also make your wiring remarkably easy.Flexible ManagementTake full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Flexible Installation Gives You More Convenience.Easily route your camera’s cable into a dropped ceiling or avoid drilling by slotting it through the camera’s side outlet.One system. Full security.Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
TP-Link VIGI 3MP Full-Colour Turret Network Camera - VIGI C430(4MM)
3MP Super-High Definition: The camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.
24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve the quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.
Clarity and Colours, All in OneMonitor 24-hour clear and colourful details even in pitch dark night. VIGI Full-Color camera provides maximum 3MP resolutions and ensures colourful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.Human & Vehicle ClassificationIntegrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.We keep an eye on your business.Smart DetectionBacked by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.No more silent surveillance.Built-In MicrophoneThe VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.Never miss a detail.SmartVid-Smart Video EnhancementVIGI’s professional technologies process videos to greatly improve their quality that iwhichtal to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.More compression. More savings. Same quality.Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.Plug & Play with One CableEnjoy simple wiring with PoE connections. Connect your camera with an RJ45 cable, and then your power supply and data transmission are all settled.Flexible ManagementTake full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI SecurityManagerr. Flexible Installation Gives You More Convenience.Easily route your camera’s cable into a dropped ceiling or avoid drilling by slotting it through the camera’s side outlet.One system. Full security.Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

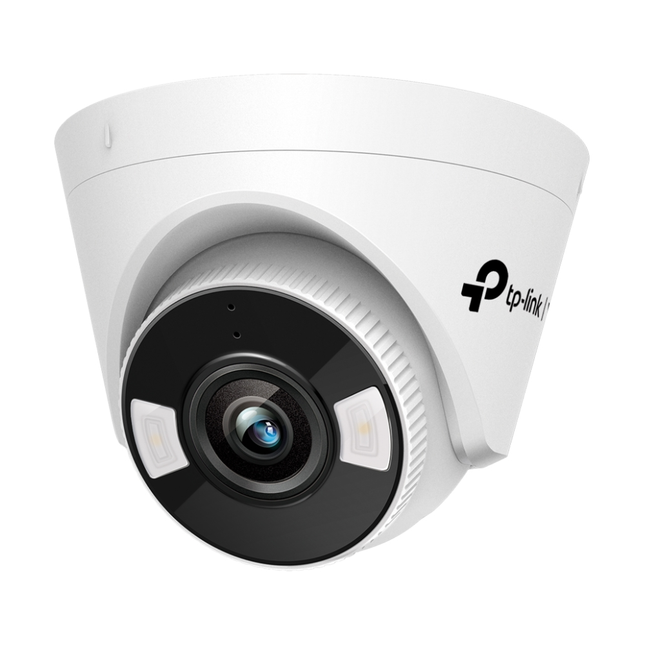

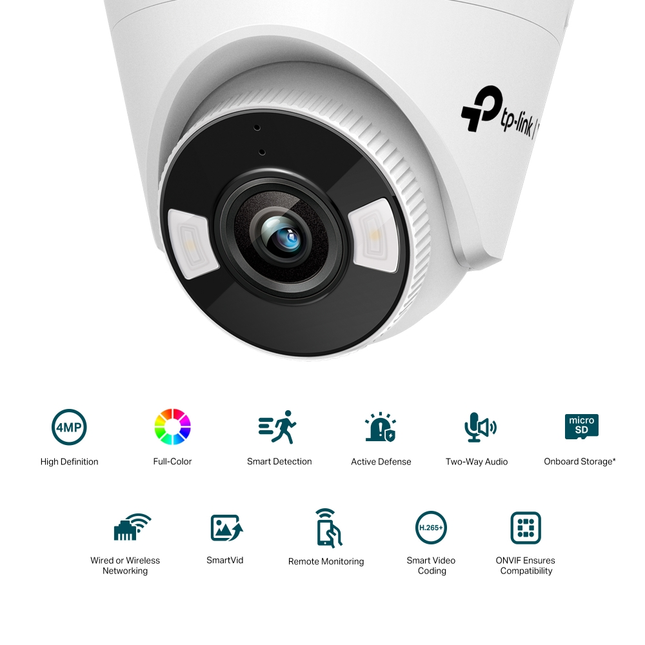

TP-Link VIGI C440-W 4MP Full-Colour Wi-Fi Turret Network Camera (4mm)
The TP-Link VIGI C440-W is a compact 4MP Wi-Fi turret camera designed for straightforward wireless deployment in small businesses, offices, and residential settings across Australia. With 24/7 full-colour night vision, smart detection alerts, and flexible management via the VIGI app, NVR, or desktop software, it delivers professional-grade surveillance without the need for data cabling.
Key Features
4MP Full HD Resolution — Captures crisp 2560×1440 footage with fine detail for confident identification day and night.
24/7 Full-Colour Night Vision — High-sensitivity sensor and built-in spotlight LEDs deliver true-colour footage even in complete darkness.
Wireless Wi-Fi Connection — Built-in 2×2 MIMO antennas enable simple, cable-free deployment — just power up and connect.
Smart Detection — Detects motion, area intrusion, line-crossing, and video tampering, with instant push notifications to your phone.
Active Defence — Triggers sound and light alarms automatically when abnormal events are detected to deter intruders.
Two-Way Audio — Built-in microphone and speaker allow real-time communication through the VIGI app.
H.265+ Compression — Reduces bandwidth and storage requirements without compromising image quality.
Smart IR & Wide Dynamic Range — Prevents overexposure and underexposure in challenging lighting conditions for consistently clear footage.
3D DNR — Reduces image noise for cleaner video in low-light environments.
Flexible Storage & Management — Manage via VIGI NVR, VIGI App, or VIGI Security Manager; supports local microSD and NVR storage.
Flexible Cable Routing — Side cable outlet allows clean installation into dropped ceilings or wall cavities without drilling.
Use Cases
Small offices, reception areas, and meeting rooms requiring discreet wireless coverage
Retail shopfronts and cafés where running data cable is not practical
Residential living areas, hallways, and garages needing an indoor/outdoor Wi-Fi camera
Warehouses and storerooms supplementing an existing wired VIGI NVR system via Wi-Fi
Rental properties and strata buildings where permanent cabling is restricted
Technical Specifications
Specification
Detail
Model
VIGI C440-W (4mm)
Resolution
4MP (2560 × 1440)
Lens
4mm Fixed
Night Vision
Full-Colour (Spotlight LEDs + Smart IR)
Wi-Fi
2.4GHz / 5GHz, 2×2 MIMO
Smart Detection
Motion, Area Intrusion, Line-Crossing, Video Tampering
Active Defence
Sound alarm + light strobe
Audio
Two-way (built-in mic & speaker)
Video Compression
H.265+ / H.265 / H.264+ / H.264
Image Enhancements
Smart IR, WDR, 3D DNR, BLC
Local Storage
MicroSD (capacity TBC); NVR storage supported
Management
VIGI App, VIGI NVR, VIGI Security Manager
Cable Routing
Side outlet for ceiling/wall installation
Weight
Approx. 0.56 kg
Warranty
2 Years
Recommended Accessories
TP-Link VIGI NVR1104H-4P — 4-channel PoE+ NVR for centralised recording; the C440-W connects via Wi-Fi as an additional camera.
MicroSD Card (Class 10 / U3) — Enables on-camera local recording without an NVR.
Wi-Fi Access Point (2.4GHz / 5GHz) — Ensure strong wireless signal at the camera location for reliable streaming.
Junction Box / Surface Mount Adapter — For a clean cable entry point on wall or ceiling installations.
Frequently Asked Questions
Does the VIGI C440-W support both 2.4GHz and 5GHz Wi-Fi?
Yes. The C440-W features dual-band 2×2 MIMO Wi-Fi, supporting both 2.4GHz and 5GHz networks for flexible placement and a more stable wireless connection.
Can this camera be used outdoors?
The C440-W is primarily designed for indoor use. Check the product’s IP rating before installing in exposed outdoor locations. For dedicated outdoor wireless coverage, consider the VIGI C340-W or C540-4G.
Does it work without a VIGI NVR?
Yes. The C440-W can be managed independently via the VIGI mobile app with local microSD recording. A VIGI NVR is optional but recommended for multi-camera installations and centralised storage.
Can I add this camera to an existing wired VIGI NVR system?
Yes. VIGI NVRs support a mix of wired and wireless cameras. The C440-W connects to the same VIGI ecosystem via Wi-Fi and appears alongside wired cameras in the VIGI app and NVR interface.
What smart detection events does it support?
The C440-W detects motion, area intrusion, line-crossing, and video tampering. When an event is triggered, it sends a push notification to the VIGI app and can activate the built-in sound and light alarm.
TP-Link VIGI C440 4MP Full-Colour Turret Network Camera (4mm)
The TP-Link VIGI C440 is a compact 4MP full-colour turret IP camera designed for professional indoor and outdoor surveillance in small businesses, offices, and commercial properties across Australia. With 24/7 full-colour night vision, smart detection alerts, active defence, and flexible PoE or 12V DC power options, it delivers reliable around-the-clock monitoring in a low-profile turret form factor that blends into most installation environments.
Key Features
4MP Full HD Resolution — Captures crisp 2560×1440 footage with fine detail for confident identification of people and events day and night.
24/7 Full-Colour Night Vision — High-sensitivity sensor and built-in spotlight LEDs deliver true-colour footage even in complete darkness — not black-and-white IR.
Smart Detection — Detects motion, area intrusion, line-crossing, and video tampering, with instant push notifications to the VIGI app.
Active Defence — Triggers a sound alarm and light flash automatically when abnormal events are detected to deter intruders in real time.
Two-Way Audio — Built-in microphone and speaker enable live voice communication through the VIGI app.
PoE or 12V DC Power — Single-cable PoE installation via RJ45, or 12V DC adaptor where PoE is not available — two flexible options for any installation scenario.
H.265+ Compression — Reduces bandwidth and storage requirements without compromising image quality.
Smart IR & Wide Dynamic Range — Prevents overexposure and underexposure in challenging lighting conditions for consistently clear footage.
3D DNR — Reduces image noise for cleaner video in low-light environments.
Local MicroSD Storage — Onboard SD card slot for standalone recording without an NVR.
Flexible Management — Manage via VIGI NVR, VIGI App (iOS/Android), or VIGI Security Manager (PC).
Flexible Cable Routing — Side cable outlet allows clean installation into dropped ceilings or wall cavities without drilling.
Use Cases
Small offices, reception areas, and meeting rooms requiring discreet ceiling-mounted coverage
Retail shopfronts, cafés, and restaurants needing 24/7 full-colour monitoring
Warehouses and storerooms where PoE simplifies single-cable installation
Building entrances, lobbies, and corridors requiring smart detection and active deterrence
Residential properties supplementing an existing VIGI NVR system with additional indoor cameras
Technical Specifications
Specification
Detail
Model
VIGI C440 (4mm)
Resolution
4MP (2560 × 1440)
Lens
4mm Fixed
Form Factor
Turret (indoor/outdoor)
Night Vision
Full-Colour (Spotlight LEDs + Smart IR)
Smart Detection
Motion, Area Intrusion, Line-Crossing, Video Tampering
Active Defence
Sound alarm + light flash
Audio
Two-way (built-in mic & speaker)
Video Compression
H.265+ / H.265 / H.264+ / H.264
Image Enhancements
Smart IR, WDR, 3D DNR, BLC
Power Supply
PoE (802.3af) or 12V DC
Local Storage
MicroSD slot (capacity TBC); NVR storage supported
Cable Routing
Side outlet for ceiling/wall installation
Management
VIGI App, VIGI NVR, VIGI Security Manager
Weight
Approx. 400g
Warranty
2 Years
Recommended Accessories
TP-Link VIGI NVR1104H-4P — 4-channel PoE+ NVR for centralised recording and smart detection management across multiple VIGI cameras.
TP-Link TL-POE260S 2.5G PoE+ Injector — Powers the C440 via a single Ethernet cable from any non-PoE switch or router.
MicroSD Card (Class 10 / U3) — Enables standalone on-camera recording without an NVR.
Cat6 Ethernet Cable — For reliable PoE data and power delivery to the camera installation point.
Junction Box / Surface Mount Adapter — Provides a clean cable entry point for wall or ceiling installations.
Frequently Asked Questions
What is the difference between a turret and a dome camera?
A turret camera (also called an eyeball camera) has a ball-and-socket design that allows the lens to be repositioned after mounting without removing the camera body. A dome camera has a fixed lens direction under a protective dome cover. Turret cameras are generally easier to aim precisely during installation and produce less lens flare from IR reflection, making them a popular choice for indoor and covered outdoor locations.
Does the VIGI C440 work without an NVR?
Yes. The C440 supports standalone operation with local recording to a microSD card and remote management via the VIGI app. A VIGI NVR is optional but recommended for multi-camera deployments requiring centralised recording, playback, and AI event management.
Is the C440 suitable for outdoor installation?
Yes. The VIGI C440 is rated for both indoor and outdoor use. Check the product’s IP rating specification for its exact ingress protection level before installing in exposed outdoor locations subject to direct rain or dust.
What PoE standard does this camera require?
The VIGI C440 is powered by IEEE 802.3af PoE, which is the standard supported by most PoE switches and NVRs. It also accepts 12V DC power if PoE is not available at the installation point.
Can I integrate the VIGI C440 with third-party NVRs?
The VIGI C440 supports ONVIF, allowing basic integration with compatible third-party NVRs and VMS platforms. Full smart detection features, active defence, and two-way audio are only available within the TP-Link VIGI ecosystem.
What is the difference between the C440 and C440-W?
The C440 connects via PoE or 12V DC over a wired Ethernet cable. The C440-W adds dual-band Wi-Fi (2.4GHz/5GHz) for wireless deployment where running a data cable is not practical. Both cameras share the same 4MP full-colour image quality and smart detection features.
Axis M3077-PLVE Network Camera, M3077-PLVE Offers Excellent Image Quality and a Complete 180 Or 360 Overview, Indoors or Out, Around the Clock. It Features Two Built-in Microphones Allowing for Audio Surveillance and Detection, 02018-001
6 MP outdoor-ready dome with 360° panoramic view and audio capture
Complete 180° and 360° overview
Lightfinder, Forensic WDR, and OptimizedIR
Digital PTZ and dewarped views
Built-in microphones
Enhanced security features
DownloadDatasheet
AXIS M3088-V 8 Megapixel Indoor Network Camera - Colour - Mini Dome - H.264, H.265, MJPEG, Zipstream - IK08 - Dust Resistant, Vandal Resistant
Fixed 8 MP mini dome with deep learning
Great image quality in 8 MP
Compact, discreet design
WDR for challenging light
Support for analytics with deep learning
Built-in cybersecurity features
This cost-efficient, compact mini dome delivers great image quality in challenging light conditions. And, with a deep learning processing unit, you can benefit from advanced analytics based on deep learning on the edge.
Great image qualityAXIS M3088-V offers great 8 MP image quality even in challenging light conditions. Thanks to Wide Dynamic Range (WDR), it ensures clarity even when there’s both dark and light areas in the scene. Plus, out-of-the-box it offers a factory-focused fixed field of view so there’s no manual focusing required.
Extended possibilitiesAXIS M3088-V offers support for intelligent analytics based on deep learning on the edge. This means it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. AXIS Object Analytics comes preinstalled and knows what to detect so you can focus on objects of interest - all tailored to your specific needs. Additionally, with support for ACAP, you can add value to your system with tailor-made applications. Furthermore, this compact dome offers the flexibility to add audio or I/O connectivity using accessories.
Compact and cost-efficientThis cost-efficient mini dome offers a wide range of mounting accessories for flexible and discreet installation. With bayonet-fitted casing, it simply twists on and off for fast, convenient installation. Compact in design, this easy-to-install, vandal-resistant camera is protected against redirection and defocusing as well as dust and dripping water. It offers Axis Zipstream with H.264/H.265 for reduced bandwidth and storage requirements. And thanks to edge storage you can record directly to an onboard memory card. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.
Downloads
M3088-V Datasheet
Axis M5000 PTZ Camera, M5000 50Hz 15MP Indoor Panoramic Camera With PTZ and 10x Optical Zoom, 02187-001
15 MP indoor camera with 10x optical zoom
3x 5MP sensors for situational awareness
Total overview, zoomed-in details
Covers indoor areas up to 400 m2 (4300 ft2)
10x optical zoom with HDTV 1080p
Autofocus and D/N functionality
From banks to retail stores, M5000 PTZ is ideal for a wide variety of indoor applications. This 15 MP indoor camera features three 5 MP sensors and one PTZ camera with 10x optical zoom, so you get the benefits of four cameras, while installing just one.
Total situational awarenessAXIS M5000 offers total situational awareness of indoor areas up to 400 m2 (4300 ft2). Featuring three 5 MP sensors and one PTZ camera with 10x optical zoom and HDTV 1080p, it lets you benefit from sweeping overviews, and you can zoom in to get the details. With everything displayed on one monitor, you can move from overview to detailed views in a single click. Furthermore, it features indication lights to help deter antisocial and criminal behavior, ideal for retails stores and large indoor areas.
Great image qualityIncluding three 5 MP sensors with a total of 15 MP resolution, this cost-effective, indoor camera offers great image quality. It has day/night functionality with an automatically removable infrared-cut filter. And, with autofocus capabilities, you can quickly zoom in on areas of interest. Thanks to polygonal privacy masking, it’s possible to pixelate whole areas where privacy must be kept, such as a neighboring property. Plus, click in picture functionality allows you to click directly in the picture to define the central position of the selected camera. Furthermore, Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements.
Cost-efficient and easy to installWith AXIS M5000, you get the benefits of four cameras, while installing just one. So, there’s only one camera to install, one cable to run, one IP address, and one video management software (VMS) license to install. Thanks to edge storage you can record directly to an onboard memory card for easy installation and maintenance. Designed to blend in seamlessly with any environment, a black dome is also available as an accessory. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.
DownloadM5000 Datasheet
Axis P3268-LV Dome Camera, P3268-LV High-performance Fixed Dome Camera With Deep Learning Processing Unit (DLPU), 02331-001
Indoor 8 MP dome with IR and deep learning
Excellent image quality in brilliant 4K
Lightfinder 2.0, Forensic WDR, and OptimizedIR
Analytics with deep learning
Audio and I/O connectivity
Built-in cybersecurity features
Based on the latest Axis system-on-chip (SoC), AXIS P3268-LV offers excellent image quality and advanced analytics based on deep learning on the edge. Packed with cybersecurity features, this unobtrusive fixed dome is ideal for versatile surveillance.
Excellent image qualityAXIS P3268-LV delivers outstanding image quality and forensic details in brilliant 4K. Including a varifocal 9 mm lens for wide-area surveillance, it offers a field of view of 100-53 degrees. Thanks to Lightfinder 2.0 and Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. And, with OptimizedIR, you’ll enjoy sharp and clear footage in complete darkness up to 40 m (130 ft) without the need for extra lighting. Furthermore, Axis Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
Deep learning analytics on the edgeBased on ARTPEC-8, the latest Axis system-on-chip (SoC), this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before—on the edge. Thanks to AXIS Object Analytics, it offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
Versatile and high performanceThis easy-to-install dome camera is designed to blend into any environment. Featuring a varifocal lens with remote zoom and auto focus capabilities, it can be adapted for close-ups and overviews without the need for hands-on fine tuning. Featuring audio and I/O connectivity you can integrate peripheral equipment for instance a microphone to extend the value of your system. Furthermore, this powerful dome camera is packed with built-in cybersecurity features to prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.
Download
P3268-LV Datasheet
Axis P3267-LVE Dome Camera, High-performance Fixed Dome 5MP Camera With Deep Learning Processing Unit (DLPU), 02732-001
AXIS P3267-LVE Dome Camera Outdoor 5 MP dome with IR and deep learning
Excellent image quality in 5 MP
Lightfinder 2.0, Forensic WDR, and OptimizedIR
Analytics with deep learning
Audio and I/O connectivity
Built-in cybersecurity features
Based on the latest Axis system-on-chip (SoC), AXIS P3267-LVE offers excellent image quality and advanced analytics based on deep learning on the edge. Packed with cybersecurity features, this unobtrusive fixed dome is ideal for versatile surveillance.
Excellent image qualityAXIS P3267-LVE delivers outstanding image quality and forensic details in 5 MP. Including a varifocal 9 mm lens for wide-area surveillance, it offers a field of view of 104 - 40 degrees. Thanks to Lightfinder 2.0 and Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. And, with OptimizedIR, you’ll enjoy sharp and clear footage in complete darkness up to 40 m (130 ft) without the need for extra lighting. Furthermore, Axis Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
Deep learning analytics on the edgeBased on ARTPEC-8, the latest Axis system-on-chip (SoC), this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before—on the edge. Thanks to AXIS Object Analytics, it offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
Versatile and high performanceThis easy-to-install dome camera is designed to blend into any environment. Featuring a varifocal lens with remote zoom and auto focus capabilities, it can be adapted for close-ups and overviews without the need for hands-on fine tuning. Featuring audio and I/O connectivity you can integrate peripheral equipment for instance a microphone to extend the value of your system. Furthermore, this robust, IK10-rated outdoor-ready camera is packed with built-in cybersecurity features to prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.
Download
P3267-LVE Datasheet
Axis P3265-LVE Dome Camera 9 MM, High-performance Fixed Dome 2MP Camera With Deep Learning Processing Unit (DLPU), 02328-001
Outdoor 2 MP dome with IR and deep learning
Excellent image quality in 2 MP
Lightfinder 2.0, Forensic WDR, and OptimizedIR
Analytics with deep learning
Built-in cybersecurity features
Available with wide or tele lens
Based on the latest Axis system-on-chip (SoC), AXIS P3265-LVE offers excellent image quality and advanced analytics based on deep learning on the edge. Packed with cybersecurity features, this unobtrusive fixed dome is ideal for versatile surveillance.
Excellent image qualityAXIS P3265-LVE delivers outstanding image quality and forensic details in 2 MP at up to 60 fps. It’s available in two variants with a choice of lenses. The 9 mm lens offers wide-area surveillance ideal for large open areas, and the 22 mm tele lens is ideal for surveillance from a distance generating accurate images needed for advanced analytics. Thanks to Lightfinder 2.0 and Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. Furthermore, with OptimizedIR, you’ll enjoy sharp and clear footage in complete darkness up to 40 m (130 ft) without the need for extra lighting.
Deep learning analytics on the edgeBased on ARTPEC-8, the latest Axis system-on-chip (SoC), this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before—on the edge. Thanks to AXIS Object Analytics, it offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
Versatile and high performanceThis easy-to-install dome camera is designed to blend into any environment. Featuring a varifocal lens with remote zoom and focus capabilities, it can be adapted for close-ups and overviews without the need for hands-on fine tuning. Featuring audio and I/O connectivity you can integrate peripheral equipment for instance a microphone to extend the value of your system. Furthermore, this robust, IK10-rated outdoor-ready camera is packed with built-in cybersecurity features to prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.
Download
P3265-LVE Datasheet
Axis P3265-LV Dome Camera, High-performance Fixed Dome Camera With Deep Learning Processing Unit (DLPU), 02327-001
The Axis Lightfinder P3265-LV Dome Camera offers outstanding image quality with its 2 MP resolution and deep learning processing unit. It features Lightfinder 2.0, Forensic WDR, and OptimizedIR for excellent low light performance and advanced analytics. This camera also comes with audio and I/O connectivity and built-in cybersecurity features, making it a versatile and secure surveillance option.
Features for Indoor 2 MP Dome Security Cameras with IR and deep learning
Excellent image quality in 2 MP
Lightfinder 2.0, Forensic WDR, and OptimizedIR
Analytics with deep learning
Audio and I/O connectivity
Built-in cybersecurity features
Based on the latest Axis system-on-chip (SoC), AXIS P3265-LV offers excellent image quality and advanced analytics based on deep learning on the edge. Packed with cybersecurity features, this unobtrusive fixed dome is ideal for versatile surveillance.
Excellent image quality
AXIS P3265-LV delivers outstanding image quality and forensic details in 2 MP. Including a varifocal 9 mm lens for wide-area surveillance, it offers a field of view of 100-36 degrees and up to 60 fps at full frame rate. Thanks to Lightfinder 2.0 and Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. And, with OptimizedIR, you’ll enjoy sharp and clear footage in complete darkness up to 40 m (130 ft) without the need for extra lighting. Furthermore, Axis Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
Deep learning analytics on the edge
Based on ARTPEC-8, the latest Axis system-on-chip (SoC), this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before—on the edge. Thanks to AXIS Object Analytics, it offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
Versatile and high performance
This easy-to-install dome camera is designed to blend into any environment. Featuring a varifocal lens with remote zoom and auto focus capabilities, it can be adapted for close-ups and overviews without the need for hands-on fine tuning. Featuring audio and I/O connectivity you can integrate peripheral equipment for instance a microphone to extend the value of your system. Furthermore, this powerful camera is packed with built-in cybersecurity features to prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.
Download
P3265-LV Datasheet
Axis P3265-V Dome Camera, High-performance Fixed Dome Camera With Deep Learning Processing Unit (DLPU), 02326-001
Indoor 2 MP dome with deep learning
Excellent image quality in 2 MP
Lightfinder 2.0 and Forensic WDR
Analytics with deep learning
Audio and I/O connectivity
Built-in cybersecurity features
Based on the latest Axis system-on-chip (SoC), AXIS P3265-V offers excellent image quality and advanced analytics based on deep learning on the edge. Packed with cybersecurity features, this unobtrusive fixed dome is ideal for versatile surveillance.
Excellent image qualityAXIS P3265-V delivers outstanding image quality and forensic details in 2 MP. Including a varifocal 9 mm lens for wide-area surveillance, it offers a field of view of 100-36 degrees and up to 60 fps at full frame rate. Thanks to Lightfinder 2.0 and Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. Furthermore, Axis Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
Deep learning analytics on the edgeBased on ARTPEC-8, the latest Axis system-on-chip (SoC), this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before—on the edge. Thanks to AXIS Object Analytics, it offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
Versatile and high performanceThis easy-to-install dome camera is designed to blend into any environment. Featuring a varifocal lens with remote zoom and auto focus capabilities, it can be adapted for close-ups and overviews without the need for hands-on fine tuning. Featuring audio and I/O connectivity you can integrate peripheral equipment for instance a microphone to extend the value of your system. Furthermore, this powerful camera is packed with built-in cybersecurity features to prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.
Download
P3265-V Datasheet
Axis Q3538-LVE Dome Camera, Q3538-LVE Advanced Fixed Dome Camera With Deep Learning Processing Unit (DLPU), 02225-001
Advanced 8 MP dome with deep learning
Superior image quality in 4K
Analytics with deep learning
IR-shielded dome to prevent reflections
Robust, metal casing
Built-in cybersecurity features
Built on ARTPEC-8, AXIS Q3538-LVE offers advanced features and powerful applications based on deep learning. This robust camera can withstand the harshest weather conditions and the most powerful impacts.
Outstanding image qualityAXIS Q3538-LVE offers outstanding image quality and forensic details in superior 4K resolution—even in the harshest weather and environments. Featuring OptimizedIR and an innovative IR-shielded dome, it prevents IR reflections from rain, and snow ensuring consistently clear, sharp images. With Lightfinder 2.0 and Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. And electronic image stabilization keeps the picture steady when the camera is subject to vibrations. Furthermore, Zipstream and support for H.264/H.265 reduces bandwidth and storage requirements, while preserving high image quality.
Powerful analytics capabilitiesBuilt on ARTPEC-8, this high-performance camera offers advanced analytics based on deep learning on the edge. Featuring a deep learning processing unit (DLPU), it eliminates the need for expensive servers and allows for a faster and more scalable system. Plus, it improves processing capabilities so you can collect and analyze even more data than before—on the edge. AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge available from Axis and our partners.
Robust and secure—inside and outEnclosed in a metal casing, this robust, IK10+-rated outdoor-ready camera is protected against redirection, defocusing, and impacts and can withstand temperatures as low as -50 °C and as high as 60 °C (-58 ºF to 140 ºF). Including sensors for intrusion and shock detection it’s also packed with built-in cybersecurity features to prevent unauthorized access and safeguard your system. This top-of-the-line camera offers easy installation, maintenance, and operation including flexible cable management and a built-in gyro sensor enabling leveling assistant and auto rotation. Furthermore, if there's a power outage, redundant power help ensure a reliable power supply to safeguard the system.
Download
Q3538-LVE Datasheet
Axis Q6315-LE PTZ Network Camera, High-end PTZ Camera With HDTV 1080p @50FPS, 1/2 Degree RGB Sensor, 31x Optical Speed Zoom and Laser Focus, 01924-006
AXIS Q6315-LE PTZ Network Camera High-end outdoor-ready HDTV 1080p PTZ camera with quick-zoom and laser focus
1/2" sensor with 31x optical zoom
IR illumination, D/N functionality
Autotracking 2, orientation aid and AXIS Object Analytics
Laser focus for precise focus with Quick-zoom <1sec
TPM, FIPS 140-2 level 2 certified
Ideal for city surveillance, AXIS Q6315-LE offers a ½” sensor and 31x optical zoom. It features laser focus for precise focus every time - even in the dark. And, Speed Dry functionality for crisp, clear images in rainy weather.
Super surveillance- day and night
AXIS Q6315-LE features very light-sensitive ½” inch sensor to deliver clear, bright images and better handling of shadows even in challenging light conditions. Including IR Illumination and D/N functionality, it’s perfect for surveillance in pitch darkness without the need for additional lighting. With 31x optical zoom, a built-in laser, and quick-zoom functionality, AXIS Q6315-LE allows you to easily follow fast-moving objects. Plus, it offers laser focus for precise focus– every time. It’s possible to mount this camera in AXIS Q6100-E allowing for continuous 360° rotation for total situational awareness. And, because it uses the same bracket, power supply, and network cable as AXIS Q6100 you get cost-efficient installation. Furthermore, Zipstream with support for H.264 and H.265 significantly lowers bandwidth and storage requirements without compromising image quality.
Built-in advanced analytics
This top-of-the-line camera contains all the functionality you need to track and identify suspect behavior. It offers autotracking 2 with click and track functionality for active object tracking. And an orientation aid enables dynamic text overlays with street names and a compass symbol for quick orientation. Where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Plus, with chameleon masking, it automatically changes the color in the masking depending on the background color of the image.
Keeping you secure
AXIS Q6315-LE includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified to ensure secure storage of all cryptographic keys and certificates. This IK10-rated vandal-resistant camera is protected against the ingress of dust and high pressure water jets from any direction (IP66 rating). It offers shock detection, which allows the camera to send an alarm when it has been hit. And, with support for fiber connection and PoE, it allows for cost-effective installation and long-distance connections.
AXIS Q6135-LE 50HZ 1080P PTZ, PTZ Camera With Continuous 360 Degree Pan and Built in IR Illumination With 32x Optical Zoom, 01958-006
AXIS Q6135-LE is a high-speed PTZ camera that offers OptimizedIR up to 250 m (820 ft) as well as Lightfinder 2.0 for clear, sharp overviews and excellent details in demanding light conditions. And, AXIS Object Analytics lets you detect and classify humans and vehicles. It's ideal for city surveillance in any unlit or low-light area - such as parks and alleys- eliminating the need for additional lighting.
See it all - anytime, anywhere
AXIS Q6135-LE is equipped with OptimizedIR with automatically adaptable IR LED illumination enabling surveillance in total darkness up to 250 m (820 ft) or more depending on the scene. Thanks to the sharpdome design it allows you to see 20° above the horizon with the same sharp image quality as below. It offers 32x optical zoom, superior video and excellent details in HDTV 1080p resolution. Featuring Lightfinder 2.0 this camera captures low-light images with more saturated colors and sharper images of moving objects. Furthermore, speed dry ensures clarity in rainy weather and supports efficient cleaning.
Whenever, wherever it's needed
This top-of-the-line camera contains all the functionality you need to track and identify suspect behavior. With AXIS Object Analytics, it allows you to detect and classify humans and vehicles, all tailored to your specific needs. It includes orientation aid with support for dynamic overlays for quick orientation. Autotracking 2 with click and track functionality allows for active object tracking. Furthermore, where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Additionally, Zipstream with support for H.264 and H.265 significantly lowers bandwidth and storage requirements without compromising image quality.
Keeping you secure
Thanks to the newest generation of Axis chip, AXIS Q6135-LE is packed with advanced security features to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed. And, if needed, secure bootguarantees the camera is completely free of malware after a factory default. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach.
Features
HDTV 1080p with 32x optical zoom
OptimizedIR (250 m/ 820 ft range)
Axis Lightfinder 2.0
Autotracking 2 and orientation aid
Axis Object Analytics
Downloads
Q6135-LE Datasheet
Axis P1375-E Network Camera, P1375-E Barebone, 01533-031
Stable, 2 MP surveillance for the great outdoors
HDTV 1080p at up to 60 fps
-40 °C to 60 °C (-40 °F to 140 °F)
Lightfinder 2.0
Robust and impact resistant design
Electronic image stabilization
DownloadDatasheet
Axis Q6100-E Network Camera, Outdoor-ready 360 Situational Awareness Camera, Comprising of 4x5MP Sensors, 01710-001
For 360° real-time monitoring and great detail
360° camera with one-click PTZ control
4 x 5 MP sensors, total 20 MP resolution
Exchangeable and tiltable lenses
Requires an AXIS Q61 Series or AXIS Q63 Series camera
Directional audio detection included
AXIS Q6100-E Network Camera is a multidirectional camera offering 20 MP resolution and 360° overview for total situational awareness. Designed for operation with any AXIS Q61 PTZ Network Camera, it captures high resolution overviews and details in one complete camera solution. It's ideal for city surveillance applications, for instance at street crossings or squares.
Total situational awareness- 24/7Do you want to monitor one cohesive video stream with the possibility to zoom in for detailed views in just one click? AXIS Q6100-E is specially designed for operation with any AXIS Q61 Series camera. It offers one-click PTZ control allowing you to move from great overviews to zoomed-in detailed views in just one mouse click. It includes directional audio detection which redirects the PTZ camera to the audio source whenever an audio incident is detected. Furthermore, it offers automatic PTZ tracking. When motion is detected in one of the four 5 MP sensors, the connected AXIS Q61 PTZ Network Camera will automatically track the object within the viewing area.AXIS Q6100E - mounted on wall outdoorGreat images to cover your areas of interestAXIS Q6100-E features four 5 MP sensors with a total of 20 MP resolution both day and night. This multidirectional camera also offers exchangeable lenses on each of the four sensors so you can easily change lens to ensure you capture the images you need. And, thanks to corridor format it delivers vertically oriented video streams that maximize coverage of areas such as along alleys and long streets. Furthermore, Axis Zipstream with support for H.264/H.265 significantly lowers bandwidth and storage requirements without compromising image quality.Easy, cost-efficient installationUsing the same bracket, power supply and network cable as the connected AXIS Q61 PTZ Network Camera, there's no extra equipment required for AXIS Q6100-E. Additionally, with autofocus and positioning calibration you get maximum flexibility and accurate configuration which saves time during setup. Just add the PTZ camera and you're ready to capture great overviews and details in one complete camera solution.
Downloads
Q6100-E Datasheet
Discontinued. Please see M3125-LVE.
Axis M3115-LVE Network Camera, M3115-LVE is a Compact Mini Dome in a Flat-faced, Outdoor-ready, IK08 Impact-resistant Design With Built-in IR Illumination, 01604-001
Affordable flat-faced 1080p dome with IR
HDTV 1080p video quality
Forensic WDR, Lightfinder and IR illumination
Zipstream supporting H.264 and H.265
Signed firmware and secure boot
Flat-faced design suppressing light reflections
AXIS M3115-LVE is an affordable, flat-faced dome that offers HDTV 1080p video and an excellent wide-angle view. This compact and discreet camera includes IR illumination for sharp video even in challenging light or complete darkness. It’s ideal for surveillance in a wide range of locations, including hotels, restaurants, retail stores, and offices.
Smooth, sharp videoAXIS M3115-LVE offers excellent HDTV 1080p resolution at up to 30 fps to deliver clear, sharp video of moving objects. It features Axis Forensic WDR which preserves forensic detail when there are both light and dark areas in a scene. And Axis Lightfinder technology for increased light sensitivity and clear colors in low light. It’s perfect for monitoring inside and outside of various premises where there’s often poor light conditions.
Light up the nightThis flat-faced dome is designed to suppress light reflections and deliver excellent image quality and usability. It offers a wide-angle view of 105°, and with built-in IR illumination you’ll enjoy clear, reflection-free footage in low light or complete darkness and vibrant colors during the day. So, there’s no need for extra lighting- you get unobtrusive surveillance both day and night.
Fits in anywhereAXIS M3115-LVE offers flexible and reliable installation. It’s suitable for both indoor and outdoor surveillance and can be mounted on walls or ceilings. Kits are also available for mounting on pendants or on junction boxes. And, with a 3-axis camera angle adjustment, this compact and discreet flat-faced dome can be easily leveled and directed. Furthermore, the impact-resistant, IK08-rated casing can be re-painted in any color to blend in with specific surroundings.It offers enhanced security features to prevent unauthorized access and safeguard your system. And, Axis Zipstream technology with support for both H.264 and H.265 video compression significantly reduces bandwidth and storage requirements. Furthermore, thanks to edge storage you can record directly to an onboard memory card, helping reduce installation and maintenance costs.
DownloadDatasheet
Dahua Security Camera 4MP Wide Angle Fixed Bullet WizSense Network Camera DH-IPC-HFW3466T-AS-P
Features
4MP 1/2.7'' CMOS starlight-grade image sensor, low luminance, and high definition image.
Outputs 4 MP (2688 x 1520) @25/30 fps , and supports max. 5 MP (2880 x 1620) @20 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, and the max. illumination distance is 20 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in MIC.
12 VDC/PoE power supply.
IP67 protection.
EPTZ: Enlarge and track the targets of intelligent alarms.
SMD 3.0.
Specifications
NETWORK CAMERA
MEGAPIXELS
4MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
WIZSENSE SERIES
POE
POE
Downloads
DH-IPC-HFW3466T-AS-P DatasheetBullet Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4Dahua Bullet Network Camera_Quick Start Guide_V1.0.3
TP-Link VIGI C400HP-4 3MP Turret Network Camera, 2.8mm Lens, Smart Detection, Smart IR, WDR, 3D NDR, Night Vision, H.265+, PoE/12V DCVIGI 3MP Turret Network Camera• 3MP Ultra-High Definition: The VIGI C400 camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.• 2.8/4mm Lens: Whether you need a wide angle lens to cover enclosed spaces or a higher millimetre lens for longer distances in open spaces, C400 comes with two different lens versions to better suit your security needs.• Smart Detection (motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.• Smart IR: Keeps objects from being under-rendered when far away or overexposed when close to camera at night.• WDR: Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.• 3D DNR: Removes abnormal pixelation to provide clearer video and eliminate distortion.• Night Vision: A robust night vision system ensures your camera performs well in low light conditions and records what's happening for future inspection.• H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.• PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy.• VIGI App: Manage your security from the palm of your hand with the VIGI app.Mounting Kit Included
TP-Link VIGI C400HP-2.8 3MP Turret Network Camera, 2.8mm Lens, Smart Detection, Smart IR, WDR, 3D NDR, Night Vision, H.265+, PoE/12V DCVIGI 3MP Turret Network Camera• 3MP Ultra-High Definition: The VIGI C400 camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.• 2.8/4mm Lens: Whether you need a wide angle lens to cover enclosed spaces or a higher millimetre lens for longer distances in open spaces, C400 comes with two different lens versions to better suit your security needs.• Smart Detection (motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.• Smart IR: Keeps objects from being under-rendered when far away or overexposed when close to camera at night.• WDR: Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.• 3D DNR: Removes abnormal pixelation to provide clearer video and eliminate distortion.• Night Vision: A robust night vision system ensures your camera performs well in low light conditions and records what's happening for future inspection.• H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.• PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy.• VIGI App: Manage your security from the palm of your hand with the VIGI app.Mounting Kit Included
Dahua WizMind DH-PSDW8842ML-A180-D237 Panoramic + PTZ Camera
The DH-PSDW8842ML-A180-D237 is an all-in-one surveillance powerhouse from the Dahua WizMind series. It combines a four-sensor 180° panoramic module with a high-speed, 37x optical zoom PTZ camera. This unique design allows for total situational awareness while simultaneously capturing high-resolution forensic details through manual or automatic tracking[cite: 174, 176, 195].
Key Features
180° Panoramic View: Four 2MP CMOS sensors work in tandem to provide a seamless 180° wide-area overview[cite: 178, 180, 196].
Integrated High-Speed PTZ: Features a dedicated 2MP PTZ module with a powerful 37x optical zoom (5.62mm–208mm) for capturing distant details with clarity[cite: 179, 216].
Starlight Technology: Specifically engineered for challenging low-light environments, delivering usable color imagery in near-complete darkness[cite: 181, 203, 206].
AI Smart Tracking: Supports manual tracking and automatic tracking of multiple targets once tripwire or intrusion rules are triggered[cite: 185, 198, 210].
Long-Range IR Illumination: The PTZ module is equipped with infrared LEDs capable of reaching up to 220 meters (721.78 ft)[cite: 184, 216].
Active Monitoring Port: Includes 7 alarm inputs and 3 alarm outputs, alongside 2-channel audio inputs and outputs for comprehensive system integration[cite: 295, 297, 299, 302].
Technical Specifications
Panoramic Sensor
Four 1/1.8" 2MP Progressive Scan CMOS [cite: 178]
PTZ Sensor
One 1/1.8" 2MP Progressive Scan CMOS [cite: 179]
Max. Resolution
Panoramic: 4096 x 1800 | PTZ: 1920 x 1080
Optical Zoom
37x (5.62 mm–208 mm)
Video Compression
Smart H.265+ / H.264+ [cite: 182]
Power Supply
DC 36V (Max Consumption: 67.9W) [cite: 308, 309]
Ingress Protection
IP66 [cite: 317]
More Information
Download the official documentation for the DH-PSDW8842ML-A180-D237:
Download Technical Data Sheet
Dahua Multi-Sensor Panoramic Network and PTZ Camera_QSG_V1.0.1
Dimension of DH-PSDW8842ML-A180-D237
Multi-sensor Panoramic Network Camera Installation Guide_V1.0.0
Dahua Network Camera Web 3.0_Operation Manual_V2.0.8
System Requirement: Designed for integration with Dahua EVS, NVR5X, and DSS management platforms[cite: 222].
Dahua 4 x 2MP Multi-Sensor Panoramic IR H.265 Dome, Support 180-degree, ICR, WDR, IR 30 meter, Micro SD, IP67, IK10, PoE+
The Dahua 4 x 2MP Multi-Sensor Panoramic IR Dome camera delivers comprehensive 180-degree coverage using four 2MP progressive scan CMOS sensors. Featuring H.265 triple-stream encoding, 30m IR range, and advanced imaging technologies like ICR day/night mode, WDR, 3DNR, and smart detection, it ensures clear surveillance in varied lighting conditions. Built for durability with IP67 weather resistance and IK10 vandal protection, plus convenient PoE+ and micro SD support, this dome is ideal for professional-grade, panoramic security applications.
Features
Four 1/1.8'' 2Megapixel progressive scan CMOS
H.265/H.264 triple-stream encoding
Max 25fps@4096x1800
Support 180-degree panoramic view
Day/Night(ICR), 3DNR, AWB, AGC, BLC ,WDR
Smart detection
Intelligent Function
Max. IR LEDs length 30m
Micro SD memory, IP67, IK10,PoE+
Specifications
Network Security Camera
Megapixels
2 megapixel x 4
Camera Style
Dome
Colour
White
Lens Type
Fixed
Technology
Panoramic Series
Connection
PoE+
Downloads
DH-IPC-PDBW8802P-H-A180-E4-AC24V DatasheetQuick Start Guide of DH-IPC-PDBW8802P-H-A180-E4-AC24VOperation Manual of DH-IPC-PDBW8802P-H-A180-E4-AC24V
Dahua 2MP Starlight Ultra HDSDI/CVI/CVBS IR Dome, WDR, ICR, Motorised 2.7~12mm, IR 50m, AC24V/DC12V, IK10, IP67
Starlight, 120dB true WDR, 3DNR
Max 30fps@1080P
HD, SD & SDI tri-output
2.7-12mm motorised lens
Max. IR length 50m, Smart IR
IP67, IK10, AC24V/DC12V
Specifications
HD-CAMERA
MEGAPIXELS
2MP
CAMERA STYLE
Dome
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
HDSDI
POWER
AC 24V / DC 12V
Downloads
HAC-HDBW3231E-ZT DatasheetHAC-HDBW3231E-ZT User Manual
Dahua 3 x 2MP Multi-Sensor Network H.265 PTZ Camera, Support 360-degree panoramic view, ICR, IR 15m, Micro SD, up to 256GB, PoE+
Panoramic: Three 1/2.7'' 2Megapixel progressive scan CMOS
PTZ: 1/2.7'' 2 Megapixel progressive scan CMOS
H.265/H.264 dual-stream encoding
25fps@1920x1080
Support 360-degree no-splicing panoramic view
Day/Night(ICR), 3DNR, AWB, AGC, BLC
Max IR LEDs Length 15m
Micro SD card slot, up to 256GB
PoE+
Specifications
NETWORK CAMERA
Megapixels
2 megapixel x 3
Camera Style
PTZ
Colour
White
Lens Type
Motorised
Technology
Panoramic Series
Connection
PoE+
Downloads
DH-IPC-PSDW5631S-B360 DatasheetQuick Start Guide of DH-IPC-PSDW5631S-B360Operation Manual of DH-IPC-PSDW5631S-B360
Dahua 2MP Starlight PTZ HDCVI 25X Optical, WDR, ICR, Motorised 4.8~120mm, IR 100m, DC12V, IP66, wall mount bracket included
1/2.8'' 2 Megapixel STARVIS? CMOS
Powerful 25x optical zoom
Starlight technology
120 dB true WDR, 3D DNR
Max. 25/30 fps@1080P, 25/30/50/60 fps@720P
IR distance up to 100 m
IP66
Specifications
HD-CAMERA
MEGAPIXELS
2MP
CAMERA STYLE
PTZ
COLOUR
WHITE
LENS TYPE
MOTORISED
TECHNOLOGY
HDCVI
POWER
DC 12V/3A
Downloads
DH-SD49225-HC-LA1 DatasheetInstallation Guide_V1.0.1Network Speed Dome & PTZ Camera Installation Manual_V1.0.0HDCVI_Speed_Dome&PTZ_Camera_User's_Manual_V1.0.0
Uniarch Network PTZ Camera, 4MP resolution with 25X optical zoom, smart intrusion prevention, LightHunter, Min. illumination 0.003Lux, support 256 GB Micro SD card, Smart IR, up to 100M IR distance, IP67, IK10 and 6KV surge prevention, alarm 2 in and 1 out, audio 1 in and 1 out
Optional: Wall mount TR-WE45-IN
High quality image with 4MP, 1/2.8''CMOS sensor
2688*1520@30fps in the main stream
Ultra 265, H.265, H.264, MJPEG
Triple streams
25X Optical Zoom
Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
LightHunter technology ensures ultra-high image quality in low illumination environment
Smart IR, up to 100m (328ft) IR distance
DC 12V or PoE+ (IEEE 802.3at)
Alarm 2 in and 1 out, Audio 1 in and 1 out
IP67 ingress protection
IK10 vandal resistant
Wall mount bracket TR-WE45-IN required (optional)
Specifications
NETWORK CAMERA
MEGAPIXELS
4MP
CAMERA STYLE
PTZ
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
Uniarch PTZ
POE
POE
Downloads
Uniarch IPC-P4P4-X25 4MP 25x LightHunter Network PTZ Dome Camera Datasheet V1.0Uniarch-Network PTZ Dome Cameras Quick Guide-V1.02-ENUniarch-Outdoor Network PTZ Dome Cameras_ Quick Guide-V1.02-ENUniarch Network Camera User Manual-V1.00
Uniarch Tri-guard 8MP Turret, Min. illumination 0.003lux, Smart Intrusion Prevention (SIP) , ColorHunter and Active Deterrence into one IP camera, 2.8mm fixed lens, 30M IR, 120dB WDR, support 256 GB Micro SD card, Built-in-Mic & Speaker, IP67
Optional: Junction box TR-JB03-G-IN, Wall mount TR-WM03-D-IN
High quality image with 8MP, 1/2.8''CMOS sensor
8MP(3840*2160)@20fps; 5MP(3072*1728)@30/25fps; 4MP(2560*1440)@30/25fps; 2MP(1920*1080)@30/25fps
Ultra 265, H.265, H.264, MJPEG
Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
Supports sound and light alarm linkage. When Smart intrusion prevention is triggered, the camera links sound alarm and light linkage.
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic and Speaker
Smart IR, up to 30m (98ft) IR distance
Supports 256 G Micro SD card
IP67 protection
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Turret
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
Uniarch TRI-Guard
POE
POE
Downloads
Uniarch IPC-T1P8-AF28KC 8MP HD Intelligent Light and Audible Warning Fixed_ Eyeball Network Camera V1.0
Uniarch-IPC-Network Eyeball Cameras Quick Guide-V2.01
Uniarch Network Camera User Manual-V1.00
Uniarch Tri-guard 8MP Bullet, Min. illumination 0.01lux, Smart Intrusion Prevention (SIP) , ColorHunter and Active Deterrence into one IP camera, 2.8mm fixed lens, 30M IR, 120dB WDR, support 256 GB Micro SD card, Built-in-Mic& Speaker, IP67
Optional: Junction box TR-JB0S-B-IN, Pole mount TR-UP06-C-IN
High quality image with 8MP, 1/2.7''CMOS sensor
8MP(3840*2160)@20fps; 5MP(3072*1728)@30/25fps; 4MP(2560*1440)@30/25fps; 2MP(1920*1080)@30/25fps
Ultra 265, H.265, H.264, MJPEG
Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
Supports sound and light alarm linkage. When Smart intrusion prevention is triggered, the camera links sound alarm and light linkage.
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Built-in Speaker
Smart IR, up to 30m (98ft) IR distance
Supports 256 G Micro SD card
IP67 protection
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
Uniarch TRI-Guard
POE
POE
Downloads
Uniarch IPC-B1P8-AF28KC 8MP HD Intelligent Light and Audible Warning Fixed_ Bullet Network CameraV0.1Uniarch Network Camera User Manual-V1.00
Uniarch 8MP Starlight Fixed Turret Network Camera Black, Min. illumination 0.005lux, human body detection, powered by StarLight technology, 2.8mm fixed lens, 30M IR, 120dB WDR, support 256 GB Micro SD card, Built-in-Mic, IP67
Optional: Junction box TR-JB03-G-IN- BLACK, Wall mount TR-WM03-D-IN- BLACK
High quality image with 8MP, 1/2.7''CMOS sensor
8MP(3840*2160)@20fps; 5MP(3072*1728)@30/25fps; 4MP(2560*1440)@30/25fps; 2MP(1920*1080)@30/25fps
Ultra 265, H.265, H.264, MJPEG
Easystar technology ensures high image quality in low illumination environment
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Smart IR, up to 30m (98ft) IR distance
Supports 256 G Micro SD card
IP67 protection
Support PoE power supply
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Turret
COLOUR
Black
LENS TYPE
Fixed
TECHNOLOGY
Uniarch Starlight
POE
POE
Downloads
Uniarch IPC-T1E8-AF28K-B 4K HD Fixed Turret Network Camera Datasheet V1.1Uniarch-IPC-Network Eyeball Cameras Quick Guide-V2.01Uniarch Network Camera User Manual-V1.00
Dahua 4 x 2 Megapixel Multi-Sensor Panoramic H.265 IR Bullet, Support 180-degree, ICR, WDR, IR 30m, Micro SD, IP67, IK10, PoE+
The Dahua 4 x 2 Megapixel Multi-Sensor Panoramic H.265 IR Bullet Camera offers a comprehensive 180-degree panoramic view through four 2MP sensors, providing detailed coverage with high-resolution imaging. Equipped with H.265 triple-stream encoding and advanced features like ICR day/night mode, WDR, and smart detection, it ensures reliable performance in varied lighting conditions. Built for durability with IP67 and IK10 ratings, plus PoE+ support for simplified installation, it features IR illumination up to 30 meters and Micro SD storage for flexible recording options—ideal for professional surveillance applications requiring wide-area monitoring.
Features
Four 1/1.9'' 2Megapixel progressive scan CMOS
H.265/H.264 triple-stream encoding
Support 180-degree panoramic view
Day/Night(ICR), 3DNR, AWB, AGC, BLC, WDR
Smart detection
Intelligent Function
Max. IR LEDs length 30m
Micro SD memory, IP67, IK10,PoE+
Specifications
Netwrok Security Camera
Megapixels
2 megapixel x 4
Camera Style
Bullet
Colour
White
Lens Type
Fixed
Technology
Panoramic Series
Connection
PoE+
Downloads
DH-IPC-PFW8802P-H-A180-E4-AC24V DatasheetQuick Start Guide of DH-IPC-PFW8802P-H-A180-E4-AC24VOperation Manual of DH-IPC-PFW8802P-H-A180-E4-AC24V
Dahua 5MP Starlight Pro HDCVI IR Eyeball, WDR, ICR, Motorised 2.7~13.5mm, IR 60m, DC12V, IP67* The parameters and data sheet below can only be applied to 2501-S2 series.* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
Starlight, 120dB true WDR, 3DNR · Max. 20fps@5MP
HD/SD output switchable
Audio in interface, built-in mic
2.7-13.5mm motorized lens
Max. IR length 60m, Smart IR · IP67, DC12V±30%
Specifications
HD-CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Turret
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
HDCVI
POWER
DC 12V
Downloads
HDW2501TP-Z-A DatasheetHDW2501TP-Z-A User Manual
DAHUA 4K 40x Starlight+ IR WizMind Network PTZ Camera DH-SD8A840WA-HNF
Professional-grade 8MP PTZ camera engineered for demanding surveillance applications. Features a 1/1.8" STARVIS CMOS sensor paired with 40x optical zoom for exceptional detail across expansive areas. Starlight+ technology delivers superior low-light performance, while infrared illumination extends visibility to 500 metres. WizMind intelligence enables face recognition, autonomous tracking, and perimeter protection through deep learning algorithms. Hi-PoE power delivery simplifies installation, and IP67 rating ensures durability in harsh outdoor conditions. Integrated smart wiper maintains optical clarity. Ideal for large-scale security deployments requiring precision monitoring and intelligent video analytics.
Features
1/1.8'' 8Megapixel STARVIS CMOS
Powerful 40x optical zoom
Starlight+ technology
IR distance up to 500m
Support face recognition
Deep-learning-based auto tracking and perimeter protection
Support metadata
Support Hi-PoE
Smart wiper
IP67
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
PTZ
COLOUR
White
LENS TYPE
Motorized
TECHNOLOGY
PTZ SERIES
POE
Hi-POE
Downloads
Datasheet of DH-SD8A840WA-HNF
Installation Manual of DH-SD8A840WA-HNF
Operation Manual of DH-SD8A840WA-HNF
Dahua 4MP IP WDR IR Corner Network Camera, 2.5mm,ICR,IVS,IP67,POE,IR 10m
This compact corner-mount network camera delivers professional-grade surveillance with 4MP resolution and advanced imaging capabilities. The 1/1.8" progressive scan CMOS sensor captures crisp detail at 25/30 fps, while dual H.265 and H.264 encoding optimises bandwidth and storage efficiency. Wide Dynamic Range (140 dB) and ICR day/night switching ensure clear footage in challenging lighting conditions, complemented by 3D DNR and intelligent exposure controls. The fixed 2.5mm lens provides wide-angle coverage with distortion correction for accurate monitoring. Infrared illumination extends visibility up to 10 metres in complete darkness. Built for durability, this camera features IP67 weatherproofing and IK10+50J impact resistance, making it suitable for demanding indoor and outdoor installations. ePOE power delivery simplifies deployment, while comprehensive I/O connectivity supports alarms and audio integration.
Features
1/1.8'' 4 Megapixel progressive scan CMOS
H.265 & H.264 triple-stream encoding
25/30 fps@2688x1520
WDR (140 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
2.5 mm fixed lens, distortion correction
1/1 Alarm in/out, 1/1 audio in/out
Max. IR LEDs Length 10 m
IP67 and IK10+50J protection
Specifications
NETWORK CAMERA
MEGAPIXELS
4MP
CAMERA STYLE
Corner
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
SPECIAL SERIES
POE
ePOE
Downloads
Datasheet of DH-IPC-HCBW8442P-0250B
Quick Start Guide of DH-IPC-HCBW8442P-0250B
Installation Guide of DH-IPC-HCBW8442P-0250B
Dimension of DH-IPC-HCBW8442P-0250B
Dahua 8MP 4K IR Dome WizMind Motorised AI Network Camera, 2.7-12mm, 8MP, WDR, Micro SD, IR IP67, ePoE
8MP, 1/1.8'' CMOS image sensor, low illuminance, high image definition
Max outputs 8MP (3840x2160) @ 25 fps/30 fps
H.264&H.265 coding, high compression ration
Wide dynamic, day/night, 3D NR, AWB, HLC, BLC
ROI, SVC, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
With deep learning algorithm, it supports people counting, face detec tion, perimeter protection etc
Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; BNC; supports max. 256 G SD card, built-in ports, without cables
24V AC/12V DC/PoE power supply
Three streams for two-channel HD video
IP67, IK10 protection grade
12V DC power output, max. current 165mA , easy for installation
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Dome
COLOUR
White
LENS TYPE
Motorized
TECHNOLOGY
WIZMIND SERIES
POE
ePOE
Downloads
Datasheet of DH-IPC-HDBW5842HP-ZHE-2712F
Quick Start Guide of DH-IPC-HDBW5842HP-ZHE-2712F
Operation Manual of DH-IPC-HDBW5842HP-ZHE-2712F WEB5
Operation Manual of DH-IPC-HDBW5842HP-ZHE-2712F WEB3
Installation Guide of DH-IPC-HDBW5842HP-ZHE-2712F
Uniarch 6MP Starlight Fixed Vandal- resistant Dome Network Camera, Min. illumination 0.003lux, human body detection, powered by StarLight technology, 2.8mm fixed lens, 30M IR, 120dB WDR, support 256 GB Micro SD card, Built-in-Mic, IP67&IK10
Optional: Junction box TR-JB03-G-IN, Wall mount TR-WM03-D-IN
High quality image with 6MP, 1/2.7''CMOS sensor
6MP(3072*2048@20fps; 5MP(2880*1620)@25/20fps; 4MP(2560*1440)@30/25fps; 3MP(2304*1296)@30/25fps;
2MP(1920*1080)@30/25fps
Ultra 265, H.265, H.264, MJPEG
Easystar technology ensures high image quality in low illumination environment
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Smart IR, up to 30m (98ft) IR distance
Supports 256 G Micro SD card
IK10 vandal resistant
IP67 protection
Support PoE power supply
3-Axis
Specifications
NETWORK CAMERA
MEGAPIXELS
6MP
CAMERA STYLE
Dome
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
Uniarch Starlight
POE
POE
Downloads
Uniarch IPC-D1E6-AF28K 6MP Vandal-resistant Network IR Fixed Dome Camera Datasheet V1.1Uniarch-IPC-Network Fixed Dome Cameras Quick Guide-V1.01Uniarch Network Camera User Manual-V1.00
Uniarch 8MP Starlight Fixed Vandal- resistant Dome Network Camera, Min. illumination 0.005lux, human body detection, powered by StarLight technology, 2.8mm fixed lens, 30M IR, 120dB WDR, support 256 GB Micro SD card, Built-in-Mic, IP67&IK10
Optional: Junction box TR-JB03-G-IN, Wall mount TR-WM03-D-IN
High quality image with 8MP, 1/2.7''CMOS sensor
8MP(3840*2160)@20fps; 5MP(3072*1728)@30/25fps; 4MP(2560*1440)@30/25fps; 2MP(1920*1080)@30/25fps
Ultra 265, H.265, H.264, MJPEG
Easystar technology ensures high image quality in low illumination environment
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Smart IR, up to 30m (98ft) IR distance
Supports 256 G Micro SD card
IK10 vandal resistant
IP67 protection
Support PoE power supply
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Dome
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
Uniarch Starlight
POE
POE
Downloads
Uniarch IPC-D1E8-AF28K 4K Vandal-resistant Network IR Fixed Dome Camera Datasheet V1.1Uniarch-IPC-Network Fixed Dome Cameras Quick Guide-V1.01Uniarch Network Camera User Manual-V1.00
